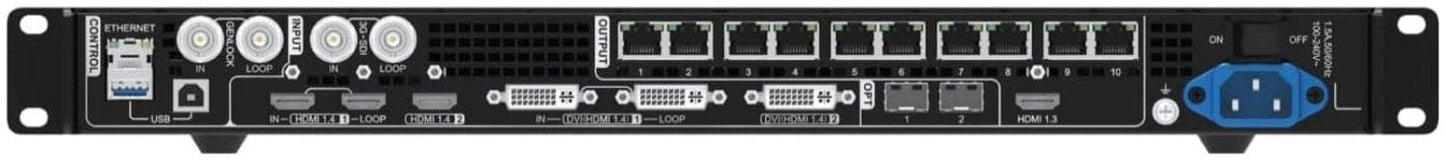

ADJ American DJ NOVASTAR-VX1000 Novastar All-In-One Processor/Video Controller
The NOVASTAR VX1000 is an all-in-one video processor and controller from NovaStar, designed for professional stage control and fine-pitch LED display applications. It supports a wide range of input/output connections and can handle up to 6.5 million pixels. With advanced processing capabilities, low latency, and powerful synchronization features, the VX1000 is ideal for medium to high-end rental and permanent installations.
Features:
- All-in-one video processing and control system
- Supports up to 6.5 million pixels
- Low latency with 20-line delay
- Multi-layer image control with adjustable size and priority
- Sync across multiple units via Genlock or internal sync
- Supports up to 4 cascaded units for image mosaic
- Multiple hot backup options for Ethernet ports and input sources
- Comprehensive color adjustment with pixel-level brightness and chroma calibration
- 3D functionality with compatible 3D emitters and glasses
Specifications:
- Input connectors: 1x HDMI 1.4 (IN & LOOP), 1x DVI (IN & LOOP), 1x 3G-SDI (IN & LOOP), 1x 10G optical fiber port (OPT1)
- Output connectors: 10x Gigabit Ethernet ports (up to 6.5 million pixels), 2x Fiber outputs (OPT 1 copies Ethernet output, OPT 2 copies or backs up), 1x HDMI 1.3 for monitoring or video output
- Self-adaptive OPT 1 port (can function as input or output)
- Audio input via HDMI and output via multifunction card
- One-click full screen display
- Up to 10 user-defined presets
- Physical dimensions: 19.04" x 13.83" x 1.98" (483.6 × 351.2 × 50.1 mm)
- Net weight: 8.82 lbs (4 kg)
- Electrical parameters: 100-240V~, 1.5A, 50/60Hz
- Input connectors: 1x HDMI 1.4 (IN & LOOP), 1x DVI (IN & LOOP), 1x 3G-SDI (IN & LOOP), 1x 10G optical fiber port (OPT1)
- Output connectors: 10x Gigabit Ethernet ports (up to 6.5 million pixels), 2x Fiber outputs (OPT 1 copies Ethernet output, OPT 2 copies or backs up), 1x HDMI 1.3 for monitoring or video output
- Self-adaptive OPT 1 port (can function as input or output)
- Audio input via HDMI and output via multifunction card
- One-click full screen display
- Up to 10 user-defined presets
- Physical dimensions: 19.04" x 13.83" x 1.98" (483.6 × 351.2 × 50.1 mm)
- Net weight: 8.82 lbs (4 kg)
- Electrical parameters: 100-240V~, 1.5A, 50/60Hz
