ADJ American DJ ELE080 ElectraPix Bar 8 IP65 LED RGBAL Bar with Wired Digital Communication Network

The ADJ Lighting ElectraPix Bar 8 is a cutting-edge IP65-rated, battery powered, wireless DMX .5-meter linear fixture. It features eight 20-Watt Hex Color LED (RGBAL+UV), Aria X2 wireless DMX and has a battery life up to 20 hours.

Features:

• 8 Pixel, Hex Color LED (RGBAL+UV) LED Bar
• Battery or Wall Powered
• Up to 20 Hour Battery Operation
• Battery Operation (Menu Option)
• Individual Pixel Control
• Built-In Foreground LED Programs
• Built-In Background LED Programs
• Variable White Color Temperature Control (2,300K ~ 9,900K)
• English & Spanish User Menu
• Built-In Alarm
• Color Calibrated LED's
• User Selectable LED Refresh Rates (900Hz ~ 25K)
• 6 User Selectable Dim Modes
• 4 User Selectable Dim Curves
• Electronic Strobe (0.3Hz ~ 11Hz)
• Electronic Dimming
• Attach up to four (4) ElectraPix Bar 8 to the Accu Stand VFB1 vertical floor base

Specifications:

• Source:
  • (8) 20W Hex Color RGBAL+UV Foreground LED's
  • (32) 0.2W RGB Background LED's
  • 50,000 Hour Average Life
• Optical:
  • 2,300K ~ 9,900K White Color Temperature Range
  • 17° Beam Angle
  • 45mm Lens Diameter x8
• Physical:
  • IP65 Housing
  • OLED Digital display
  • L Track system for locking accessories / rigging
  • Glare Shield
  • Diffusion Filter slot
  • Angle adjustable feet
  • Horizontal slide lock to attach additional ElectraPix Bar 8 or ElectraPix Bar 16
• Control:
  • DMX512
  • Aria X2 Wireless Management / DMX System
  • Bluetooth
  • RDM and RDM Net Compatible
  • IR (Includes UCIR24 wireless remote)
  • (9) DMX Channel Modes (5, 6, 9, 13, 22, 24, 48, 52 & 66 Channel modes)
  • On-board Manual Control Mode
  • Primary / Secondary Mode

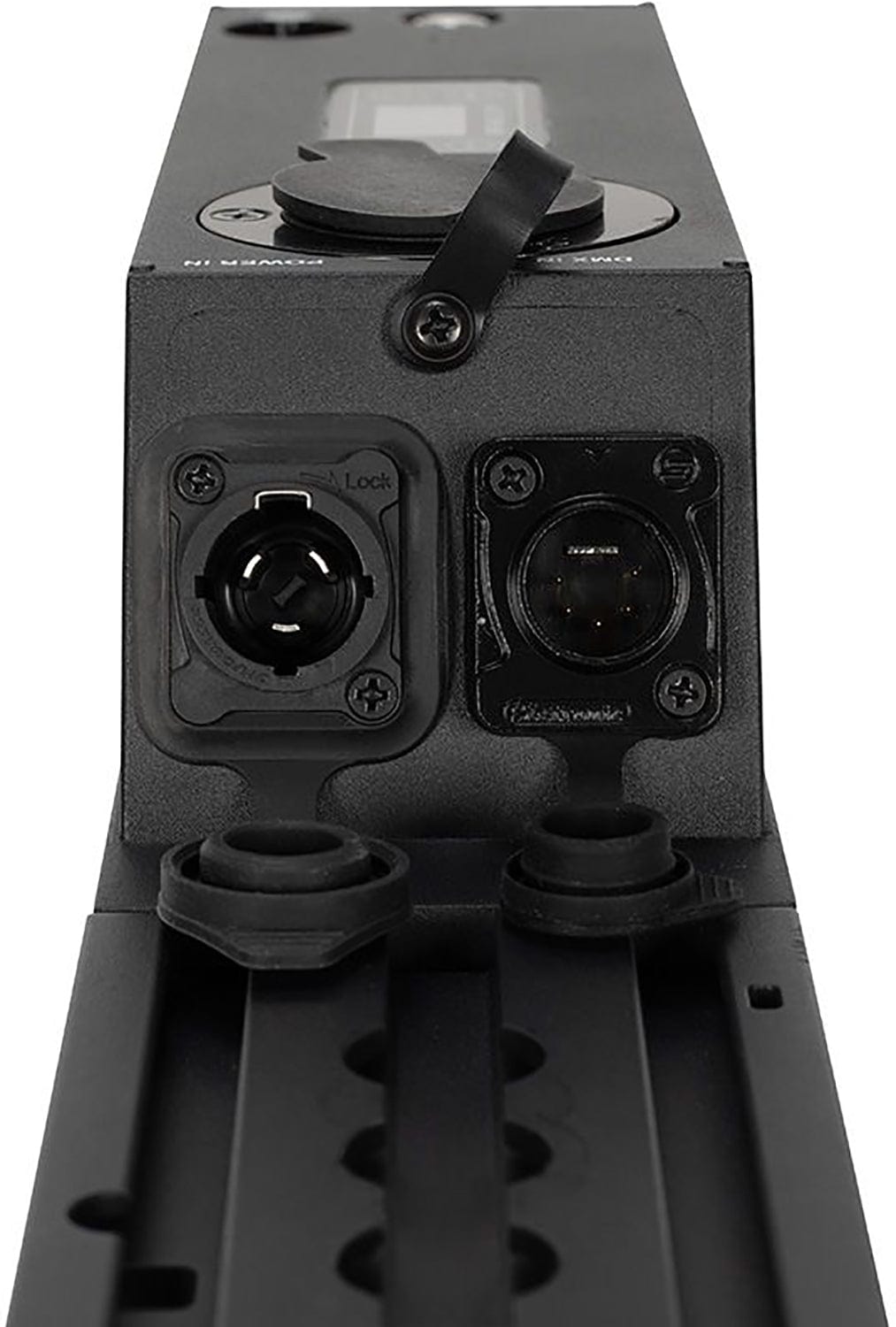

• Connections:
  • 5pin XLR Outdoor DMX In/Out Sockets (Must be used with STRxxx, 5pin DMX cables to create IP65 seal)
  • Outdoor Locking Power Sockets
  • Battery Charging Socket
• Dimensions & Weight:
  • Length: 3.7” (94.5mm) Width: 23.1” (586.7mm) Height: 10.6” (268.7mm)
  • Weight: 16.1 lbs. (7.3 kg)
• Power:
  • AC100-240V/50Hz-60Hz Input
  • 60W Power Consumption
  • Link 15 pieces @120VAC or 28 pieces @ 230VAC
• Battery:
  • Rechargeable Lithium ion
  • Battery Capacity: 7,000mAh
  • Battery Voltage: 22.2V
  • Charge Time, AC Power: 5 Hours (To Full)
  • Charge Time, Flight Case: 5 Hours (To Full)
  • Up to 20 Hour Battery Operation
  • Battery Cycles: 500
• Thermal:
  • Ambient Operational Temperature: -4°F to 113°F (-20°C to 45°C)
  • Storage Temperature: -22°F to 113°F (-30°C to 45°C)
• Certifications & IP Rating:
  • CE
  • cETLus (Pending)
  • FCC
  • IP65
