A.C. Lighting NOVAWDMXTX/MOONLIGHTWDMX Wireless DMX Transmitter/Transceiver Combo Pack

A.C. Lighting NOVAWDMXTX/MOONLIGHTWDMX Wireless DMX Transmitter/Transceiver Combo Pack

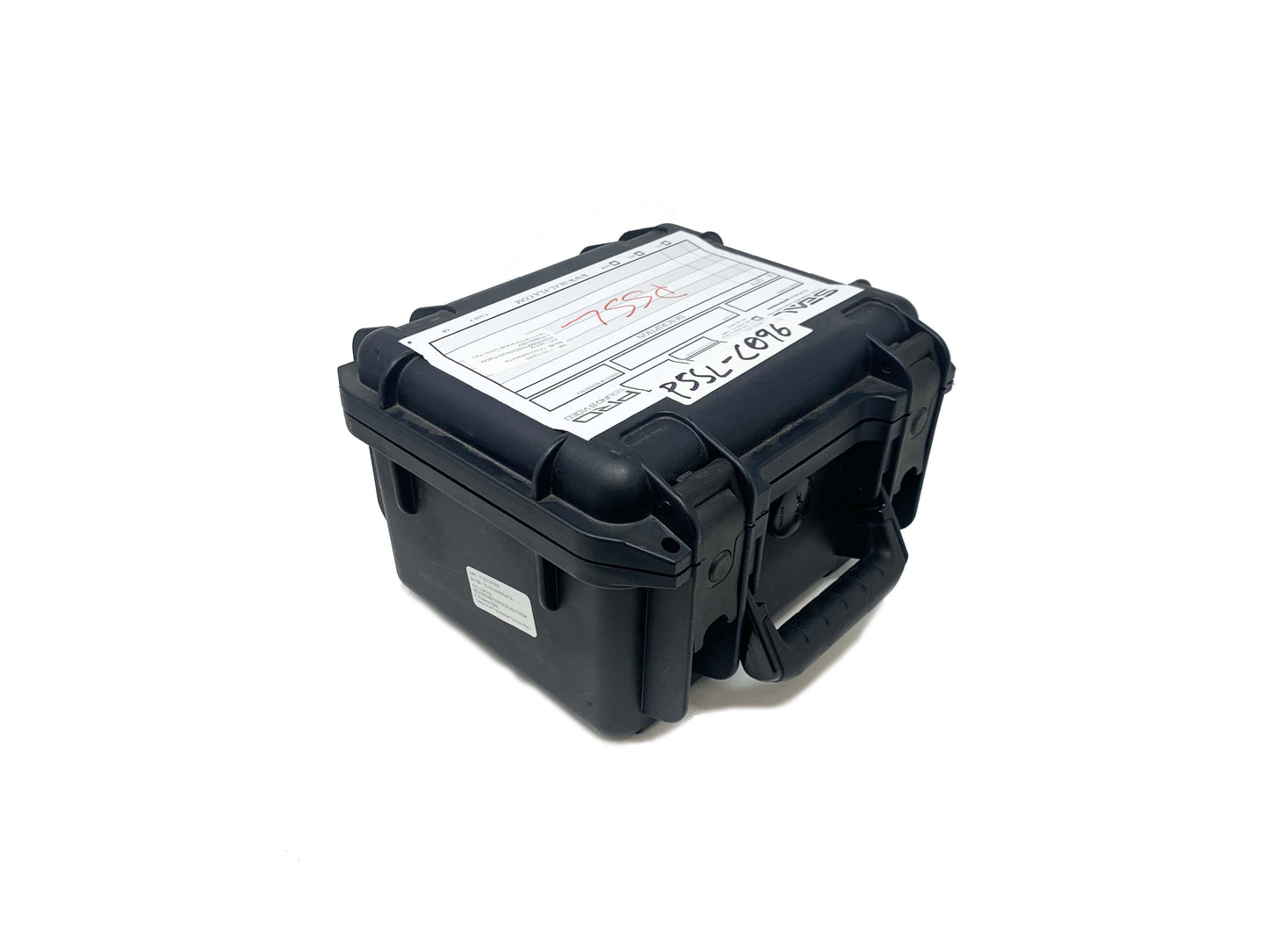

This package contains 1 unit of the A.C. Lighting NOVAWDMXTX Wireless DMX Transmitter and 2 units of the A.C. Lighting MOONLIGHTWDMX Wireless DMX Transceiver in a sturdy road case.

Specs for each A.C. Lighting NOVAWDMXTX Wireless DMX Transmitter:

CRMX Nova TX is a DMX transmitter for one DMX universe of up to 512 channels at a maximum refresh rate. Multiple CRMX TX units can be used together to transmit multiple DMX universes, allowing for easy system expansion.

Based on LumenRadio's advanced CRMX technology, the CRMX Nova TX brings you all the advanced features such as Automated Cognitive Coexistence, DMX fidelity, lowest latency in the industry at 5ms, 128-bit encryption, and much more. Multiple CRMX Nova TX units can be combined to transmit several DMX universes, allowing easy system expansion. The CRMX Nova TX is compatible with all other CRMX products, both indoor and outdoor, DMX and RDM.

CRMX Nova utilizes the international license-free ISM band on 2.4GHz.

Specifications

• Supported Protocols
• USITT DMX512, DMX512(1990) & DMX512-A
• Power
• High voltage input: 85-264VAC / 47-70Hz / 10W
• Low voltage input: 12VDC ±20% / 4W
• Overvoltage and ESD protected power inputs
• Physical
• Dimensions (W x H x D): 4.3″ x 1,7″ x 6.3″ (110 x 44 x 125 mm)
• Weight: 700g, 24oz
• Enclosure: Anodized extruded aluminum
• RF Characteristics
• Operational frequency range: 2402-2480 MHz
• Output power levels: 300mW (25dBm) (only allowed in North America), 100mW (20dBm), 50mW (17dBm), 10mW (10dBm)
• Tested link range: up to 1000 meters line-of-sight
• Connectors
• DMX: 1 XLR Neutrik® 5-pin gold plated male (self terminated)
• Antenna: RP-TNC male
• AC: IEC 320-C14 male
• DC: Pluggable terminal strip, Phoenix® MSTD 2,5

Specs for each A.C. Lighting MOONLIGHTWDMX Wireless DMX Transceiver:

The LumenRadio MoonLite is a wireless CRMX transceiver built on the latest TiMoTwo module which updates the ultra-reliable CRMX technology and promises a new era of wireless DMX. With its small size, built-in rechargeable battery, and dual 5-pin DIN XLR connections, the MoonLite is ideal for use in film and broadcast productions, at clubs, small stage events, corporate events, in theaters, and temporary events where wireless DMX is needed. The Bluetooth connectivity enables control and configuration through the CRMX toolbox app. The device can be updated with even smarter disturbance detection technology, allowing for even more stable connectivity. The MoonLite ships with a micro-USB charging cable and a hook-and-loop fastener.

• Built on the latest CRMX technology
• DMX transceiver (Tx and Rx)
• DC power
• Bluetooth connectivity
• Rechargeable battery included (10 to 12 hours in CRMX RX and 20 hours in Bluetooth mode)
• Check battery status through the app
• Color-coded pairing indication
• Hook-and-loop fastening
• Firmware updates available over Bluetooth, USB, or XLR

Specifications

• General
• Ports
• 2 x XLR 5-Pin DMX
• 1 xMicro-USB
• Channels
• 512 (DMX)
• Frame Rates
• 0.8 to 7352 Hz
• Latency
• 5 ms
• Sensitivity
• -96 dBm
• Wireless Range
• 984.3' / 300 m
• Frequency
• 2.4 GHz
• Transmit Power
• 20 dBm
• Power
• DC Input Power
• 5 VDC at 0.5 A
• Compatibility
• Protocol
• DMX512, RDM, W-DMX
• Environmental
• Operating Temperature
• -4 to 122°F / -20 to 50°C
• Humidity
• 0 to 95%
• Certifications
• CE, EN 60950-1, FCC, as per Manufacturer
• Physical
• Material of Construction
• Plastic
• Dimensions
• 3.9 x 2.0 x 1.0" / 100.0 x 50.0 x 26.0 mm
• Weight
• 0.3 lb / 0.14 kg
