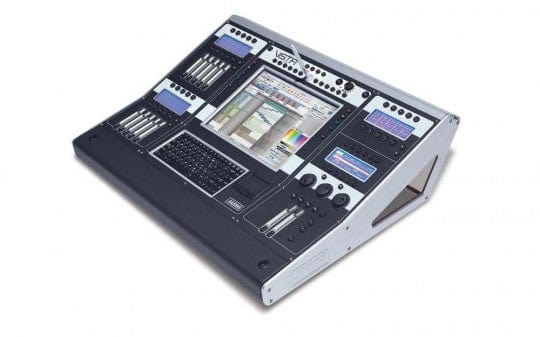

A.C. Lighting Jands Vista T2 Lighting Controller Console
The T2 is our most popular, all-in-one lighting package. Using the large 15” pen tablet screen, precision encoders, shortcut buttons and keyboard, you can create your shows quickly and easily in the console, save them, then run them using a huge selection of live controls.
The T2 provides all the features that make the Vista such a great live desk: big LCDs, 15 playbacks (10 with faders), four DMX outputs and timecode input, and three encoder wheels for manipulating intensity, position, colour, gobo and beam.
There‘s no need to resort to old-style consoles and the tedium of number-crunching programming any longer. The Vista T2 is the answer.
Control panel (Pen Tablet)
- Wacom 15″ Pen-Tablet LCD (1024 x 768)
- 12 user configurable function buttons
- Keyboard and Track pad (extra pointing device)
- 2 sets Blue, Green, Yellow, Red modifier buttons (Left & Right hand)
- 2 Pen modifier buttons (Left & Right hand)
- Power and Help buttons
- 4 Wacom tablet control / configuration buttons
- Grand Master (rotary) fader and DBO button
Playback Controls
- 15 Playbacks, 10 with faders and flash buttons, 5 without
- Playbacks feature; Blue / White LCD, Select and Go buttons
- Split mode allows control of up to 40 Clips
- Playbacks can be configured for control of Groups, Presets and more
- Page Up / Down buttons
Super Playback Controls
- Playback with 2 faders and buttons
- Go, Pause, Back, Skip Forward, Skip Reverse, Skip to Start, Skip to End buttons
- Utilises LCD and Encoder wheels for display and real time control of playback and other advanced functions.
Programming Controls
- 3 Encoder Wheels with associated Blue / White LCD
- Next / Previous buttons
- 12 context sensitive function buttons
DMX Output
8192 Channels (16 Universes)
Input and Output Connections
- 4 DMX outputs
- 1 Ethernet / Network port (compatible with Art-Net and Pathport)
- 3 USB2 connectors
- Linear Time code input
- MIDI in/thru/out
- RS232 COM port
- 2 External Monitor Outputs
- 2 Desk lamp outlets
- Audio mic, line in and line out sockets
- Trigger input / output †
- 2 VGA Monitor Outputs (with support for Wacom pen-displays and selected ELO touchscreens)
Specifications
- Dimensions (w d h) : 861mm x 638mm x 210mm
- Weight: Net 38kg Shipping 55kg
Technical Specifications
- Processor – Pentium® M 1.8GHz
- Memory – 1 GByte
- Hard Drive – 120GB Ultra ATA Hard drive
- Optical Drive – CD-RW Drive (52/24/52X)
- Keyboard – 88 button compact keyboard
- Trackpad – Cirque 2 button GlidePoint® trackpad
