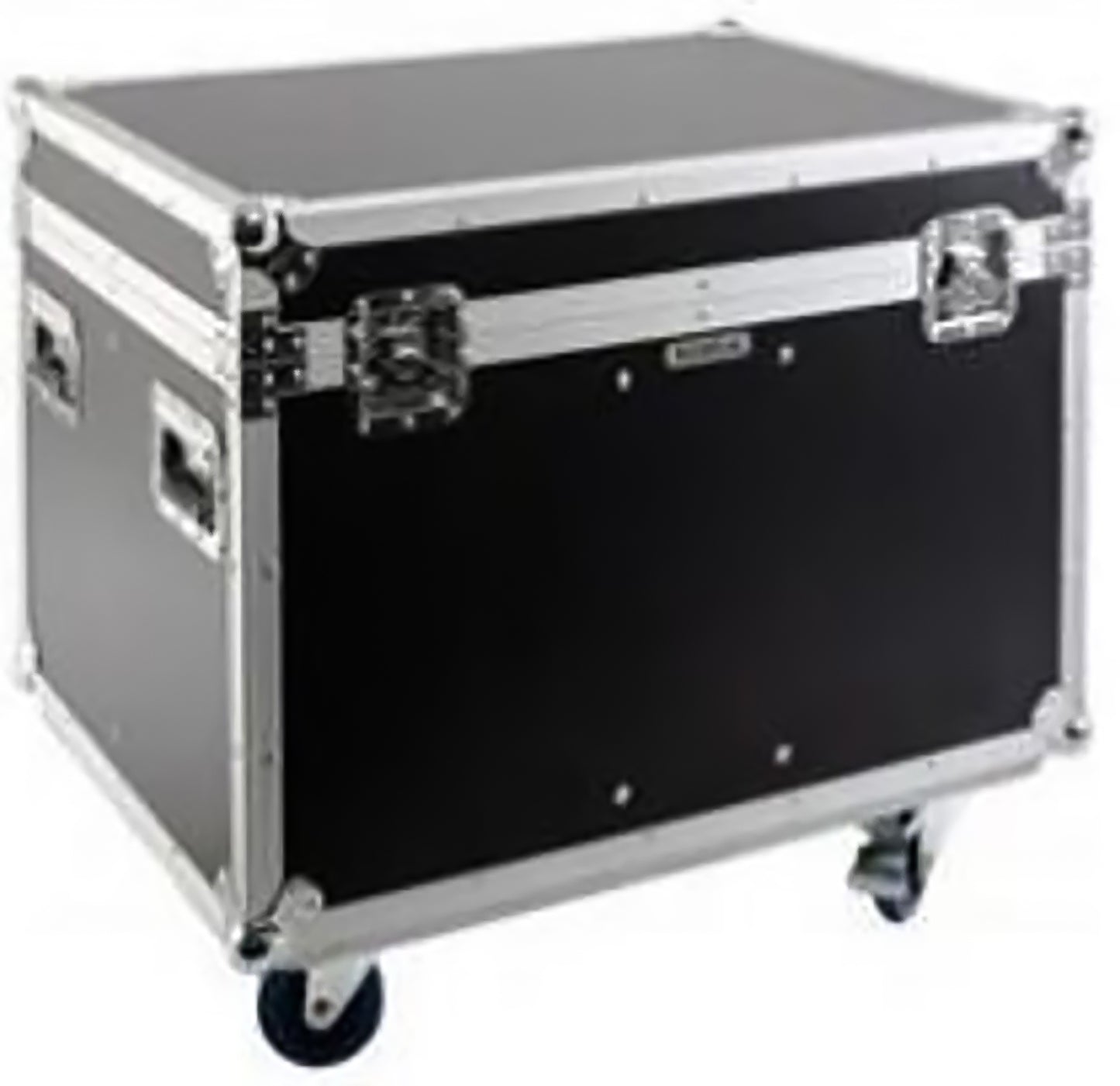

GLP KNV Dot Tourpack with Stackable Case

The KNV from GLP comes in four variants: the KNV Cube, KNV Arc, KNV Dot, and KNV Line. Each unit can be used independently or combined seamlessly to provide massive fixture design options.

Featuring 1, 5, or 25 high-powered pixels with white and RGB elements, each KNV is equally versatile, serving as a pixel-mapped surface, strobe, blinder, washlight, and more.

The IP54-rated housings allow KNV units to be used year-round, even in the harshest conditions and climates, making them highly durable and reliable.

An integrated DMX pattern generator offers multiple effect libraries and various controls, enabling a vast array of graphic options for dynamic lighting effects.

Features:

• Light Source:
  • 1 x Power Pixel
  • Containing 1 x White Light LED and 16 x RGB LED
• Modular System: for individual, creative designs

Specifications:

• KNV Light Source
  • Power Pixel:
    • 1 x 30 W Hyper White
    • 16 x 0.25 W RGB
  • Power Pixel count: 1
• Control:
  • Control Modes: Normal, Compressed
  • Pixel-Mapping
  • Protocol: DMX (USITT DMX512-A), RDM (ANSI/ESTA E1.20), Art-Net, sACN
  • Setting and addressing: Control panel with backlit graphic display, DMX, RDM
  • Display: Illuminated graphic LCD, self-charging buffer battery, backlit buttons
  • Cooling: Temperature controlled, overheating protection
  • Software Update: DMX link
  • Dimming Curves: Linear, Soft
  • Fan Modes: Regulated, High, Medium, Low
• Connectors:
  • Signal connection: XLR 5-Pin, etherCON
  • In/Out
  • Power input: Neutrik powerCON TRUE1, eventCON In/Out
• Operating Conditions:
  • Mains voltage: 100 – 240 VAC / 50 – 60 Hz
  • Power (Watt @ 230V): 34 W
  • Maximum ambient temperature: 40°C / 104°F
  • Operating Position: Any
  • Protection Rating (IP): IP 54
  • EEC: A
  • EEI: 0.218
  • Ec (kWh/1,000h): 742
  • Power factor: > 0.95 / 230 V AC, > 0.98 / 115 V AC
  • Total heat dissipation (calculated, +/-10%): 116 BTU/h
• Mounting Options:
  • Mounting: Eyelets for safety cable
• Housing Colors:
  • Standard colors: Black
• Shipping:
  • Single fixture: Cardboard
  • Tourpack
  • Flight Case
• Dimensions & Weight:
  • Height (head vertical): 78 mm / 3.07 in
  • Width (across yoke): 98 mm / 3.86 in
  • Length: 98 mm / 3.86 in
  • Weight: 0.7 kg / 1.54 lbs
