Elation KL-PANEL 295 Watt 6-Color LED Softlight Fixture

The KL PANEL™ is a full-color-spectrum LED soft light that provides high output, precise color temperature control, full-spectrum color rendering, and even wash coverage. Optimized for the tunable white light requirements of Film and Television, it is an ideal key and fill light source for many situations requiring outstanding performance and color quality.

The KL PANEL incorporates a highly efficient 6-in-1 LED package that produces up to 24,000 field lumens at a 100° half-peak angle. Compact and portable, the fixture can be mounted on a stand or suspended using any standard clamp or the included Junior pin adapter. Rugged housing with impact-resistant surrounds and base plate ensures the KL Panel can handle the rough handling on today's fast-paced sets.

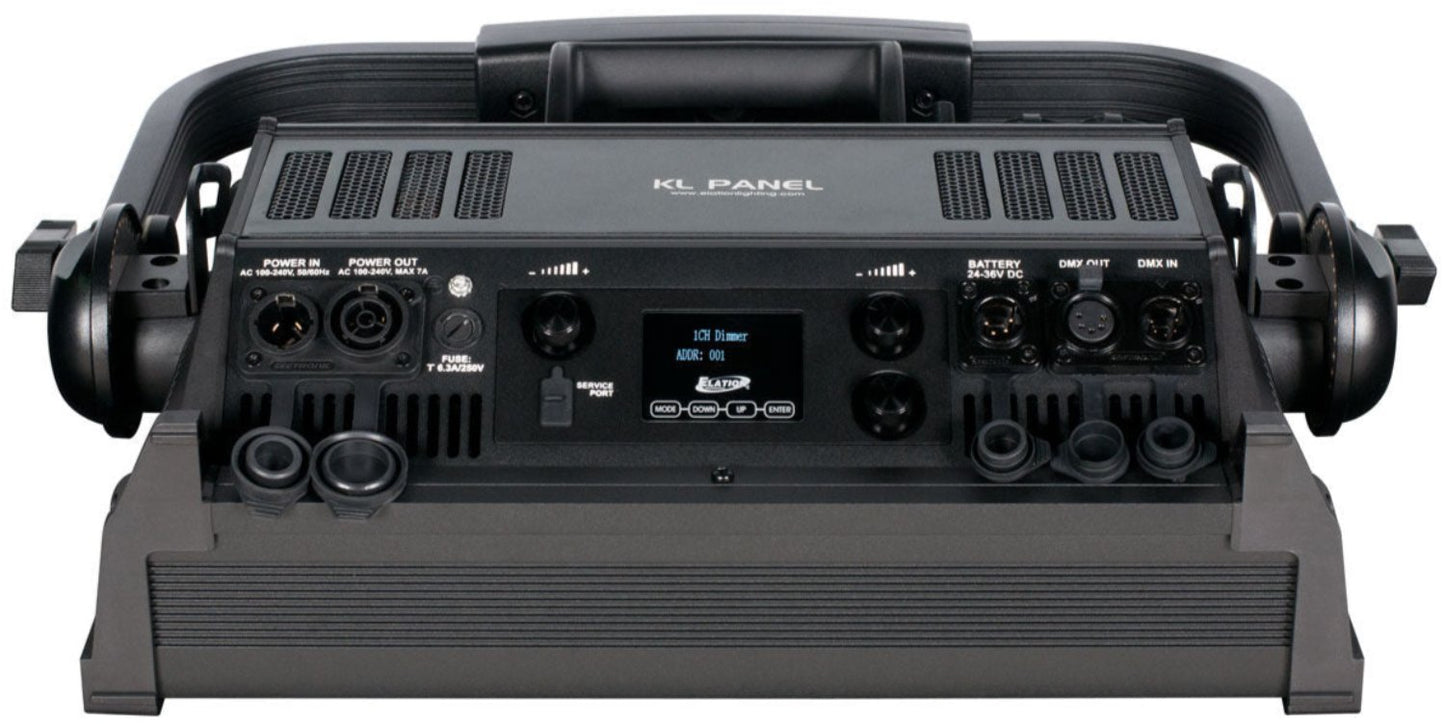

It is fully self-contained without the need for an external power supply. It can also be remotely powered thru its integrated 4-pin XLR 24-36 VDC battery input. The KL Panel can be operated through industry-standard DMX, Art-NET, or sACN protocols. In addition, it can also be adjusted manually using the included encoders and OLED display, providing instant control of Intensity, Color temperature, Green shift, and other important settings. The display and encoders are conveniently positioned on the bottom of the fixture to ensure easy access while the KL Panel is mounted on a stand. The integration of Elation’s E-FLY™ wireless system allows for even more flexibility of use.

Features:

  • 295 W RGBWLC (Red, Green, Blue, White, Lime, Cyan) LED Array
  • CRI 95, CCT Adjustment from 2,000 to 10,000 K
  • 16,000 Total Lumen Fixture Output
  • Internal Power Supply with Power Pass-Through
  • 24-36 VDC Battery Operation (battery not included)
  • DMX, RDM, Art-NET, and sACN Protocol Support
  • E-FLY™ Internal Extended Range Wireless DMX Transceiver
  • Stand-Alone Control with 3 Encoders and an OLED Display
  • Barn Doors, Diffuser, and Junior Pin (1 1/8” - 28mm) Included

Specifications:

  • Light Source:
    • 6-in-1 (Red, Green, Blue, White, Lime, Cyan) LED Array
    • Average LED Life: 50,000 Hours*
      • *Test lab conditions. May vary depending on several factors.
    • Total Fixture Output: 16,000 Lumen
    • Beam Angle: 64° (with diffuser)
  • Photometric Data:
    • Up to 24,000 Total Lumen Output
    • Diffuser:
      • Beam Angle 101°
      • Field Angle 159.4°
    • Without Diffuser:
      • Beam Angle 111°
      • Field Angle 155.4°
  • Effects:
    • Variable CCT: 2,000 K-10,000 K
    • Green Shift Adjustment: Yes
    • Virtual Gel Library: Yes
    • Dimming Curve Modes: Variable 16-bit
    • High Speed Electronic Shutter and Strobe: Yes
    • Remote Adjustable LED Refresh Rate Frequency: 900-25kHZ
  • Control:
    • DMX Channel Modes: 9
    • Manual Adjustment Encoders: 3
    • Display: OLED Menu with 4 Button Control Panel
    • Protocol:
      • DMX
      • RDM
      • Art-NET
      • sACN
    • E-FLY™ Internal Extended Range Wireless DMX Transceiver: Yes
  • Connections:
    • Locking 5pin XLR Connector In/Out
    • Locking IP65 Power Connector In/Out
    • USB Connection for Firmware Updates
    • 4-pin XLR External Battery Connection (battery NOT included)
    • Wired Digital Communication Network
  • Size/Weight:
    • Dimensions (LxWxH): 20.8” x 5.5” x 16.3” (528 x 140.5 x 415.2 mm)
    • Weight: 28.6 lbs (13 kg)
  • Electrical/Thermal:
    • AC: 100-240V - 50/60Hz
    • Battery: 24-36 VDC (battery NOT included)
    • Max Power Consumption: 295 W
    • Operating Temp.: 14°F to 113°F (-10°C to 45°C)
  • Approvals/Ratings:
    • CE
    • cETLus (pending)
    • IP20
