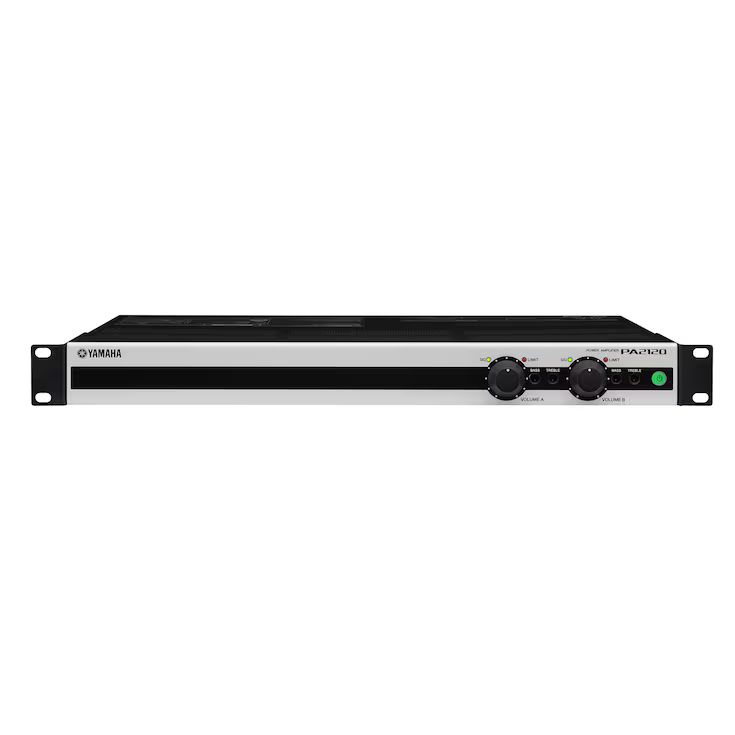

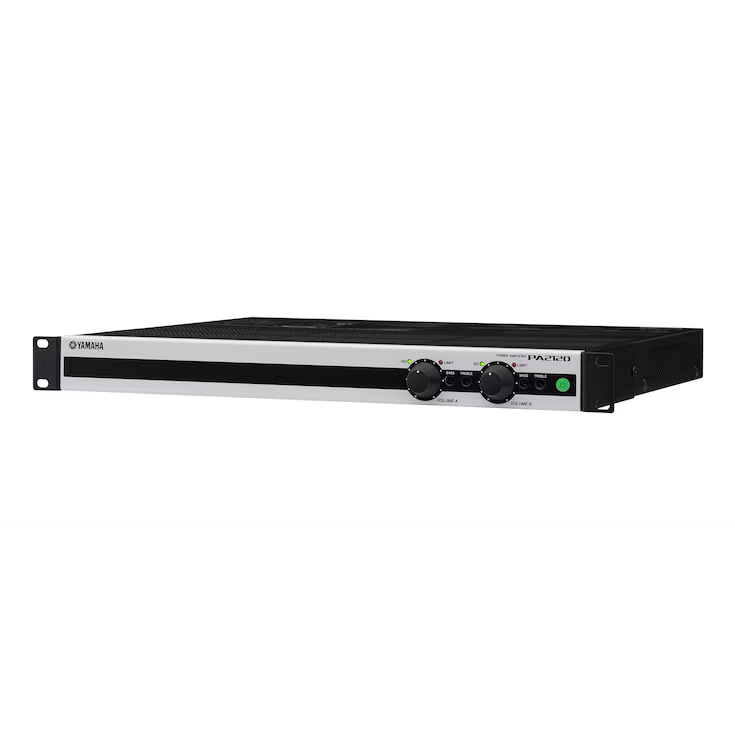

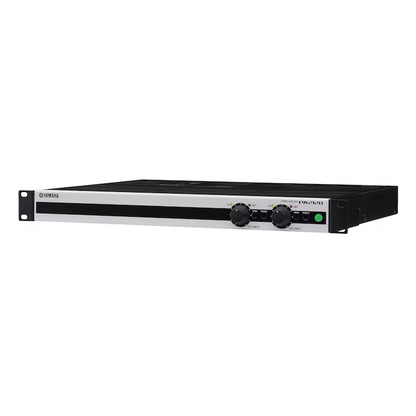

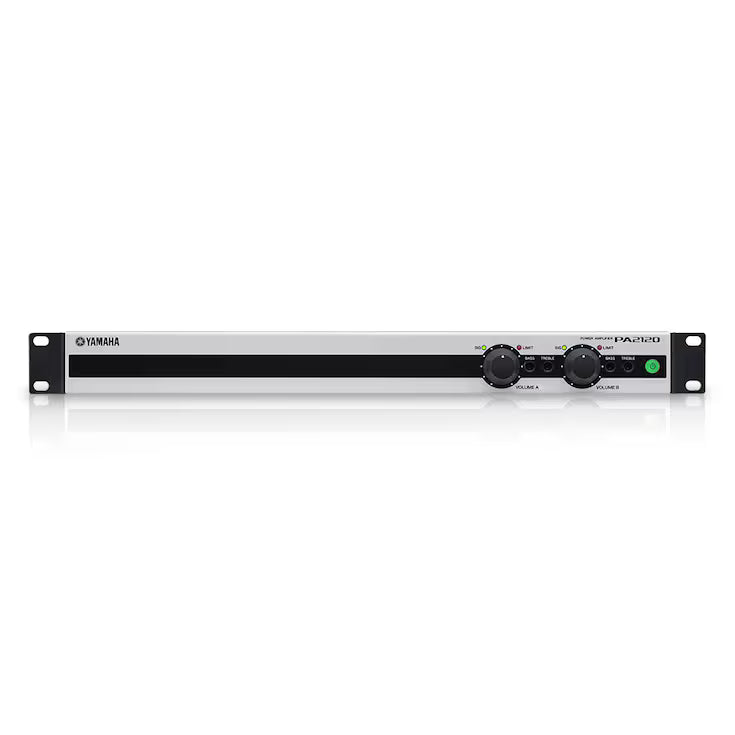

Yamaha PA2120 Power Amplifier
The Yamaha PA2120 delivers versatile amplification for professional audio installations.
This Class-D power amplifier features switchable Lo-Z and Hi-Z modes, providing 120W x2 at 4Ω in Lo-Z mode, with flexible Hi-Z operation at 70V/100V for distributed systems. Equipped with one stereo and two mono line inputs, it integrates seamlessly with the MA2120 mixer amplifier for expanded system configurations. Compact, efficient, and built for reliability in commercial venues, houses of worship, and live sound applications.
Features:
- Easy setup, and a user-friendly interface for effortless operation
- Supporting Lo-Z (120W x2ch @4Ω or 100W x2ch @3Ω/8Ω) and Hi-Z (120W x2ch or 200W x1ch, 70V/100V) speaker systems
- 1 stereo/2 mono line inputs
- Output EQ for optimizing the sound of each Output channel
- Built-in speaker EQ optimum for Yamaha VXC/VXS series speakers, as well as HPF and selectable LPF settings
- Capable of controlling sources and volumes separately in two areas (Source/volume zoning)
- Service areas or zoning areas can be expanded by adding a PA2120
- Remote volume control and microphone on/off switching via optional DCP control panels (DCP4V4S, DCP1V4S, DCP4S, max 2 units)
- Intelligent protection function ensures safe, reliable operation
- Certified by ENERGY STAR
- Certified as Yamaha Eco Products
- Space-saving 1U rack size (*sufficient space must be provided above and below the unit for airflow and cooling.)
