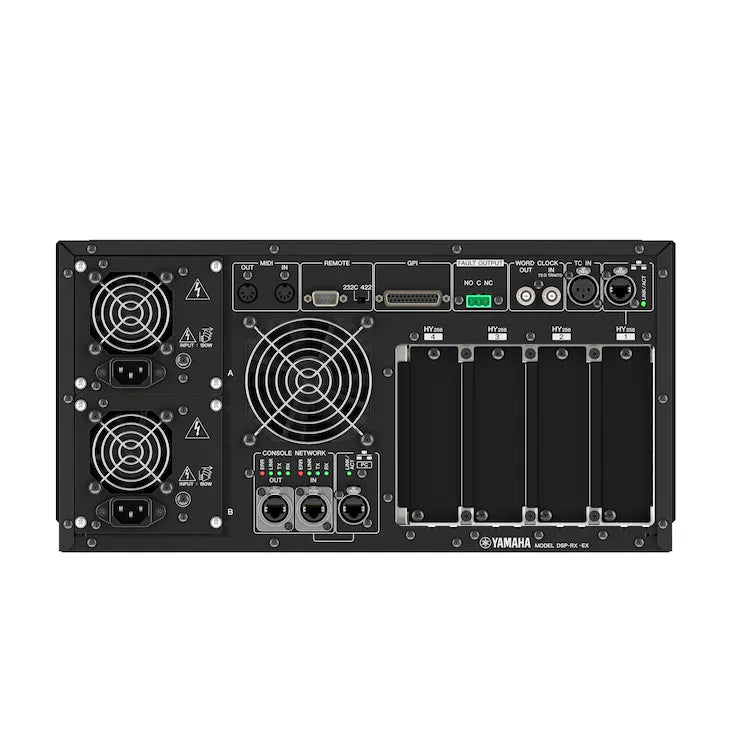

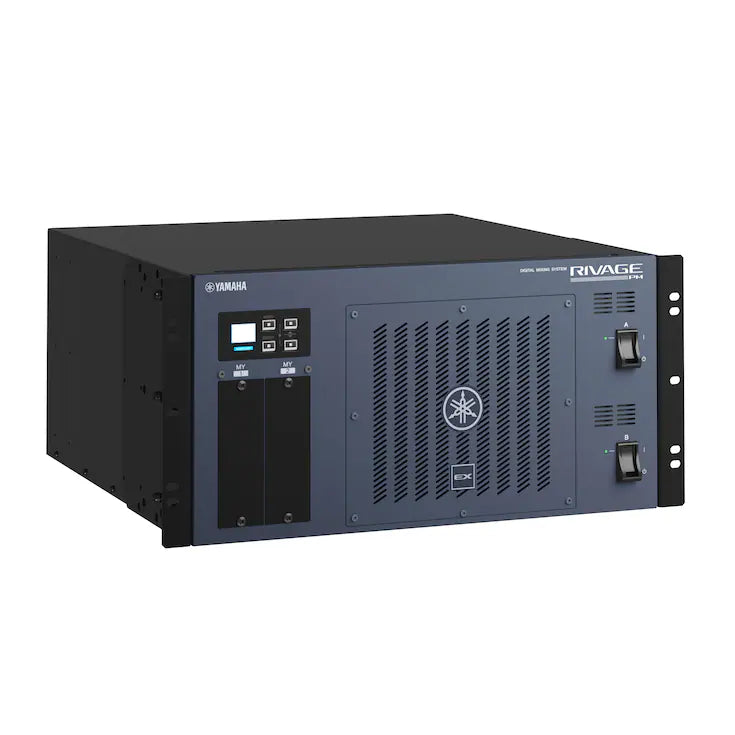

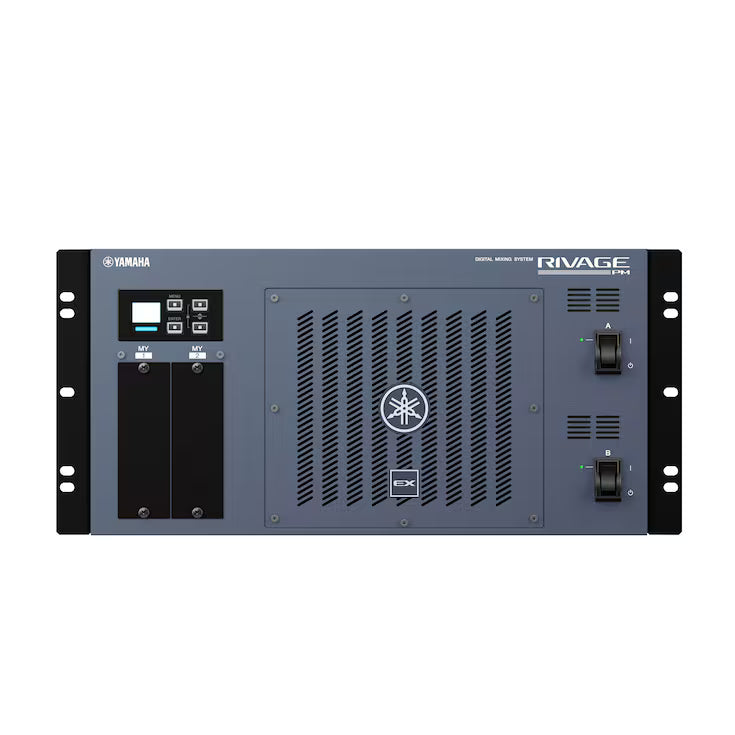

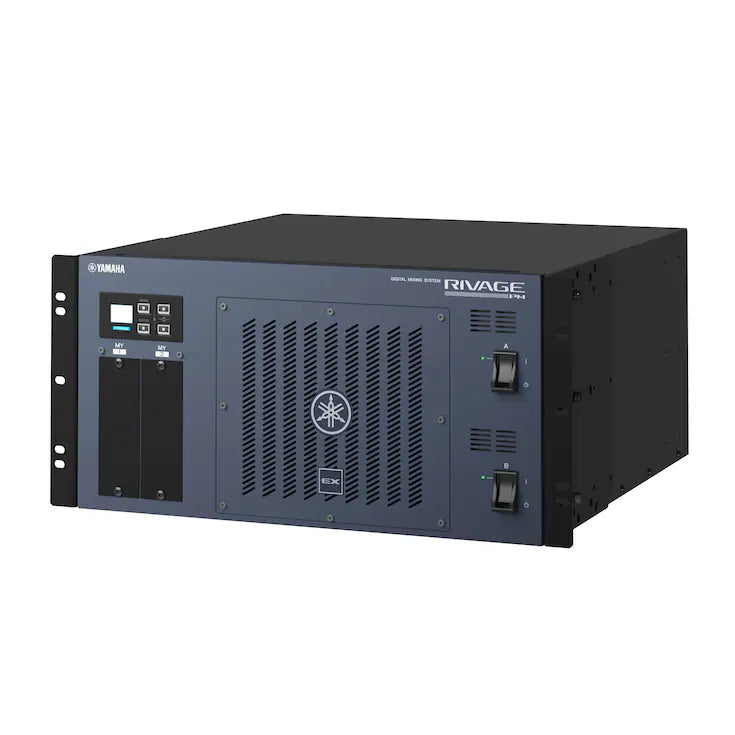

Yamaha DSP-RX-EX DSP Engine

The DSP-RX-EX operates at 96 kHz, and delivers signal processing, intelligent routing, and centralised system control.

The DSP-RX-EX can be used within a RIVAGE PM system.

Features:

• Compatible Control Surfaces: CS-R10, CS-R10-S, CS-R5, CS-R3
• Superior capability of processing digital audio signals of up to 288 input, 72 MIX, 36 MATRIX, and two STEREO channels.
• Four HY card slots that are capable of transmitting/receiving up to 256 ins/outs of digital audio signals/control signals.
• Two Mini-YGDAI slots to support various audio formats.
• Dual redundant power supply built-in
• Power consumption: 190W
• Dimensions (WxHxD): 480 x 220 x 491mm (18.9" x 8.7" x 19.3") (5U rack size)
• Net Weight: 20 kg (44.1 lbs)

Control Surfaces:

• Yamaha CSD-R3 Control Surface (RIVAGE PM3 System)
• Yamaha CS-R5 Control Surface (RIVAGE PM5 System)
• Yamaha CS-R10 Control Surface (RIVAGE PM10 System)
• Yamaha CS-R10-S Control Surface (RIVAGE PM10 System)

Racks:

• Yamaha Rio1608-D3 I/O Rack
• Yamaha Rio3224-D3 I/O Rack
• Yamaha RPio222 I/O Rack
• Yamaha RPio622 I/O Rack
