Description

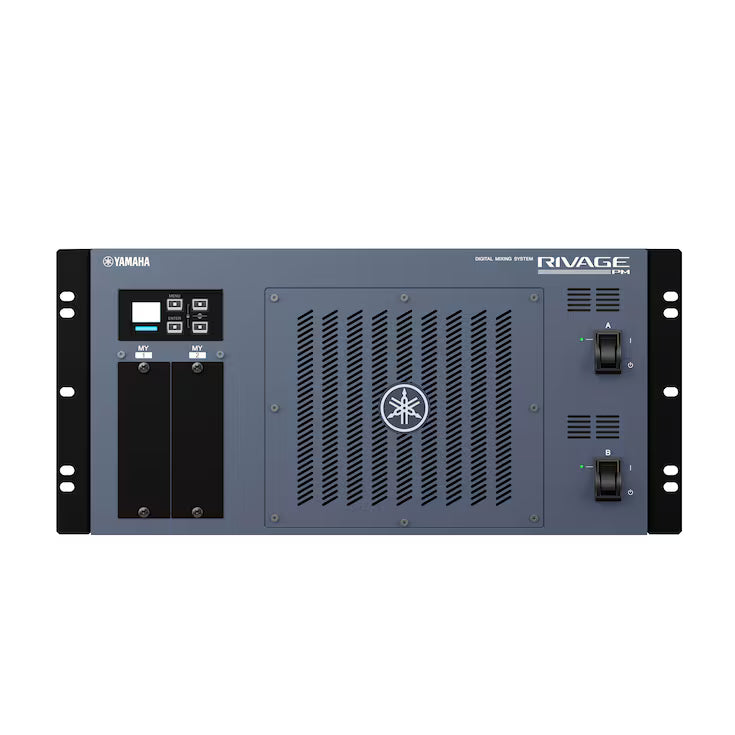

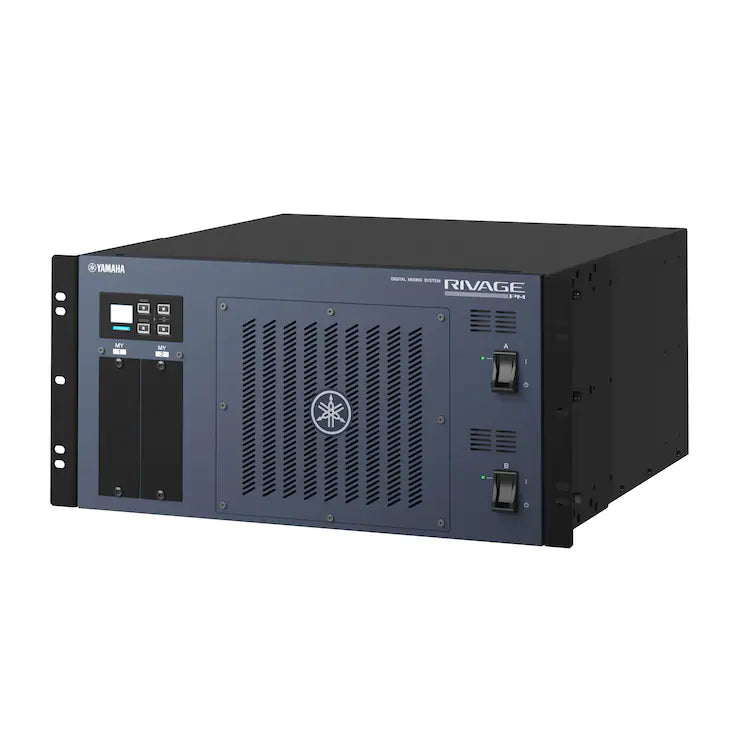

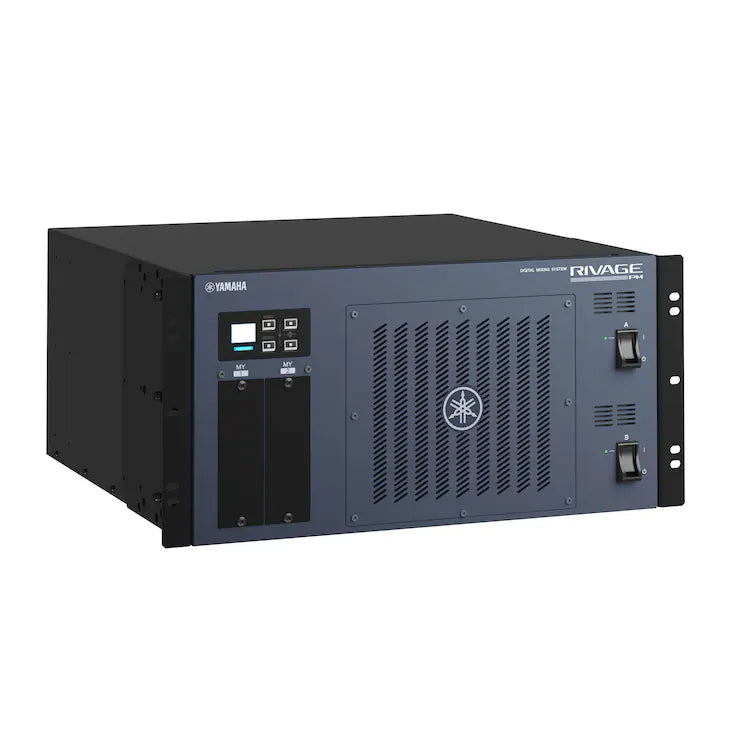

Yamaha DSP-RX DSP Engine
The DSP-RX is a digital signal processor that delivers audio processing at up to 96 kHz, routing and large-scale system management.
The DSP-RX can be expanded into a DSP-RX-EX configuration through the DEK-DSP-RX expansion kit, enabling your system to grow without hardware replacement.
The DSP-RX is compatible within RIVAGE PM mixing systems.
Features:
- Compatible Control Surfaces: CS-R10, CS-R10-S, CS-R5, CS-R3
- Superior capability of processing digital audio signals of up to 120 input, 48 MIX, 24 MATRIX, and two STEREO channels.

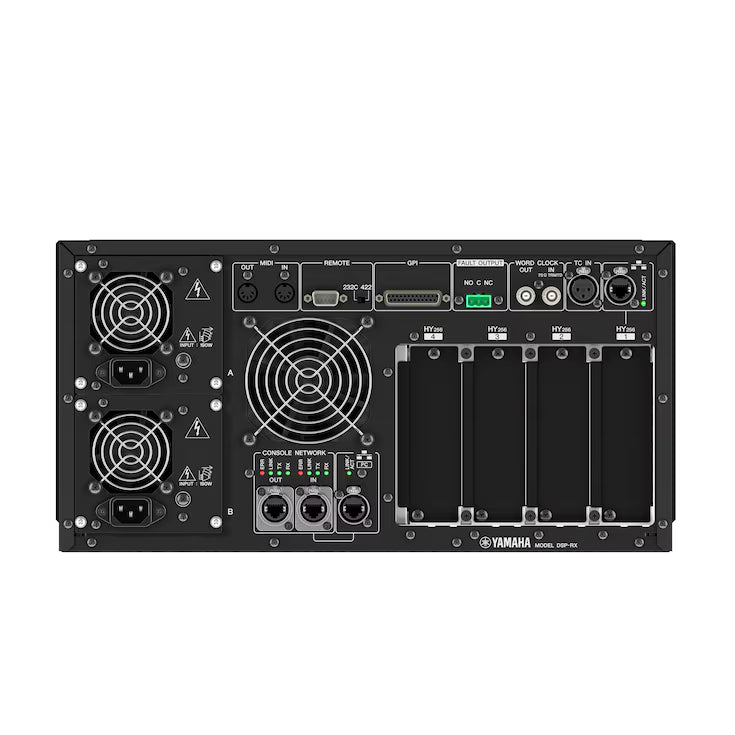

- Four HY card slots that are capable of transmitting/receiving up to 256 ins/outs of digital audio signals/control signals.
- Two Mini-YGDAI slots to support various audio formats.
- Dual redundant power supply built-in
- Power consumption: 190W
- Dimensions (WxHxD): 480 x 220 x 491mm (18.9" x 8.7" x 19.3") (5U rack size)
- Net Weight: 19 kg (41.9 lbs)
