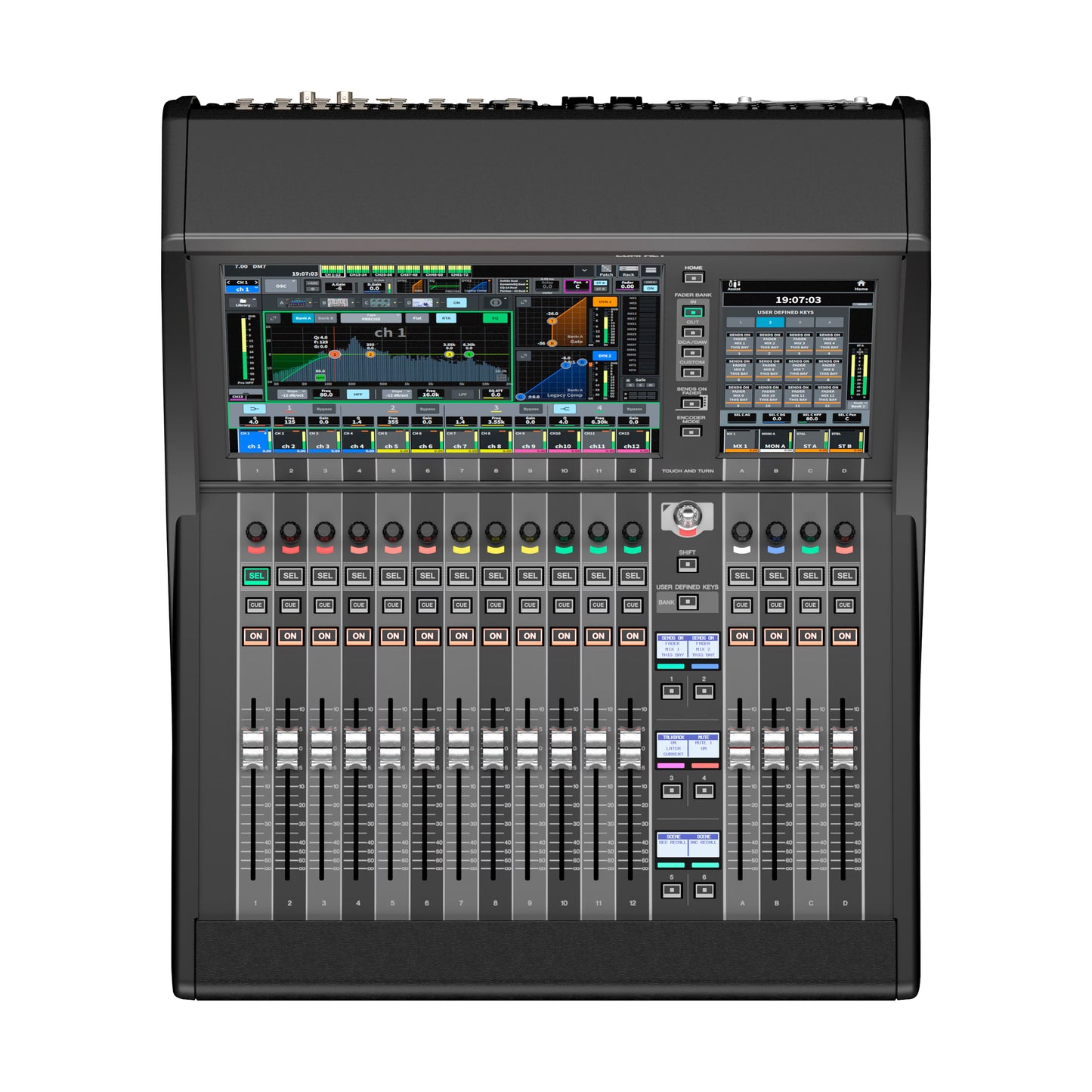

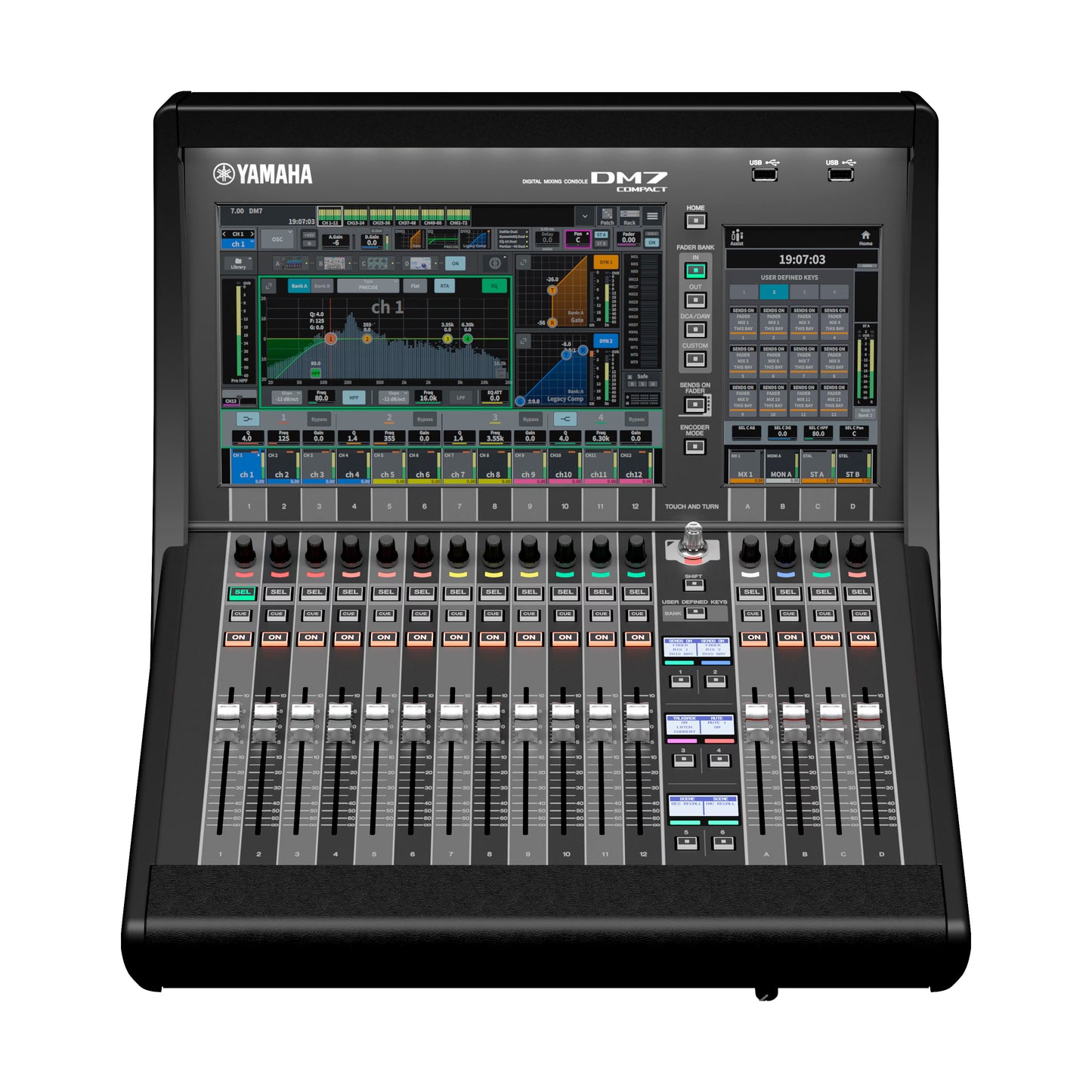

Yamaha DM7 Compact Digital Mixing Console
The Yamaha DM7 Compact Digital Mixing Console delivers mixing in a portable design.
This mixer is equipped with Dante networking, and combines 12 + 4 faders with two multi-touch screens for increased control and real-time monitoring.
The compact set-up makes it ideal for on-the-go setups, while optional RK1 rack-mounting hardware enables integration into fixed installations.
Features:
- Input mixing channels: 72 mono
- Buses: 48 Mix + 12 Matrix + 2 Stereo
- Display: 12.1" multi-touch screen x 1, 7" multitouch screen x 1
- Faders: 16 (12 + 4)

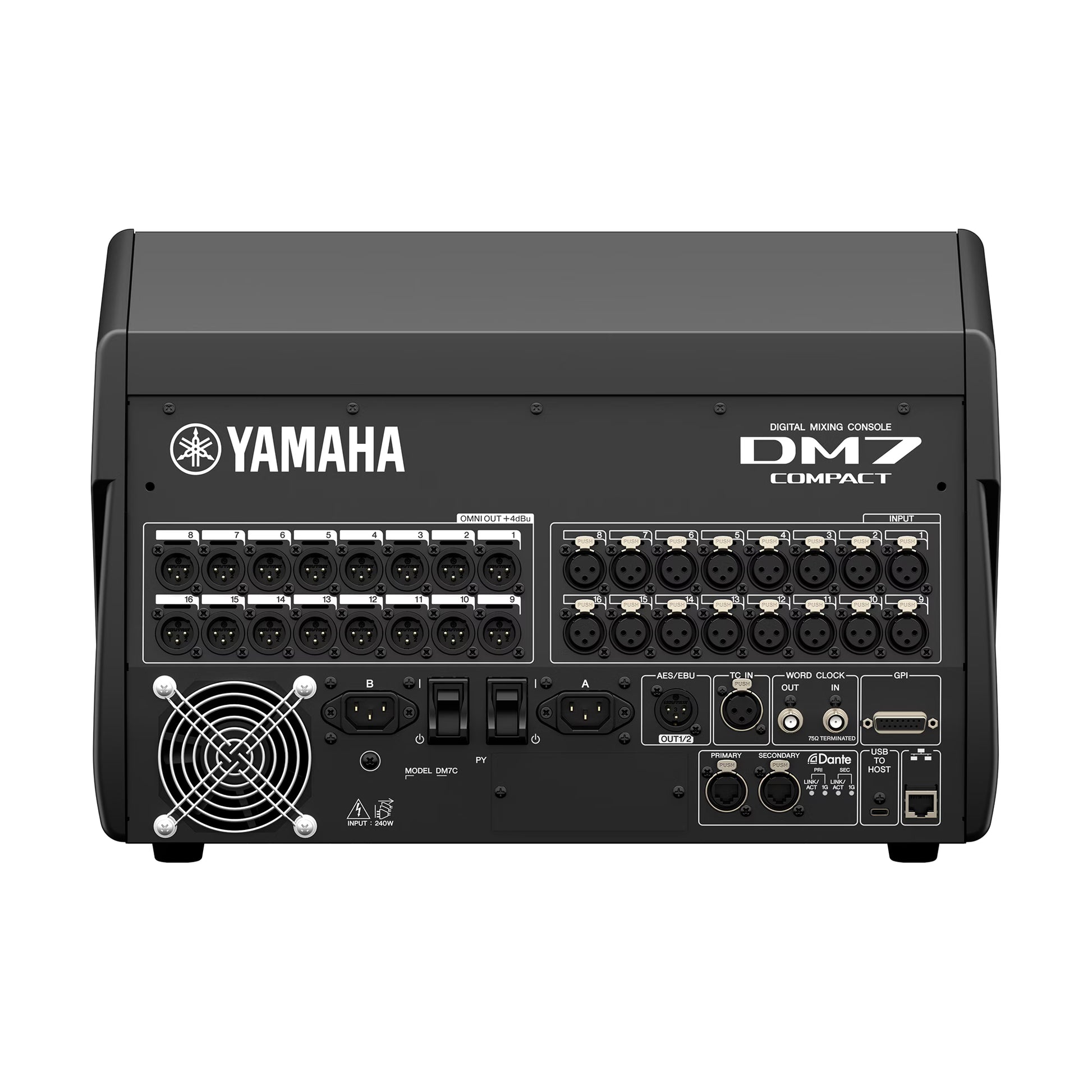

- Analog I/O: 16 inputs / 16 outputs
- Dante: 144 in / 144 out
- AES/EBU: 1 out
- Slot: PY Slot x 1
- USB Audio Interface: 18 in / 18 out
- Power supply: Redundant power supply built-in
- Power consumption: 240 W
- Dimensions (W x H x D): 468 mm x 324 mm x 564 mm (18.5" x 12.8" x 22.2")
- Net Weight: 16.5 kg (36.4 lb)
