Description

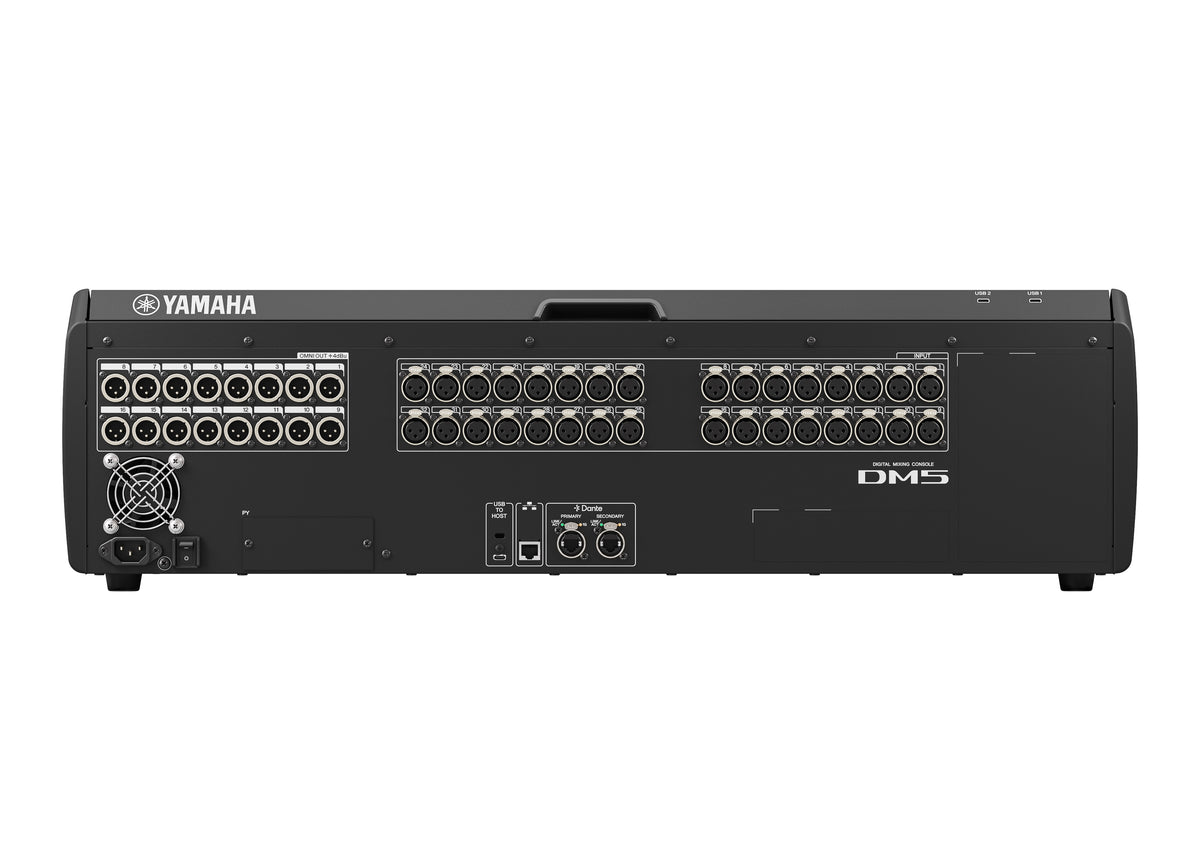

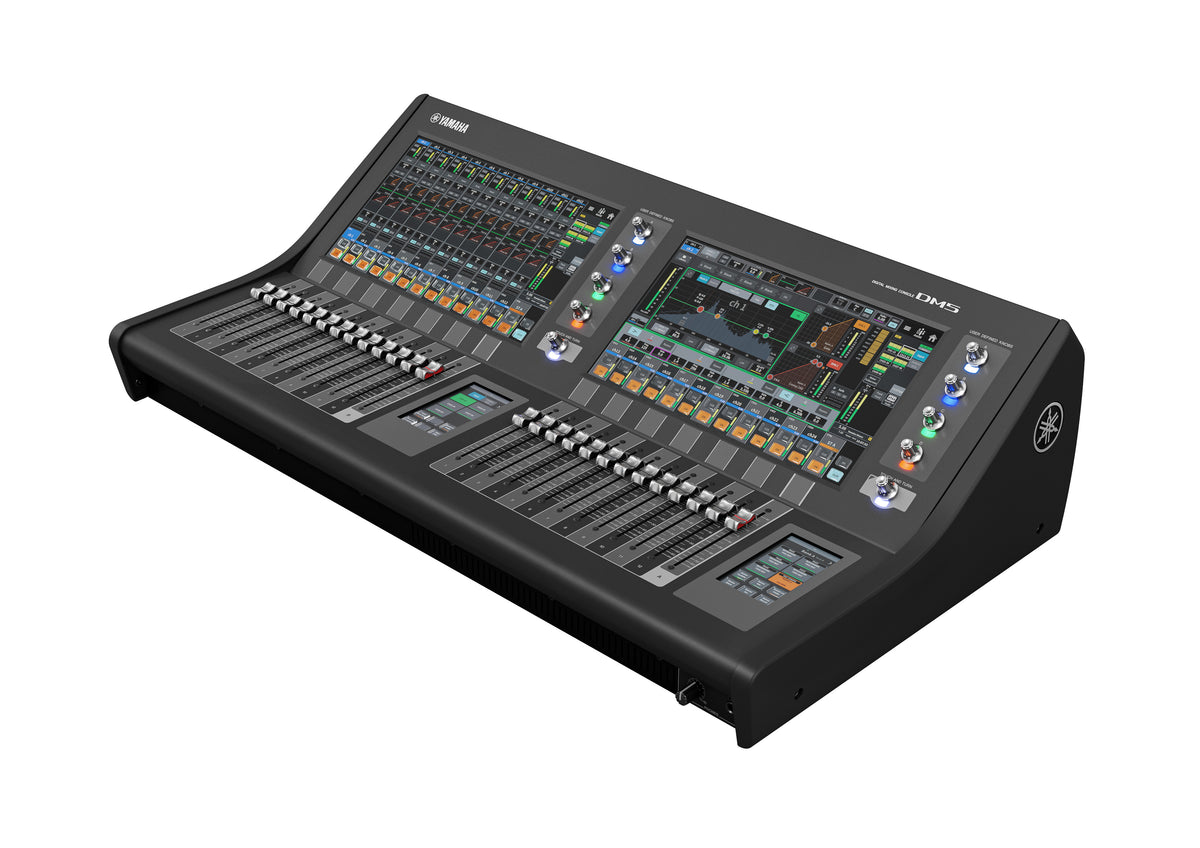

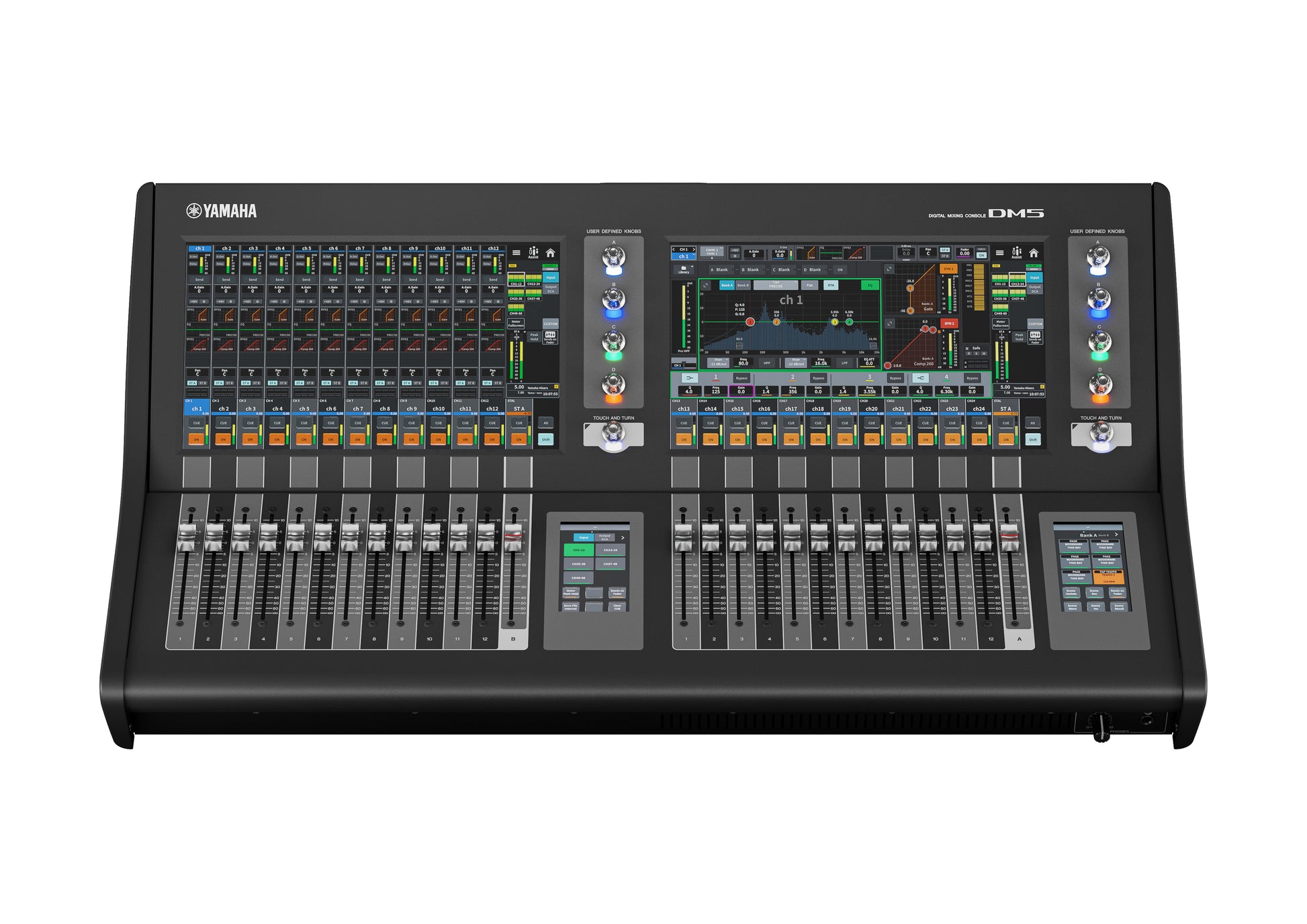

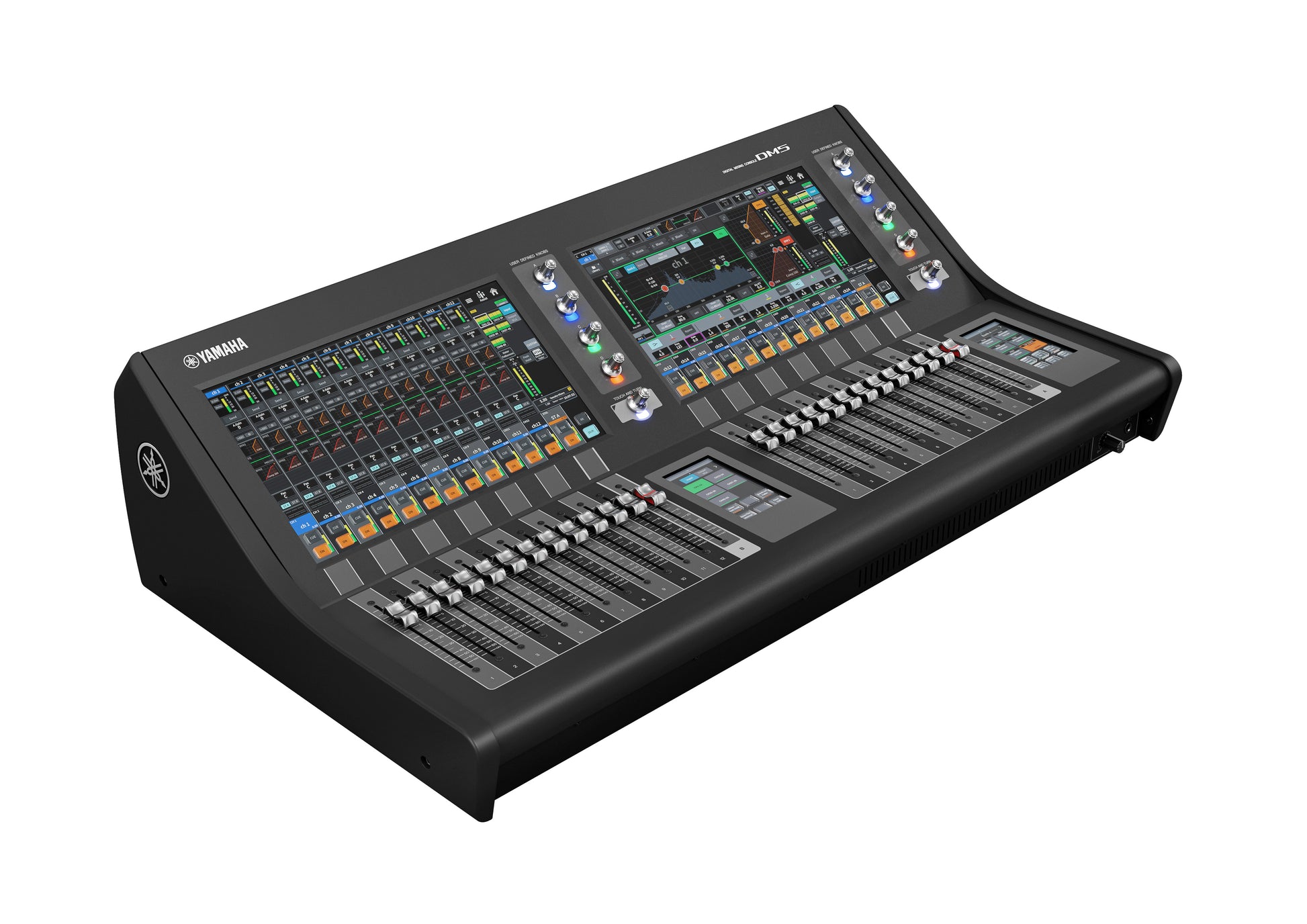

Yamaha DM5 Digital Mixing Console
Professional-grade digital mixing console engineered for live sound, corporate events, houses of worship, theatre, and broadcast applications.
The DM5 delivers up to 64 channels of Dante networking at 96 kHz, 24 mix busses, 12 matrices, 12 DCAs, and dual stereo busses for comprehensive signal routing and control.
The full-size DM5 features 32 analogue inputs, 16 analogue outputs, 60 input channels, twin fader bays, and dual main screens with tactile glass keys and dynamic status displays.
The compact DM5 Compact model offers 16 analogue I/O and 48 input channels in a half-width chassis with single fader bay and customizable display angles. Both models include an onboard 16-slot effects rack with 43 high-quality effects, PY series card slot for expanded processing or I/O, secondary customizable touchscreen, and 18 channels of USB I/O. Bluetooth audio playback enables wireless source connectivity. Optional feature packages support broadcast and theatre workflows, with additional Dan Dugan auto mixing available for advanced applications.
