Vari-Lite Neo Compact 10 Lighting Console
The Strand NEO Compact 10 Lighting Console combines high power and portability, making it ideal for both mobile use and permanent installation. Equipped with the NEO operating system, the NEO Compact 10 controls up to 4 DMX universes (upgradable to 10) and features a user-friendly interface with a 7” touchscreen, 10 user-defined faders, and on-screen keyboard for easy operation. Designed to support a range of effects and pixel mapping, this console is optimized for fast programming and seamless architectural lighting control.
Features:
- Compact design with optional rackmount kit
- Standard 4 DMX universes, expandable to 10
- Robust connectivity: DMX, Ethernet, HDMI, USB
- Internal 7” touchscreen with external touchscreen support
- 10 user-defined faders across 10 virtual pages (100 faders total)
- Advanced NEO software with 7 effects engines and pixel mapping
- Integrated keyboard and command-line interface
- Vision.Net integration for architectural lighting control
- Strand Advantage for Strand®, Vari-Lite®, or Color Kinetics® fixtures without licensed DMX universes
Specifications:
- Power: AC 100-240 V, 50-60 Hz, 60 W, 1.4 A

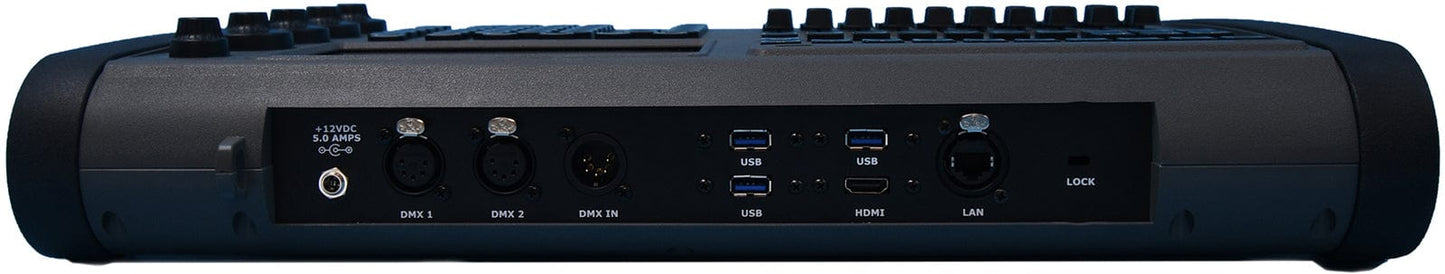

- Connections:
- DC Power In: Locking barrel socket, 12 V DC, 4 A
- Data In: 1x Neutrik 5-pin XLR
- Data Out: 2x Neutrik 5-pin XLR
- Ethernet Data: 1x Neutrik etherCON
- USB Ports: 3x USB 3.0 (rear), 2x USB 2.0 (front)
- Security Lock: K-Slot
- Protocols: DMX-512A, sACN, RDM, Art-Net, Strand ShowNet, KiNet, Pathport
- Licensing: 4 Universes included (2,048 channels); upgradable to 10 Universes (5,120 channels)
- User Interface:
- Touchscreens: 1x internal 7", 1x optional external
- Faders: 10 user-defined, 10 pages (100 total)
- Encoders: 1 Level wheel, 4 attribute encoders
- Physical Specs:
- Housing: High-impact flame-retardant thermoplastic
- Color: Dark gray
- Ingress Protection: IP20
- Optional Rack Mount Kit: Aluminum, black
- Environmental: Operating temperature 0–40 °C (32–104 °F)
- Max Surface Temperature at 25° C Ambient: 63 °C (145.4 °F)
