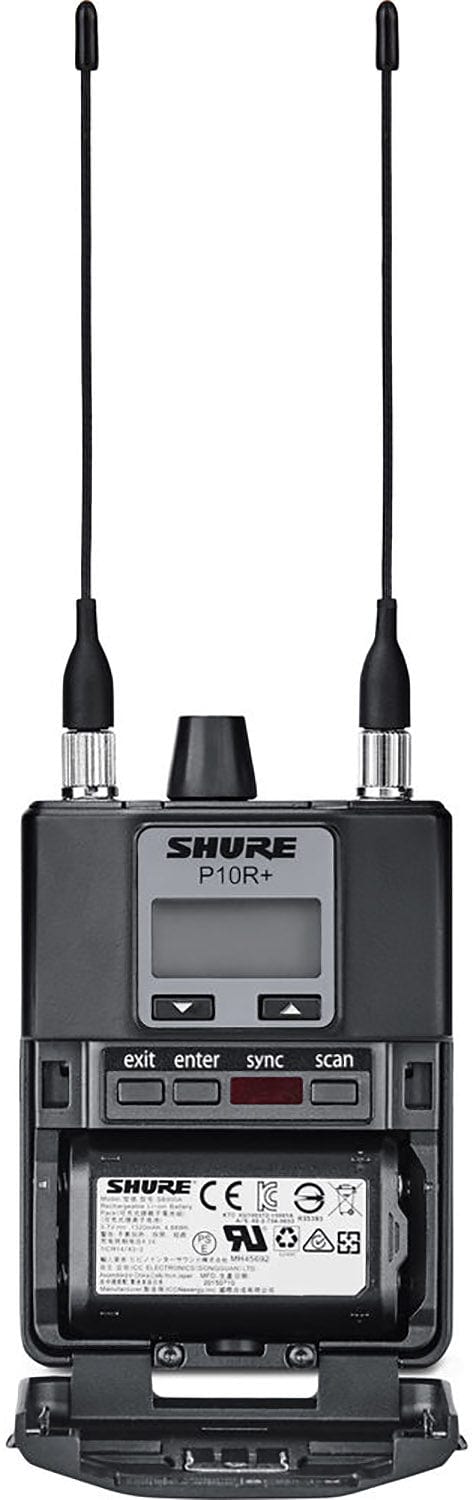

Shure P10R+=-X55 Diversity Bodypack Receiver for PSM 1000 Personal Monitor System - X55 Band
The P10R+ is a low profile, diversity bodypack receiver for use with the PSM® 1000 Wireless Personal Monitor System. It offers premium features like full bandwidth RF scan and Automatic RF Gain Control for unparalleled signal stability and channel availability, all packed in the slimmest form factor available. CueMode allows monitoring of different stage mixes and storing of up to 20 separate channels from one bodypack for quick and easy mix reference. Optional advanced rechargeability eliminates the need for disposable batteries and provides extended usage times with reliable battery life, cycle count, and health metering.
Features:
- Improved audio quality (without changing sound signature)
- Improved RF performance and reliability
- Improved battery life with alkaline AA batteries (thanks to new headphone amp technology)
- Updated firmware with new features and workflow improvements
- Improved Volume Limiter function (selectable ranges of limiting increased)
- 4-band parametric EQ added
- Power-Save Mode added (like feature on PSM300 series packs)
Specifications:
- Tri-band RF Filtering: –3 dB at 30.5 MHz from the center frequency of each band
- Active RF Gain Control: 31 dB (adjusts RF sensitivity to provide more RF dynamic range)
- RF Sensitivity (20 dB SINAD): 2.2 μV
- Squelch Threshold: 22 dB SINAD (±3 dB), default setting
- Adjacent Channel Rejection: >70 dB
- Intermodulation Attenuation: >70 dB
- Blocking: >80 dB
- Image Rejection: >90 dB
- Audio Output Power (1kHz @ <1% distortion, peak power, @16Ω): 100 mW per output
- Minimum Load Impedance: 4 Ω
- Output Impedance: <1 Ω
- 4-Band Parametric EQ:
- Low Shelf:
- Selectable Gain: ±2 dB, ±4 dB, ±6 dB @100 Hz
- Low Mid:
- Selectable Gain: ±2 dB, ±4 dB, ±6 dB @160 Hz, 250 Hz, 400 Hz, 500 Hz, 630 Hz
- Selectable Q: 0.7, 1.4, 2.9, 5.0, 11.5
- High Mid:
- Selectable Gain: ±2 dB, ±4 dB, ±6 dB @1 kHz, 1.6 kHz, 2.5 kHz, 4 kHz, 6.3 kHz
- Selectable Q: 0.7, 1.4, 2.9, 5.0, 11.5
- High Shelf:
- Selectable Gain: ±2 dB, ±4 dB, ±6 dB @10 kHz
- Volume Limiter:
- Selectable: 0 dB to -48 dB in 3 dB steps
- Volume Lock:
- Selectable: 0 dB to -70 dB
- Battery Life: 4–6 hours (continuous use) with AA batteries
- Net Weight: 158 g, without batteries
- Dimensions: 99 mm x 66 mm x 23 mm (3.9 in. x 2.6 in. x 0.9 in.) H x W x D
- Tri-band RF Filtering: –3 dB at 30.5 MHz from the center frequency of each band
- Active RF Gain Control: 31 dB (adjusts RF sensitivity to provide more RF dynamic range)
- RF Sensitivity (20 dB SINAD): 2.2 μV
- Squelch Threshold: 22 dB SINAD (±3 dB), default setting
- Adjacent Channel Rejection: >70 dB
- Intermodulation Attenuation: >70 dB
- Blocking: >80 dB
- Image Rejection: >90 dB
- Audio Output Power (1kHz @ <1% distortion, peak power, @16Ω): 100 mW per output
- Minimum Load Impedance: 4 Ω
- Output Impedance: <1 Ω
- 4-Band Parametric EQ:
- Low Shelf:
- Selectable Gain: ±2 dB, ±4 dB, ±6 dB @100 Hz
- Low Mid:
- Selectable Gain: ±2 dB, ±4 dB, ±6 dB @160 Hz, 250 Hz, 400 Hz, 500 Hz, 630 Hz
- Selectable Q: 0.7, 1.4, 2.9, 5.0, 11.5
- High Mid:
- Selectable Gain: ±2 dB, ±4 dB, ±6 dB @1 kHz, 1.6 kHz, 2.5 kHz, 4 kHz, 6.3 kHz
- Selectable Q: 0.7, 1.4, 2.9, 5.0, 11.5
- High Shelf:
- Selectable Gain: ±2 dB, ±4 dB, ±6 dB @10 kHz
- Low Shelf:
- Volume Limiter:
- Selectable: 0 dB to -48 dB in 3 dB steps
- Volume Lock:
- Selectable: 0 dB to -70 dB
- Battery Life: 4–6 hours (continuous use) with AA batteries
- Net Weight: 158 g, without batteries
- Dimensions: 99 mm x 66 mm x 23 mm (3.9 in. x 2.6 in. x 0.9 in.) H x W x D
