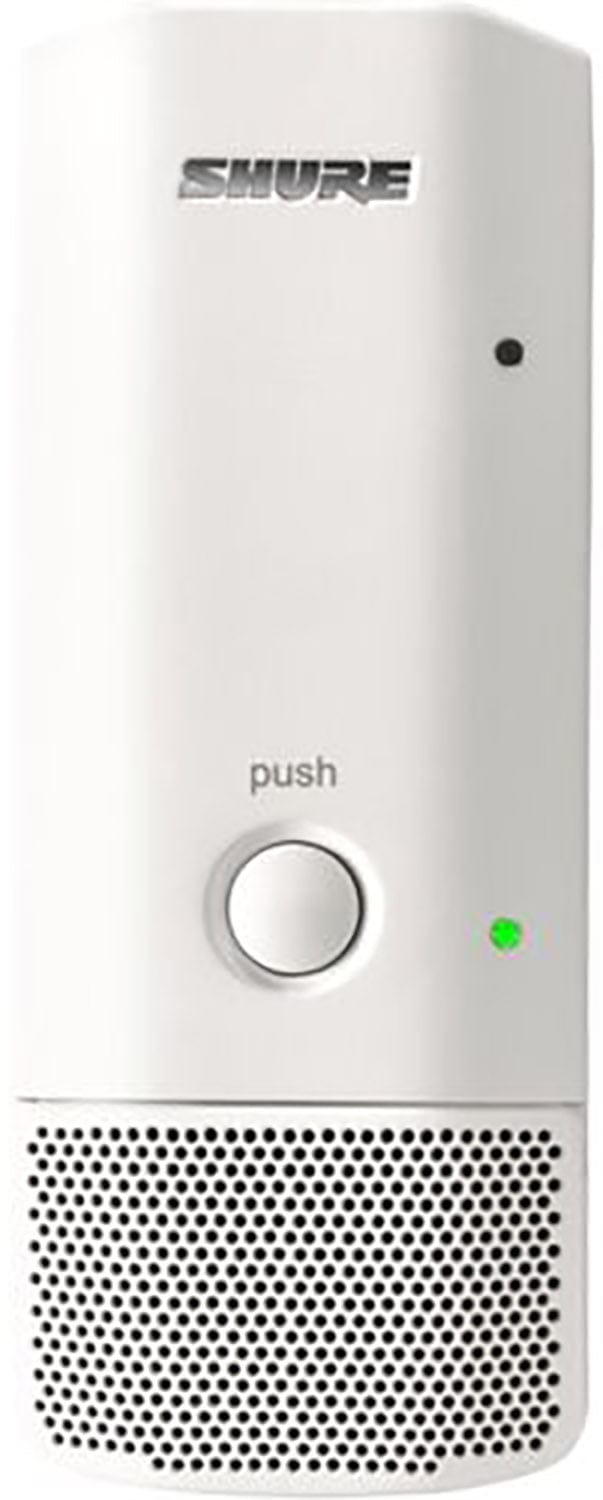

Shure MXW6W/C=-Z10 Boundary Transceiver - Cardioid with Z10 Frequency Band - White

The Shure MXW6 is a boundary microphone transmitter compatible with Microflex® Wireless Systems. With a low-profile design and cardioid or omnidirectional polar pattern options, the MXW6 allows flexible placement with excellent audio capture on any surface in front of one or multiple speakers. All Microflex Wireless transmitters deliver pristine audio quality, intelligent wireless performance, encrypted transmission, and advanced rechargeability for conferencing and presentation applications.

Features:

• Coverage options: omnidirectional polar patterns
• Wide frequency response: Full range audio for clear voice transmission
• Microflex capsules: Well known and trusted Microflex sound signature
• Bi-directional wireless: Enables return channel audio and real time remote control of all wireless microphone settings
• Earphone output: Listen to audio from a return channel for translation, cueing, or program material
• Concealed power switch: Prevents accidental powering off
• Programmable mute button: Customise local or remote muting behavior per application, with options including push-to-talk, push-to-mute, and external control
• Encrypted wireless: AES 256-bit encryption for secure transmission
• Wide working range: Reliable wireless coverage extends up to 160 feet (50 meters)
• Out of range alert: Emits beeping sound when range limit is exceeded
• Easy wireless linking: Assign the microphone to an Access Point channel by simply docking it in a Networked Charging Station and pressing “link”
• Advanced Li-ion batteries: Smart lithium-ion internal batteries (included) provide up to 9 hours of continuous use, charge to full in 2 hours, and enable remote monitoring over the network of remaining runtime and charge status in hours and minutes
• Standby mode: Enabled remotely during periods of inactivity to significantly extend battery life when not in use
• Low-battery LED: Visually alerts when there is 30 minutes of charge remaining
• USB charging: Connects to any standard USB power source for “always on” usage

Specifications:

• Gain Adjustment Range: −25 to +15 dB (in 1 dB steps)
• Maximum Input Level (Mic gain @ -16 dB): −9 dBV
• Headphone Output: 3.5 mm (1/8"), dual mono (will drive stereo phones)
• Maximum Headphone Output Power (1kHz @ 1% distortion, peak power, @16Ω): 17.5 mW
• Antenna Type: Internal, Spatial Diversity, Linear Polarization
• Battery Type: Rechargeable Li-Ion
• Battery Life: Up to 9 hours Calculated with a new battery. Runtimes vary depending on battery health
• Charge Connector: USB 3.0 Type A
• Housing: Molded Plastic
• Recommended Storage Temperature Range: 0 °C (32 °F) to 25 °C (77 °F)
• Microphone Capsule: R185B
• Dimensions: 23 mm × 44 mm × 114 mm (0.9 in. × 1.75 in. × 4.5 in.) H × W × D
• Weight: 108 g (3.8 oz.) with batteries
• Model: Wireless Boundary Transmitter, White, Cardioid
