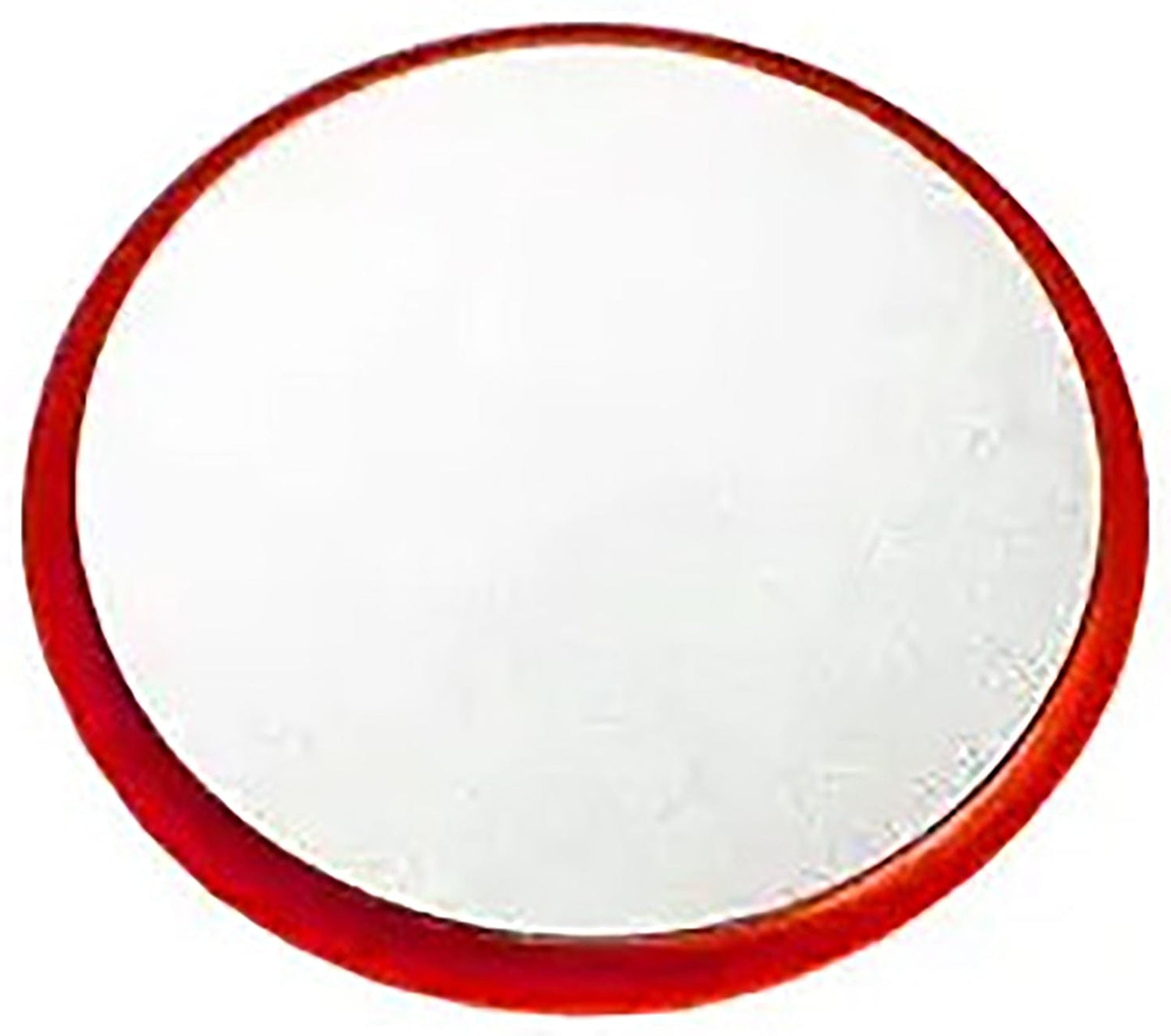

Shure MXA-NMB/BLANK Mute Button for Shure Network Audio Products - Blank / No Icon

Configurable PoE-powered mute button accessory designed for Shure networked audio products, including Microflex® Advance™ Array Microphones as well as the IntelliMix® P300 and IntelliMix Room DSPs, and ANIUSB-MATRIX. One or many of the low-profile touch sensitive mute buttons can be configured to mute one or multiple microphones, depending on user needs or room configurations.

Features:

• Designer System Configuration software for easy setup and configuration
• SystemOn™ Asset Management for remote management & troubleshooting
• PoE powered
• Compatible with third party control systems via programmable control strings
• LED status ring with configurable colors and brightness
• Configurable as toggle, push to talk and push to mute functionality
• IPX1 rated
• Easy table installation in 1” (25mm) or 7/8” (22mm) holes
• Available without microphone icon

Specifications:

• Electrical:
  • Connector Type: RJ45, 8-pin power cable
  • Cable Requirements: Cat 5e or higher (shielded cable recommended)
  • Power Requirements: Power over Ethernet (PoE), Class 1
  • Power Consumption: 2 W, maximum
  • Control Software: Shure Designer
  • Ingress Protection Rating: IEC 60529 IPX1 Water Protected
• Mechanical:
  • Operating Temperature Range −6.7°C (20°F) to 40°C (104°F)
  • Storage Temperature Range −29°C (-20°F) to 74°C (165°F)
• Dimension (H x W x D):
  • Base 3.74 x 3.74 x 1.06 in. (94.96 x 94.96 x 27.04 mm)
  • Mute Button 1.54 x 1.54 x 0.2 in. (39.02 x 39.02 x 5.02 mm)
  • Mute Button Tube 0.87 x 0.87 x 3.03 in. (22 x 22 x 76.98 mm)
  • Grommet 1.97 x 1.97 x 0.31 in. (49.97 x 49.97 x 8 mm)
  • Spacer 1.93 x 1.93 x 0.05 in. (49 x 49 x 1.2 mm)
