Shure DH5B/O-MTQG DuraPlex Omnidirectional Subminiature Headset Microphone - MTQG Plug - Black

More Shure products

Write a review Q&A SKU: DH5B-O-MTQG Solotech ID#: 146833
1 of 3
Get a quote

Need help? Contact our product specialists.

View full details

Need help? Contact our product specialists.

Description

Shure DH5B/O-MTQG DuraPlex Omnidirectional Subminiature Headset Microphone - MTQG Plug - Black

Lightweight and comfortable to wear, the DuraPlex DH5 wireless headset microphone offers a neutral, full sound that will lift your performance, speech, musical, or broadcast. Rely on the DH5 wireless headset microphone in the harshest environments, thanks to its long-lasting Shure Plex cable and a certified IP57 rating, which means you’re protected against water, sweat, moisture, dust, and dirt. Capture every moment with confidence.

Features:

  • 5 mm omnidirectional subminiature design for discrete placement and improved gain-before-feedback
  • IP57 dust-resistant, waterproof rated
  • Neutral, full sound quality for film, broadcast, speech, theater, and performance applications
  • Advanced 1.6 mm Shure Plex cable:
    • Dual redundant ground in cable serves as secondary shield for unprecedented longevity
    • Immune to memory effect and kinks
    • Fully paintable with typical theater paints, pens, and polishes
  • Presence Cap included for tailored frequency response provides additional vocal clarity and presence (3-4 dB boost near 10 kHz)
  • Available in three colors: Black
  • Available in two connector types: TA4F (mTQG)

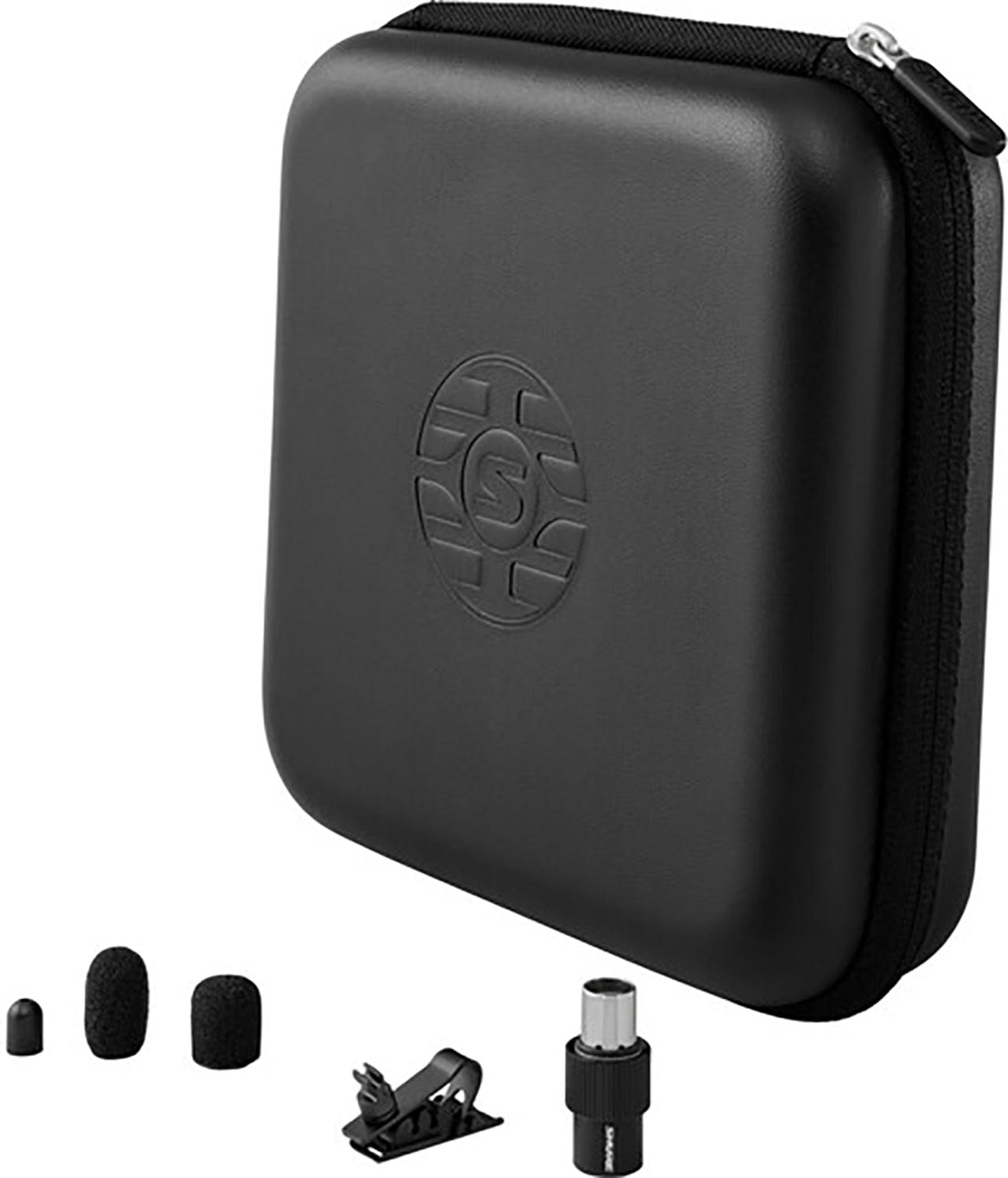

  • Kit includes the following accessories: Case, Foam Windscreen, Snap-fit Windscreen, Single Tie Clip, Sticky Mount, TQG Locking Collar (mTQG/TA4F SKUs only)

Specifications:

  • Microphone Capsule: MEMS
  • Polar Pattern: Omnidirectional
  • Frequency Response: 20 Hz to 20 kHz
  • Sensitivity: –42.5 dBV (7.5 mVRMS) @ 1 kHz
  • Self-Noise: 31 dB SPL-A A-weighted, Equivalent Acoustical
  • Signal-to-Noise Ratio: 63 dB
  • Maximum SPL: 132.0 dB SPL 1 kHz @ 1% THD, typical
  • Dynamic Range: 101.0 dB Typical
  • Microphone Current Draw: 220 µA, maximum
  • Bias Voltage Recommended Operating Voltage: 5 VDC
  • Housing: Molded ABS
  • Polarity: Positive pressure on diaphragm produces positive voltage on Pin 3 with respect to Pin 1
  • Cable Diameter: 1.6 mm
  • Cable Length: 66.0 in (1.67 m)
  • Net Weight: 15.0 g (0.53 oz)
  • Capsule Dimensions (L × D): 14.5 mm × 5.2 mm
