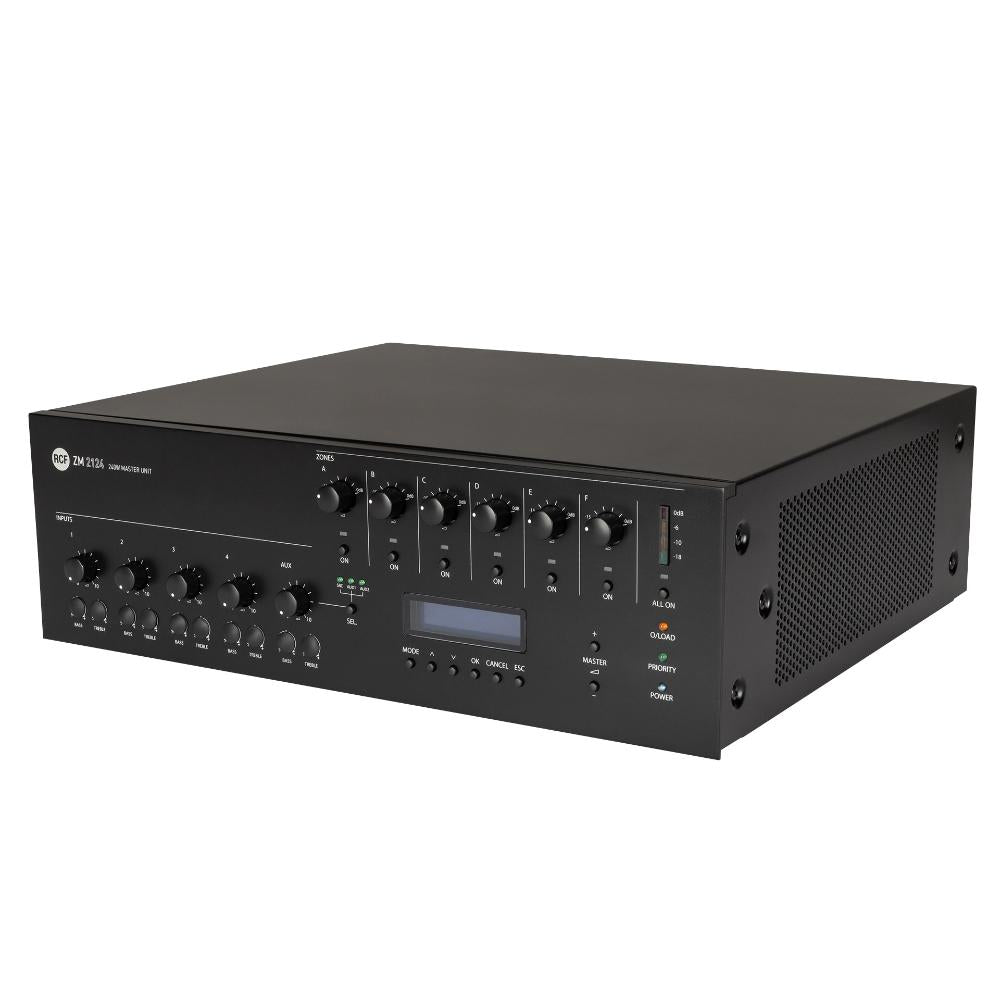

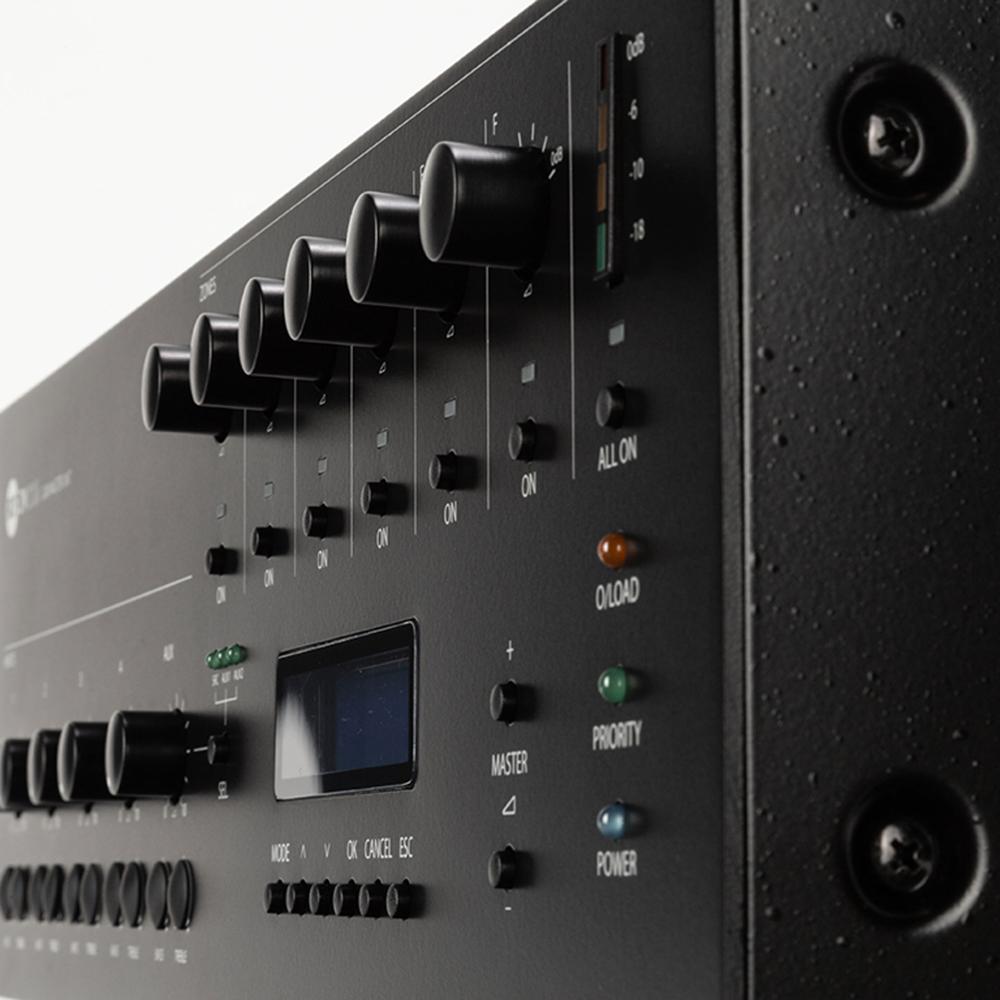

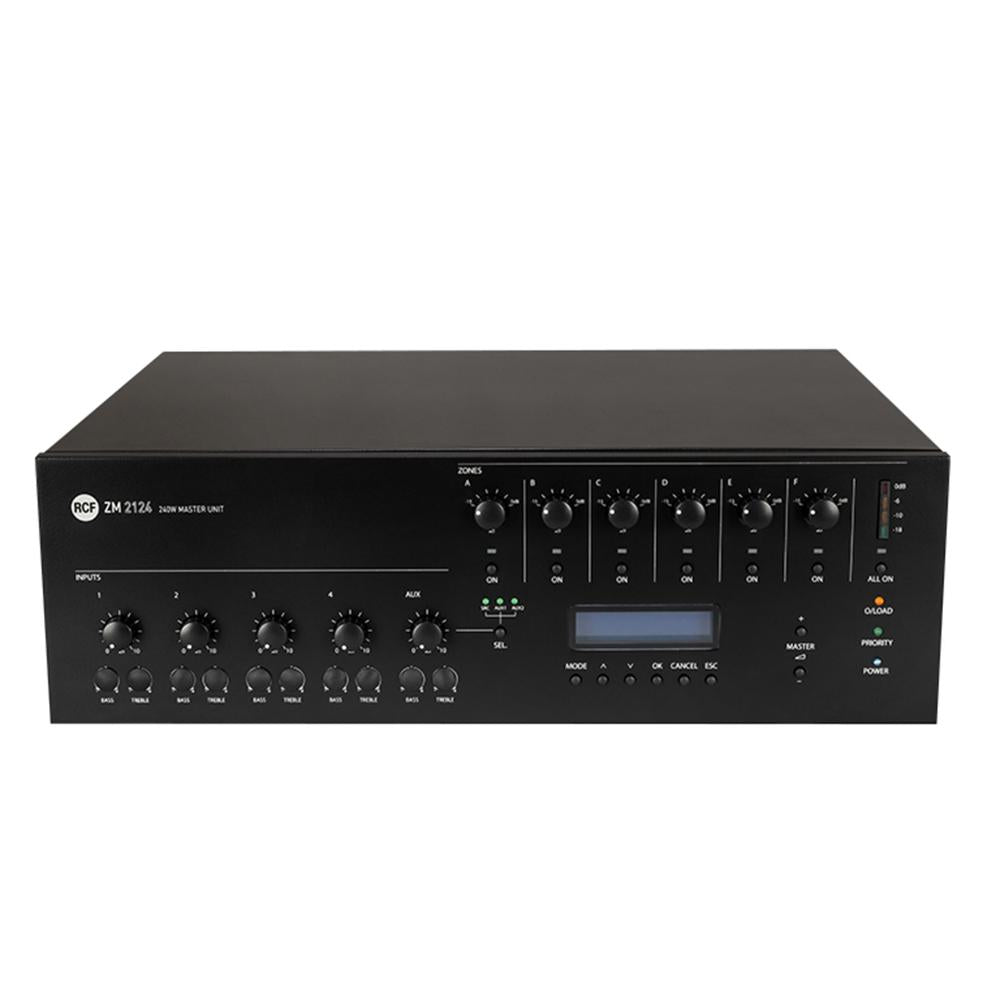

RCF ZM 2124 Amplified Master Unit

RCF ZM 2124 Amplified Master Unit

The ZM 2124 consists of a ZM 2000 system master unit including a 6-zone selection preamplifier and built-in 240W amplifier, based on a dual bus architecture.

The first bus is used for selective paging, and the second for music distribution. On/off buttons are used to toggle power, logic inputs/outputs used to interface system with other devices.

The unit has input connectors for audio sources and can manage priority.

Features:

• 240 W total power
• Dual-bus system architecture
• Selectable inputs priority
• Link up to 8 ZE 2200 zone expansions
• 24 V DC secondary power supply
• Dedicated paging input (up to 6 BM 2006)
• Emergency audio input
• Auxiliary external amplifier input
• Selectable chime generator
• Dedicated wall mount remote control

Specifications:

System Specifications:

• Number of zones managed: 54
• Built-in power amplifier: Yes
• Max number of consoles: 6
• Number of console buses: 1
• Max number of units connectable: 9
• Communication bus: Serial
• Connection Cables: FTP CAT 5

Amplifier specifications:

• Number of channels: 6
• Output power at 100 V (W): 240W RMS
• Frequency Response(-3dB): 50 Hz - 20kHz
• Signal/noise rate("A" weighted): >75 dB
• Distortion(THD+N) at 1kHz nominal power: <1%

Input section:

• Total number of inputs: 9
• Balanced: 6
• Unbalanced: 3
• Mono: 6
• Stereo: 3
• Mic inputs: 2
• Mic connectors: XLR
• Mic Phantom: 17.5 V DC
• Line inputs: 2
• Line connectors: RCA
• Mic+Line inputs: 2
• Mic+Line connectors: XLR
• Mic+Line Phantom: 17.5 V DC
• Paging inputs: 3
• Paging connectors: RCA, RJ45
• Paging command: Contact
• General Purpose Inputs (GPI): 10
• Programmable GPI: Yes

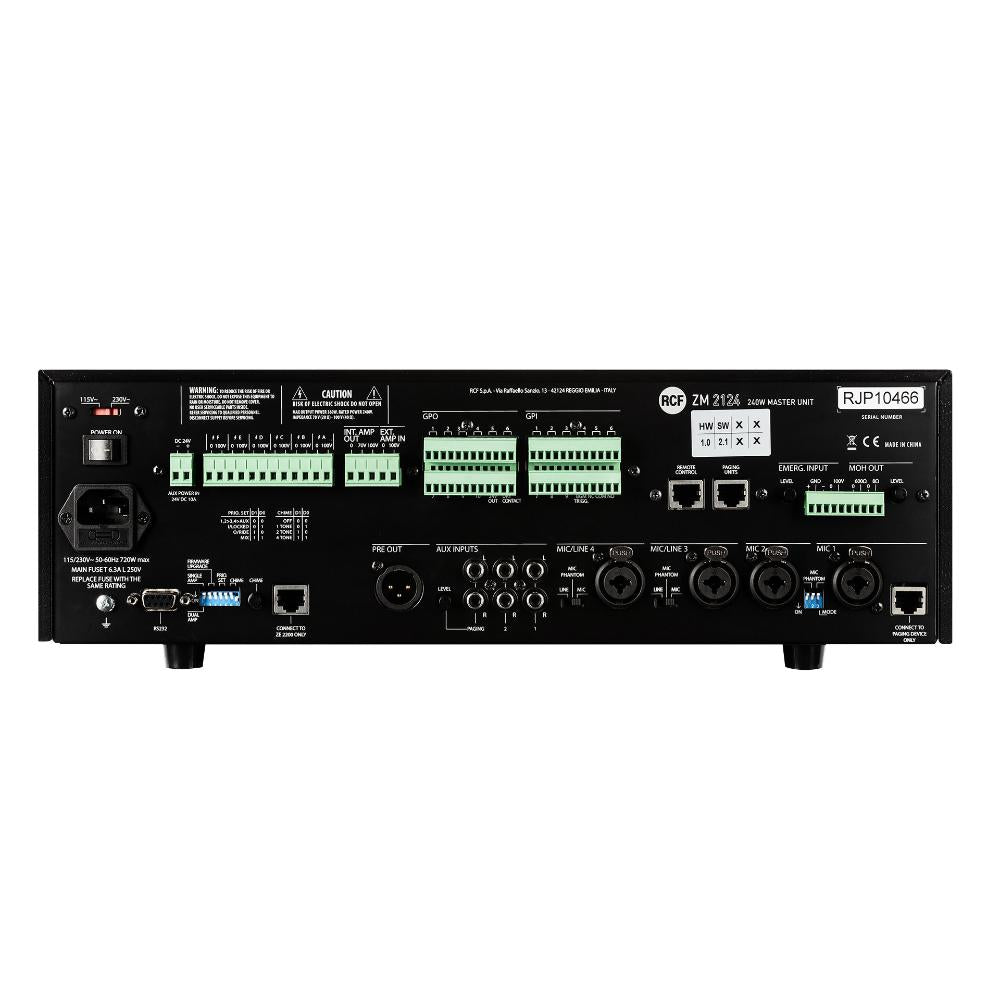

Output section:

• Signal output number: 1
• Signal output connectors: XLR
• Power output connectors: Euroblock
• General Purpose Outputs (GPO): 10


Processing:

• Tone controls: Yes
• Controls:
• Configuration: Front panel
• Priority: Yes
• Music on hold: Yes
• Chime tone: Yes

Protections:

• Cooling: Convection

Power requirement:

• Operating voltage: 220-240/115 V~ 50/60Hz
• Voltage selection: External
• DC power: Yes
• DC power value: 24V
• Power consumption (MAX): 720 W

Standard compliance:

• Safety agency: CE compliant

Physical specifications:

• Cabinet/Case Material: Metal
• Colour: Black
• Rack mounting: 19", 3U

Size/Weight:

• Height: 133mm / 5.24 inches
• Width: 430 mm / 16.93 inches
• Depth: 365 mm / 14.37 inches
• Weight: 16.4 kg / 36.16 lbs

Shipping information:

• Package Height: 296 mm / 11.65 inches
• Package Width: 490 mm / 19.29  inches
• Package Depth: 490 mm / 19.29 inches
• Package Weight: 18.8 kg / 41.45 lbs
