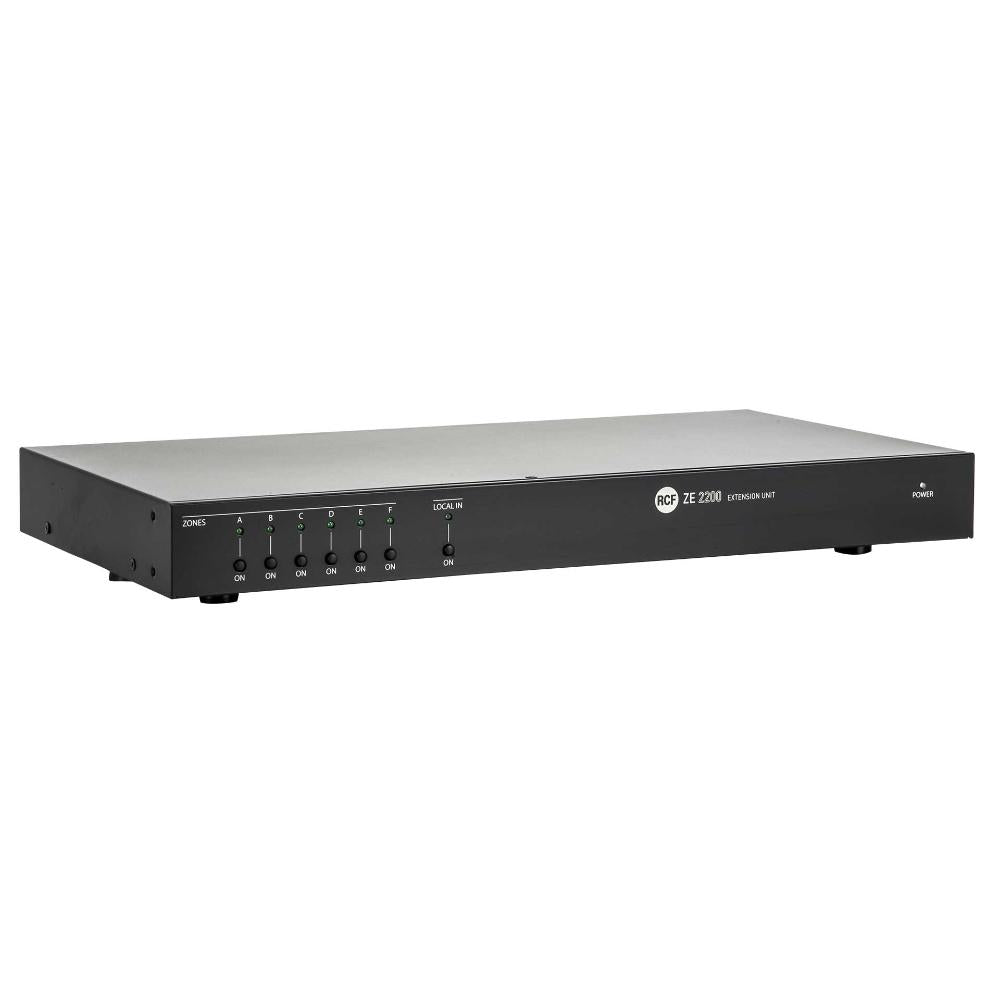

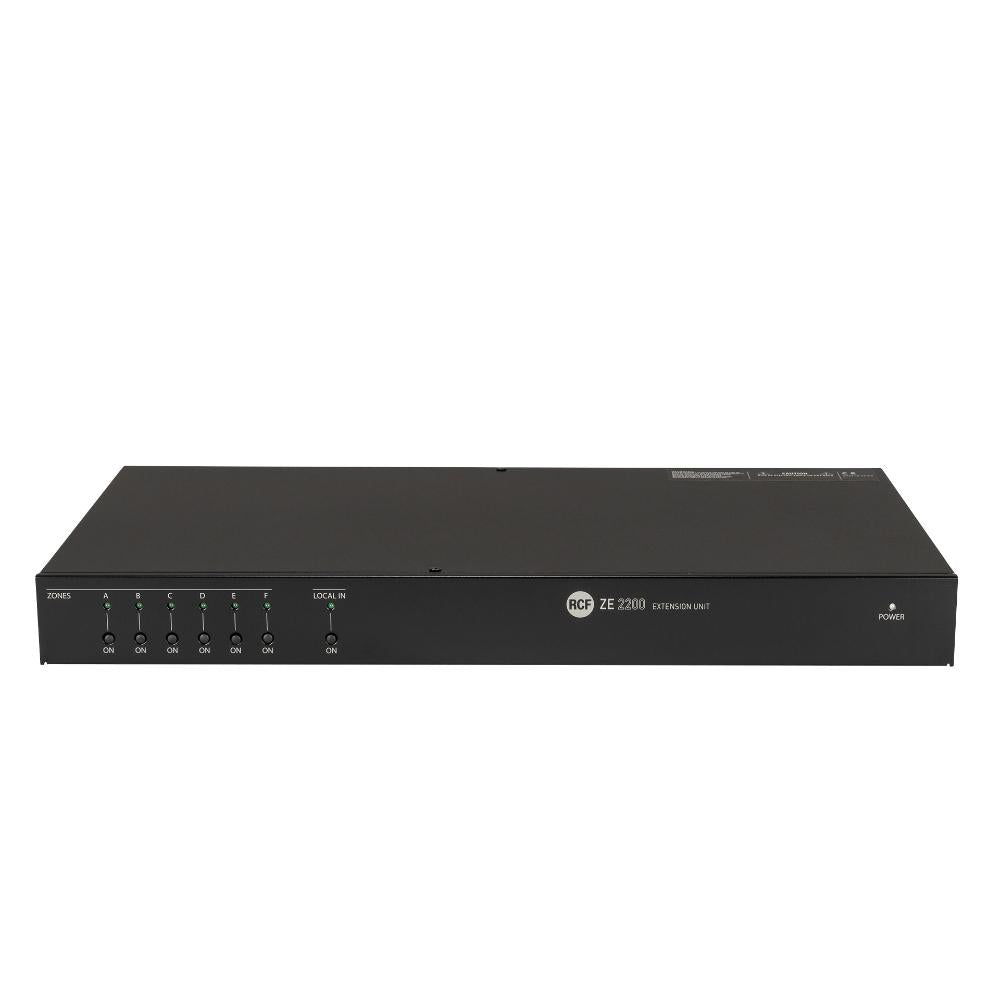

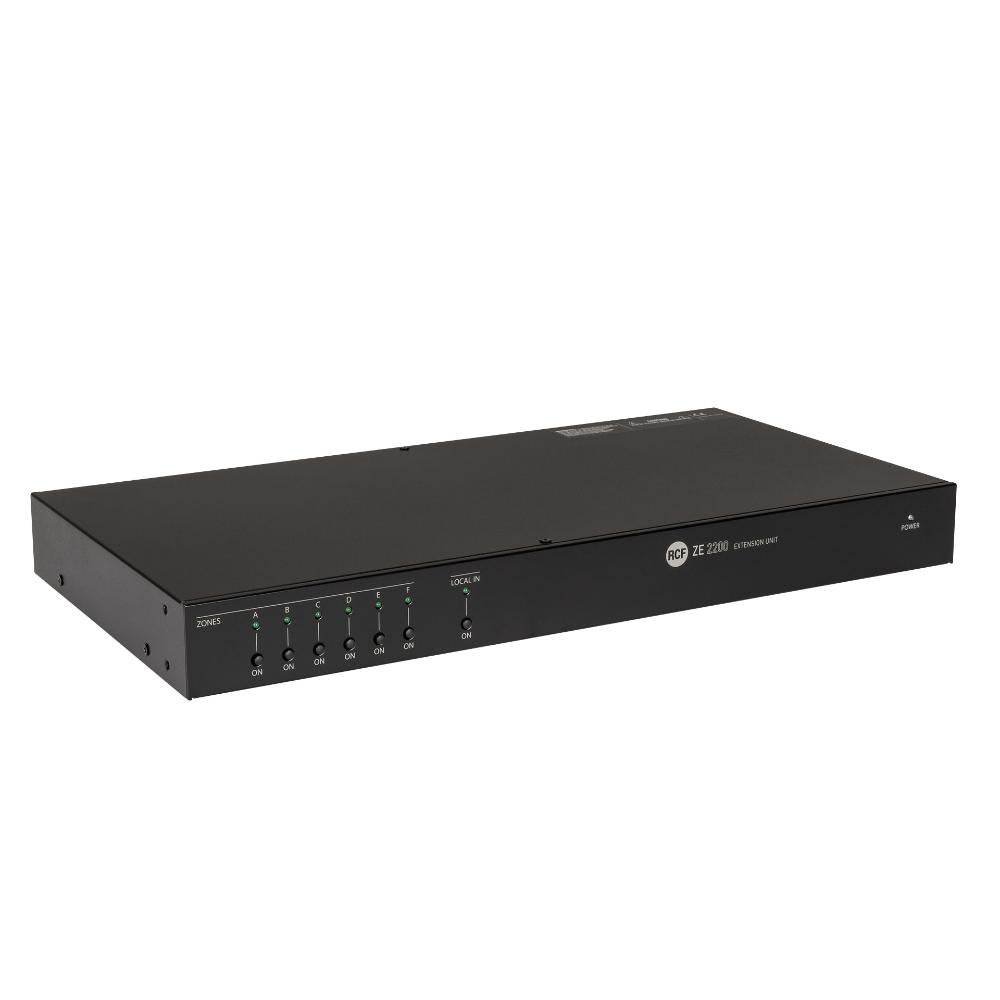

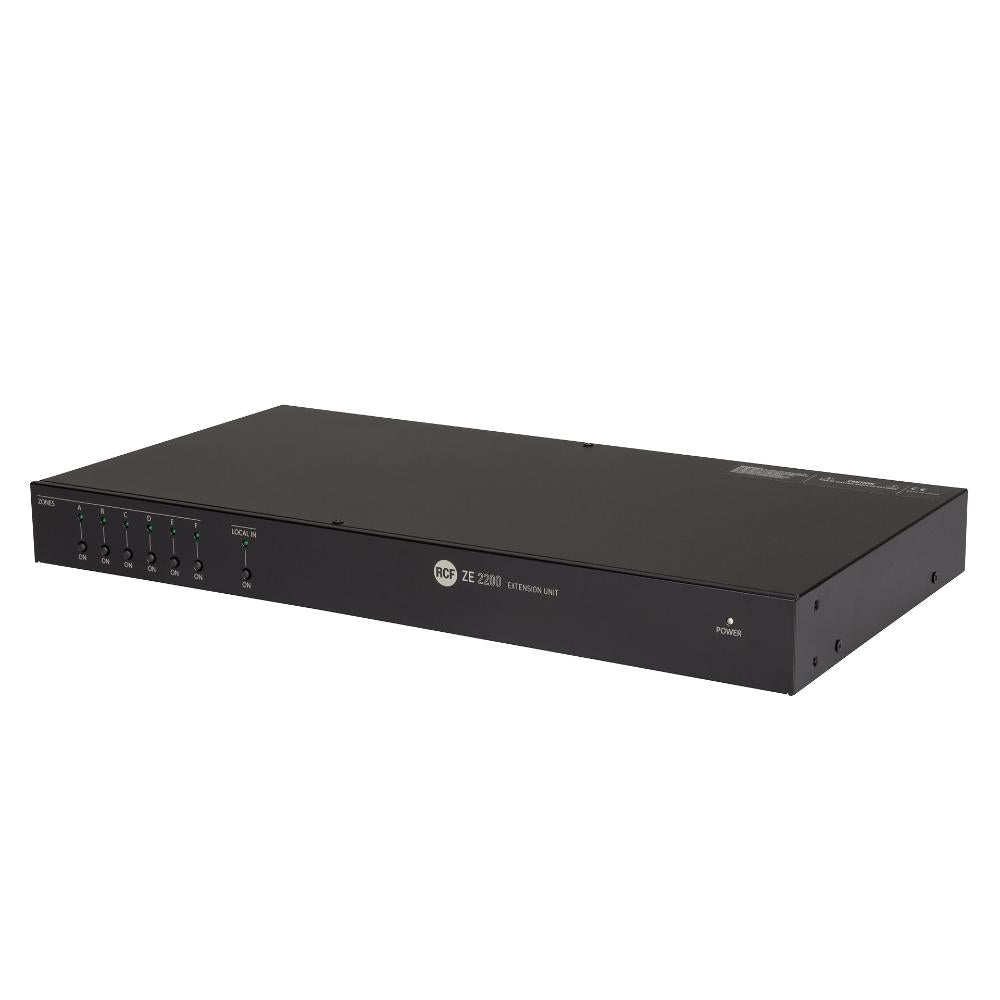

RCF ZE 2200 Expansion Unit 6 Zones
The ZE 2200 expands your ZM 2000 system's capacity to manage up to 54 zones by connecting up to 8 units. Each unit adds 6 zones of control, giving you flexibility to scale your audio distribution across larger facilities. Choose between sharing the main unit's music programme or inserting a local source for each zone. Like the ZM 2000, the ZE 2200 uses dual bus architecture, one bus handles selective and all-call paging, while the second manages music distribution and other signals. Ideal for growing installations that require zone expansion without replacing core equipment.
Features:
- Dual-bus system architecture
- Additional 6 zones management
- 2 external amplifier inputs
- Local auxiliary input
- 24 V DC secondary power supply
Specifications:
System Specifications:
- Number of zones managed: 6
- Max number of units connectable: 8
- Communication bus: Serial
- Connection Cables: FTP CAT 5
Amplifier Specifications:
- Number of channels: 6
- Output power @ 100 V (W): 240 W RMS
- Frequency Response (-3dB): 50 Hz - 20 kHz
- Signal/noise rate ("A" weighted): >75 dB
- Distortion (THD+N) @ 1 kHz nominal power: <1%
Input Section:
- Total number of inputs: 1
- Unbalanced: 1
- Stereo: 1
- Line inputs: 1
- Line connectors: RCA
- General Purpose Inputs (GPI): 10
Output Section:
- Signal output number: 2
- Signal output connectors: XLR
- General Purpose Outputs (GPO): 10
Protections:
Power Requiremet:
- Operating voltage: 220-240/115 V- 50/60Hz
- Voltage selection: External
- DC power: Yes
- DC power value: 24 V
- Power consumption (MAX): 15 W
Standard Compliance:
- Safety agency: CE compliant
Physical Specifications:
- Cabinet/Case Material: Metal
- Rack Mounting: 19", 1U
Size / Weight:
- Height: 44 mm / 1.73 inches
- Width: 430 mm / 16.93 inches
- Depth: 365 mm / 14.37 inches
- Weight: 3.3 kg / 7.28 lbs
Shipping Information:
- Package Height: 130 mm / 5.12 inches
- Package Width: 460 mm / 18.11 inches
- Package Depth: 320 mm / 12.6 inches
- Package Weight: 4.5 kg / 9.92 lbs
