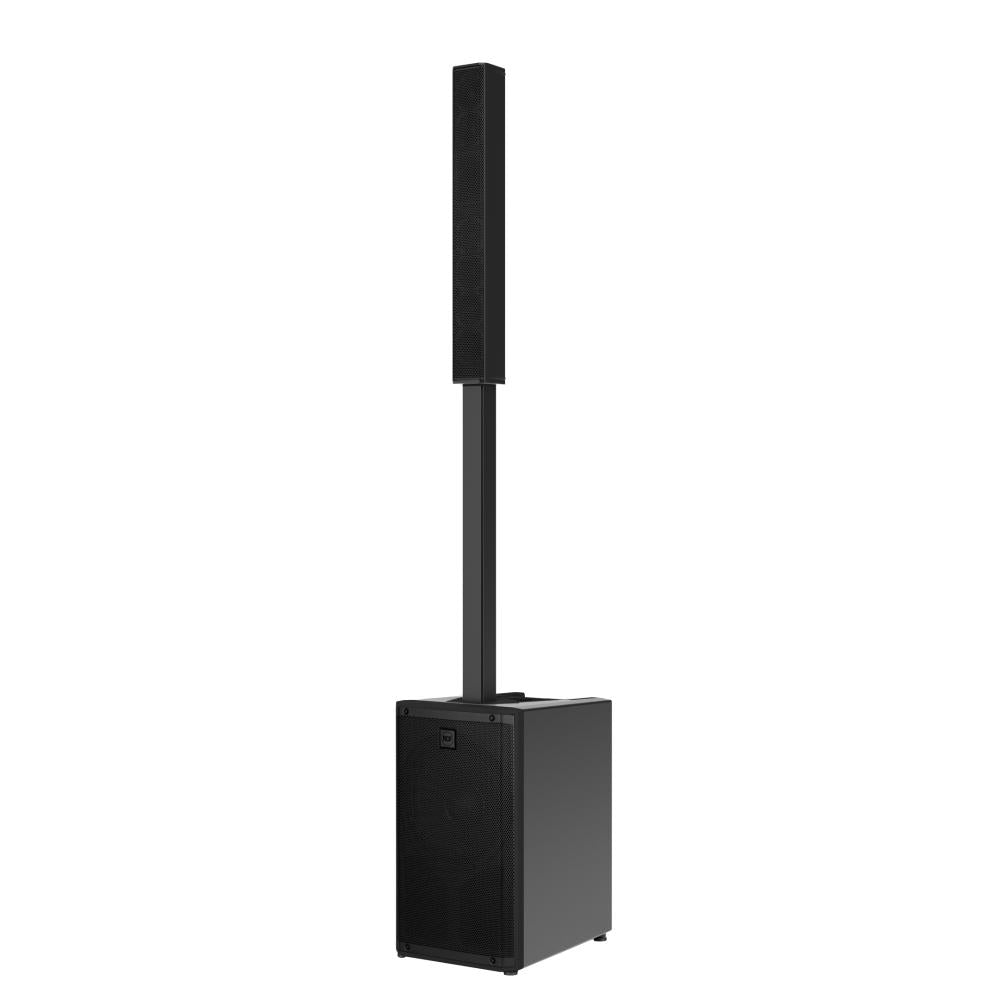

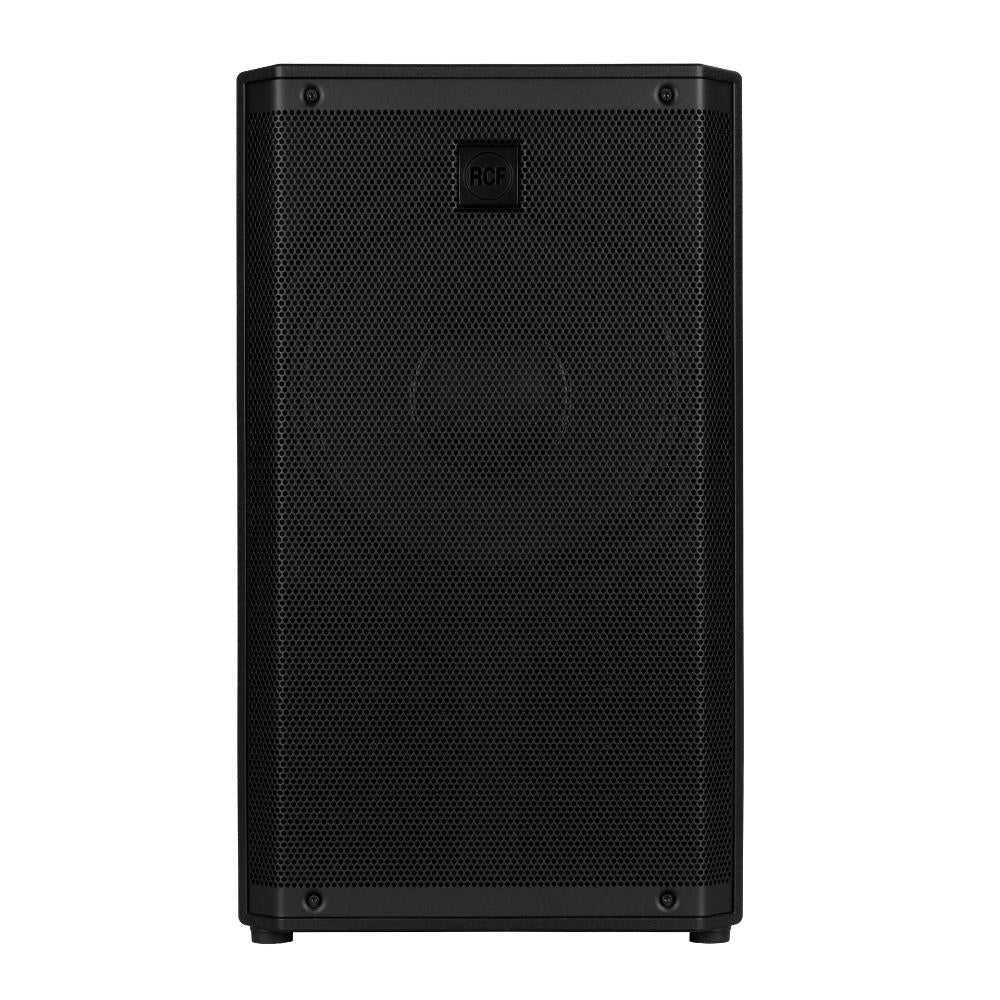

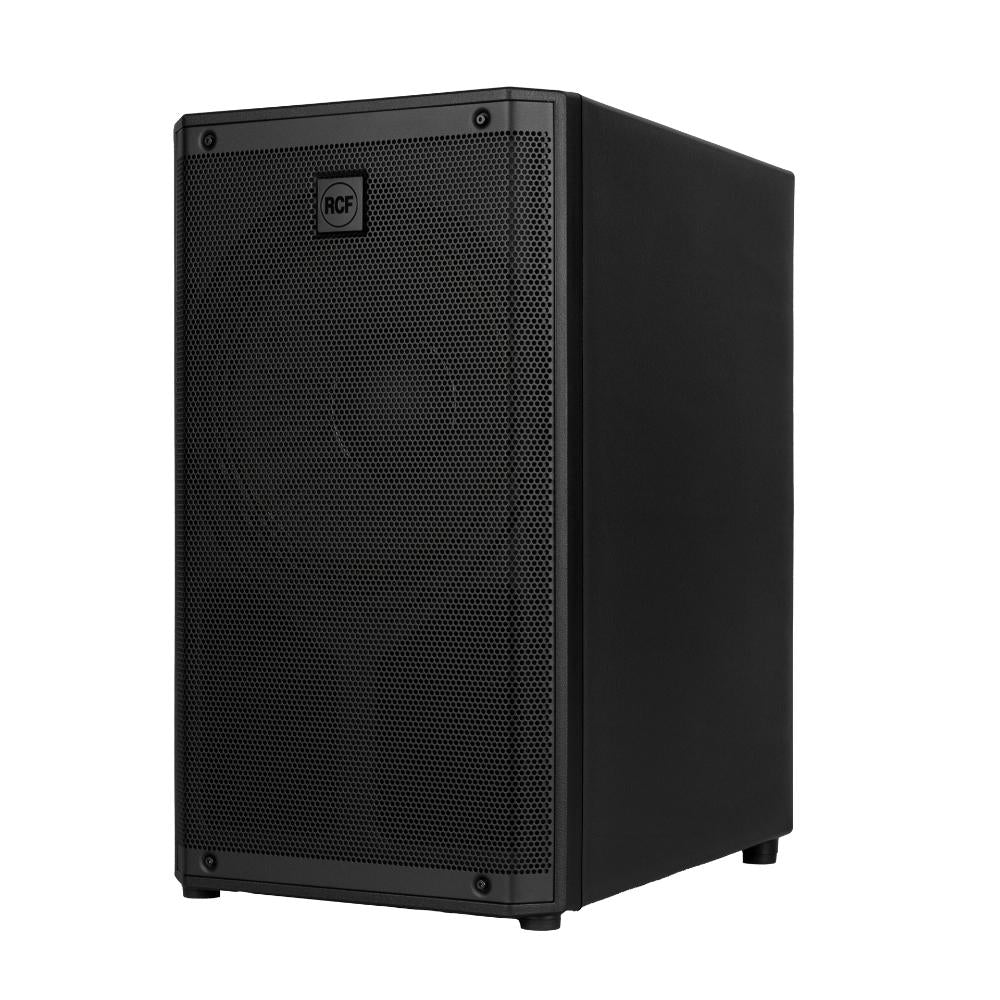

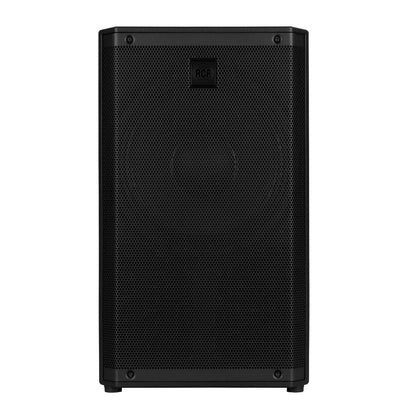

RCF EVOX JMIX9 Music System

RCF EVOX JMIX9 Active Three-way Column Music System

RCF EVOX JMIX9 is a 3-way active portable column system engineered for professional audio delivery.

The integrated 8-channel stereo digital mixer features a colour touch display, intuitive encoders, and Bluetooth streaming for seamless wireless connectivity within a 10-meter range. Control your entire setup remotely via the JMixRemote app or manage mixing directly on the unit. Combo inputs, stereo/aux outputs, built-in EQ, reverb, phantom power, and output delay up to 135 ms provide the flexibility needed for live events, presentations, and installations. Combining the clarity and power of the J9 with advanced digital mixing and wireless management, EVOX JMIX9 delivers professional performance across the entire signal chain.

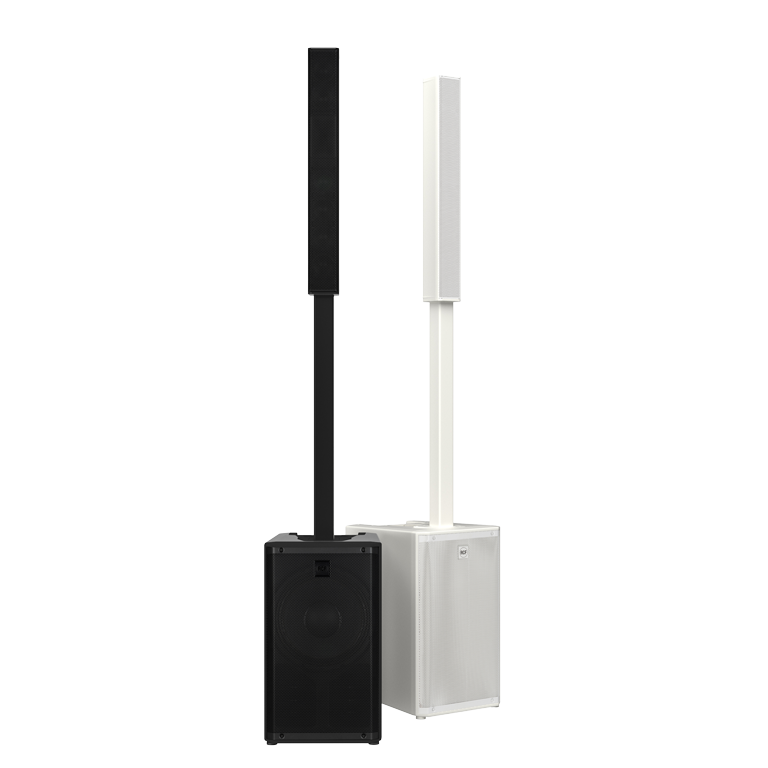

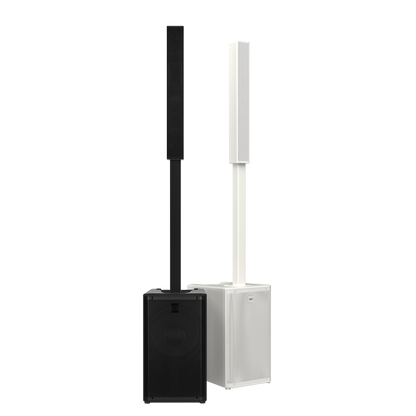

The RCF EVOX JMIX9 Music System is available in black or white.

Features:

• 8-Ch True-Stereo Digital Mixer w/ Bluetooth*
• 130 dB Max SPL
• 2100 W Class-D Amplifier - Built-In DSP
• 1.75” Neo Compression Driver - 120° X 40° True Resistive Waveguide
• 6 × 3” Full-Range Neo Transducers
• 12” High-Power Woofer
• Sleek Composite Cabinet With Aluminium Stand Mount
• Top Speaker Padded Carrying Bag Included
• JMIX 9 Sub: 20,8 Kg - 45.86 lb  /  JMIX 9 Top: 5.8 kg - 12.78 lb

Specifications:

Acoustical Specifications:

• Frequency Response: 40 Hz - 20000 Hz
• Max SPL @ 1m: 130 dB
• Horizontal coverage angle: 120°
• Vertical coverage angle: 40°

Transducers:

• Compression Driver: 1 x 0.75" neo, 1.75" v.c
• Fullrange: 6 x 3.0" neo, 1.0" v.c
• Woofer: 1 x 12", 2.5" v.c

Input/Output Section:

• Input signal: bal/unbal
• Input connectors: Combo XLR/Jack
• Output connectors: XLR
• Input sensitivity: -2 dBu/+4 dBu

Processor Section:

• Crossover Frequencies: 200 Hz/1800 Hz
• Protections: Thermal, RMS
• Limiter:  Soft Limiter
• Controls: Digital mixer controlled by touch and encoders

Power Section:

• Total Power: 2100 W Peak
• High frequencies: 700 W Peak
• Low frequencies: 1400 W Peak
• Cooling: Convection
• Connections: VDE

Electronic Specifications:

• Frequency Response: 20 Hz - 20 Hz
• THD+N, 20dB gain, 0dBu out: 0.003% A-Weighted

Processing:

• Processing Channels: 8
• Signal Processing: 32 Bit
• A/D-D/A conversion: 24 Bit @ 48.0 kHz
• Dynamic range: 114

Inputs:

• Mic: 4
• Remote Controlled Storable Gain: Yes
• Gain Range: 0 dB - 36 dB
• Input Noise Level: -114 dBu A-Weighted
• Mic Inputs Impedance: 3 kohm
• Low Cut: 20 Hz - 400 Hz
• Phantom Power + 48V: Yes
• Mono Line: 4
•  Line Input Impendence: 10 kohm
• A/D Dynamic range:
• Stereo Line: 2
• Gain Selection: 0 dB - 0 dB
• Stereo Line Input Impedance (kOhm): 24 kohm

Outputs:

• Main MIX: 1
• FX Send: 1
• AUX Send: 1
• AUX Output: 1
• Phones: 1

Outputs Specifications:

• Main Out Impedance: 150 ohm
• Main Out Level: 20 dBu
• Aux Out Impedance (ohm): 150 ohm
• Aux Out Level: 20 dBu
• Phones Out Impedance (ohm): 100 ohm
• Phones Out Level: 20 dBm
• D/A Dynamic Range: 118 dB

Compressors:

• RCF Compressors: Compressors on MIC/LINE CH1 to CH4 Inputs

EQ:

• Input Channels EQ: 1 Semi Parametric / 2 Shelving
• Description:
  • 3 Band EQ: High and Low band shelving, MID band peak on INPUT
  • 8 band EQ: 6 Full Parametric, 1 High Shelving and HPF 12dB/Oct on amplifier and MAIN output

Auxiliary Sends:

• AUX: 1 PRE/POST
• FX POST: 1

Internal Effects:

• Send Effects: 1

Mastering Processors:

• Main OUT processors: 1
• Main OUT type: MIX, OUT, STEREO/MONO OUTPUT, AUX OUT, HEADPHONES OUTPUT.

Electrical Specifications:

• Power supply: Internal

Standard Compliance:

• Safety agency: CE compliant

Physical Specifications:

• Cabinet/Case Material: PP Composite
• Handles: 1 Top
• Pole mount/Cap: Quick-fit socket
• Grille: Steel
• Colour: Black, White - RAL 9003

Size / Weight:

• Height: 2080 mm / 81.89 inches
• Width: 350 mm / 13.78 inches
• Depth: 460 mm / 18.11 inches
• Weight: 26.6 kg / 58.64 lbs

Shipping Information:

• Package Height: 676 mm / 26.61 inches
• Package Width: 451 mm / 17.76 inches
• Package Depth: 581 mm / 22.87 inches
• Package Weight: 32.5 kg / 71.65 lbs
