RCF EVOX J9 Speaker

RCF EVOX J9 Active Three-way Portable Column Speaker

RCF EVOX J9 is an active, three-way portable column system engineered for maximum clarity and power in a compact format.

The 1.75" compression driver paired with a 120° × 40° True Resistive Waveguide delivers wide, consistent coverage across venues. Six 3" full-range transducers and a high-power 12" woofer in a bass-reflex enclosure produce articulate mids and deep, controlled lows. Powered by a 2100W onboard dual-channel Class-D amplifier, the EVOX J9 achieves an impressive 130 dB Max SPL output. Part of RCF's tour-grade EVOX J Series, this speaker combines professional technology with a sleek, unobtrusive design. Ideal for bands, DJs, and live performers who demand crystal-clear vocals, natural musical response, and effortless deployment.

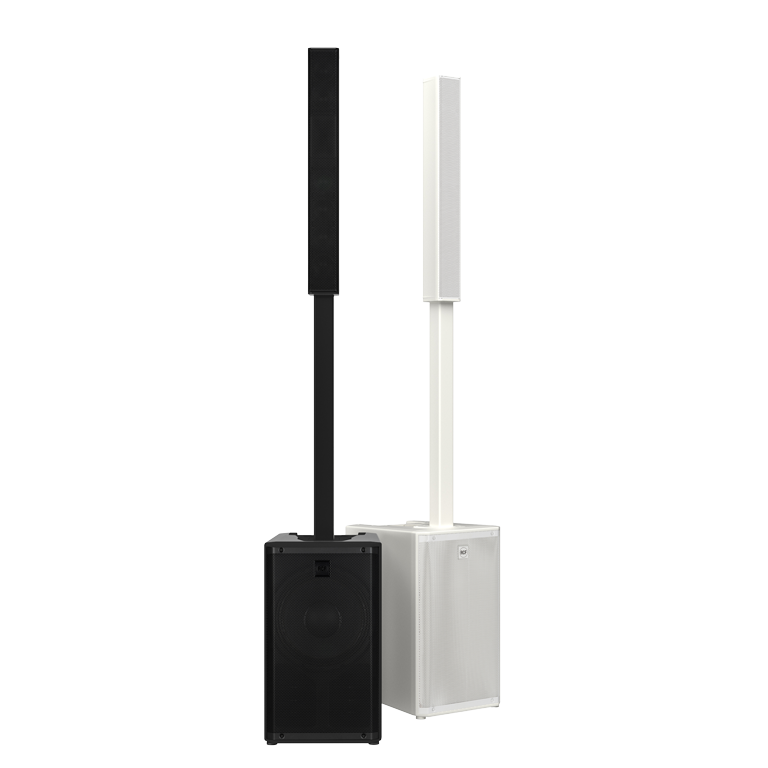

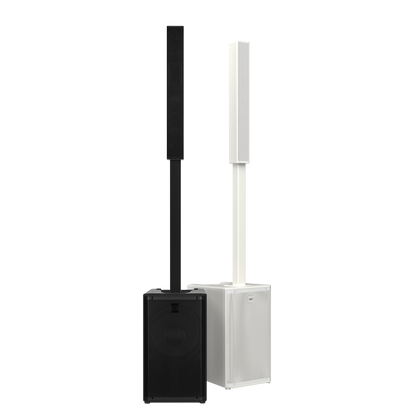

The RCF EVOX J9 Speaker is available in black or white.

Features:

• 130 dB Max SPL
• 2100 W Class-D Amplifier - Built-In DSP
• 1.75” Neo Compression Driver - 120° X 40° True Resistive Waveguide
• 6 × 3” Full-Range Neo Transducers
• 12” High-Power Woofer
• Enhanced Coverage And Clarity
• Composite Cabinet With Aluminium Stand Mount
• Sleek, Road-Ready Design
• Top Speaker Padded Carrying Bag Included
• J9 Sub: 20,2 kg - 44.53 lb  /  J9 Top: 5.8 kg - 12.78 lb

Specifications:

Acoustical Specifications:

• Frequency Response: 40 Hz - 2000 Hz
• Max SPL @ 1m: 130 dB
• Horizontal coverage angle: 120°
• Vertical coverage angle: 40°

Transducers:

• Compression Driver: 1 x 0.75" neo, 1.75" v.c
• Fullrange: 6 x 3.0" neo, 1.0" v.c
• Woofer: 1 x 12", 2.5" v.c

Input/Output Section:

• Input signal: bal/unbal
• Input connectors: Combo XLR/Jack
• Output connectors: XLR
• Input sensitivity: -2 dBu/+4 dBu

Processor Section:

• Crossover Frequencies: 200 Hz/1800 Hz
• Protections: Thermal, RMS
• Limiter: Soft Limiter
• Controls: Volume, Presets; LINEAR/LIVE, CLUB, VOICE

Power Section:

• Total Power: 2100 W Peak
• High frequencies: 700 W Peak
• Low Frequencies: 1400 W Peak
• Cooling: Convection
• Connections: VDE

Standard Compliance:

• Safety agency: CE compliant

Physical Specifications:

• Cabinet/Case Material: PP Composite
• Handles: 1 Top
• Pole mount/Cap: Quick-fit socket
• Grille: Steel
• Colour: Black, White - RAL 9003

Size / Weight:

• Height: 2080.1 mm / 81.89 inches
• Width: 350 mm / 13.78 inches
• Depth: 462.6 mm / 18.21 inches
• Weight: 26 kg / 57.32 lbs

Shipping Information:

• Package Height: 680 mm / 26.77 inches
• Package Width: 490 mm / 19.29 inches
• Package Depth: 460 mm / 18.11 inches
• Package Weight: 32 kg / 70.55 lbs
