RCF EVOX J11 Speaker

RCF EVOX J11 Active Three-way Portable Column Speaker

The RCF EVOX J11 is an active, three-way portable column system engineered for maximum clarity and power in a compact format. Featuring a 1.75" compression driver paired with a 120° × 40° True Resistive Waveguide for wide, consistent coverage, the system combines 12 x 3" full-range transducers with a high-power 12" woofer in a bass-reflex enclosure to deliver articulate mids and deep, controlled lows. Powered by a 3500W onboard dual-channel Class-D amplifier, it achieves an impressive 132 dB Max SPL output. Part of the EVOX J Series, this tour-grade system delivers crystal-clear vocals, natural musical response, and effortless deployment, ideal for bands, DJs, and live performers seeking professional sound in a sleek, portable package.

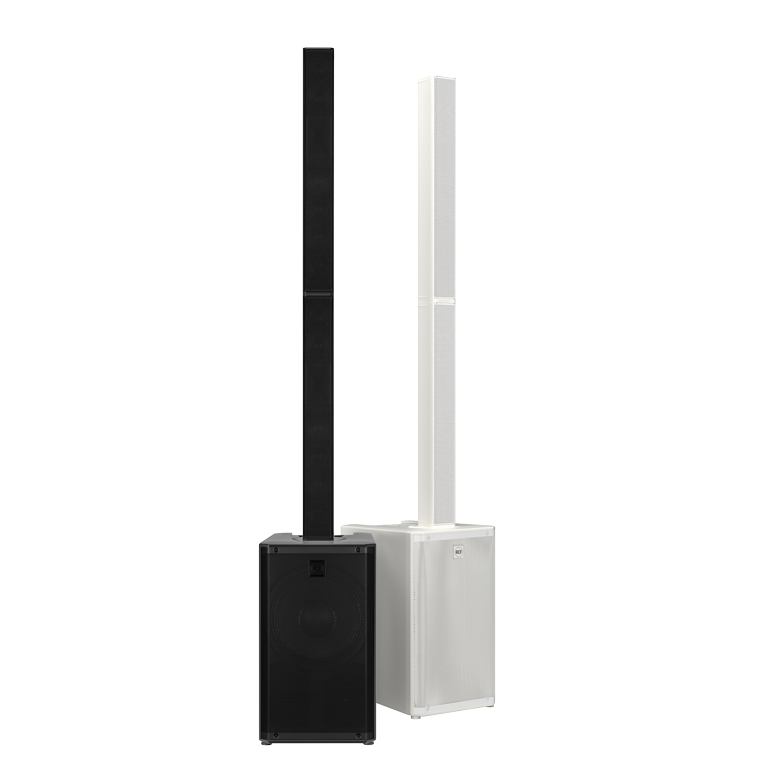

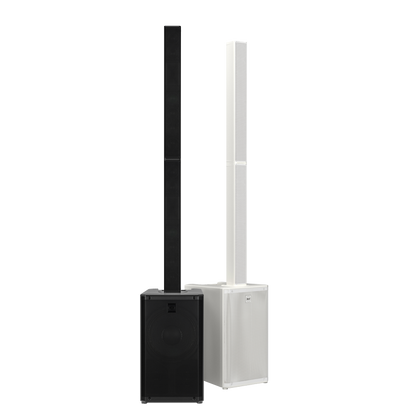

The RCF EVOX J11 Speaker is available in black or white.

Features:

• 132 dB Max SPL
• 3500 W Class-D Amplifier - Built-In DSP
• 1.75” Neo Compression Driver - 120° X 40° True Resistive Waveguide
• 12 × 3” Full-Range Neo Transducers
• 12” High-Power Woofer
• Enhanced Coverage And Clarity
• Composite Cabinet
• Sleek, Road-Ready Design
• Top Speaker Padded Carrying Bag Included
• J11 Sub: 20,6 kg - 45.42 lb  /  J11 Top: 8.4 kg - 18.52  lb

Specifications:

Acoustical Specifications:

• Frequency Response: 37 Hz - 20000 Hz
• Max SPL @ 1m: 132 dB
• Horizontal coverage angle: 120°
• Vertical coverage angle: 40°

Transducers:

• Compression Driver: 1 x 0.75" neo, 1.75" v.c
• 12 x 3.0" neo, 1.0" v.c
• Woofer: 1 x 12", 2.5" v.c

Input/Output Section:

• Input signal: bal/unbal
• Input connectors: Combo XLR/Jack
• Output connectors: XLR
• Input sensitivity: +4 dBu

Processor Section:

• Crossover Frequencies: 160 Hz/1800 Hz
• Protections: Thermal, RMS
• Limiter: Soft Limiter
• Controls: Volume, Presets: LINEAR/LIVE, CLUB, VOICE

Power Section:

• Total Power: 3500 W Peak
• High frequencies: 1500 W Peak
• Low frequencies: 2000 W Peak
• Cooling: Convection
• Connections: Powercon TRUE1 TOP IN/OUT

Standard Compliance:

• Safety agency: CE compliant

Physical Specifications:

• Cabinet/Case Material: PP Composite
• Handles: 1 Top
• Pole mount/Cap: Quick-fit socket
• Grille: Steel
• Colour: Black, White - RAL 9003

Size / Weight:

• Height: 2080 mm / 81.89 inches
• Width: 350 mm / 13.78 inches
• Depth: 463 mm / 18.23 inches
• Weight: 29 kg / 63.93 lbs

Shipping Information:

• Package Height: 676 mm / 26.61 inches
• Package Width: 451 mm / 17.76 inches
• Package Depth: 581 mm / 22.87 inches
• Package Weight: 35 kg / 77.16 lbs
