The EVOX 12 is the most powerful line-source in its class, delivering profound and dynamic sound reproduction at high levels thanks to its built-in 1400W power amplifier. Eight high-performance neodymium 4" full-range transducers with phase plugs ensure significantly increased low-mid playback at consistent levels with wide high-frequency dispersion.
The integrated 15" subwoofer reinforces powerful bass for large events and live performances. Despite its impressive output, the compact enclosure features integrated wheels and an extendable handle for easy transport and setup.

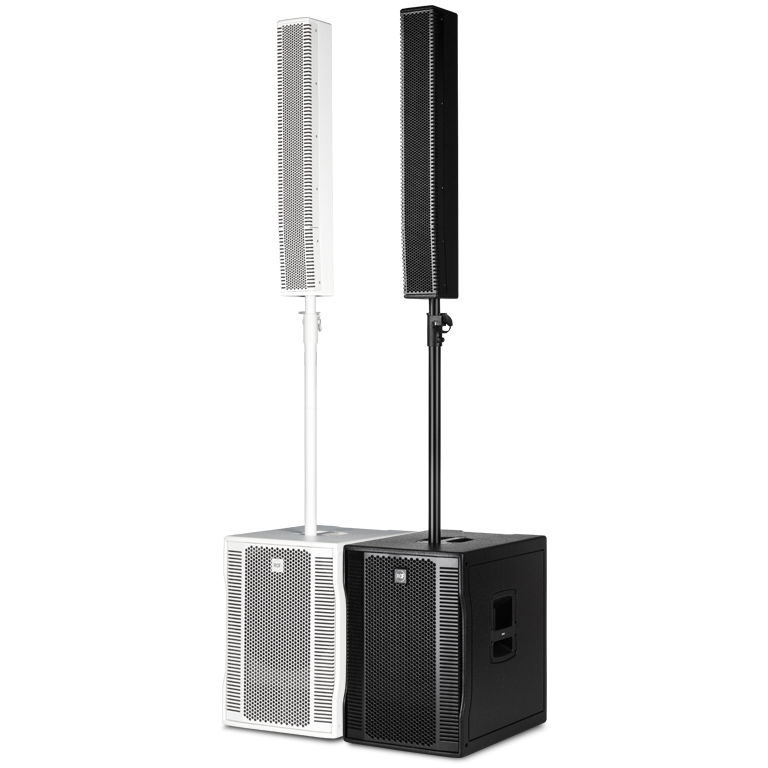

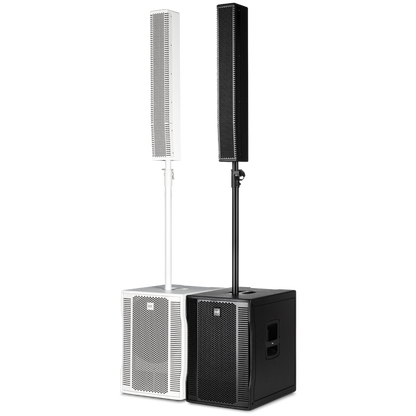

The RCF EVOX 12 Array is available in black or white.
Features:
1400 Watt
130 dB max SPL
40 Hz 20 kHz frequency response
15" Woofer
8 x 4" neodymium full-range woofer
90° x 30° slightly tilted pattern control
Innovative DSP processing
Pole mountable, easy set-up and transportation
Specifications:
Acoustical Specifications:
Frequency Response: 40 Hz - 20000 Hz
Max SPL @ 1m: 130 dB
Horizontal coverage angle: 90°
Vertical coverage angle: 30°
Transducers:
Fullrange: 8 x 4.0", 1.0" v.c
Woofer: 15",3.0" v.c
Input/Output Section:
Input signal: bal/unbal
Input connectors: XLR, Jack
Output connectors: XLR
Input sensitivity: -2 dBu/+4 dBu
Processor Section:
Crossover Frequencies: 180 Hz
Protections: Thermal, RMS
Limiter: Soft Limiter
Controls: Volume, EQ
Power Section:
Total Power: 1400 W Peak, 700 W RMS
High frequencies: 400 W Peak, 200 W RMS
Low frequencies: 100 W Peak, 500 W RMS
Cooling: Convection
Connections: VDE
Standard Compliance:
Safety agency: CE compliant
Physical Specifications:
Cabinet/Case Material: Baltic birch plywood
Colour: Black, White - RAL 9003
Size / Weight:
Height: 2200 mm / 86.61 inches
Width: 410 mm / 16.14 inches
Depth: 560 mm / 22.05 inches
Weight: 36.4 kg / 80.25 lbs
Shipping Information:
Package Height: 636 mm / 25.04 inches
Package Width: 459 mm / 18.07 inches
Package Depth: 613 mm / 24.13 inches
Package Weight: 43.89 kg / 96.76 lbs
