Name: Radial LX2 Passive Line Splitter
Brand: Radial Engineering
SKU: LX2

Radial LX2 Passive Line Splitter

Passive Line-Level Splitter & AttenuatorThe LX-2ô is a passive balanced line-level audio splitter that allows you to easily send an audio signal to two different destinations at once without noise, while also providing the ability to attenuate the signal when needed.

Split & attenuate audio with easeThe LX-2 performs the dual functions of splitting a line level audio signal and providing level attenuation where necessary. A premium Jensen transformer inside provides exceptional frequency response and phase coherency to ensure that the highest audio quality is maintained, while isolating the two outputs from each other to eliminate hum and buzz from ground loops. For situations where a level adjustment is required, the trim control on the LX-2 allows you to attenuate overly hot signals. This gives you the ability to drive your mic preamps hard to achieve coloration, while trimming the level at the LX-2 to avoid clipping the inputs of your recording interface. This trim control is activated by a recessed ëset & forgetí switch; if attenuation is not needed, simply disengage this switch to prevent accidental and unwanted level adjustments.

Splitting line outputs on stageSend the output of a mic pre or line level device to a recording interface as well as the PA system

Split the output of a mic preamp in the studioSend the output of a single preamp to two compressors simultaneously. Use the level trim to push your preamp harder for coloration without distorting the compressor inputs.

Using the LX-2 for parallel effects processingSplit the output of a preamp to feed an outboard effects device while also sending a clean signal to your recording interface. Blend the signals together in your DAW for parallel processing.

Split one audio signal to two destinations simultaneously.

JensenÆ transformer equipped for exceptional audio quality.

Eliminates hum and buzz caused by ground loops.

Variable trim control can be engaged for easy level adjustment.

Features:

Combo Input: Combination XLR 1/4" input.
Trim On: Set and Forget switch activates the trim level control. Signal Passes through at unity gain when the switch is not engaged.
Trim Level: Attenuates the signal at the input of the LX-2.

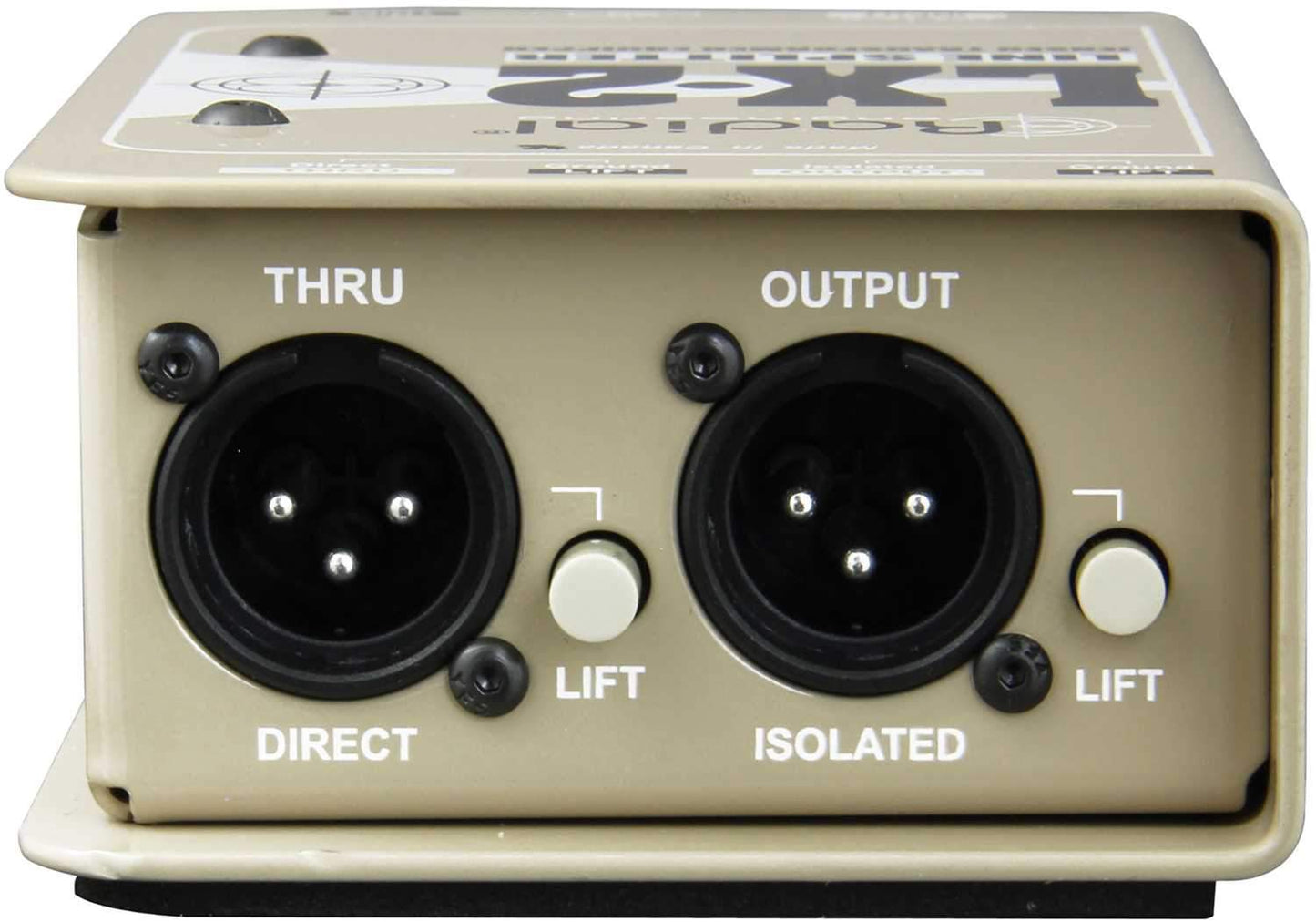

Direct Thru: Direct output to connect to recording or monitor systems.
Lift: Disconnects pin-1 ground at the XLR output.
ISO Output: Transformer isolated output eliminates hum and buzz caused by ground loops.
