Radial J48 Stereo Active DI Box

Phantom Powered Stereo Active Direct Box

The J48™ is a two channel active direct box that has been optimized to handle extreme transients without distortion, with a linear frequency response that extends from 20Hz up to 40kHz.

Higher voltage, higher headroom
Most battery-powered instruments and stereo keyboards will produce as much as 7 Volts when played at maximum volume, which can easily overload typical active direct boxes which have are only able to handle about 3 Volts. The J48 Stereo uses a unique switching power supply that raises the internal rail voltage so it can handle up to an incredible 9 Volts, resulting in improved signal handling and greater headroom. This additional headroom significantly reduces distortion of all types, allowing the natural tone and character of the instrument to shine through. The J48 maintains stereo separation between the left and right channels, allowing it to be used on two separate instruments or with stereo sources such as keyboards.

Using the J48 Stereo with a keyboard
The J48's active circuit and amazing signal handling makes it a great choice for both digital and old school analog keyboards. A built-in pad reduces the sensitivity if needed.

Using the J48 Stereo with two basses
The compact design makes it easy to connect two guitars using one direct box. The great sounding active circuit sounds as good as other DIs costing five times as much!

J48 Stereo with two different instruments
Use the J48 Stereo with two completely different instruments. The low crosstalk makes it a great choice when doubling between bass, acoustic guitar, fiddle, or mandolin.

Features:

Exceptional headroom & dynamic range
Retains the natural sound of the instrument
Use with stereo sources or multiple instruments
Powered by 48V phantom, no batteries required
Inputs
Unbalanced 1/4" input jacks used to connect instruments to the J48 Stereo.
Thru
Thru-put from the J48 Stereo to a the amp. High impedance will not load instrument down.
15dB Pad
Reduces the input sensitivity for active basses and high output keyboards.
48V LED
Illuminates when 48V phantom power is present.
HPF
High pass filter reduces excessive low frequencies that can cause resonance and acoustic feedback on stage.

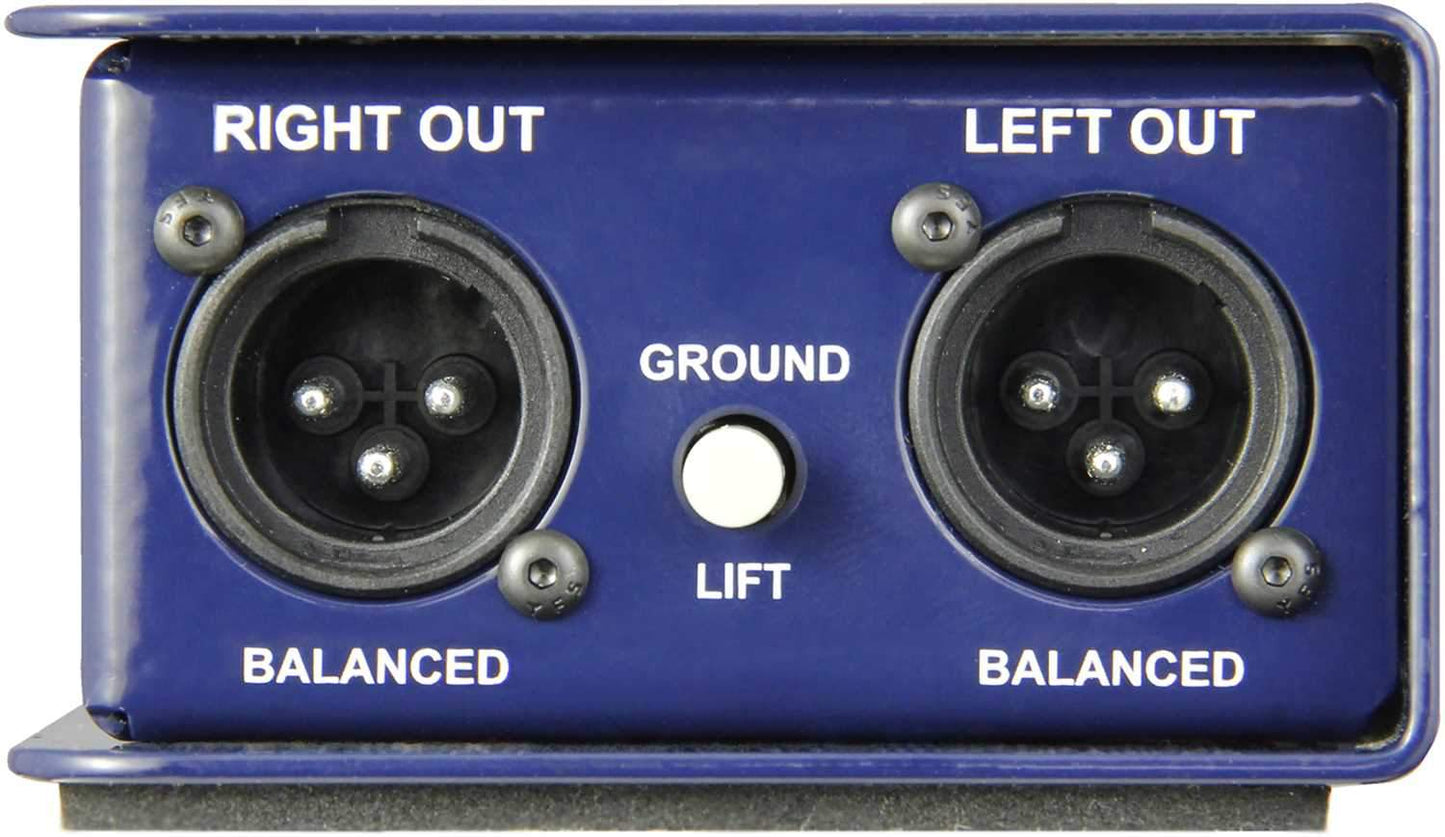

XLR Outputs
Balanced mic level outputs used to feed mixer or mic preamp.
Ground Lift
Lifts the audio ground at the power supply to reduce hum and buzz caused by ground loops.
180°
Polarity reverse use to correct the phase on old gear and reduce feedback on stage.
Warranty: Radial 3-year, transferable
