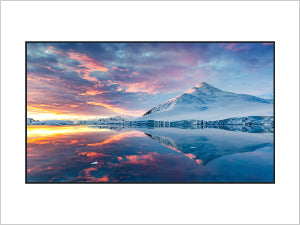

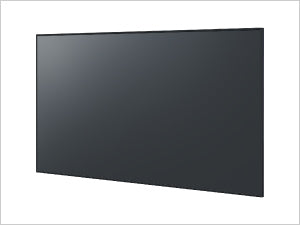

Panasonic TH-86EQ3 4K UHD Displays

Panasonic TH-86EQ3 4K UHD Displays

The Panasonic TH-86EQ3 delivers stunning 4K Ultra HD clarity with 8.29 million pixels, ideal for professional displays and high-impact presentations.

It ensures excellent visibility even in bright environments. Wide viewing angles and dynamic contrast backlight adjustment provide superior image quality from any position.

This versatile display supports both landscape and portrait orientations with flexible forward or backward tilt up to 20°. Robust connectivity includes 3x HDMI inputs, PC input, USB Type-A, RS-232C, and LAN (PJLink™) support. Built-in USB media playback and HDMI-CEC compatibility simplify content management.

The TH-86EQ3 features impact-resistant construction and reliable 18/7 continuous operation. Perfect for control rooms, retail spaces, corporate installations, and digital signage requiring professional-grade performance and 4K content capability.

Features:

• High 4K Image Quality for Clear and Detailed Visuals
• Flexible Installation to Suit a Variety of Use Cases
• Scalability that enables cooperation with various systems


Specifications:

• Display Panel:
  • Panel size: 85.6-inch (2174.2 mm)
  • Aspect ratio: 16:9
  • Effective display area (W x H): 1895.0 x 1065.9 mm (74.60" x 41.96")
  • Resolution: 3840 x 2160
  • Brightness (typ.): 500 cd/m*2
  • Contrast ratio (typ.): 1200:1
  • Response time (typ.): 8.0 ms
  • Viewing angle ((T/B)/(L/R)): 178° / 178°
  • Panel Surface Treatment: Anti-glare treatment (Haze 25%)
• Terminals:
  • HDMI In: TYPE A Connector x 3 (HDCP2.2 supported)
  • PC In: Mini D-sub 15-pin x 1 (DDC2B)
  • Serial In: External control terminal Dsub-9pin x 1 (Male), RS232C Compatible
  • Audio In (L/R)/ Audio Out: Stereo Mini Jack (M3) x 1 / RCA Pin Jack x 2
  • LAN: RJ45 x 1 compatible with PJLink, 10BASE-T/100BASE-TX
  • USB: USB Connector (TYPE-A) x 1, DC 5 V/2 A (USB2.0 supported)
• Audio:
  • Built-in speaker: 20W (10 W + 10 W)
• Electrical:
  • Power requirements: 110-240 V AC, 50 Hz/60 Hz
  • Power consumption (shipping condition): 336 W
  • On mode average power consumption: 332 W
  • Power off condition: Approx. 0.3 W
  • Standby condition: Approx. 0.5 W
• Mechanical:
  • Dimensions (W x H x D*): 1929 X 110 X 70 MM (75.95" X 43.31" X 2.74")
  • Weight: Approx. 46.0 kg (101.5 lbs.)
  • Bezel width: 15.5 mm (0.61") (T/R/L/B)
  • Wall-hanging pitch: 600 x 400 mm (23.6" x 15.8"), M8
• Installation Requirement:
  • Orientation*2: Landscape/Portrait
  • Tilting Angle*3: 0 - 20 degrees forward ? backwards with landscape ? portrait setting
• Environment:
  • Operating time*4: 18 h/day
  • Operating environment environment: Temperature: 0°C to 40 °C (32 °F to 104 °F)/Humidity: 20-80 % (Non condensation)/for up to 0-1400 m (4593 ft) attitude. Temperature: 0 °C to 35 °C (32 °F to 95 °F)/Altitude 1400-2800 m (4593 ft to 9186 ft)
