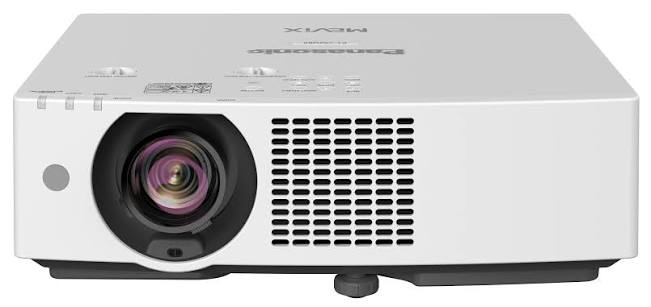

Panasonic PT-VMQ75 Projector

Panasonic PT-VMQ75 LCD Projector

The Panasonic PT-VMQ75 LCD projector delivers professional-grade 4K projection with an impressive brightness output of 8,000 lumens, ensuring clear, vibrant images even in well-lit environments.

Its exceptional 5,000,000:1 Dynamic Contrast Ratio enhances depth and detail, producing rich blacks and bright highlights for a more immersive viewing experience.

The PT-VMQ75 produces highly detailed, vivid visuals that are ideal for golf simulators, educational settings, corporate presentations, immersive experiences, and other professional applications where image quality is critical. Support for a 21:9 widescreen format allows the projector to display specialised content effectively, while advanced image adjustment tools ensure precise installation and alignment.

The projector features 6-point screen adjustment, Vertical and Horizontal Keystone Correction, and a curved screen angle monitor grid function.

These tools provide greater flexibility when positioning the projector and help achieve accurate image geometry across a range of projection surfaces and environments. Connectivity and system integration are streamlined through single-cable 4K DIGITAL LINK technology, reducing cabling requirements while maintaining high-quality signal transmission.

The projector also supports next-generation control protocols, CEC-compatible HDMI inputs and outputs, and Web API integration, making it easy to incorporate into modern AV and building management systems.

The PT-VMQ75 offers up to 20,000 hours of maintenance-free laser operation and incorporates an eco-friendly long-life filter system.

This combination helps reduce downtime, lower maintenance costs, and improve overall operational efficiency. Additional professional features include Auto Power On scheduling, Lens Block Detection, and Data Cloning via LAN or USB, allowing settings to be quickly replicated across multiple projectors. Multi Monitoring & Control Software enables centralised management of projector fleets, while compatibility with the PressIT wireless presentation system supports simple, flexible content sharing.

The Panasonic PT-VMQ75 is an ideal solution for professional environments that demand reliability, efficiency, and exceptional visual performance.

Features:

• Bright, High-Contrast Detail in Any Space
• Easy to Handle with Flexible Installation
• Energy-Efficient, Eco-Conscious Design
• Quick On/Quick Off Mode and Direct Power Off
• Memory Viewer Light media player for still image files on USB devices
• Audible feedback for ON/OFF via remote or panel controls
• Auto Screen Rotation and Shutter Function
• 10 W monaural speaker and Audio Standby passthrough mode
• Free 360° installation
• Startup Logo Function
• Presentation Support System
• DICOM Simulation Mode

Specifications:

• Projector type: LCD projectors
• LCD panel -> Panel size: 0.64 inch (16:10 aspect ratio)
• LCD panel -> Pixels: 2,304,000 (1920 x 1200) pixels
• Light source: Laser diodes
• Light output*1: 7,300 lm*2 / 7,300 lm (ANSI)*3 / 7,600 lm (Centre)*4
• Time until light outout declines to 50%*5: 20,000 hours (NORMAL/QUIET), 24,000 hours (ECO)
• Resolution: 4K (3840 x 2400 pixels)*6
• Contrast ratio*2: 5,000,000:1 (Full On/Full Off) (When (PICTURE MODE) is set to (DYNAMIC) and (DYNAMIC CONTRAST) is set to (1).)
• Screen size (diagonal): 0.76-7.62 m (30-300 in), 16:10 aspect ratio
• Centre-to-corner zone ratio*2: 85%
• Lens: 1.6x manual zoom (throw ratio: 1.09-1.77:1), manual focus lens, F+1.58-1.91, f+15.3024.60 mm
• Digital Zoom Extender*7: Throw ratio 1.09-2.21:1*8 (Corresponding value. When used together with optical zoom.)
• Lens shift (From the origin point of the lens mounter) -> Vertical: +44 %
• Lens shift (From the origin point of the lens mounter) -> Horizontal +20 %
• Keystone correction range: Vertical +25°, Horizontal +35°
• Terminals -> HDMI 1/2 IN: HDMI x 2 (Compatible with HDCP, Deep Colour, 4K/60p signal input), CEC supported
• Terminals -> HDMI OUT: HDMI x 1, CEC not supported
• Terminals -> AUDIO IN: M3 stereo mini-jack x 1
• Terminals -> AUDIO OUT: M3 stereo mini-jack x 1
• Terminals -> SERIAL IN: D-sub 9-pin (female) x 1 for computer control (RS-232C complaint)
• Terminals -> DIGITAL LINK/LAN: RJ-45 x 1 for network and DIGITAL LINK connection (video/network/serial control) (HDBaseT compliant), 100Base-TX (Compatible with PJLink (Class 2), HDCP, Deep Colour, 4K/0p signal input)
• Terminals ->LAN: RJ-45 x 1 for network control, 10Base-T, 100Base-TX, compatible with PJLink (Class 2)
• Terminals -> USB (VIEWER/WIRELESS/DC OUT): USB connector (Type A) x 1 for Memory Viewer function, optional AJ-WM50 Series Wireless Module, power supply (DC 5 V, maximum 2 A*11)
• Protocol versions: IPv4, IP6*12
• Power supply: Single-phase AC 100-240 V, 50/60 Hz
• Maximum power consumption*13: 350 W (3.6-1.5 A) (355 VA) (Power consumption is 335 W at 200-240 V)
• On-mode power consumption (Operating mode)*13 *14: (NORMAL) 315 W (100-120 V), 300 W (200-240 V) (ECO) 240 W (100-120 V), 230 W (200-240 V) (QUIET 1) 255 W (100-120 V), 265 W (200-240 V) (QUIET 2) 235 W (100-120 V), 225 W (200-240 V)
• Filter*15: Included (Estimated maintenance time: approx. 20,000 hours)
• Operation noise*2: 37 dB (NORMAL/ECO), 32 dB (QUIET 1), 27 dB (QUIET 2)

• Dimensions (W x H x D): 399 x 115 x 348 mm (15 23/32˝ x 4 17/32˝ x 13 11/16˝) (Excluding protruding parts) 399 x 133 x 348 mm (15 23/32˝ x 5 1/4˝ x 13 11/16˝) (With legs at shortest position)
• Weight*16: Approx. 7.0 kg (16.3 lbs)
• Operating environment: Operating temperature: 0–45 °C (32–113 °F)*17, *18, Operating humidity: 20–80 % (No condensation)
• Applicable software: Multi Monitoring & Control Software, Projector Network Setup Software, Wireless Projector App for iOS/Android*19
