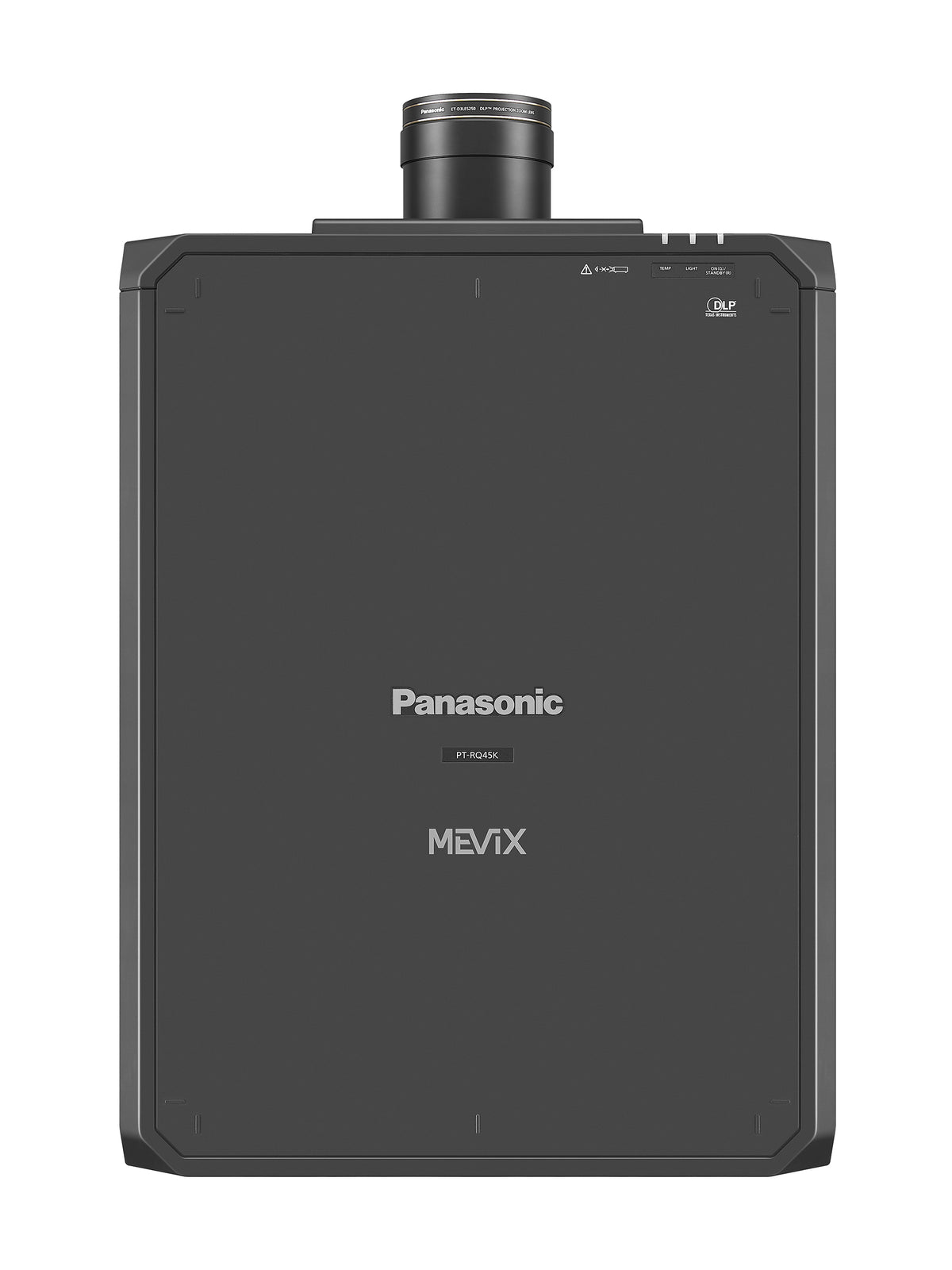

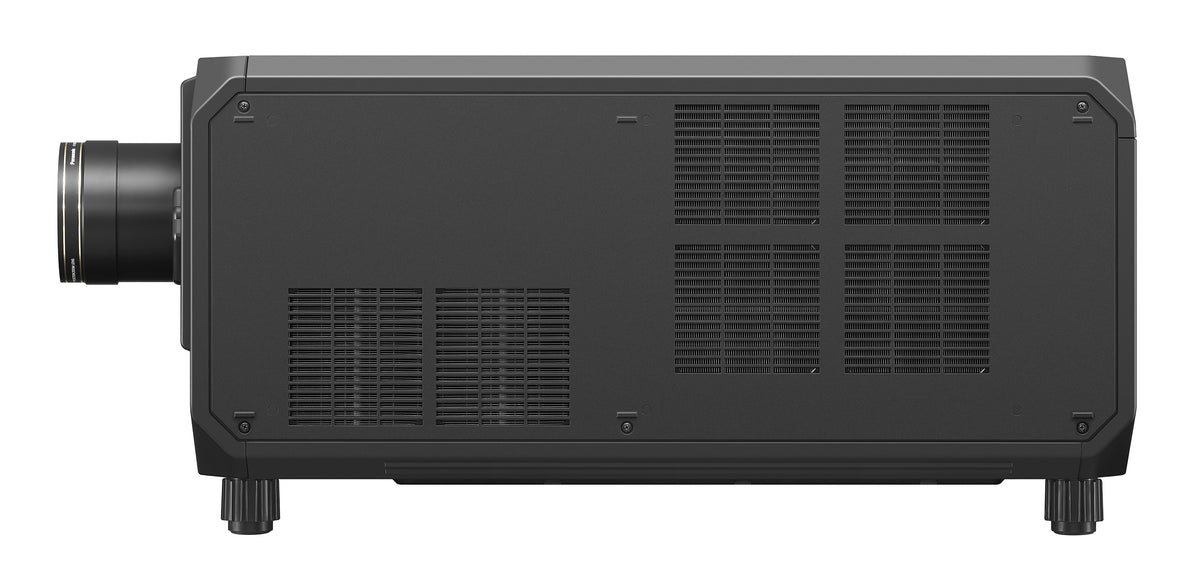

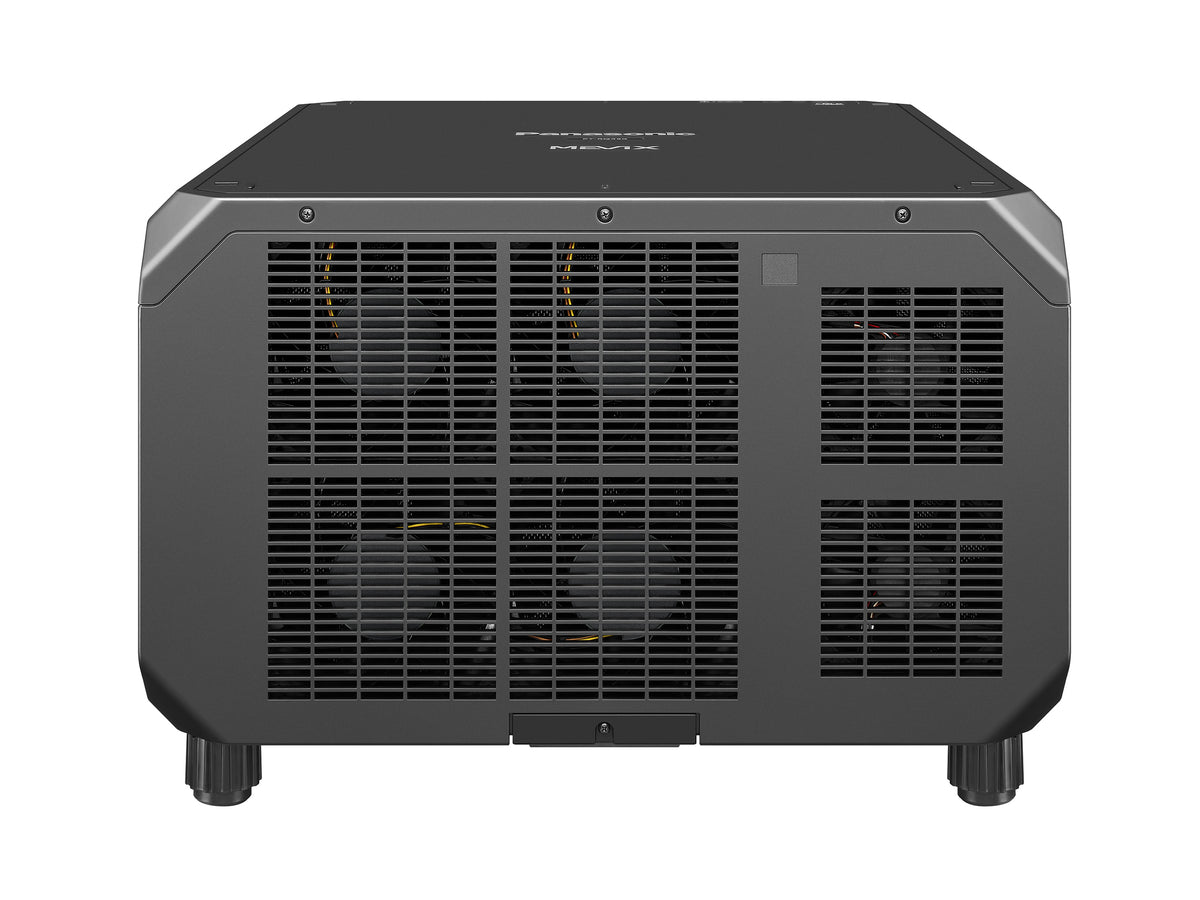

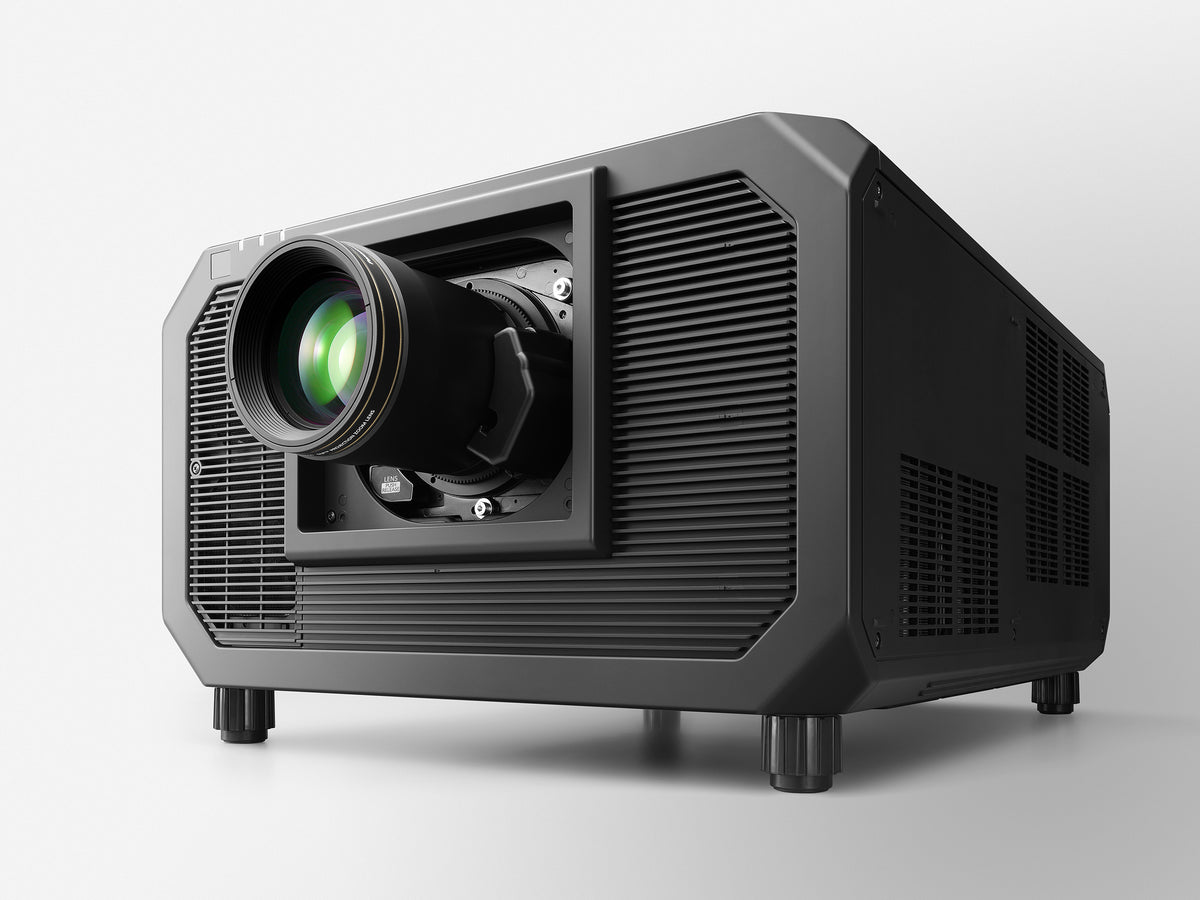

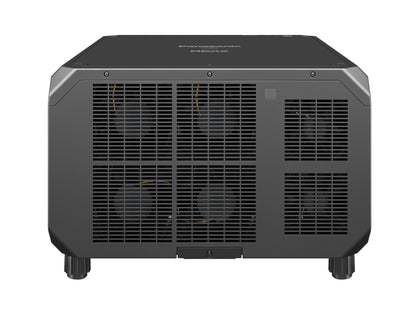

Panasonic PT-RZ44K Projector

Panasonic PT-RZ44K 3-Chip DLP Projector PT-RQ45K Series

The Panasonic PT-RZ44K is the smallest and lightest 42,000 lumen 4K projector available, engineered for professional installations demanding exceptional performance in challenging environments.

This 3-chip DLP projector delivers stunning clarity with a 25,000:1 dynamic contrast ratio and supports 240 Hz high-frame-rate video for fluid motion.

The 5-inch colour information monitor with 12G-SDI input ensures precise control and monitoring.

Its modular design accommodates Intel SDM-compatible slots for flexible customization. Dual red and blue laser light sources provide superior colour accuracy and vibrant gradation with smoother transitions and uniform black levels, ideal for multi-projector blended setups. Built for reliability, this projector features a low-maintenance, dust-resistant design with coated circuit boards for harsh environments. Mechanical shutter, contrast sync, and shutter sync over LAN offer precise control. Backup input failover circuitry ensures uninterrupted operation.

The Smart Projector Control App enables wireless management, while NFC functionality and USB Control streamline connectivity. Remote preview and Visual Software Suite (VSS) round out a comprehensive control ecosystem. Quad Pixel Drive technology maximizes brightness and colour fidelity.

An eco-conscious design reduces operational costs without compromising performance.

Features:

• 42,000 lm
• 3-Chip DLP™
• WUXGA
• Intel SDM slot
• Compact 42,000 Lumen Design for Efficient Workflow
• Lasting Reliability in Harsh Environments
• Spectacular 4K Visuals
• Supports Crestron Connected™ V2, Crestron XiO Cloud™, Art-Net DMX, AMX^® DD, PJLink™, and IPv6¹
• Data-cloning function via LAN or USB²
• 1 USB port for DC 5 V/2 A power supply, 1 USB port for optional AJ-WM50 Series Wireless Module, USB Control Connect function, and data transfer from USB memory devices
• Compatible with the Multiple PJ Firmware Batch Update Tool
• Import and save user test patterns or client content images
  for easy calibration
• Updated Web UI interface and screen marker tools
• Multi-screen Support System
• Multi-Unit Brightness and Color Control
• DICOM Simulation Mode
• Waveform Monitor Function

Specifications:

• Projector type: 3-Chip DLP projector

• Display method: DLP chip x 3, DLP projection system
• Display Device -> Panel size: 24.4 mm (0.96 in) diagonal (16:10 aspect ratio)
• Display Device -> Number of pixels: 2,304,000 (1920 x 1200 pixels) x 3
• Light source: Laser diodes (Blue LD, Red LD)
• Light output *1*2: 42,000 lm*3
• Light output (ANSI): 42,000 lm*4
• Light output (Center) +4: 43,600 lm*5
