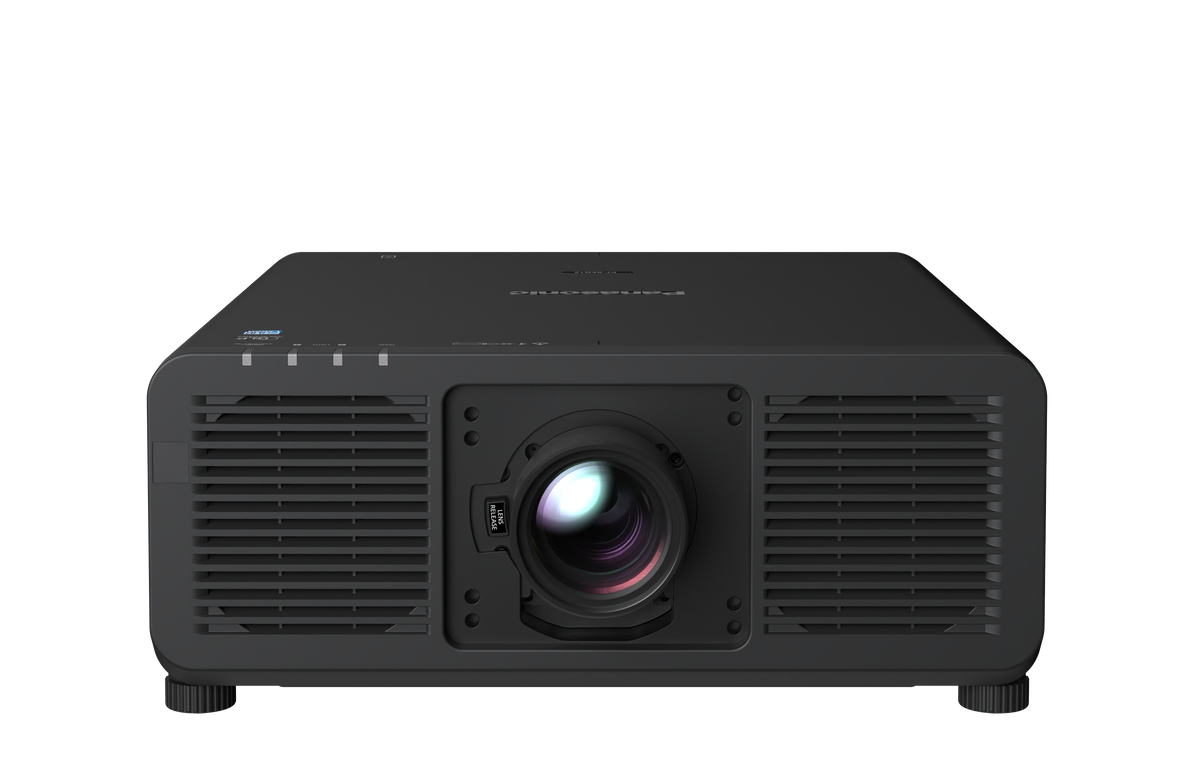

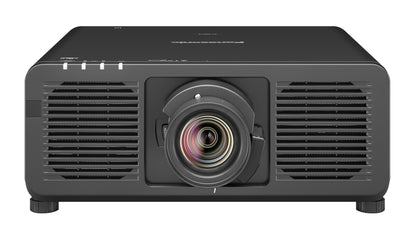

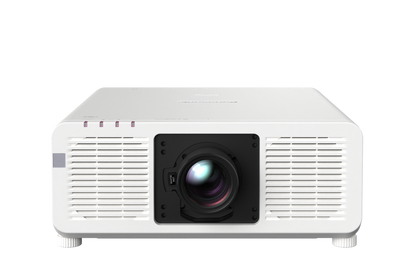

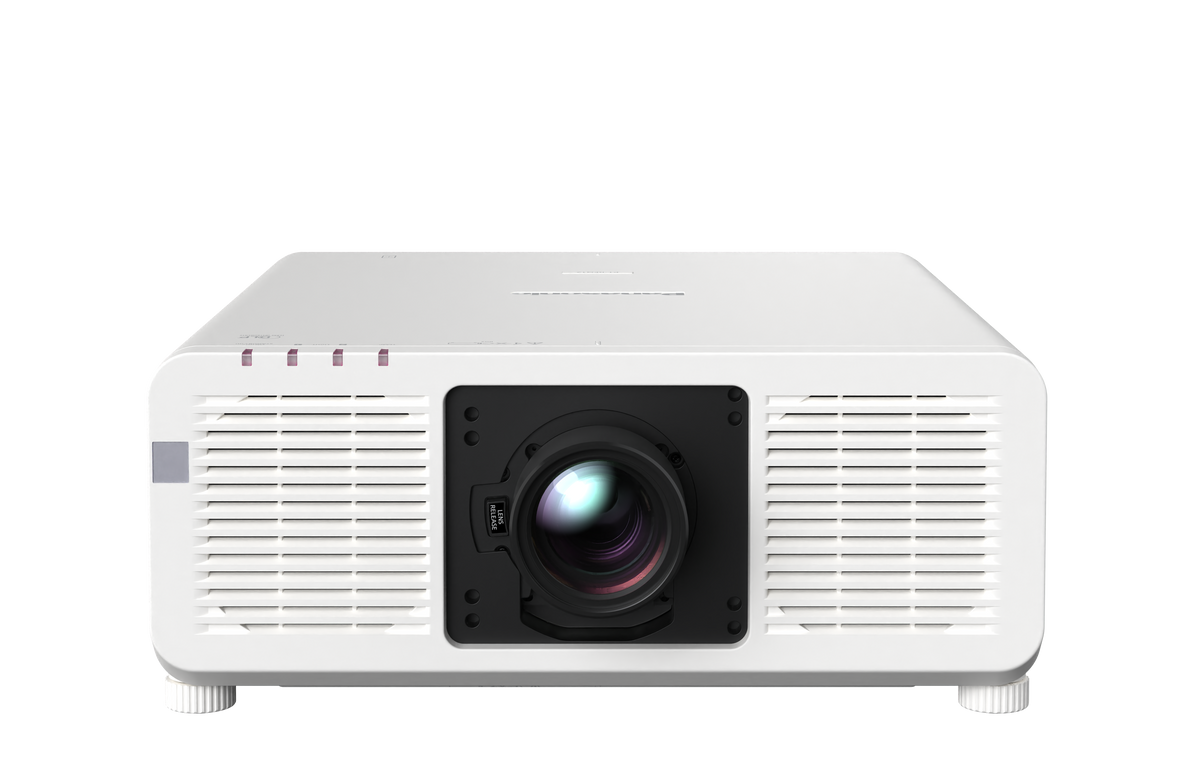

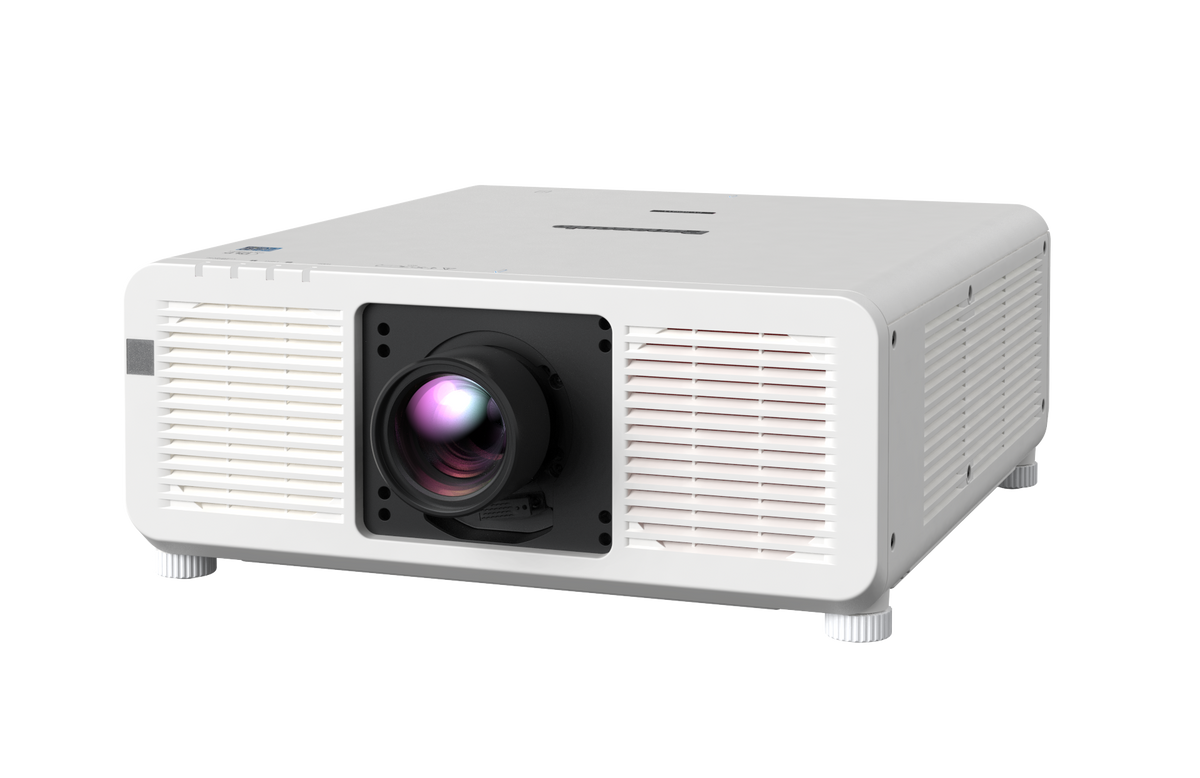

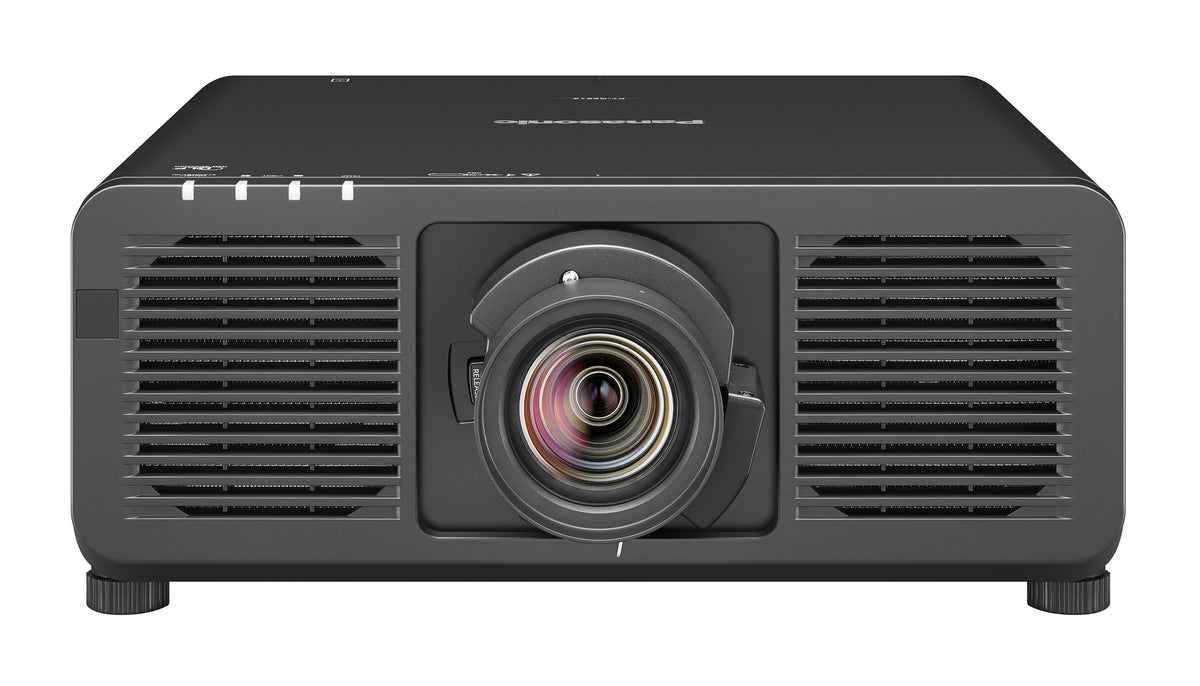

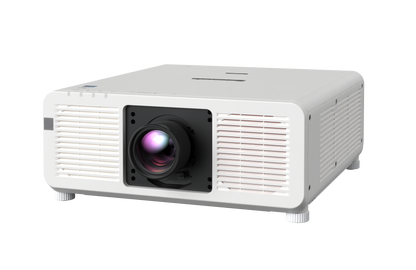

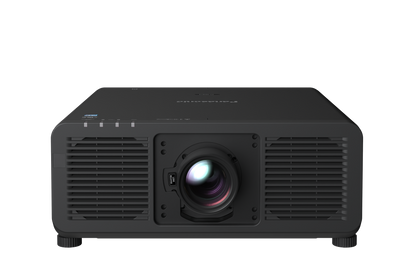

Panasonic PT-REZ10 Projector

Panasonic PT-REZ10 1-Chip DLP Projectors PT-REZ15 Series

The Panasonic PT-REZ10 1-Chip DLP projector has been designed to deliver exceptional visual performance, producing up to 15,000 lumens of brightness for clear, impactful images in a wide range of professional environments. Advanced Dynamic Contrast technology enhances image depth and realism by delivering rich, high-contrast visuals with precise black-level adjustment both within and beyond the projected image area. Developed with professional users in mind, the PT-REZ10 combines a completely redesigned lens range with powerful new media processors to achieve outstanding image quality and installation flexibility. Support for Intel® SDM-compatible modules allows easy integration with a variety of systems and workflows, making the projector suitable for corporate, education, entertainment, and immersive display applications. Engineered for reliable operation, the projector features a dust-resistant optical engine and an advanced liquid-cooling system that help reduce maintenance requirements while ensuring long-term performance in demanding environments. Installation and operation are further simplified through the Smart Projector Control App with NFC functionality and Remote Preview LITE, allowing users to manage settings and verify projection output with greater efficiency. Despite its powerful performance, the PT-REZ10 remains lightweight and whisper-quiet, making it suitable for venues where space and noise levels are key considerations. Panasonic’s Multi-Laser Drive Engine ensures consistent brightness and accurate colour reproduction, while Backup Input Redundancy provides added reliability for critical events and installations by helping to prevent interruptions in the event of a signal failure.

The projector also features a universal 100-240V power supply for global compatibility and a Geo Pro Angle Monitor that assists with precise positioning and installation. Custom test patterns can be imported and saved, enabling consistent calibration and streamlined setup across multiple deployments. Combining high brightness, flexible integration, and dependable operation, the PT-REZ10 delivers professional-grade projection performance for even the most demanding applications.

Features:

• 10,000 lm
• 1-Chip DLP
• WUXGA
• Intel SDM slot
• High-Contrast Visuals Deepen Engagement
• Flexibility and Expandability for Timesaving Workflow
• New Compact Body Supports Maintenance-free Projection
• Supports Art-Net DMX, PJLink™, Crestron Connected^® V2, Crestron^® XiO Cloud, and Extron XTP^®
• Supports IPv6¹ network protocol
• 1 USB port for DC 5 V/2 A power supply, 1 USB port for optional AJ-WM50 Series Wireless Module and data transfer from USB memory devices
• Compatible with the Multiple PJ Firmware Batch Update Tool
• Contrast Sync and Shutter Sync Functions
• Data-Cloning Function via LAN or USB²
• Supports widescreen 21:9 input signals
• Quick Start and Quick Off
• Multi-screen Support System
• Multi-Unit Brightness and Color Control
• DICOM Simulation Mode
• Waveform Monitor Function

Specifications:

• Projector type: 1-Chip DLP projector
• Display method: DLP chip x 1, DLP projection system
• Display Device -> Panel size: 0.8 in diagonal (16:10 aspect ratio)
• Display Device -> Number of pixels: 2,304,000 (1920 x 1200 pixels)
• Light source: Laser diode
• Light output *1*2: 10,000 lm
• Light output (ANSI): 10,000 lm (ANSI)
• Light output (Center) *1*4: 10,300 lm (Center)
