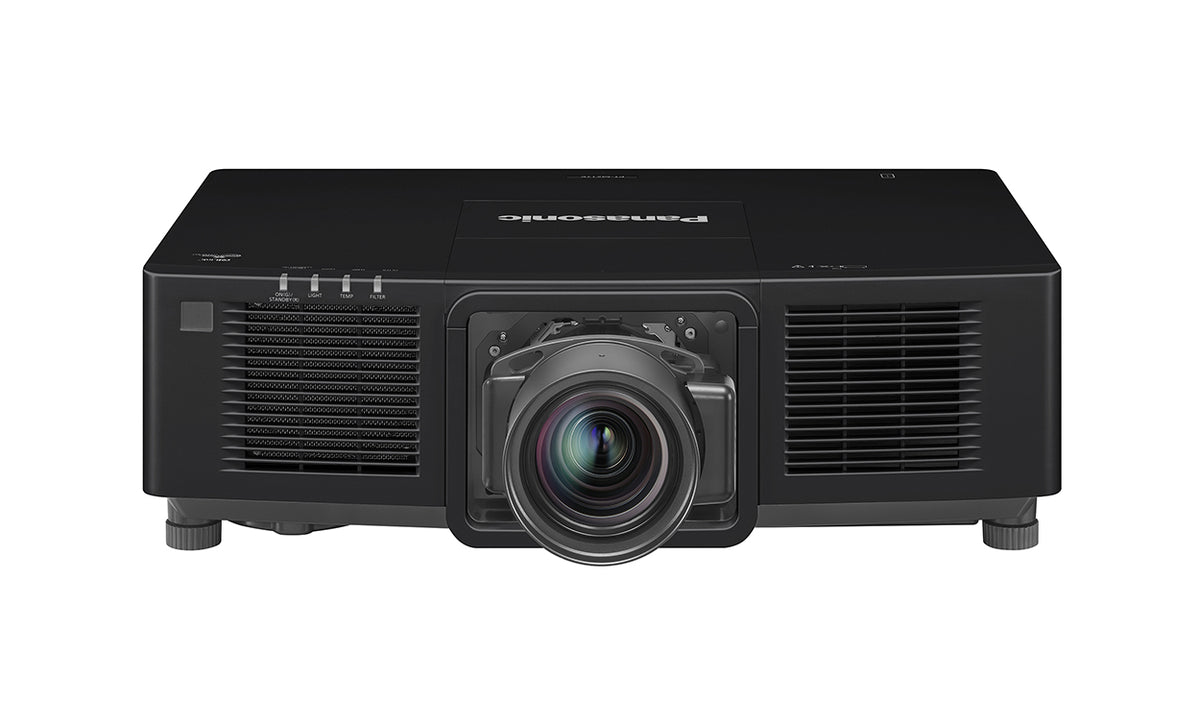

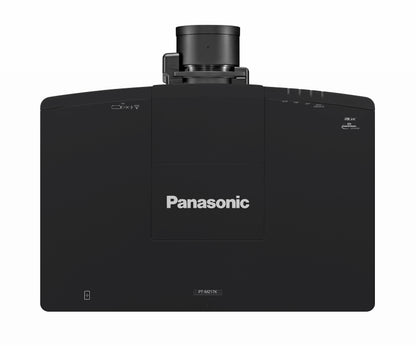

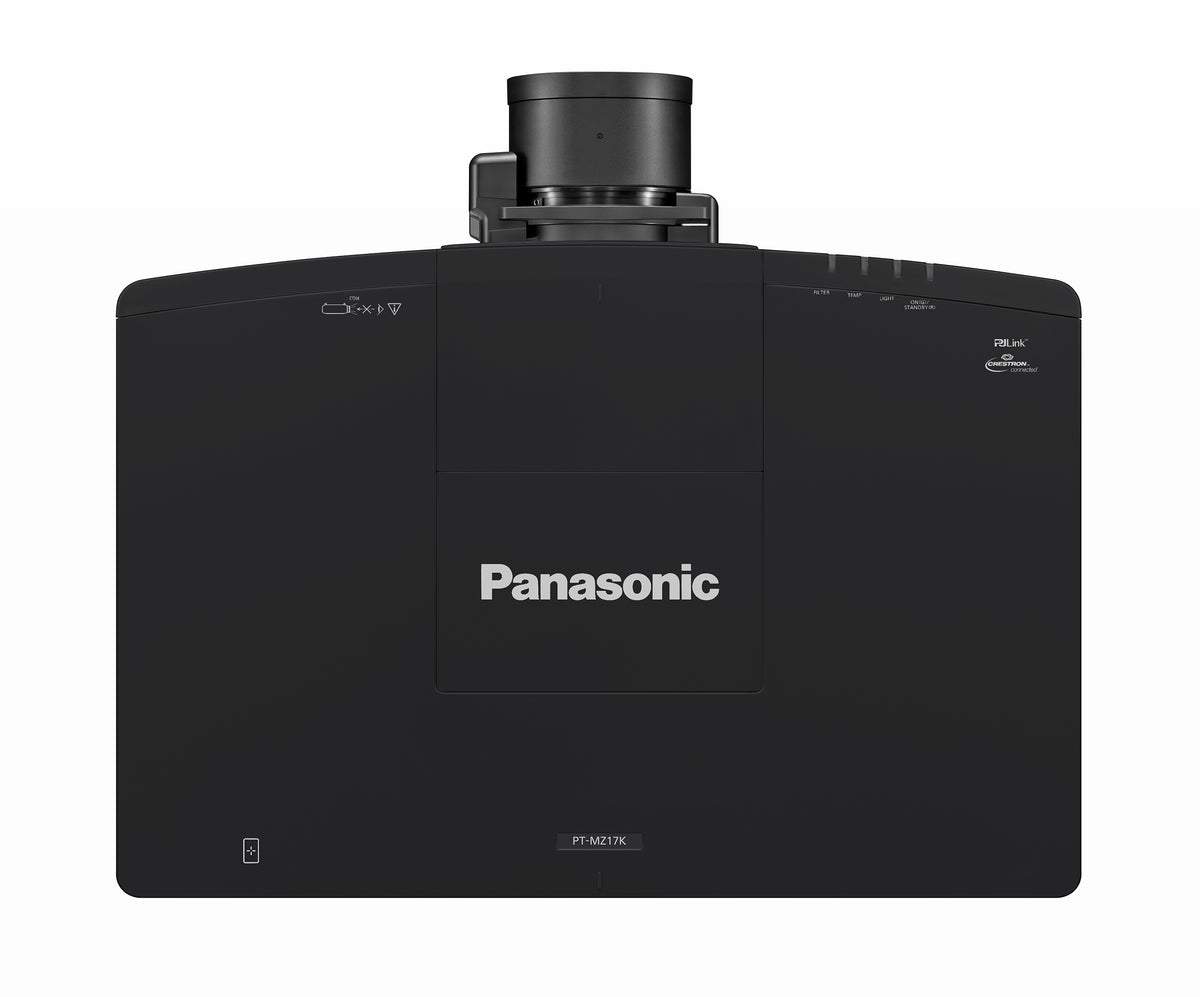

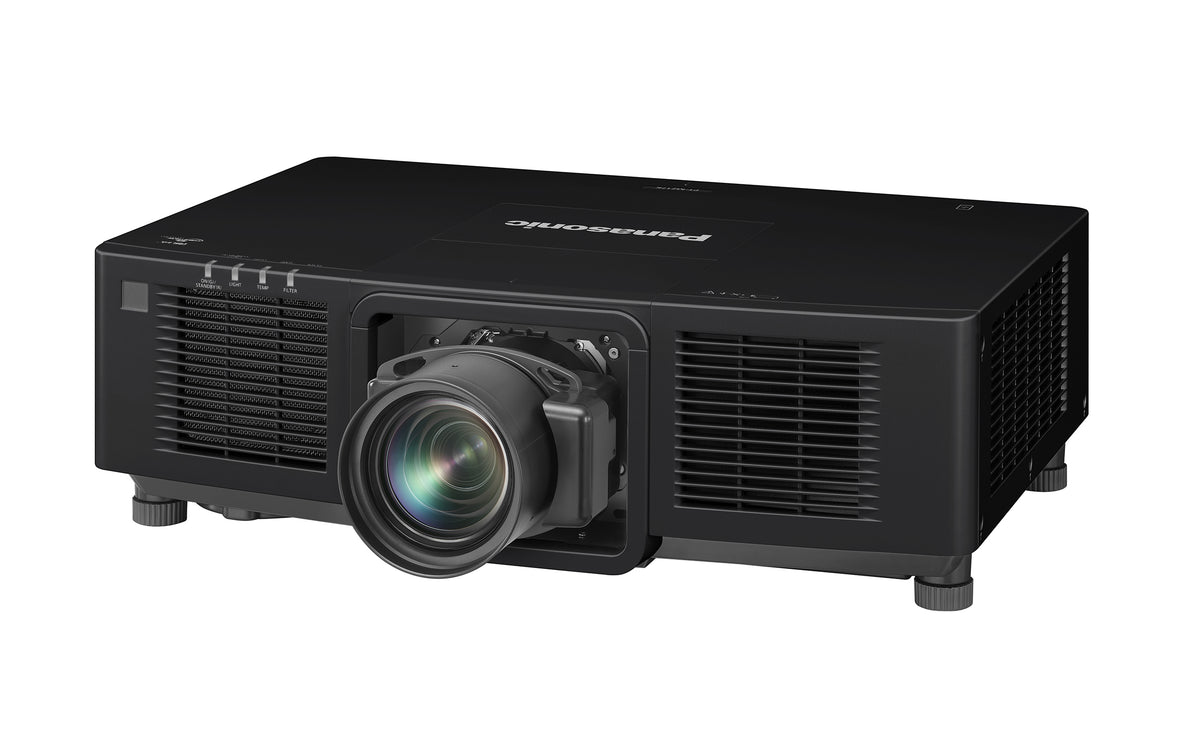

Panasonic PT-MZ17KL Projector

Panasonic PT-MZ17KL World’s Smallest, Lightest, and Quietest 16,500 lm LCD Projector

The Panasonic PT-MZ17KL delivers exceptional brightness at 20,000 lumens, ensuring crystal-clear projection in any environment.

Its Pure White technology combined with Dynamic Contrast and NX Black Level Correction provides stunning image quality with superior colour accuracy.

This projector features a liquid-cooling system and dustproof optical structure for reliable performance in demanding settings.

The energy-efficient architecture reduces operational costs while maintaining peak brightness output. Smart control is seamless with the Panasonic projector app, enabling remote management and real-time monitoring. Geometric Adjustment and the included Grid Geometry Manager Pro ensure perfect image alignment every time. Advanced multi-laser drive engine technology delivers consistent, vibrant output across extended operating hours. Setup and maintenance are simplified with USB data cloning capabilities, backup input functionality, and remote preview lite mode for quick troubleshooting. Compatible with standard 100-240V power supplies for global flexibility.

This projector combines power with practicality for boardrooms, auditoriums, and large-venue applications.

Features:

• 16,500 lm
• LCD
• WUXGA
• World’s Smallest, Lightest, and Quietest 16,500 lm LCD Projector
• Long-Life Energy-Saving Design Minimizes Problems
• Delivering up to 16,500 lm on AC 100–240 V, a World First
• Detail Clarity Processor 4 Improves Dimensionality and Sharpness
• Supports 4K Signal Inputs
• Lens Lineup is Compatible with AFO (Active Focus Optimizer)
• Compatible with Ultra-Short-Throw Zoom Lens for Space-Saving Installation
• Supports 21:9 input signals
• Supports Art-Net DMX, PJLink, Crestron Connected V2, Crestron XiO Cloud, Extron XTP and IPv6¹
• Compatible with Multiple PJ Firmware Batch Update Tool
• Direct Power Off function
• Scheduling function
• Presentation support system
• Free 360-degree installation
• Quick Startup and Quick Off
• Multi-unit Brightness and Color Control function
• Multi-Screen Support System
• DICOM Simulation Mode
• Waveform monitoring function

Specifications:

• Projector type: LCD projectors
• Display method: Transparent LCD panel (x 3, R/G/B)
• Display Device -> Panel size: 25.4 mm (1.0 in) diagonal (16:10 aspect ratio)
• Display Device -> Drive method: Active matrix method
• Display Device -> Number of pixels: 2,304,000 (1920 x 1200 pixels)
• Light source: Laser diode
• Light output *1*2: 16,500 lm
• Light output (ANSI): 16,500 lm
