Optocore X6R-TP — 16-channel AD/DA Fiber Converter

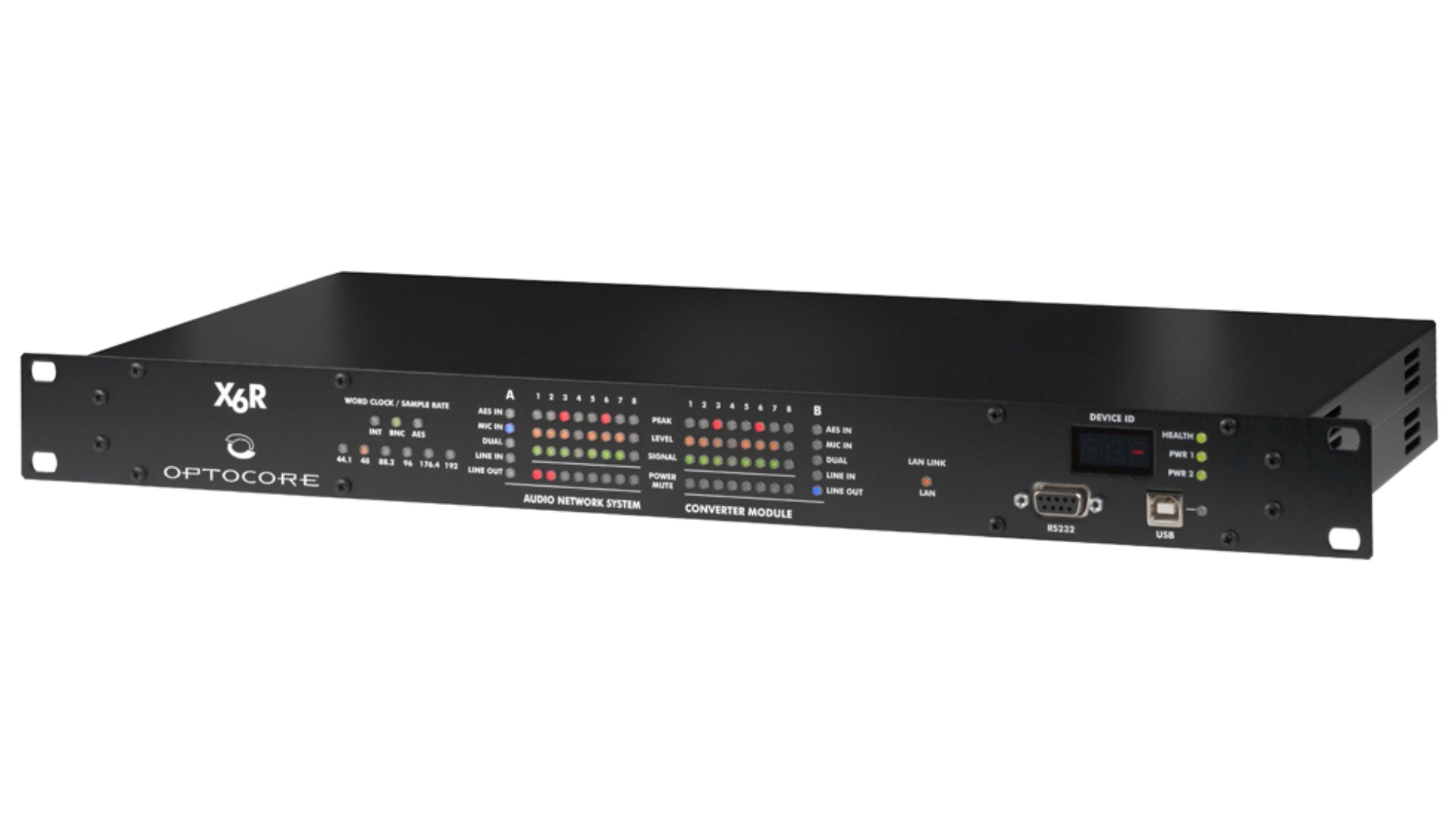

The Optocore X6R-TP is a 16-channel AD/DA fiber converter engineered for professional audio installations.

This modular transport device offers exceptional flexibility with six interchangeable card types, allowing you to customize analog-to-AES/EBU conversion configurations to match your exact requirements. Choose from 16 in/16 out, 8 in/8 out, dual microphone inputs with independent preamps, or mixed I/O arrangements in 8-channel groups. Designed for rack-mounted permanent installations, the X6R-TP features Euroblock connectors on all cards for reliable, cost-effective connections. Integrated sample rate conversion ensures seamless AES/EBU signal processing. Network with multiple SANE TP devices via CAT5 to build scalable audio systems tailored to your application. Twelve configuration versions available to suit diverse professional audio environments.

The Optocore X6R-TP AD/DA Fiber Converter is available with eight microphone inputs with dual preamp and converter, 16 line inputs, eight line inputs and eight line outputs, 16 line outputs, eight microphone inputs and eight line inputs, eight microphone inputs and eight line outputs, or 16 microphone inputs.

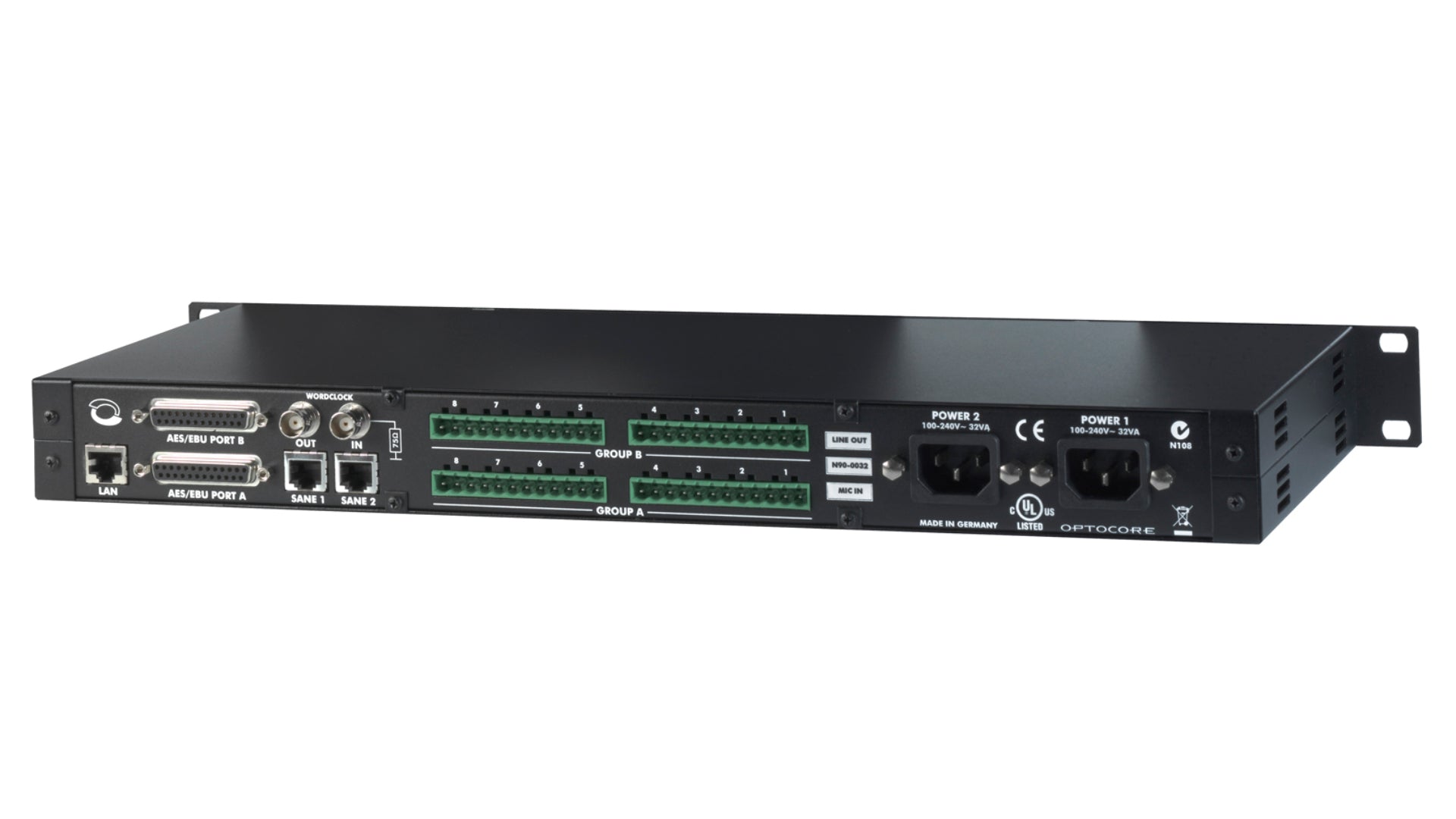

Features:

  • SANE enabled audio converter and transport device
  • Configurable I/O in 8-channel blocks
  • Cards available — AES/EBU, Line In, Line Out, Mic In, Dual Mic Pre
  • 16× AES3 ports — 32 audio channels
  • Analog and AES channels fully routable to any FX or TP device in the Network
  • 2× SANE ports for fiber FX device channel extension or MADI Cat5
  • 4× RS485/422
  • 1× LAN
  • Word Clock I/O
  • Dual redundant PSU

Specifications:

  • Analog Audio Mic Inputs: ADC
Impendence, Gain / steps Single and Dual 4.5kΩ -4 dB to +66 dB 1 dB steps
Maximum input level @-4dBGain +22 dBu @ +66 dB Gain -48 dBu
SNR @-4dBGain 122.5 dB(A) @ +66 dB Gain 81.5 dB(A)
THD+N @ -1 dBFS @-4dBGain < -102 dB @ +66 dB Gain < -100 dB
  • Analog Audio Line Inputs: ADC
Impendence, Gain / steps
10kΩ -9,-4, 0, +10 dB 4 steps
Maximum input level @-9dBGain +27 dBu @ +10 dB Gain +8 dBu
SNR @-9dBGain 127.5 dB(A) @ +10 dB Gain 108 dB(A)
THD+N @ -1 dBFS @-9dBGain < -102 dB @ +10 dB Gain < -103 dB
  • Analog Audio Line Outputs: ADC
Impendence, Gain / steps
22Ω +4,0, -6, -10 dB 4 steps
Maximum input level @+4dBGain +22 dBu @ -10 dB Gain +8 dBu
SNR @+4dBGain 123 dB(A) @ -10 dB Gain 108 dB(A)
THD+N @ -1 dBFS @+4dBGain < -100 dB @ -10 dB Gain < -103 dB
  • Digital AES audio in/out: 16 AES/EBU Digital Audio Pairs = 32 audio channels with or without Sample Rate Converter Card
  • Audio Ports:
    • Connector: 4 x D-Sub25
    • Configuration: Software switchable I/O in 8-channel blocks; audio routing
  • SANE Links:
    • 2 RJ45 SANE links
    • Protocol: SANE - 64 audio channels and 100Mbps LAN
    • Transmission, data rate: Full duplex, 200 Mbps
    • Cable length: CAT5, CAT5E, CAT6, CAT7 < 100m
  • LAN Links:
    • 1 RJ45 LAN links
    • Protocol: FastEthernet, switch function across the entire OPTOCORE and Sane network
    • Transmission, data rate: Full duplex, 10/100 Mbps
    • Cable length: CAT5, CAT5E, CAT6, CAT 7 < 100m
  • Word Clock:
    • 1 Input, 1 output
    • Protocol: Word Clock; sample rate: 44,1 / 48 / 88,2 / 96 / 176,4* / 192 * kHz
    • Connector: BNC, 75 Ohm termination
  • Power Supply:
    • 2 independent power supplies with function check and automatic switch-over
    • Type: Switch-mode, universal input
    • Mains Voltage: 100-240 V
    • Frequency: 50-60 Hz
    • Power Consumption: 12 W typical
  • Remote Control:
    • LAN: any LAN or SANE port
    • RS232: Convention EIA / TIA-232: RxD, TxD / 57,600 Baud
    • USB: Interface to PC
  • Dimensions   (WxHxD): 1 RU / 19":   483 x 44 x 200 mm   19.2 x 1.73 x 7.87 inch
  • Weight: 2.7 kg   6.0lbs
