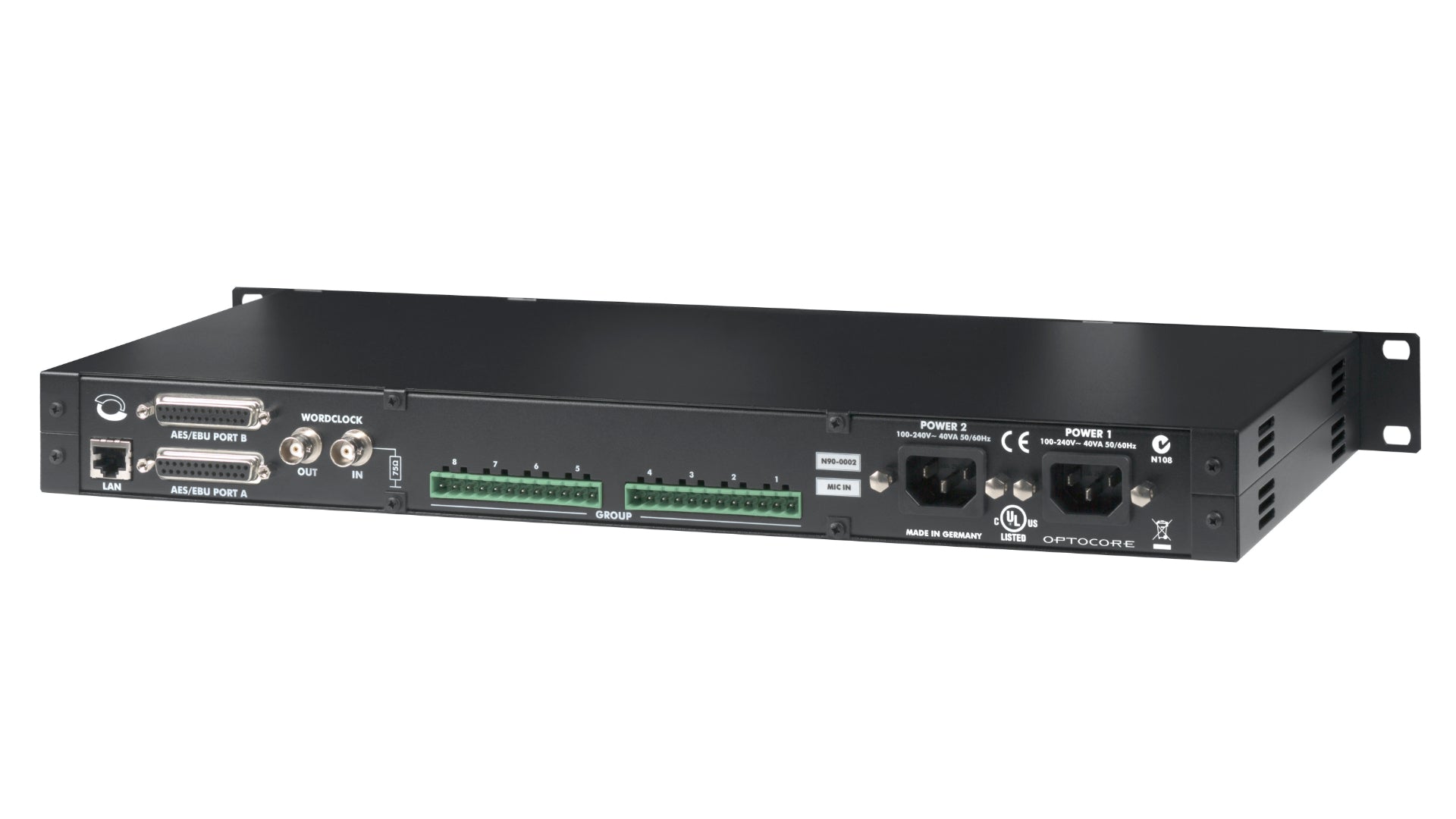

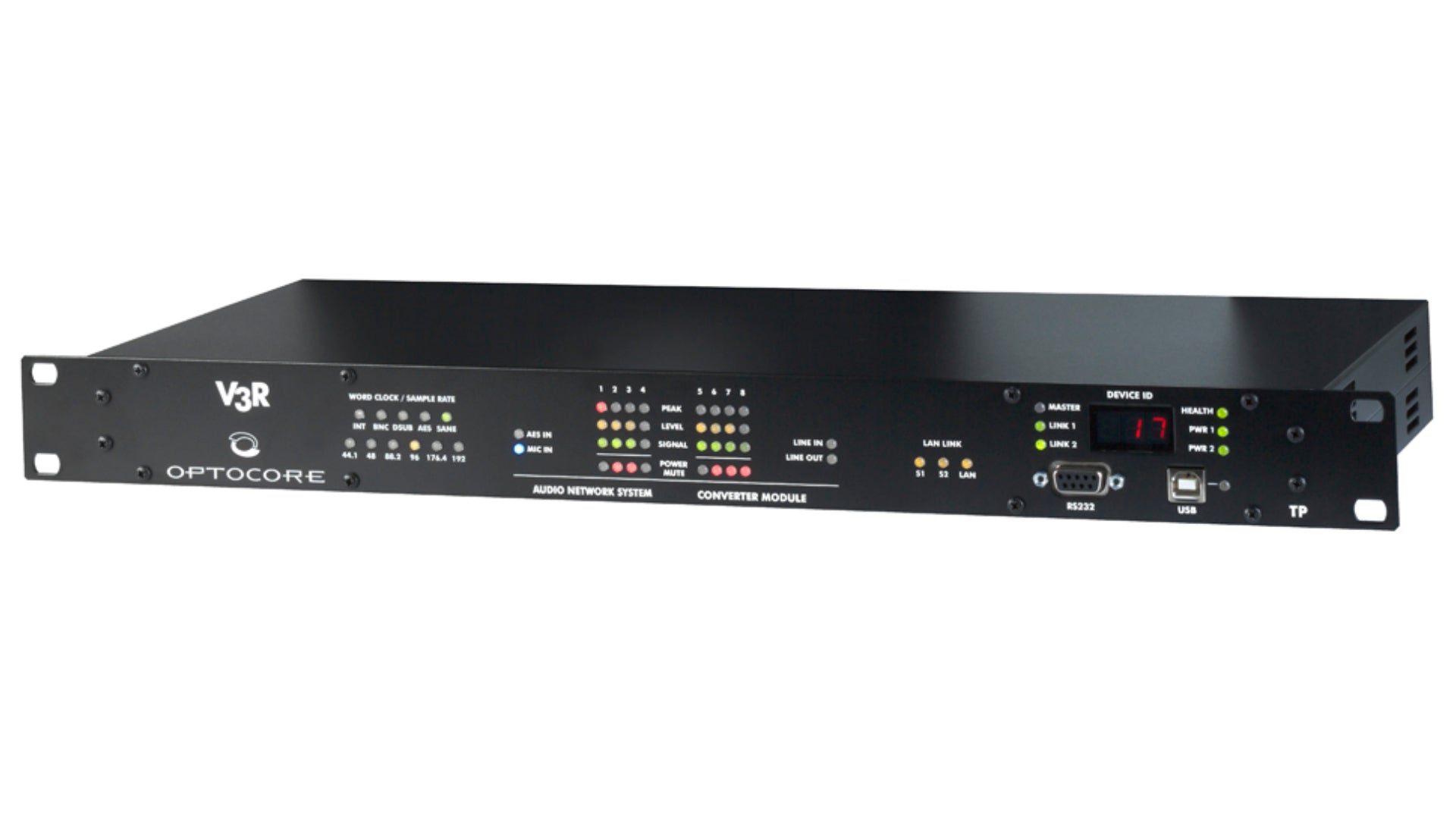

Optocore V3R-TP — 8-channel AD/DA Fiber Converter

The V3R-TP is a flexible 8-channel AD/DA converter designed for rack-mounted and permanent audio installations. Choose from three interchangeable card types to configure 8 microphone inputs, 8 line inputs, or 8 line outputs, all converting analogue signals to AES/EBU digital format. Euroblock connectors ensure reliable connections, while CAT5 networking capability lets you integrate multiple SANE TP devices for customised system architectures. Ideal for professional audio environments requiring cost-effective, standardized connectivity.

The Optocore V3R-TP AD/DA Fiber Converter is available with eight line inputs, eight line outputs or eight microphone inputs.

Features:

  • SANE enabled audio converter and transport device
  • 8-channel device
  • Cards available — AES/EBU, Line In, Line out, Mic In, Dual Mic Pre
  • 16× AES3 ports — 32 audio channels
  • Analog and AES channels fully routable to any FX or TP device in the Network
  • 2× SANE ports for fiber FX device channel extension or MADI Cat5
  • 4× RS485/422
  • 1× LAN
  • Word Clock I/O
  • Dual redundant PSU

Specifications:

  • Analog Audio Mic Inputs: ADC
Impendance, Gain / steps Single and Dual 4.5kΩ -4 dB to +66 dB 1 dB steps
Maximum input level @-4dBGain +22 dBu @ +66 dB Gain -48 dBu
SNR @-4dBGain 122.5 dB(A) @ +66 dB Gain 81.5 dB(A)
THD+N @ -1 dBFS @-4dBGain < - 102 dB @ +66 dB Gain < -100 dB
  • Analog Audio Line Inputs: ADC
Impendance, Gain / steps
10kΩ -9, -4, 0, +10 dB 4 steps
Maximum input level @-9dBGain +27 dBu @ +10 dB Gain +8 dBu
SNR @-9dBGain 127.5 dB(A) @ +10 dB Gain 108 dB(A)
THD+N @ -1 dBFS @-9dBGain < - 102 dB @ +10 dB Gain < -102 dB
  • Analog Audio Line Outputs: DAC
Impendance, Gain / steps
22Ω +4, 0, -6, -10 dB 4 steps
Maximum input level @+4dBGain +22 dBu @ -10 dB Gain +8 dBu
SNR @+4dBGain 123 dB(A) @ -10 dB Gain 108 dB(A)
THD+N @ -1 dBFS @+4dBGain < - 100 dB @ -10 dB Gain < -103 dB
  • Digital AES3 audio in/out: 16 AES/EBU Digital Audio Pairs = 32 audio channels with or without Sample Rate Converter Card
  • Audio ports:
    • Connector: 2 x D-Sub25,
    • Configuration: Software switchable I/O in 8-channel blocks; audio routing
  • SANE Links:
    • 2 RJ45 SANE links
    • Protocol: SANE - 64 audio channels and 100Mbps LAN
    • Transmission, data rate: Full duplex, 200 Mbps
    • Cable length: CAT5, CAT5E, CAT6, CAT7 < 100m
  • LAN Links:
    • 1 RJ45 LAN links
    • Protocol: FastEthernet, switch function across the entire OPTOCORE and Sane network
    • Transmission, data rate: Full duplex, 10/100 Mbps
    • Cable length: CAT5, CAT5E, CAT6, CAT7 < 100m
