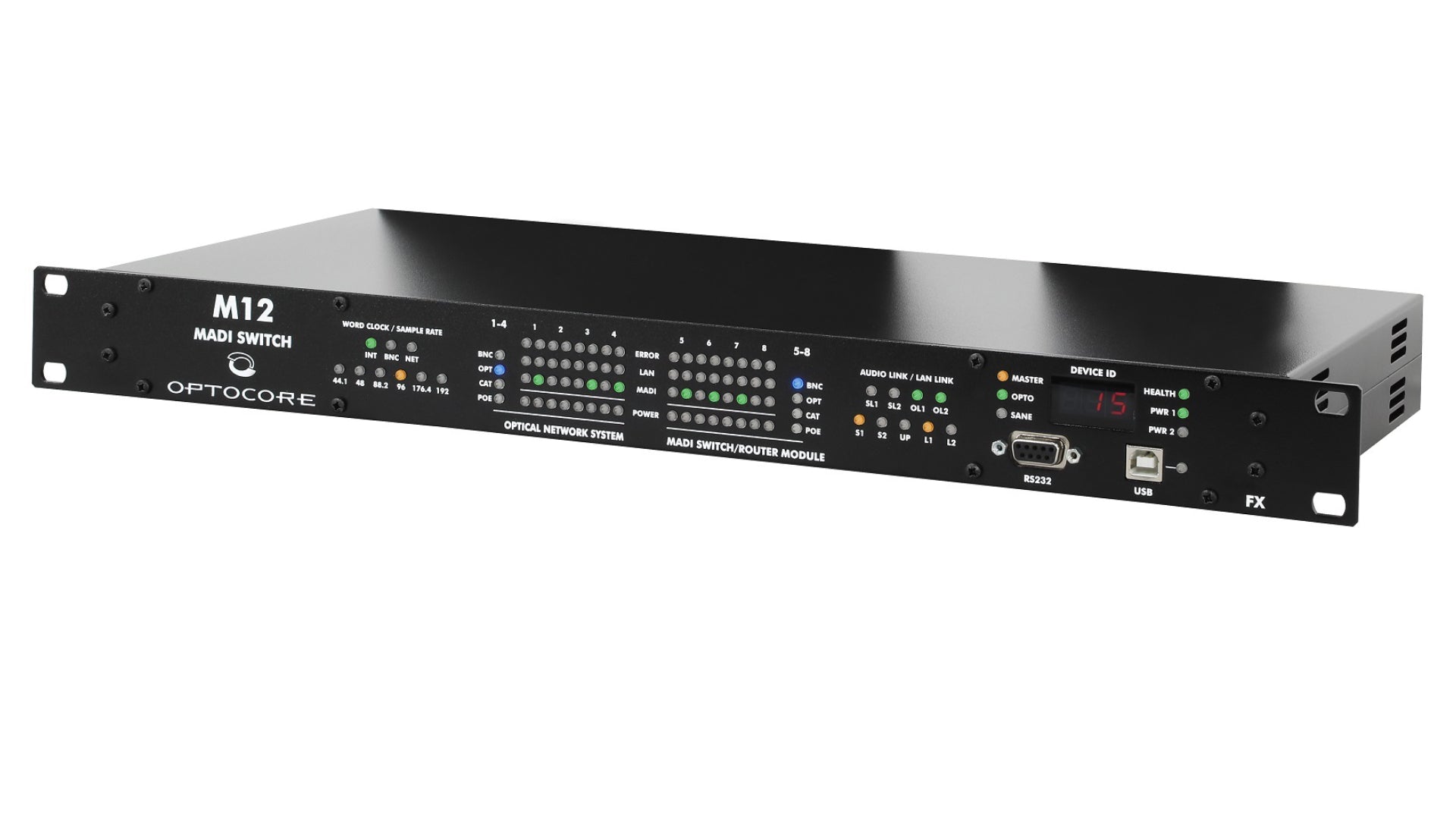

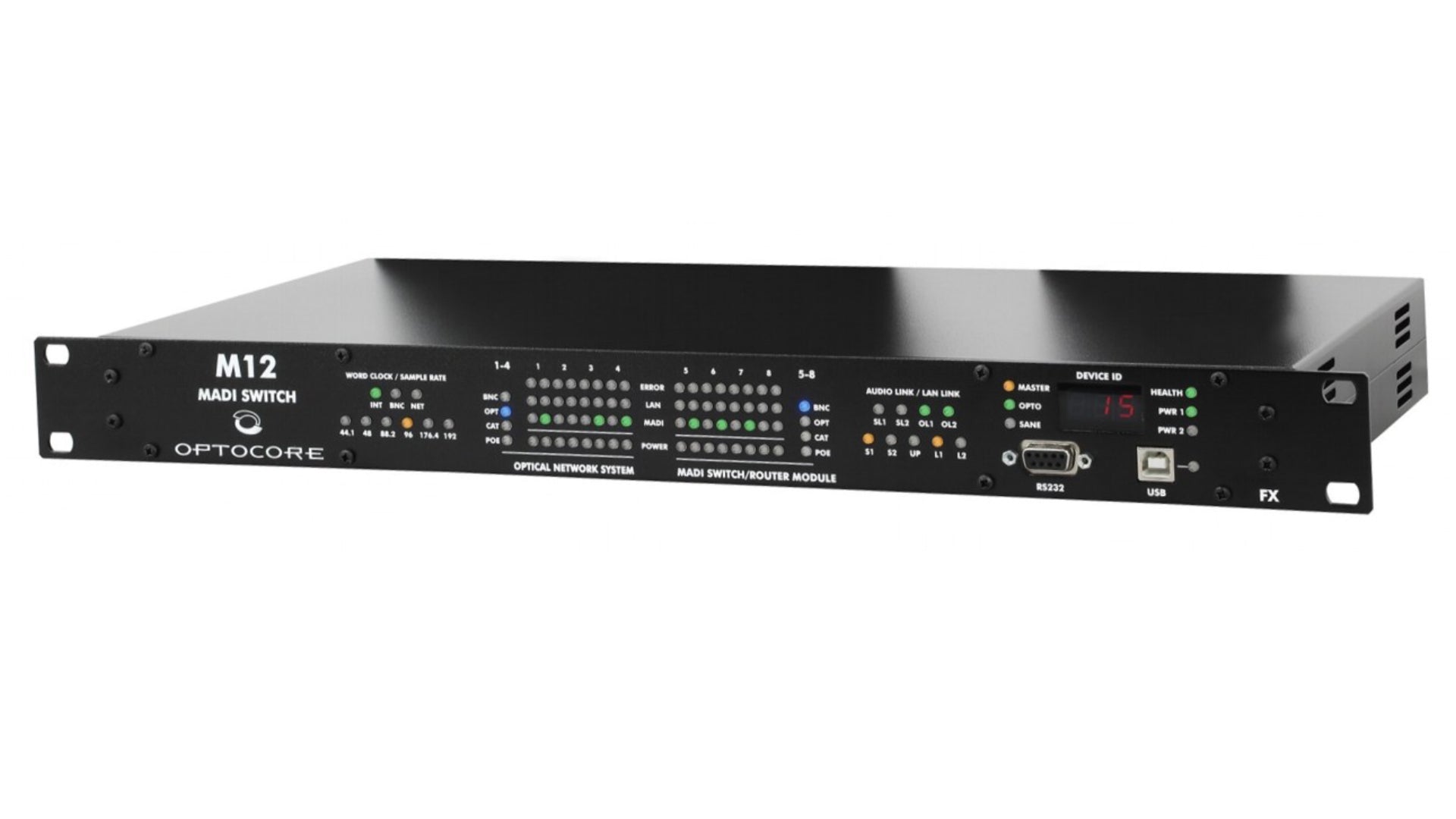

Optocore M12 MADI Router/Switch
The Optocore M12 is a standalone optical MADI switch designed for professional audio routing and networking.
It features eight optical duplex MADI ports delivering 512 input and 512 output digital audio channels, making it ideal for large-scale audio systems. Equipped with a single-channel router, the M12 enables flexible routing between any MADI streams within the device or across remote systems. Two SANE ports support up to 256 audio channels via standard CAT5 cable, while dual LAN interfaces handle Ethernet data switching.
This makes the M12 perfect as a central hub for digital consoles, DAWs, playback devices, and broadcast equipment.
The M12 functions as both a powerful standalone MADI router and a multi-channel interface for Optocore fiber ring networks, offering the cost-effective channel density and individual routing capabilities professional audio installations demand.
The Optocore M12 MADI Router/Switch is available with eight optical ports, eight coaxial ports, or a combination of four optical and four coaxial ports.
Features:
- Single-channel routing and MADI stream bridging
- 8× duplex optical/BNC MADI ports — 512 IN / 512 OUT
- 2× high-speed uplinks for redundant Optocore ring integration
- 2× SANE ports for MADI Cat5, X6R/V3R/Y3R-TP or LAN connectivity
- 4× RS485/422
- 2× LAN
- Word Clock I/O
- Dual redundant PSU
Specifications:
- MADI Ports: Convention AES10-1991 / AES10-2003

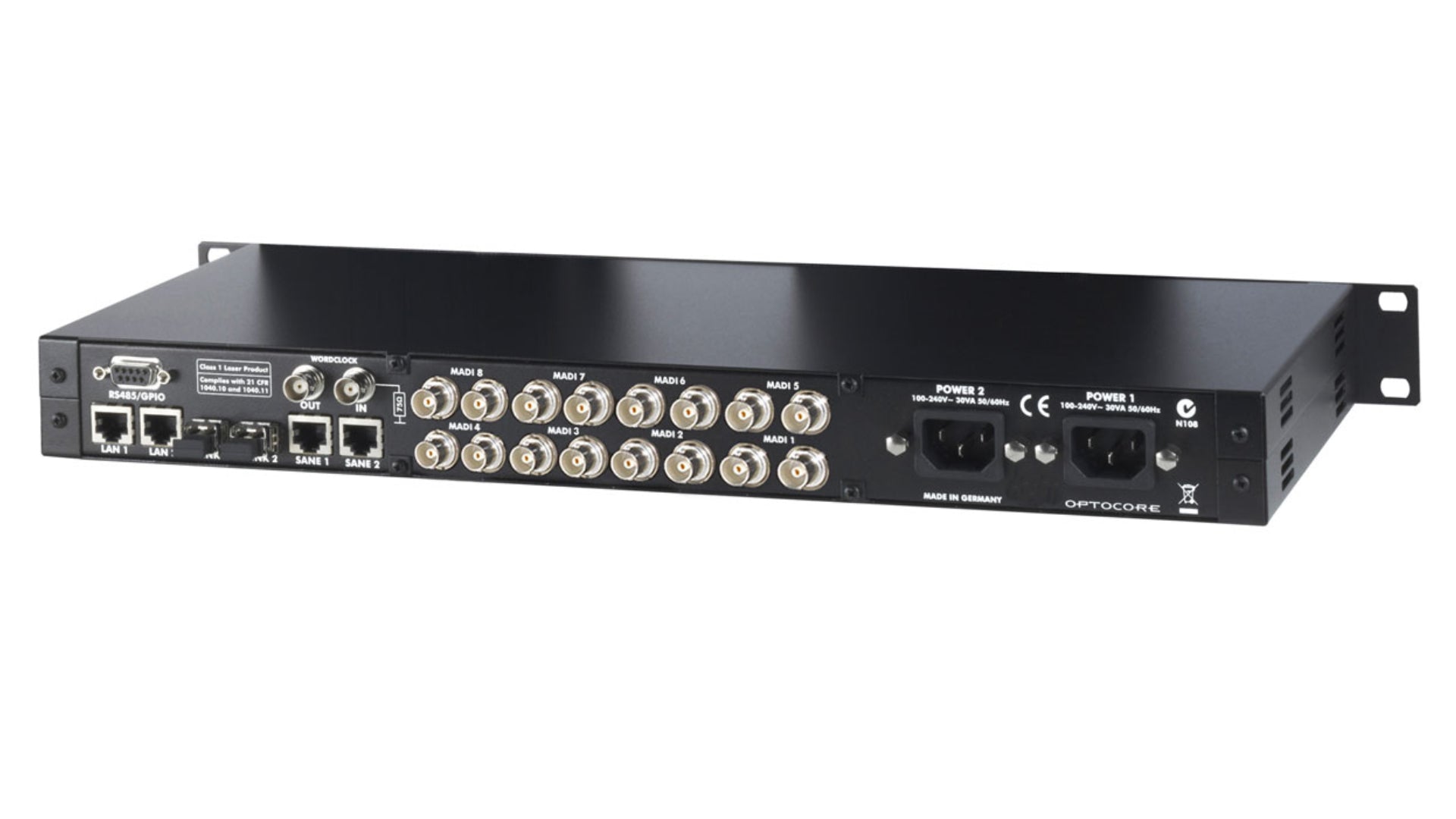

M12 - EIGHT BNC
-
Inputs:
- Number / Connectors: 8 / coaxial
- MADI digital audio channels: 56 or 64 per Input
-
Outputs:
- Number / Connectors: 8 / coaxial
- MADI digital audio channels: 56 or 64 per input
- Data range: 125 Mbps
- Impedance: Termination: 75 Ω
M12 - EIGHT OPTICAL SC
-
Inputs:
- Number / Connectors: 8 / optical SC Multimode
- MADI digital audio channels: 56 or 64 per input
-
Outputs:
- Number / Connectors: 8 / optical SC Multimode
- MADI digital audio channels: 56 or 64 per input
- Data rate / Wavelength: 125 Mbps / 1310 nm (typical)
- Max. cable length: 50/135 μm: 1500 m / 5000 ft.

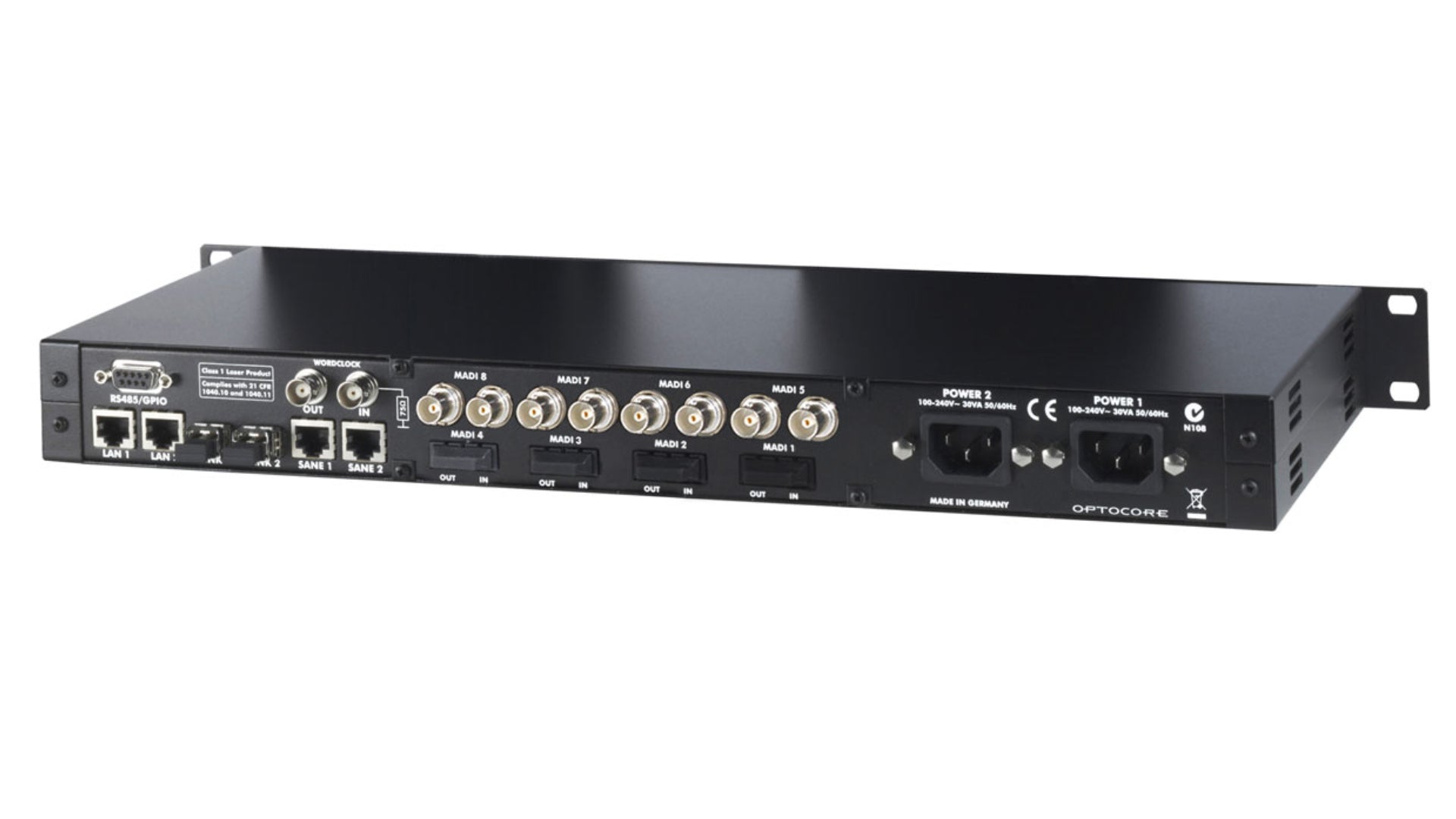

M12 - FOUR BNC, FOUR OPTICAL SC
-
Inputs:
- Number / Connectors: 4 / coaxial
- MADI digital audio channels: 56 or 64 per input
-
Outputs:
- Number / Connectors: 4 / coaxial
- MADI digital audio channels: 56 or 64 per input
-
Inputs:
- Number / Connectors: 4 / coaxial
- MADI digital audio channels: 56 or 64 per input
-
Outputs:
- Number / Connectors: 4 / optical SC Multimode
- MADI digital audio channels: 56 or 64 per input
-
SANE & LAN ports: Convention
- Audio: TIA - 568A/B, Optocore: 200 Mbit/s
- LAN: TIA - 568A/B, IEEE - 802.3: 10/100 Mbit/s
-
Auxiliary Ports:
- Data channels: Digital control data: 4
- Data rate: Up to 10 Mbps
- Termination: 330 Ω
- Source: < 10 Ω
-
Word clock: Hardware standaard 75 Ω / BNC
-
Data rate:
- Depending on used sample rate
- 44,1 / 48 / 88,2 / 96 / 176,4 / 192 kHz
-
Impedance:
- Output: 75 Ω
- Input: 1k / 75 Ω software switch
-
Data rate:
-
Optical Link: Input, Output, Dual - Full bandwidth
- Connection: Duplex LC (SFP MODULES)
- Protocol: Optocore
- Transmission: Full duplex
- Data rate: 2 x 2 Gbps
- Optical wave guide: Multimode fiber 50 μ m: < 700 m
- cable lengths: Single mode fiber 9 μ m: <120 km (on request)
-
Power supply: Two independent power supplies with function check and automatic switch-over
- Type: Switch-mode, universal input
- Mains voltage, frequency: 100 ... 240VAC, 50/60Hz 10VA-typ
- Frequency: 50 ... 60 Hz
-
Remote Control:
- RS232: Convention EIA / TIA-232: R x D, T x D / 57 600 Baud
- USB Port: Interface to PC
-
Dimensions: 1 RU / 19"
- W x H x D: 483 x 44 x 200 mm - 19.2 x 1.73 x 7.87 inch
- Weight: 2.7 kg - 6.0 lbs
