Description

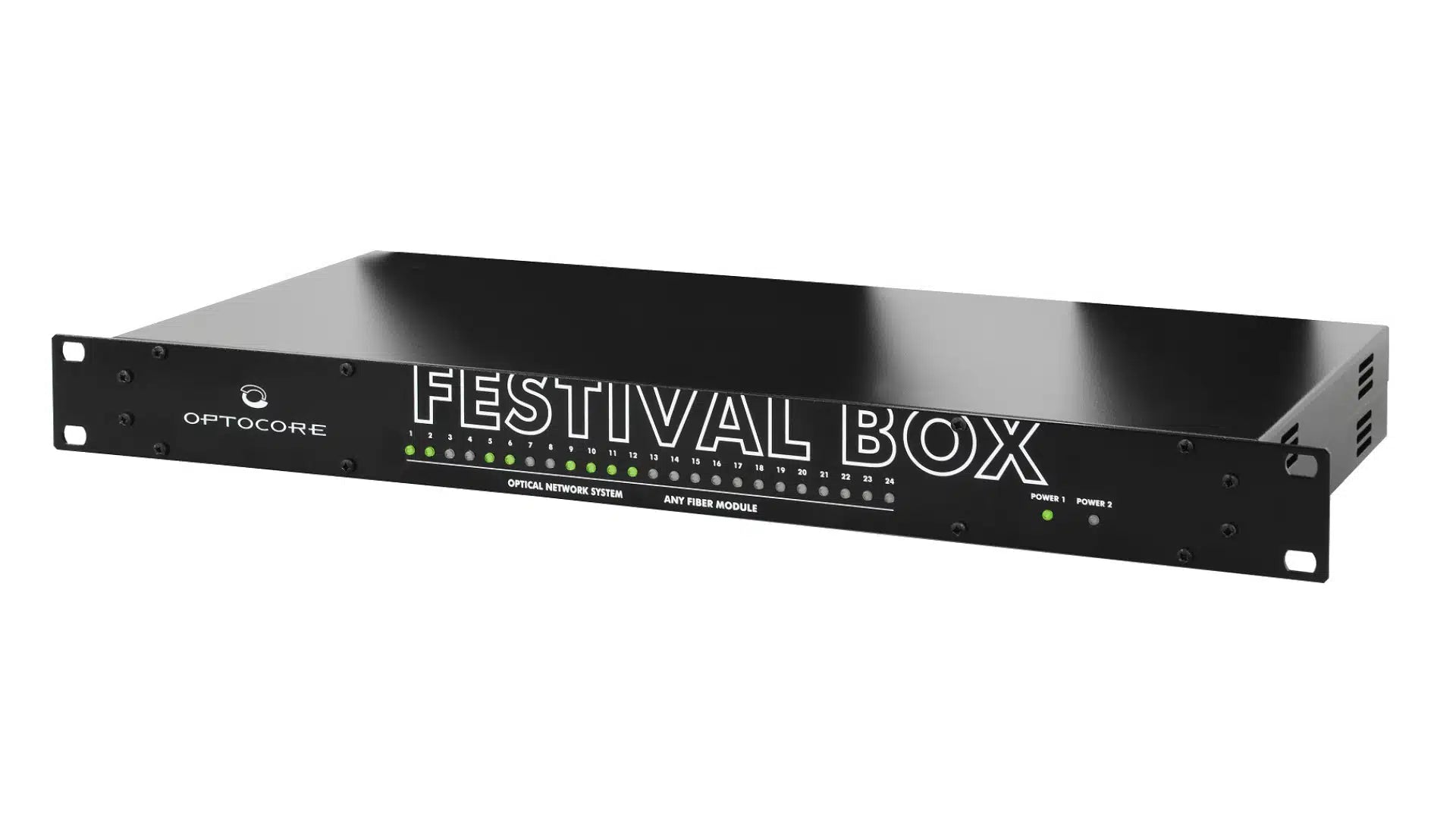

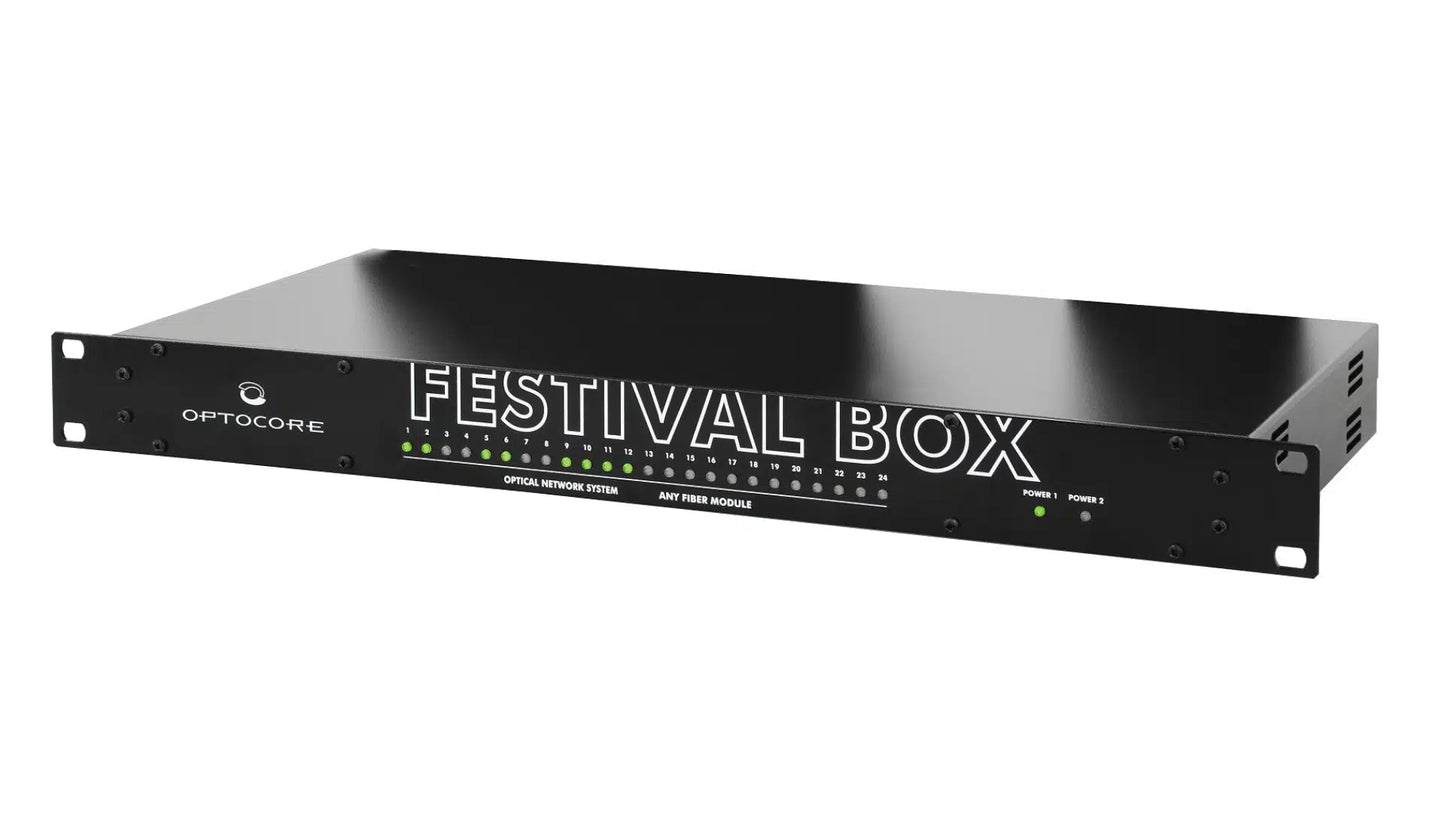

Optocore Festival Box Protocol Agnostic Fiber Transport System
The FESTIVAL BOX is a versatile point-to-point system converter engineered for professional audio environments. Featuring twelve I/O SFP module slots, it accepts any MSA-standard interface, Multimode, Singlemode, MADI, Ethernet RJ45, and more, transporting signals transparently across formats. Built as the central hub for digital consoles, DAWs, playback systems, and broadcast units, it seamlessly integrates MADI, IP protocols, Optocore, and fiber-based audio networks. Console redundancy support ensures reliability in mission-critical installations.
The FESTIVAL BOX delivers unmatched flexibility and cost-effectiveness, consolidating multiple protocols into a single device. Ideal for complex professional audio systems requiring protocol-agnostic connectivity and scalable I/O expansion.
The FESTIVAL BOX is available in Petit or Grande versions and can be upgraded to include an internal 3G-SDI upgrade.
Features:

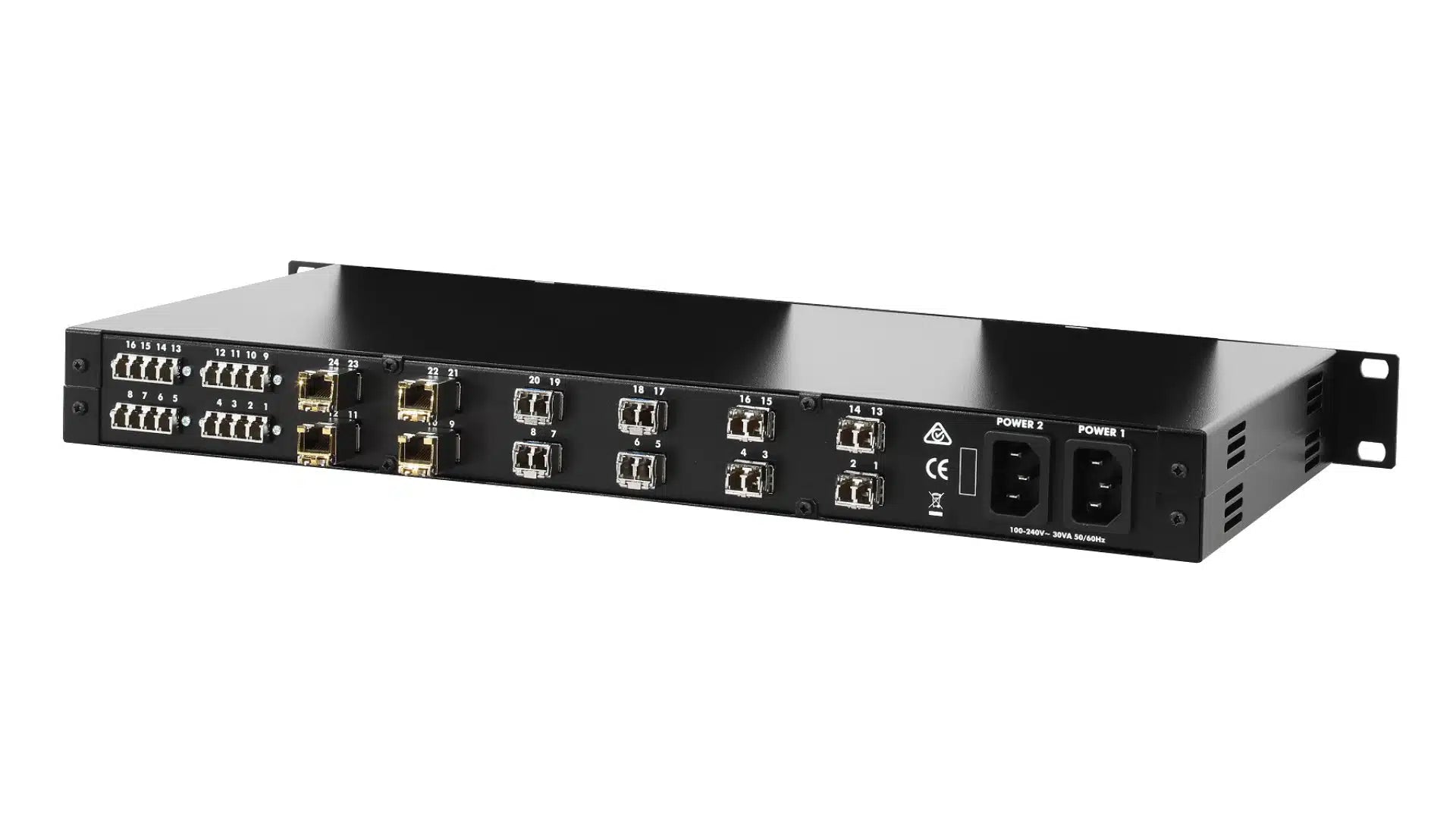

- 12× SFP I/O modules in two rows
- Multimode fiber transport
- PLUG-AND-PLAY
- Supports console redundancy
- Fiber AUX passive ports
- Dual power supply with automatic switchover
Specifications:
- SFP Ports:
- MSA compliant
- Data rate up to 2 Gbps
- Optical Connection: Complies with 21 CFR 1040.10 and 1040.11
- AUX Optical Connection:
- 1310nm single/multimode fiber tunnel (5,6 ; 13,14)
- 1510nm single/multimode fiber tunnel (7,8 ; 15,16)
- Power Supply:
- 2 independent power supplies with function check and automatic switch-over
- Type: Switch-mode, universal input
- Mains voltage: 100 - 240 V
- Frequency: 50-60 Hz
- Power consumption: 25 W Typical / 32 W Max
- Remote Control: Plug-and-play device, no configuration needed
- Dimensions (WxHxD): 1 RU / 19": 483 x 44 x 200 mm / 19.2 x 1.73 x 7.83 inches
- Weight: 2.83 kg / 6.2 lb
| System Converter |
Petit |
Grande |
| Duplex Multimode Fiber between devices |
2 |
2 |
| SFP slots up to 2 Gbit each |
6 |
12 |
| 1310mm AUX, 1510mm AUX |
2,2 |
2,2 |
