Optocore DD32R-FX — AES/EBU Interface for the Optocore Fiber Networks

The DD32R-FX is a professional-grade AES/EBU interface designed for seamless integration into Optocore Fiber Networks. This 1RU device delivers 32 AES/EBU pairs, 64 configurable audio channels, with flexible input/output assignment in 8-channel blocks. Built for demanding audio environments, the DD32R-FX combines comprehensive connectivity with minimal power consumption.

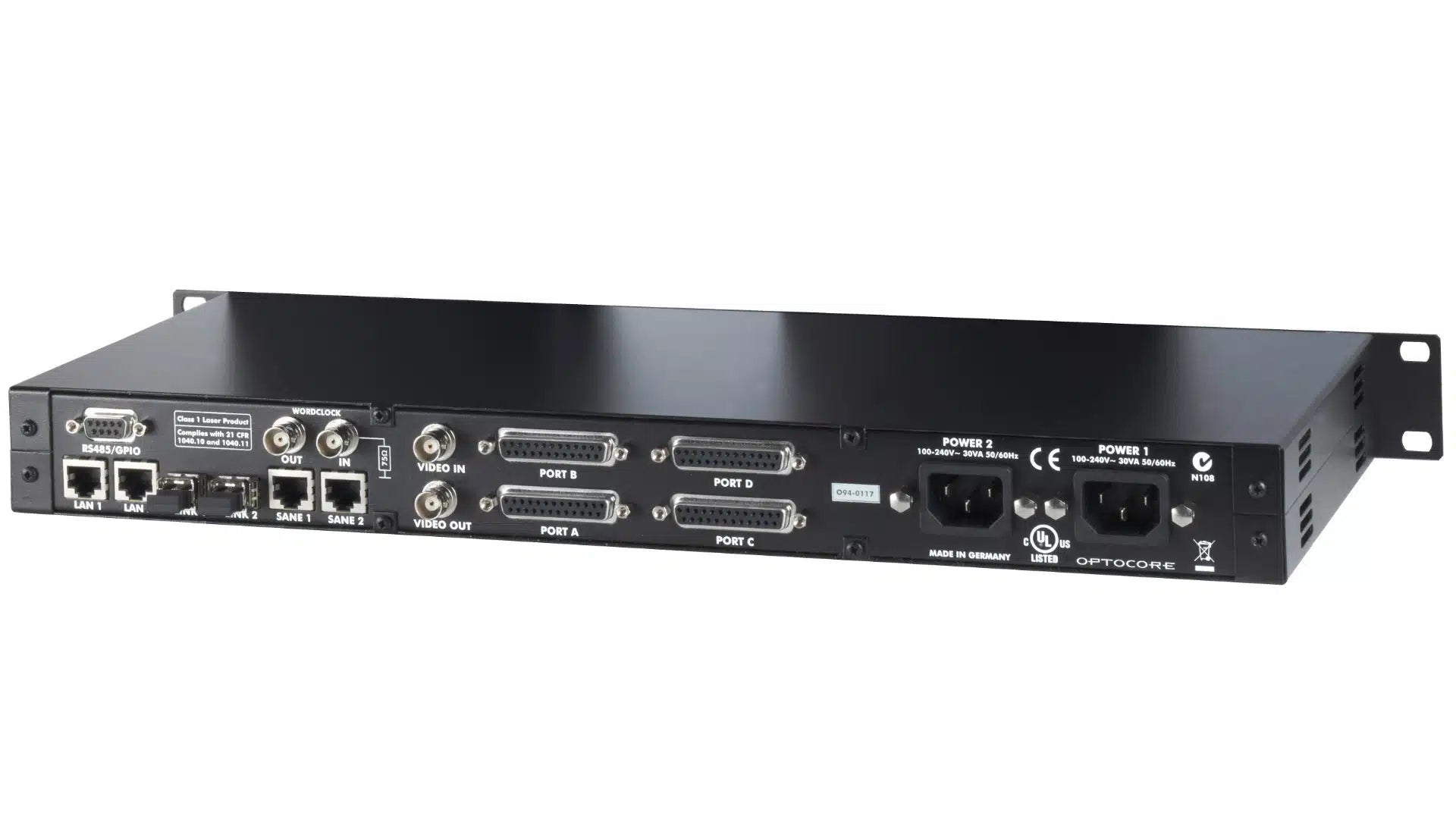

It features Word Clock I/O, Composite Video input and output, dual LAN ports, dual SANE ports, and four RS485/422 connections, all accessible through the Optocore fiber dual-ring network architecture.

The dual fiber links with interchangeable transceivers enable long-distance signal transport and conversion while maintaining exceptional routing flexibility. Scale from simple point-to-point configurations to complex ring or star topologies, supporting up to 1024 audio channels, 3 video channels, and full control data integration including RS485, RS422, DMX, and MIDI. Ideal for broadcast, live sound, and large-scale networked audio systems requiring reliability, scalability, and professional-grade signal integrity.

Features:

• 32 AES/EBU digital audio pairs = 64 channels
• Unique software switch to use as AES/EBU inputs or outputs
• 2× optical 2G links for the Optocore Network with hot-swappable SFP modules
• 2× SANE Ports
• 2× LAN Ports
• 4× RS485 interfaces for the exchange of control data
• Word clock I/O
• Composite video input and output
• Dual power supply with automatic switchover
• 3^rd party software control for panels, touch screens, IP integrated control software
• Full remote access with OPTOCORE CONTROL software
• GPIO for automated show control
• Configuration and control via LAN, USB or RS232
• Upgradeable internal FPGA logic

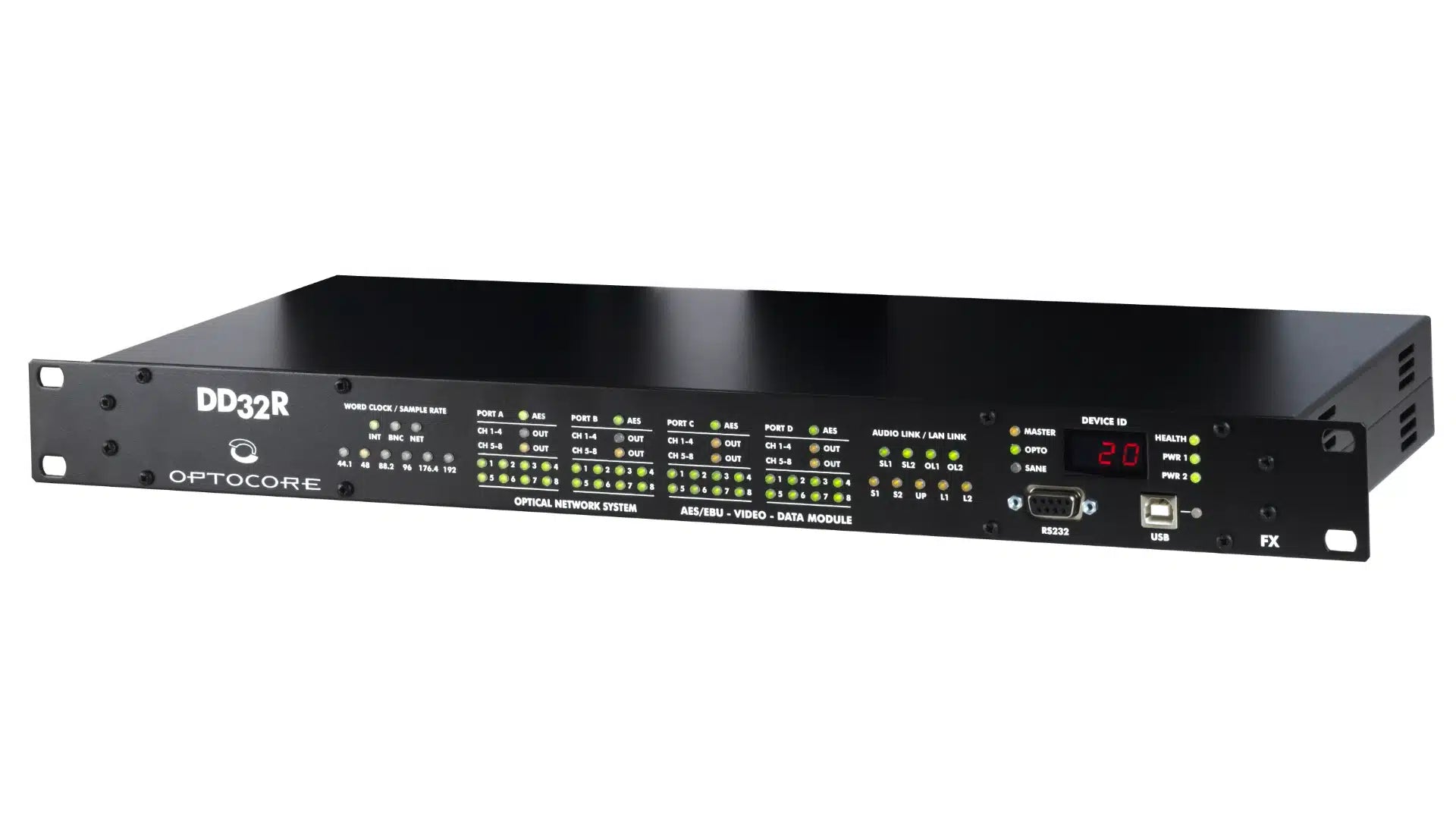

• Comprehensive status information via LED banks on the front

Specifications:

• Audio Ports:
  • 32 AES/EBU Digital Audio Pairs + 64 audio channels
  • Connector: 4 x D-Sub25, 110 Ohm termination
  • Configuration: Software switchable I/O in 8-channel blocks; audio routing
• Fiber Ports:
  • 2 Duplex optical LINKs
  • Protocol: OPTOCORE - 1024 audio channels, IP , data, sync
  • Connector: 2 hot-swappable SFP modules
  • Transmission, data rate: Dual ring, full duplex, 2Gbps data rate
  • Cable lengths:
    • Multimode 50 μ   m < 350m,
    • Single mode 9 μ m < 20km,
    • other lengths available on request with custom SFP
• SANE Links:
  • 2 RJ45 SANE links
  • Protocol: SANE - 64 audio channels and 100Mbps LAN
  • Transmission, data rate: Full duplex, 200 Mbps
  • Cable length: CAT5, CAT5E, CAT6, CAT7 < 100m
• LAN Links:
  • 2 RJ45 LAN links
  • Protocol: FastEthernet, switch function across the entire Optocore and Sane network
  • Transmission, data rate: Full duplex, 10/100 Mbps
  • Cable length: CAT5, CAT5E, CAT6, CAT7 < 100m
• Auxiliary Ports:
  • 4 RS485/422 channels
  • Connector: D-Sub9, Convention EIA/TIA-485, 120 Ohm termination
• Word Clock:
  • 1 Input, 1 output
  • Protocol: Word Clock; sample rate: 44,1 / 48 / 88,2 / 96 / 176,4* / 192* kHz
  • Connector: BNC, 75 Ohm termination
• Power Supply:
  • 2 independent  power supplies with function check and automatic switch-over
  • Type: Switch-mode, universal input
  • Mains Voltage: 100...240 V
  • Frequency: 50...60 Hz
  • Power Consumption: 12 W typical
• Remote Control:
  • LAN: any LAN or SANE port
  • RS232: Convention EIA / TIA-232: RxD, TxD / 57,600 Baud
  • USB: Interface to PC
• Dimensions   (WxHxD): 1 RU / 19":   483 x 44 x 200 mm   19.2 x 1.73 x 7.87 inch
• Weight: 2.7 kg   6.0 lbs
