Optocore AutoRouter Patchbay

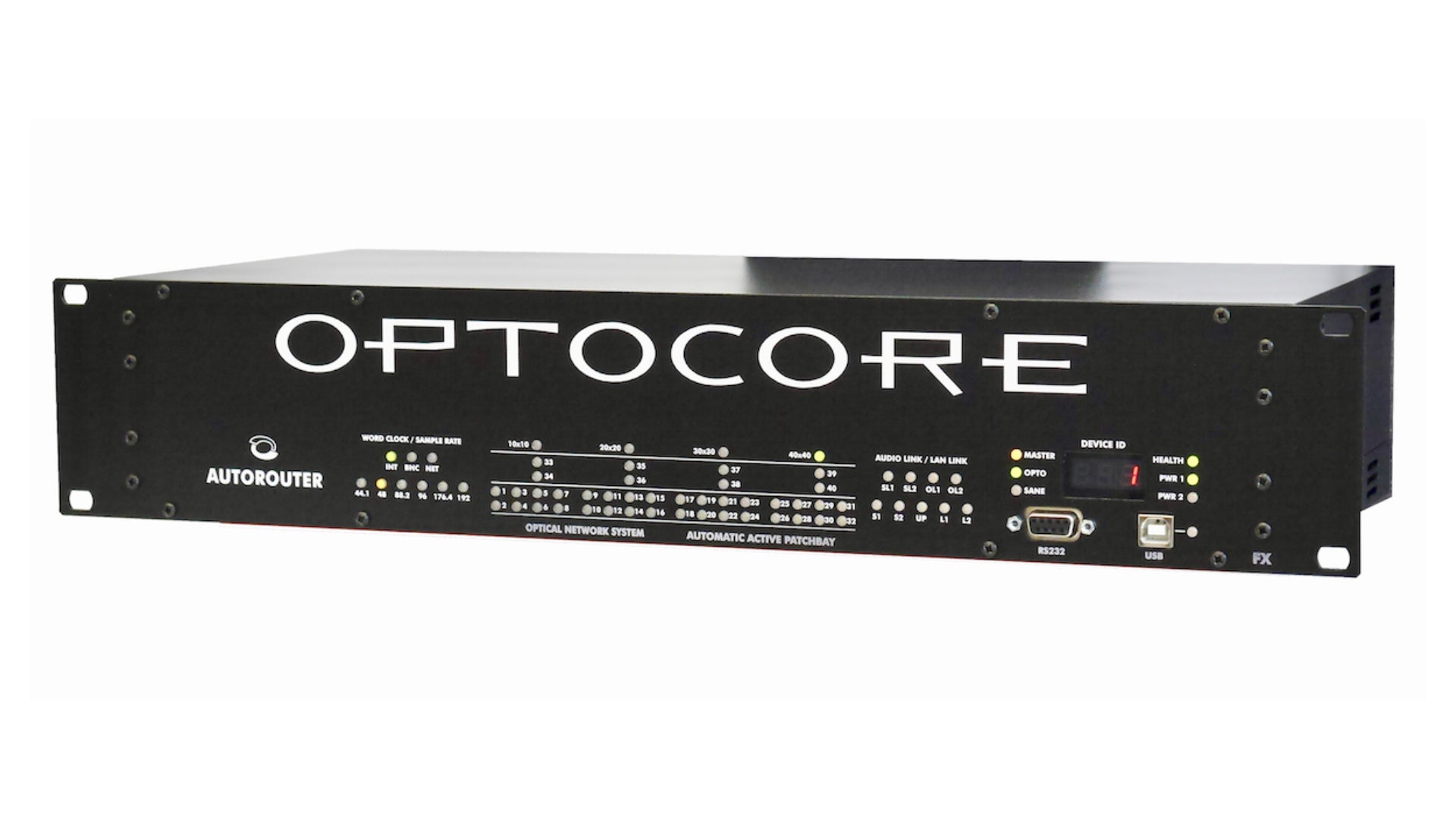

Optocore AutoRouter — Intelligent Patchbay

Optocore AutoRouter transforms ring topology fiber networks into flexible star configurations, compatible with Optocore, ProGrid, DiGiCo, AVID AVB, and Yamaha TWINLANe protocols. Ideal for installation and live sound applications where mixed ring/star or pure star topologies are preferred.

The AutoRouter automatically discovers mobile devices and seamlessly integrates them into the Optocore loop. When devices disconnect or power down, it instantly closes the loop with remaining equipment. All link switching and redundancy establishment happens automatically, no manual fiber patching or user intervention required. Deploy with confidence knowing your network adapts in real time.

Features:

• Supports any Optocore system — standalone Optocore, DiGiCo opto links or ProGrid by Clear-Com
• supports AVB of S6L AVID, Yamaha TWINLANe, and other protocols
• Closes the Optocore loop automatically when active device is switched on/off, added or disconnected
• PLUG-AND-PLAY
• Up to 20× dual LINK duplex Ports for Optocore protocol connection
• No fan
• Dual power supply with automatic switchover
• 2RU Chassis

Specifications:

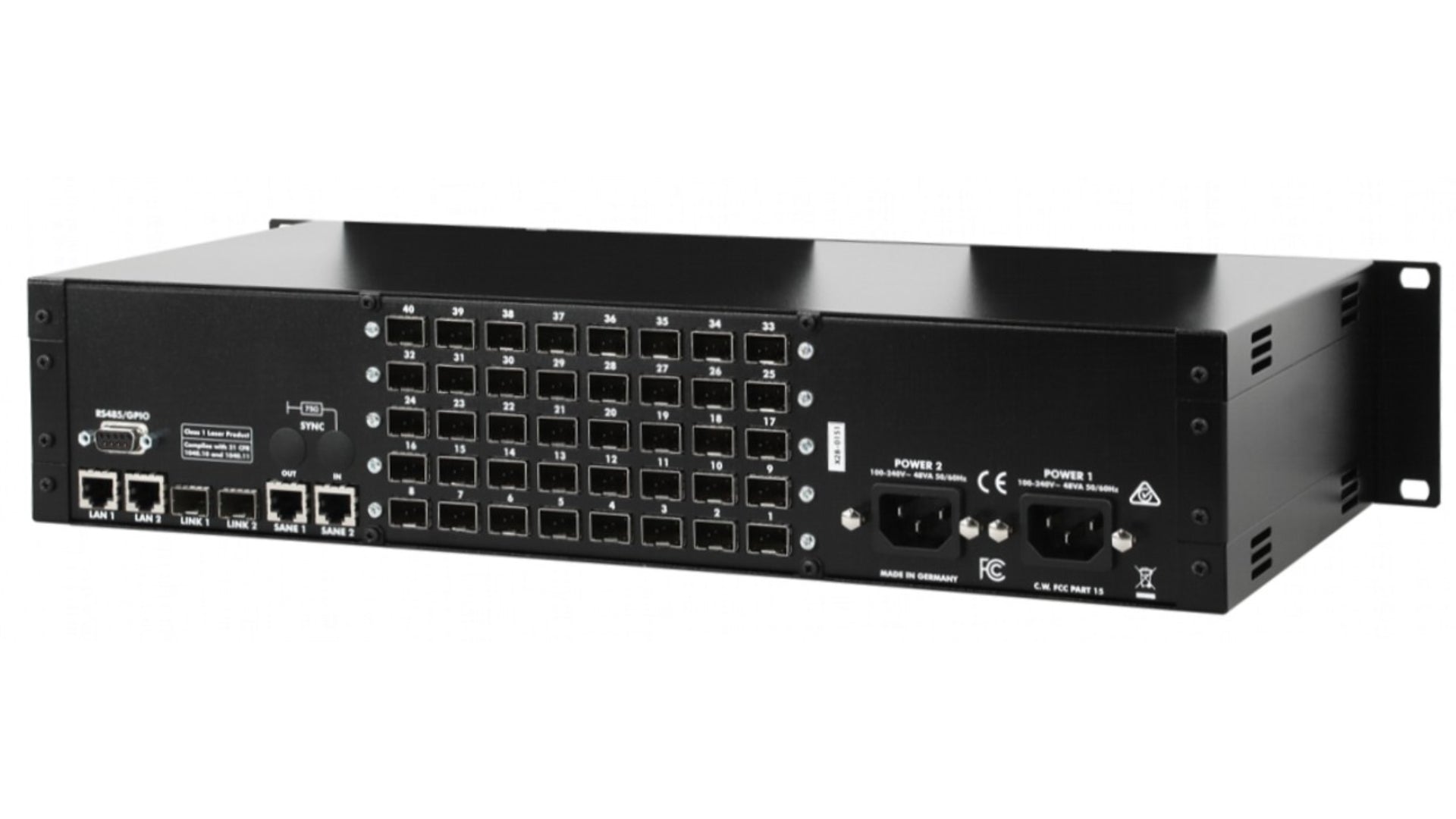

• SFP Ports:
  • MSA compliant
  • Data rate up to 2 Gbps
• No. of slots*:
  • Dependent on ordered version
  • 5, 10, 15, 20
• No. of SFP ports:
  • Dependent on ordered version
  • 10, 20, 30, 40
• SFP:
  • Dependent on ordered version
  • 2G multimode; 1G or 2G singlemode
• Port data rate: Up to 4 Gbps
• Optical connection: Complies with 21 CFR 1040.10 and 1040.11
• Power Supply:
  • 2 independent power supplies with function check and automatic switch-over
  • Type: Switch-mode, universal input
  • Mains voltage: 100 - 240 V
  • Frequency: 50-60 Hz
• Dimensions (WxHxD): 2 RU / 19": 483 x 88 x 200 mm / 19.2 x 3.46 x 7.87 inches
• Weight: Dependent on configuration

* one slot equals two SFP ports with odd and even numbers
