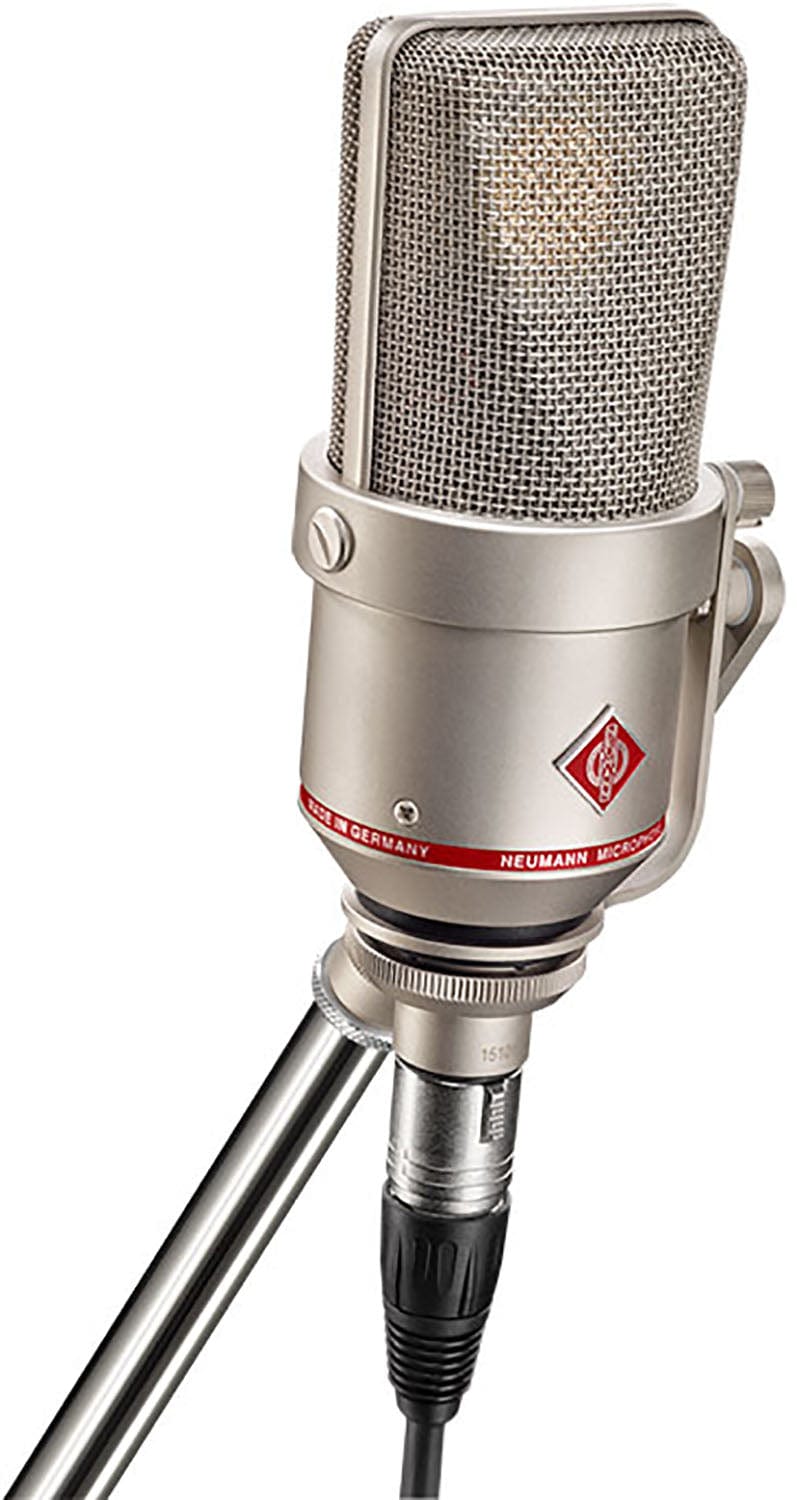

Neumann TLM-170-R K 89 Capsule Multi-Pattern Microphone with Tilting Side Bracket
The nickel TLM 170 R Large-Diaphragm Multipattern Condenser Microphone from Neumann is a large-diaphragm, multipattern condenser microphone and features FET 100 technology, a balanced, transformerless output stage, low self-noise, and an impressive dynamic range.
Features:
- Local and remote-controlled large-diaphragm microphone
- Pressure-gradient transducer with double-membrane capsule
- omnidirectional, wide-angle cardioid, cardioid, hypercardioid, and figure-8 polar patterns
- Switchable low-frequency roll-off and 10 dB pre-attenuation
- Tiltable, elastically suspended bracket mount
Specifications:
- Microphone:
- Primary Applications: Live Sound, Studio Recording, Broadcast
- Form Factor: Large Diaphragm Mic / Stand/Boom Mount
- Intended Sound Sources: Vocals, Speech/Voice-Over, Instruments, Orchestra
- Sound Field: Mono
- Element Type: Condenser
- Polar Pattern: Cardioid / Figure-8 / Hypercardioid / Omnidirectional / Subcardioid/Wide Cardioid
- Pattern Selection: Switched (Adjustable on Mic)
- Orientation: Side Address
- Circuitry: Solid-State
- Pad: -10 dB
- High-Pass Filter: 100 Hz
- On-Board Controls: High-Pass Filter, Pad, Polar Pattern
- Performance:
- Frequency Range: 20 Hz to 20 kHz
- Maximum SPL:
- 144 dB SPL (.5% THD)
- 154 dB SPL (.5% THD, with Pad)
- Impedance: 50 Ohms
- Load Impedance: 1000 Ohms (Rated)
- Sensitivity: 8 mV/Pa at 1 kHz into 1 Kilohm
- Dynamic Range: 130 dB
- Signal-to-Noise Ratio:
- 80 dB A-Weighted
- 68 dB CCIR
- Equivalent Noise Level:
- 14 dB A-Weighted
- 26 dB CCIR
- Connectivity:
- Analog Output: 1x XLR 3-Pin Male (on Mic)
- Power:
- Power Sources: Phantom Power
- Physical:
- Color: Nickel
- Dimensions: ø: 2.4 x L: 6" / ø: 6 x L: 15.2 cm
- Weight: 1.39 lb / 0.63 kg
- Included: Tilting Side Bracket
