Description

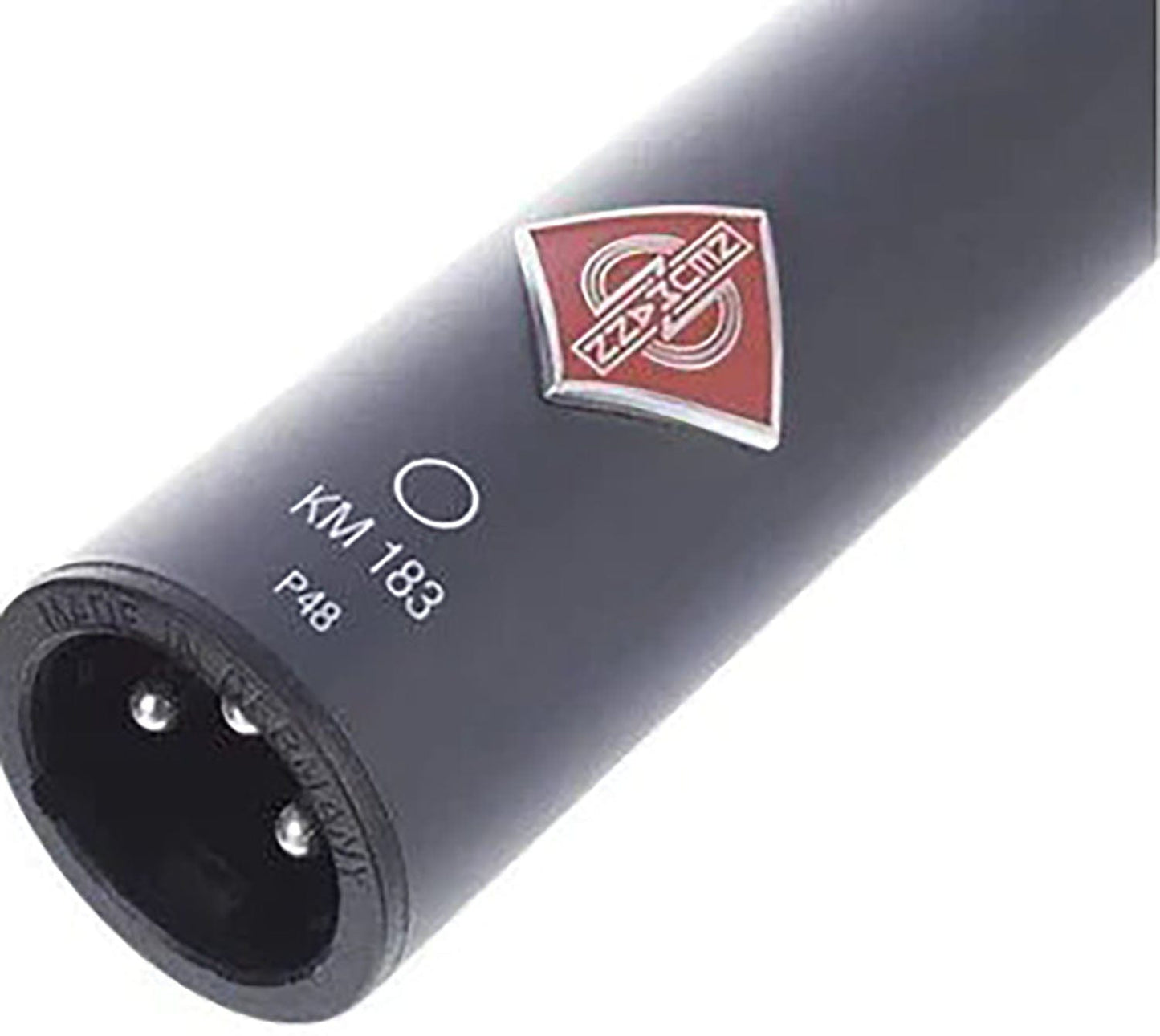

Neumann KM-183-A-NX Omnidirectional Diffuse-Field Equalised Microphone - Nextel Black

The KM 183 is a state-of-the-art small diaphragm condenser microphone with a frequency-independent omnidirectional polar pattern. Its very natural, transparent sound with very low self-noise and high SPL capability have made the KM 183 a worldwide studio standard for many applications ranging from classical piano to heavy metal drums.

Features:

  • Directional characteristic: omni (diffuse-field equalized)
  • Part of the modular microphone system KM A/D
  • Comprehensive range of accessories

Specifications:

  • Acoustical operating principle: Pressure transducer
  • Directional Pattern: Omni diffuse-field equalized
  • Frequency Range 20 Hz - 20 kHz
  • Sensitivity at 1 kHz into 1 kohm: 12 mV/Pa
  • Rated Impedance: 50 ohms
  • Rated load impedance: 1000 ohms
  • Equivalent noise level, CCIR: 24 dB
    • According to IEC 60268-1; CCIR-weighting according to CCIR 468-3, quasi peak; A-weighting according to IEC 61672-1, RMS
  • Equivalent noise level, A-weighted: 13 dB-A
    • According to IEC 60268-1; CCIR-weighting according to CCIR 468-3, quasi peak; A-weighting according to IEC 61672-1, RMS
  • Maximum SPL for THD 0.5%: 140 dB
    • Measured as equivalent el. input signal
  • Maximum SPL for THD 0.5% with preattenuation: 150 dB
    • Measured as equivalent el. input signal
  • Signal-to-noise ratio, CCIR (re. 94 dB SPL): 69 dB
    • According to IEC 60268-1; CCIR-weighting according to CCIR 468-3, quasi peak; A-weighting according to IEC 61672-1, RMS
  • Signal-to-noise ratio, A-weighted (re. 94 dB SPL): 81 dB
    • According to IEC 60268-1; CCIR-weighting according to CCIR 468-3, quasi peak; A-weighting according to IEC 61672-1, RMS
  • Supply voltage (P48, IEC 61938): 48 V
  • Current consumption (P48, IEC 61938): max. 3.5 mA
  • Matching connector: XLR 3 F
  • Weight
    • Output stage: 70 g
    • Capsule only: 11 g
  • Diameter: 22 mm
  • Length
    • Capsule only: 18 mm
    • Microphone: 108 mm
  • Color: Nextel® Black
  • Neumann Catalog No.: 008631
