Neumann KH-750-AES67 10-Inch Active DSP Subwoofer with AES 67 Input - Anthracite Metallic
The compact KH 750 AES67, as a product variant of the KH 750 DSP, is the ideal subwoofer for routing audio over IP in an existing AES67 studio infrastructure all the way to the loudspeakers in a redundant and lossless manner. It thus serves as the link between the studio’s digital ST2110/AES67 data stream and all KH line monitors.
By adding more KH 750 AES67 subwoofers, stereo systems of any size can be realized. The KH 750 AES67 adds AES67 connectivity and retains all other features of the KH 750 DSP such as the unique and flexible Bass Manager as well as analog and digital inputs, four routing modes, and adaptable acoustical controls to be used in many different configurations and setups.
The KH 750 AES67 model variant offers newly integrated redundant AES67 audio network ports that are fully compliant with broadcast standards such as ST 2110 and ST 2022-7 redundancy. At the same time, the KH 750 AES67 is compatible with DANTE®-generated AES67 network streams.
The KH 750 AES67 thus enables all pairs of KH line monitors to be integrated into a redundant AES67 IP network.
Features:

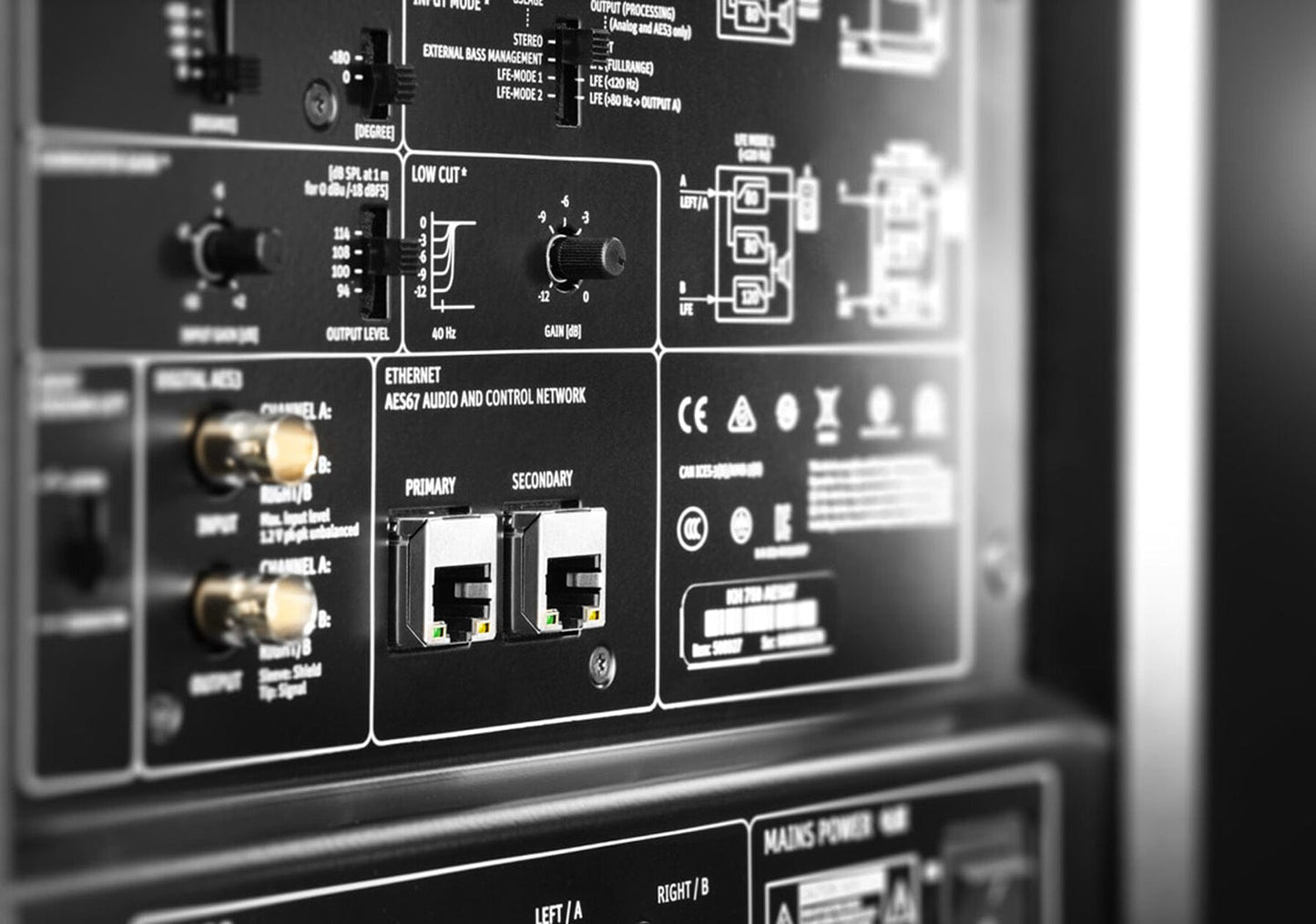

- Redundant AES67 audio network interface
- Deep bass in a small space
- The perfect complement to KH 80 DSP, KH 120 and KH 310
- Optional tool to align and operate a complete Neumann stereo system
- Tough painted finish and high density rubber isolating feet
- Excellent self-damping properties leading to minimal cabinet resonances
- No standing wave resonances inside cabinet
- Tight bass sound due to very low group delay
Specifications:
- AES67 Audio-over-IP Interface: Fully redundant AES67 ST2110 compliant audio network interface; 2 Fast Ethernet 100Base-TX (IEEE 802.3) RJ-45 connectors; Physical redundant network (ST 2022-7)
- AES67 Audio-over-IP Input Word Length: 24 bits
- AES67 Audio-over-IP Input Sampling Rate: 44.1 / 48 / 88.2 / 96 kHz
- THD+N: analog, digital: < -100 dB; < -90 dB
- Free Field Frequency Response ±6 dB: 16 - 800 Hz
- Free Field Frequency Response ±3 dB: 18 - 750 Hz
- Self-generated Noise at 10 cm: <20 dB(A) SPL
- Sine Wave Output with a THD < 0.5 % at 1 m in half space: 95 dB SPL (>70 Hz)
- Bass Capability: Max. SPL in half space at 3% THD at 1m: 105.0 dB SPL
- Analog Input(s): 2 x XLR analog electronically balanced
- Analog Input impedance: >13k Ohms
- Max. Input Level: < +24 dBu
- Common Mode Rejection Ratio (CMRR): > 56 dB @ 15 kHz
- Crosstalk (1 kHz), Level Matching: < -90 dB; ±0.1 dB
- Volume Control: via Neumann.Control software
- Volume Control Range; resolution: 0 - dB; 0.1 dB
- Analog Dynamic Range; THD+N: 119 dB(A); <0.003% (-90 dB)
- Signal Routing Modes: Right; External Bass Management; 2 x LFE
- Analog Output(s): 2 x XLR
- Input Gain Control (sensitivity): +2 -12 dB
- Output Level Control: 94; 100; 108; 114 dB SPL
- Digital Input(s): BNC (75 Ω): AES3; S/P-DIF
- Digital Output(s): BNC (75 Ω): AES3
- Digital Converter: 16 - 24-bit DAC;
- Digital Converter Sampling Rate: 22.05; 24; 32; 44.1; 48; 64; 88.2; 96; 176.4; 192 kHz
- Dynamic Range A-D-A: >120 dB(A)
- Dynamic Range D-A: >123 dB(A)
- Digital Sensitivity: -18 dBFS = 100 dB SPL at 1 m
- Latency: 1.5 ms (A-D-A linear phase); 1.2 ms (D-A linear phase)
- Controller Design: Digital; active
- Crossover Frequency: 80 Hz
- Phase: 0; 45; 90; 135 und 0/180 deg
- Equalization via Neumann.Control Software: 8 x full parametric IIR + low / high shelf global balance
- Infrasonic Filter: frequency; slope: 17.5 Hz; 12 dB/oct.
- Remote Control: Neumann.Control software via an RJ45 connector
- Output Power Woofer Amplifier 256 W
- Mains Power Supply: 100-240V; 50/60 Hz
- Power Consumption Standby: <300 mW
- Power Consumption Idle: 18 W
- Power Consumption Full output: 410 W
- In-rush Current (Peak): 30 A @230 VAC
- Cabinet Material: Wood cabinet, aluminum panel
- Cabinet Surface Finish: Front / back; Painted; metallic anthracite / black
- Operating Conditions: +50° F to +104° F; <90% RH, non-condensing
- Transport/storage: -13° F to 158° F; <90% RH; non-condensing
- Woofer: 10" with protecting black metal grille
- Product Dimensions: 15 1/8 x 13 x 15 1/8"
- External Net Volume: 48.4 liters
- Product Weight: 43 lbs
