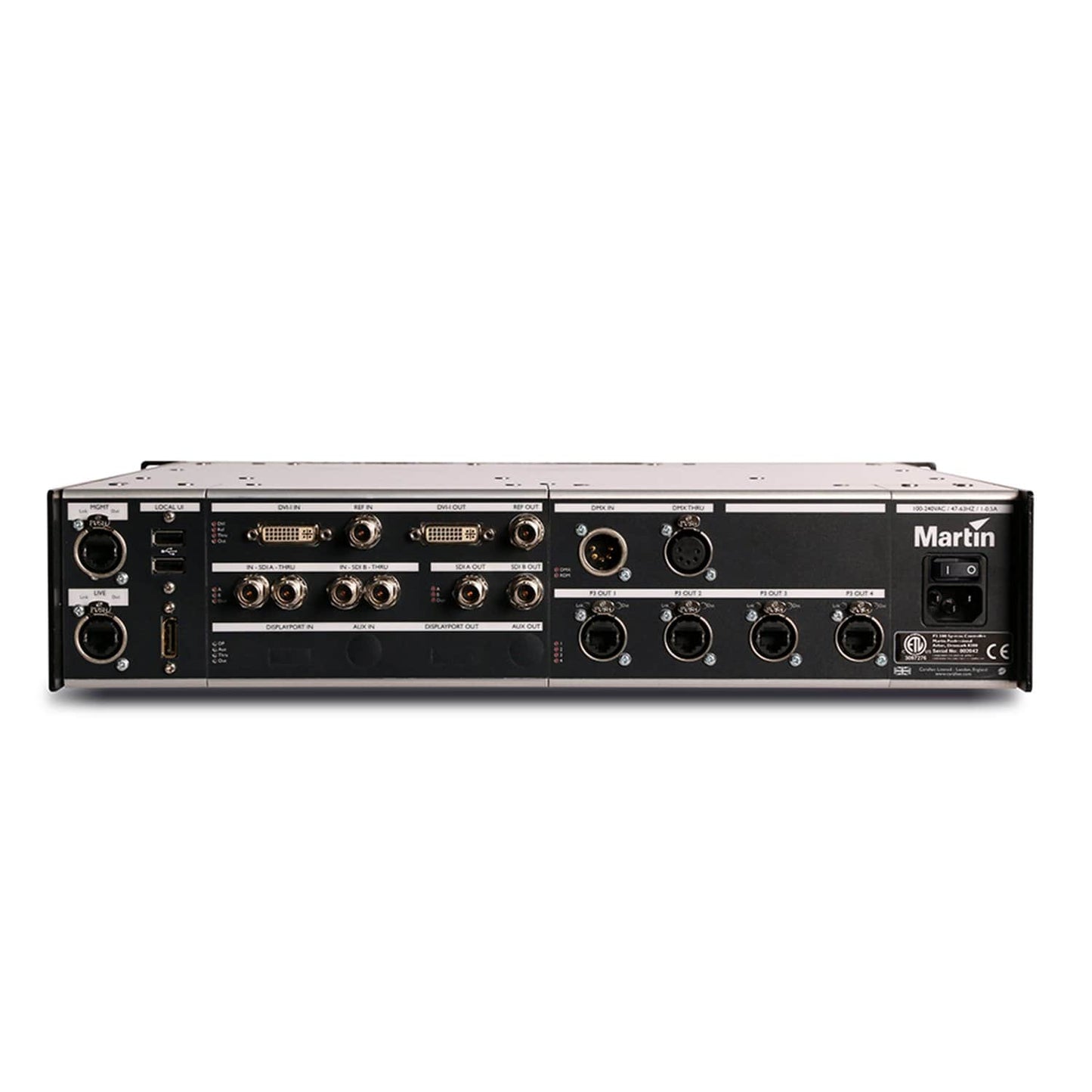

Martin P3-300 System Video Controller

The P3-300 System Controller combines the award-winning and intuitive P3 workflow with a brand new high-performance video processing engine. It can control the entire range of Martin LED Video products, ranging from traditional video panels to creative elements such as strips and dots. The P3-300 is equipped with a DVI input, a component video input and two SDI input ports (up to 3G). The output capacity of 2 million pixels allows even more products to be driven from a single controller.

Features:
  • Powerful and ergonomic LED video controller
  • Compatible with all Martin LED video products (panels and creative products)
  • Integration with lighting controls (DMX, Art-NET) and automation systems
  • Drives up to 2 million pixels
  • Built-in scaler and mapper
  • DVI-D input up to 1920x1080
  • 2 x 3G-SDI input up to 1920x1080
  • Analog video input up to 1920x1080
  • Dedicated bi-level and tri-level sync input for genlock
  • Built-in GUI (graphical user interface) including easy setup wizards
  • Real time visualization of the video mapping within the GUI (graphical user interface)
  • Most user-friendly LED video processor on the market
  • Compatible with all Martin LED Video products (panels and creative products)
  • Integration with lighting controls (DMX & Art-NET) and automation systems
  • All connected products report status and problems back to the controller for easy monitoring and maintenance
  • Showfiles compatible with all products within the P3 System Controller family (including the P3-PC offline editor)
Features:
  • User interface: SXGA (1280 x 1024) or better monitor (VGA, DVI, HDMI or DP), USB keyboard, USB mouse
  • Device status: status indicator LEDs
  • DVI video input: supports all resolutions up to 1920x1080; supports both RGB and YCbCr, progressive or interlaced
  • Component video input: via DVI-I breakout cable (not supplied)
  • Supports all resolutions up to 1920x1080
  • Supports progressive and interlaced scan 10-bit color sampling
  • Supports composite NTSC/PAL/Secam, S-Video (Y/C) and component YPbPr w/Sync-on-G (Y)
  • Supports tri-level sync
  • SDI video input: 2 x SD-SDI 525/60 (NTSC) or 625/50 (PAL) per SMPTE 259M; 2 x HD-SDI 720p per SMPTE 296M or 1080i per SMPTE 292M; 1 x dual-link HD-SDI per SMPTE 372M; 2 x 3G-SDI per SMPTE 424M (compatible with level A and level B sync)
  • Genlock input: supports bi-level and tri-level sync
  • Video processing: controller pixel processing capacity: 2,000,000 pixels (expandable by adding P3-300s)
  • Controller fixture capacity: 2000 fixtures (expandable by adding P3-300s)
  • Maximum workspace area: 2 073 600 pixels
  • Maximum active capture area: 2 073 600 pixels
  • System processing depth: 16 bits per color (48 bits per pixel)
  • System latency, DVI: 2 frames
  • System latency, SDI/component progressive: 2 frames
  • System latency, SDI/component interlaced: 3 frames
  • Latency between first and last panel: None Image rotation
  • Scaling (global and mixed pixel pitch)
  • De-interlacing
  • Gamma curve selection and adjustment
  • Real-time panel content remapping
  • Real-time color temperature and color space control
  • Real-time preview of video input and mapped canvas
  • DMX 512 / Art-Net real-time controllable parameters: global intensity, RGB intensity, color temperature, X-Y video image position, video image rotation, freeze, blackout, test pattern selection, preset recall (includes video input selection and scaling)
  • Kinesys K2 / Tait Navigator real-time controllable parameters: X-Y video image position & Video image rotation
  • P3 signal protocol type: gigabit ethernet
  • Protocol: proprietary Martin P3
  • Hot pluggable: yes, electrically isolated at all connections
  • Cable type: ethernet, shielded, CAT 5e or better
  • Cable length: Up to 100 m (328.1 ft.) between any 2 devices, extendable with Ethernet switch
  • Maximum number of panels per line: 50, extendable with ethernet switch
  • Construction housing: steel and aluminum
  • Color: matte black
  • Protection rating: IP20
  • Mounting: 19" rackmount (2U) or free-standing
  • Power input: IEC socket with integrated power switch
  • P3 data in/out: 4 x etherCON socket
  • DVI/component video in: DVI-I (component via BNC-to-DVI-A adapter cable, not supplied)
  • DVI/component video thru: DVI-I
  • SDI video in: 2 x BNC
  • SDI video thru: 2 x BNC
  • Genlock in: 1 x BNC
  • Genlock thru: 1 x BNC
  • Management network: etherCON socket
  • EtherDMX / motion network (Art-Net, Kinesys K2/Vector): etherCON socket
  • DMX in: 5-pin locking XLR
  • DMX thru: 5-pin locking XLR
  • Peripherals and USB memory devices: 4 x USB 2.0 ports
  • User interface monitor: DisplayPort++ (compatible with adapters to DVI, HDMI and VGA, not supplied)
  • AC power: 100-240 V nominal, 47-63 Hz
  • Power supply unit: integrated, universal multi-voltage
  • Cooling: Forced air Maximum ambient temperature (Ta maximum): 50° C (122° F)
  • Minimum ambient temperature (Ta min.): 0° C (32° F)
  • Total heat dissipation*: 685 BTU/hr. (calculated, +/- 10%)
  • Approvals: EU safety: EN 60950-1 EU EMC: EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3, EN 6100-4-2, EN 6100-4-3, EN 6100-4-4, EN 6100-4-5, EN 6100-4-6, EN 6100-4-11; US safety: ANSI/UL 60950-1; Canadian safety: CAN/CSA C22.2 No. 60950-1
  • Dimensions: 20" x 19" x 3.5" / 508mm x 482mm x 90mm (DxWxH)
  • Weight: 19.8 lbs. / 9.0 kg
