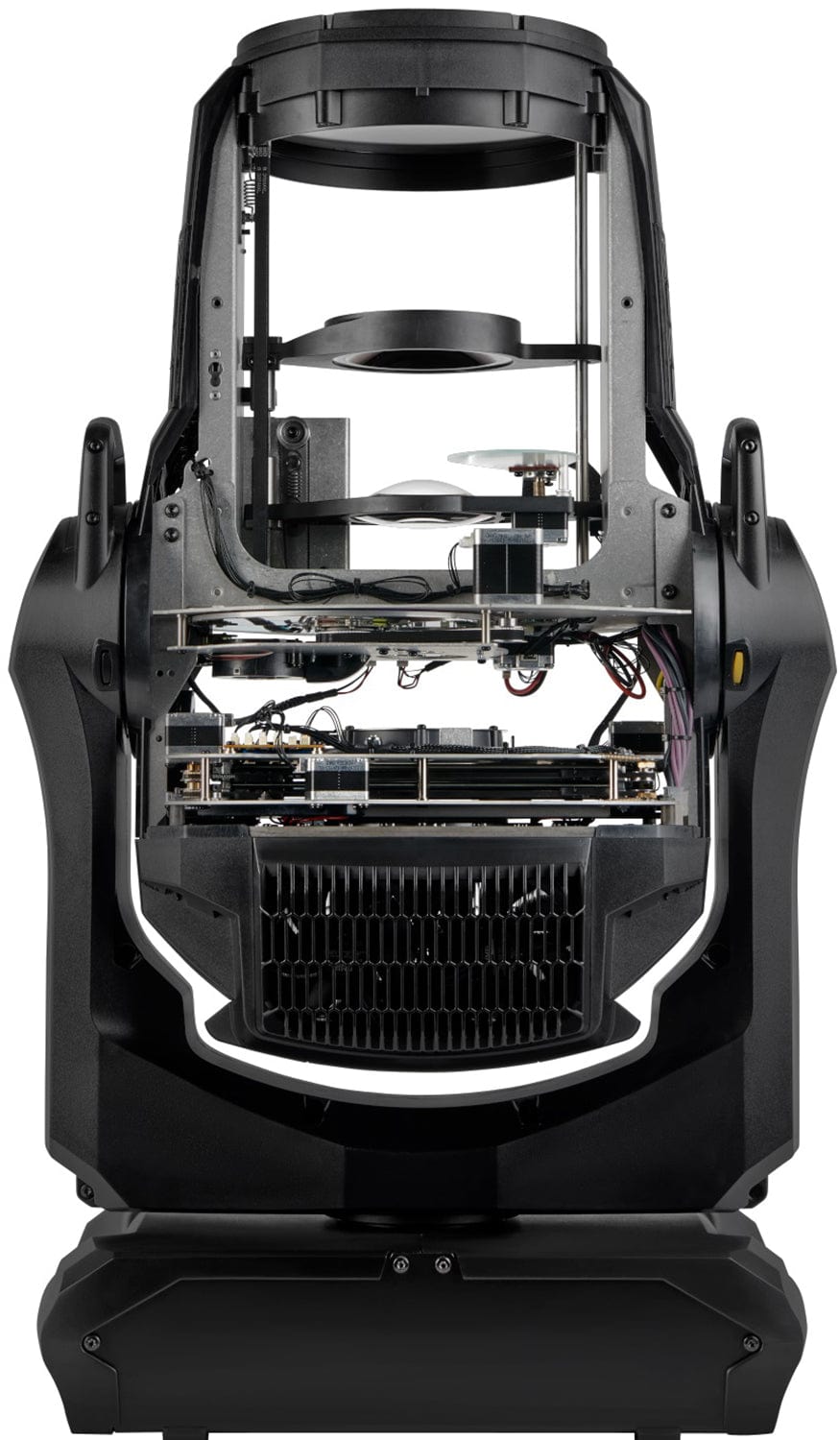

Martin MAC Ultra Wash LED Moving Head Wash SIP
The MAC Ultra Wash is a colossal return to everything that an incredible wash light should be. Pure and simple in concept, it’s a bold, no-nonsense workhorse and the brightest wash they’ve ever developed. Via it’s 1150 W, 5800 K proprietary LED light engine, the MAC Ultra Wash delivers a jaw-dropping 63,500 lumens from a 220 mm front lens and features incredibly fast 1:10 zoom range.
Its 50,000+ hour light engine is the latest in a long line of Martin feats of innovation. No matter what the application, you can reliably count on consistent quality of light and output - show after show for many years to come. The MAC Ultra Wash also includes a powerful feature set, including uniform color mixing, variable CTO, additional color and spectral correction filters, motorized frost for a softer field, high resolution dimming and strobing.
Features:
- Light Source:
- 1150 W proprietary LED light engine
- 84 x 20 W white LEDs
- Minimum LED lifetime: >50,000 hours (see specs for further details)
- Photometric Data:
- Light Engine Luminous Output: 90,000 lumens
- Fixture Luminous Output: 63,500 lumens
- Peak Luminous Intensity: 5,000,000 cd
- CCT: 5800 K (+/- 250 K)
- Optics:
- 220 mm Front Lens
- 1:7 zoom range (6.8° - 47.5° beam angle)
- Dynamic Effects:
- 0 - 100% continuous dimming and strobe effects
- Choice of four dimming curves
- CMY color mixing
- Color temperature control (5800 - 2850 K)
- Color wheel with six interchangeable dichroic filters, including a Spectral Enhancement Filter
- 1:10 Zoom (hyper zoom); 1:7 Zoom (native zoom)
- Motorized frost
- Iris
- Variable edge control
- Pan: 540°
- Tilt: 268°
- P3 videomapping of fixture color and/or intensity (10 segments)
- Pre-programmed effects: Two ranges of pre-programmed FX
- Cooling and Noise:
- Low noise cooling system
- User-selectable output vs. sound level control
- Construction:
- Height (head straight up): 848 mm (33.4 in.)
- Height (maximum): 867 mm (34.2 in.)
- Weight: 39.0 kg (86.0 lbs.)
- Control:
- DMX-512 in/out
- Ethercon in/out for P3, Art-Net, sACN
- Built in Ethernet switch with fail-safe bypass
Specifications:
- Physical:
- Weight: 39.0 kg (86.0 lbs.)
- Minimum center-to-center distance in side-by-side installation: 810 mm (31.9 in.)
- Length (head): 642 mm (25.3 in.)
- Length (base): 468 mm (15.5 in.)
- Width (base): 312 mm (12.3 in.)
- Width (across yoke): 520 mm (20.5 in.)
- Height (head straight up): 848 mm (33.4 in.)
- Height (maximum): 867 mm (34.2 in.)
- Dynamic Effects:
- Pre-programmed effects: Two ranges of FX, independent or synchronized/combined
- Color mixing: CMY, independently variable 0 - 100%
- Color wheel: 6 x interchangeable dichroic filters + open (incl. Spectral Enhancement Filter), indexing, continuous rotation, random color
- Iris: Variable 0 - 100%, pulse effects
- Zoom: Motorized
- Color temperature control: Variable 5800 - 2850 K
- Frost: Motorized
- Dimmer/shutter: 0 - 100% continuous dimming, regular and random strobe and pulse effects, instant open and blackout
- Dimming options: Choice of four dimming curves
- Pan: 540°, coarse & fine control and speed
- Tilt: 268°, coarse & fine control and speed
- P3: Videomapping of fixture color and/or intensity with variable crossfade between DMX control and video control
- Focus: Motorized, range varies with zoom angle, from approx. 4.5 m (14.8 ft.) to infinity
- Control and Programming:
- Control Protocols: DMX, RDM, Art-Net, RDM over Art-Net, sACN and P3
- Protocol detection: Automatic
- Setting and addressing: Display Menu, RDM, RDM over Art-Net or P3
- DMX Modes: One
- DMX channels: 29
- 16-bit Controllable Parameters: Dimming, Color Mixing + CTC, Zoom, Focus, Pan and Tilt
- Fixture Identification: User-settable ID number
- DMX compliance: USITT DMX512-A
- RDM compliance: ANSI/ESTA E1.20
- Art-Net Compliance: Art-Net 1, 2, 3 and 4; including RDM over Art-Net
- sACN Compliance: ANSI E1.31 - 2016
- Martin P3 Compliance: P3 System Controller Software 5.1.0 or newer
- DMX/RDM Transceiver: Galvanic-isolated RS-485
- Ethernet Transceiver: 10/100Mbit (with fail-safe bypass)
- Firmware update: USB memory device, via DMX using Martin Companion or via Ethernet using P3 System Controller
- Local User Interface: Backlit LCD Display with battery-powered operation
- Optics:
- Front lens diameter: 220 mm
- Light source: 84 x 20 W White LEDs in a custom Martin engine
- Zoom Range Beam (half-peak): 6.8° - 47.5° (1:7)
- Zoom Range Field (tenth-peak): 9° - 62° (1:7)
- Maximum Total LED Engine Power: 1150 W
- Minimum LED Lifetime: >50,000 hours (to >80% luminous output)* / >20,000 hours (to >90% luminous output)
- Photometric Data:
- Light engine luminous output: 90,000 lumens
- LED refresh rate : 3000 Hz
- Standard:
- Fixture luminous output: 63,500 lumens
- CRI (Color Rendering Index): 66 (+/- 3)
- TM-30 Rf (IES TM-30-15 Fidelity Index): 66
- TM-30 Rg (IES TM-30-15 Gamut Index): 95
- CCT: 5800 K (+/- 250 K)
- Peak Luminous Intensity: 5,000,000 cd
- With Spectral Enhancement Filter at 5300 K:
- Fixture luminous output: 49,000 lumens
- CRI (Color Rendering Index): 78 (+/- 3)
- With CTO and Cyan at 3200 K:
- Fixture luminous output: 19,500 lumens
- CRI (Color Rendering Index): 90 (+/- 3)
- Construction:
- Housing: High-impact flame-retardant thermoplastic
- Color: Black
- Protection rating: IP20
- Installation:
- Mounting points: 2 pairs of 1/4-turn points for 106 mm (4.17 in.) center-to-center omega brackets
- Location: Dry location only, must be fastened to surface or structure
- Orientation: Any
- Minimum distance to combustible materials: 0.2 m (8 in.)
- Minimum distance to illuminated surfaces: 4.75 m (15.6 ft.)
- Connections:
- DMX and RDM data in/out: 5-pin locking XLR
- AC mains power input.: Neutrik TRUE1 socket, accepts TRUE1 NAC3FX-W (TOP) connector
- Ethernet (Art-Net, sACN and P3) in/out, including fail-safe bypass: Neutrik etherCON
- Firmware from flash memory: USB 2.0 port
- Electrical:
- AC power: 200-240 V AC nominal, 50/60 Hz
- Power supply unit: Auto-ranging electronic switch mode
- Typical half-cycle RMS inrush current at 230 V, 50 Hz: 17.0 A
- Power Factor: 0.99 @ 208 V / 230 V / 240 V
- Max current draw: 8.0 A @ 208 V , 6.7 A @ 230 V / 240 V
- Typical current draw: 6.6 A @ 208 V , 6.0 A @ 230 V , 5.7 A @ 240 V
