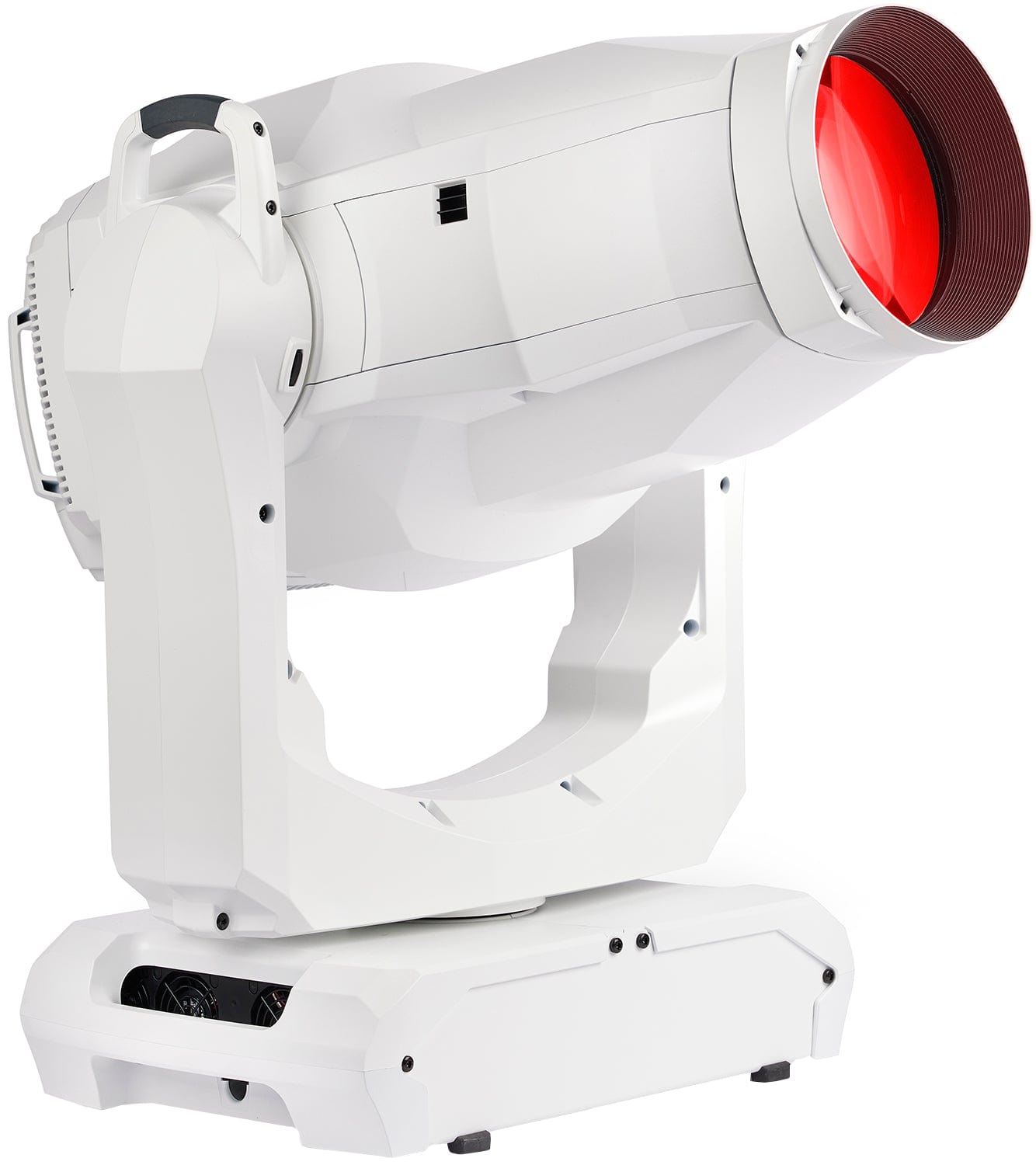

Martin MAC Ultra Performance Moving Head Profile SIP - White
The MAC Ultra Performance has raised the bar for extremely bright moving lights and features benchmark output across the zoom range, a true next generation framing system, higher definition optics and astoundingly low noise levels.
Built to support the biggest live events, this powerful workhorse is based on all new 1150 W, 5800 K proprietary LED light engine and the fixture pushes an incredible 46,500 lumens in projection. The 50,000+ hour light engine also provides high resolution dimming, strobing and Martin’s unique Animotion™ effect.
Features:
- Light Source:
- 1150 W proprietary LED light engine
- 84 x 20 W white LEDs
- Minimum LED lifetime: >50,000 hours (see specs for further details)
- Photometric Data:
- Light Engine Luminous Output: 90,000 lumens
- Fixture Luminous Output: 46,500 lumens
- Peak Luminous Intensity: 3,000,000 cd
- CCT: 5800 K (+/- 250 K)
- Optics:
- 160 mm front Lens
- 1:7 zoom range (8.0° - 54° field angle)
- High resolution projection system
- Dynamic Effects:
- 0 - 100% continuous dimming and strobe effects
- Choice of four dimming curves
- CMY color mixing
- Color temperature control (5800 - 2850 K)
- Color wheel with 6 x interchangeable dichroic filters, including Spectral Enhancement Filter
- Rotating gobo wheel 1 includes 5 interchangeable gobos + open
- Rotating gobo wheel 2 includes 5 interchangeable gobos + open
- Gobo animation wheel, indexing, continuous rotation with variable angle
- Frost (fade in)
- 4-facet prism
- Iris
- Zoom
- Focus with auto tracking
- Extended Framing module with individual +/- 30° across entire beam and +/- 83° rotation
- Pan: 540°
- Tilt: 268°
- P3 videomapping of fixture color and/or intensity (10 segments)
- Pre-programmed effects: Two ranges of pre-programmed FX
- Cooling and Noise:
- Low noise cooling system
- User-selectable output vs. sound level control
- Control:
- DMX-512 in/out
- Ethercon in/out for P3, Art-Net, sACN
- Built in Ethernet switch with fail-safe bypass
Specifications:
- Dynamic Effects:
- Pre-programmed effects: Two ranges of FX, independent or synchronized/combined
- Color mixing: CMY, independently variable 0 - 100%
- Color wheel: 6 x interchangeable dichroic filters + open (incl. Spectral Enhancement Filter), indexing, continuous rotation, random color
- Gobo animation: Interchangeable animation wheel, indexing, continuous rotation with variable angle, speed and direction
- Iris: Variable 0 - 100%, pulse effects
- Zoom: Motorized
- Color temperature control: Variable 5800 - 2850 K
- Framing: Rotatable framing module, +/- 83°, 4 x individually controllable full curtain blades with full variable angle (+/- 30°) through the entire insertion path from 0 - 100%
- Prism: 4-facet, indexing and continuous rotation
- Frost: Variable 0 - 100%, second (heavy) frost available as optional replacement for Prism
- Dimmer/shutter: 0 - 100% continuous dimming, regular and random strobe and pulse effects, instant open and blackout
- Dimming options: Choice of four dimming curves
- Pan: 540°, coarse & fine control and speed
- Tilt: 268°, coarse & fine control and speed
- P3: Videomapping of fixture color and/or intensity with variable crossfade between DMX control and video control
- Focus: Motorized, range varies with zoom angle, from approx. 4.5 m (14.8 ft.) to infinity
- Rotating gobo wheel 1: 5 x interchangeable gobos + open, indexing, continuous rotation and shake
- Rotating gobo wheel 2: 5 x interchangeable gobos + open, indexing, continuous rotation and shake
- Gobo Color Temperature Correction: Automatic
- Physical:
- Weight: 44.0 kg (97.0 lbs.)
- Minimum center-to-center distance in side-by-side installation: 830 mm (32.7 in.)
- Length (head): 660 mm (26.0 in.)
- Length (base): 468 mm (15.5 in.)
- Width (base): 312 mm (12.3 in.)
- Width (across yoke): 520 mm (20.5 in.)
- Height (head straight up): 864 mm (34.1 in.)
- Height (maximum): 876 mm (34.5 in.)
- Control and Programming:
- Control Protocols: DMX, RDM, Art-Net, RDM over Art-Net, sACN and P3
- Protocol detection: Automatic
- Setting and addressing: Display Menu, RDM, RDM over Art-Net or P3
- DMX Modes: Two
- DMX channels: Standard 48, Extended 58
- 16-bit Controllable Parameters: Dimming, Color Mixing + CTC, Gobo Rotation/Indexing, Framing, Iris, Zoom, Focus, Pan and Tilt
- Fixture Identification: User-settable ID number
- DMX compliance: USITT DMX512-A
- RDM compliance: ANSI/ESTA E1.20
- Art-Net Compliance: Art-Net 1, 2, 3 and 4; including RDM over Art-Net
- sACN Compliance: ANSI E1.31 - 2016
- Martin P3 Compliance: P3 System Controller Software 5.1.0 or newer
- DMX/RDM Transceiver: Galvanic-isolated RS-485
- Ethernet Transceiver: 10/100Mbit (with fail-safe bypass)
- Firmware update: USB memory device, via DMX using Martin Companion or via Ethernet using P3 System Controller
- Local User Interface: Backlit LCD Display with battery-powered operation
- Construction:
- Housing: High-impact flame-retardant thermoplastic
- Color: White
- Protection rating: IP20
- 1150 W proprietary LED light engine
- 84 x 20 W white LEDs
- Minimum LED lifetime: >50,000 hours (see specs for further details)
- Light Engine Luminous Output: 90,000 lumens
- Fixture Luminous Output: 46,500 lumens
- Peak Luminous Intensity: 3,000,000 cd
- CCT: 5800 K (+/- 250 K)
- 160 mm front Lens
- 1:7 zoom range (8.0° - 54° field angle)
- High resolution projection system
- 0 - 100% continuous dimming and strobe effects
- Choice of four dimming curves
- CMY color mixing
- Color temperature control (5800 - 2850 K)
- Color wheel with 6 x interchangeable dichroic filters, including Spectral Enhancement Filter
- Rotating gobo wheel 1 includes 5 interchangeable gobos + open
- Rotating gobo wheel 2 includes 5 interchangeable gobos + open
- Gobo animation wheel, indexing, continuous rotation with variable angle
- Frost (fade in)
- 4-facet prism
- Iris
- Zoom
- Focus with auto tracking
- Extended Framing module with individual +/- 30° across entire beam and +/- 83° rotation
- Pan: 540°
- Tilt: 268°
- P3 videomapping of fixture color and/or intensity (10 segments)
- Pre-programmed effects: Two ranges of pre-programmed FX
- Low noise cooling system
- User-selectable output vs. sound level control
- DMX-512 in/out
- Ethercon in/out for P3, Art-Net, sACN
- Built in Ethernet switch with fail-safe bypass
- Dynamic Effects:
- Pre-programmed effects: Two ranges of FX, independent or synchronized/combined
- Color mixing: CMY, independently variable 0 - 100%
- Color wheel: 6 x interchangeable dichroic filters + open (incl. Spectral Enhancement Filter), indexing, continuous rotation, random color
- Gobo animation: Interchangeable animation wheel, indexing, continuous rotation with variable angle, speed and direction
- Iris: Variable 0 - 100%, pulse effects
- Zoom: Motorized
- Color temperature control: Variable 5800 - 2850 K
- Framing: Rotatable framing module, +/- 83°, 4 x individually controllable full curtain blades with full variable angle (+/- 30°) through the entire insertion path from 0 - 100%
- Prism: 4-facet, indexing and continuous rotation
- Frost: Variable 0 - 100%, second (heavy) frost available as optional replacement for Prism
- Dimmer/shutter: 0 - 100% continuous dimming, regular and random strobe and pulse effects, instant open and blackout
- Dimming options: Choice of four dimming curves
- Pan: 540°, coarse & fine control and speed
- Tilt: 268°, coarse & fine control and speed
- P3: Videomapping of fixture color and/or intensity with variable crossfade between DMX control and video control
- Focus: Motorized, range varies with zoom angle, from approx. 4.5 m (14.8 ft.) to infinity
- Rotating gobo wheel 1: 5 x interchangeable gobos + open, indexing, continuous rotation and shake
- Rotating gobo wheel 2: 5 x interchangeable gobos + open, indexing, continuous rotation and shake
- Gobo Color Temperature Correction: Automatic
- Physical:
- Weight: 44.0 kg (97.0 lbs.)
- Minimum center-to-center distance in side-by-side installation: 830 mm (32.7 in.)
- Length (head): 660 mm (26.0 in.)
- Length (base): 468 mm (15.5 in.)
- Width (base): 312 mm (12.3 in.)
- Width (across yoke): 520 mm (20.5 in.)
- Height (head straight up): 864 mm (34.1 in.)
- Height (maximum): 876 mm (34.5 in.)
- Control and Programming:
- Control Protocols: DMX, RDM, Art-Net, RDM over Art-Net, sACN and P3
- Protocol detection: Automatic
- Setting and addressing: Display Menu, RDM, RDM over Art-Net or P3
- DMX Modes: Two
- DMX channels: Standard 48, Extended 58
- 16-bit Controllable Parameters: Dimming, Color Mixing + CTC, Gobo Rotation/Indexing, Framing, Iris, Zoom, Focus, Pan and Tilt
- Fixture Identification: User-settable ID number
- DMX compliance: USITT DMX512-A
- RDM compliance: ANSI/ESTA E1.20
- Art-Net Compliance: Art-Net 1, 2, 3 and 4; including RDM over Art-Net
- sACN Compliance: ANSI E1.31 - 2016
- Martin P3 Compliance: P3 System Controller Software 5.1.0 or newer
- DMX/RDM Transceiver: Galvanic-isolated RS-485
- Ethernet Transceiver: 10/100Mbit (with fail-safe bypass)
- Firmware update: USB memory device, via DMX using Martin Companion or via Ethernet using P3 System Controller
- Local User Interface: Backlit LCD Display with battery-powered operation
- Construction:
- Housing: High-impact flame-retardant thermoplastic
- Color: White
- Protection rating: IP20
