Martin Exterior Projection 1000 Large Scale Image Projector - Standard Finish
The Exterior™ Projection 1000 is an unparalleled, powerful tool for permanent outdoor installations to integrate textures, patterns and graphics for limitless creative exterior lighting designs.
Sporting high impact and low maintenance, this advanced, IP66-rated LED projector offers sharp image quality, dynamic features and great reach over huge distances.
Features:
- Flat field, high contrast image projection based on high power LED engine
- 0-100% electronic dimming
- Full CMY color mixing + additional color wheel with 7 interchangeable colors

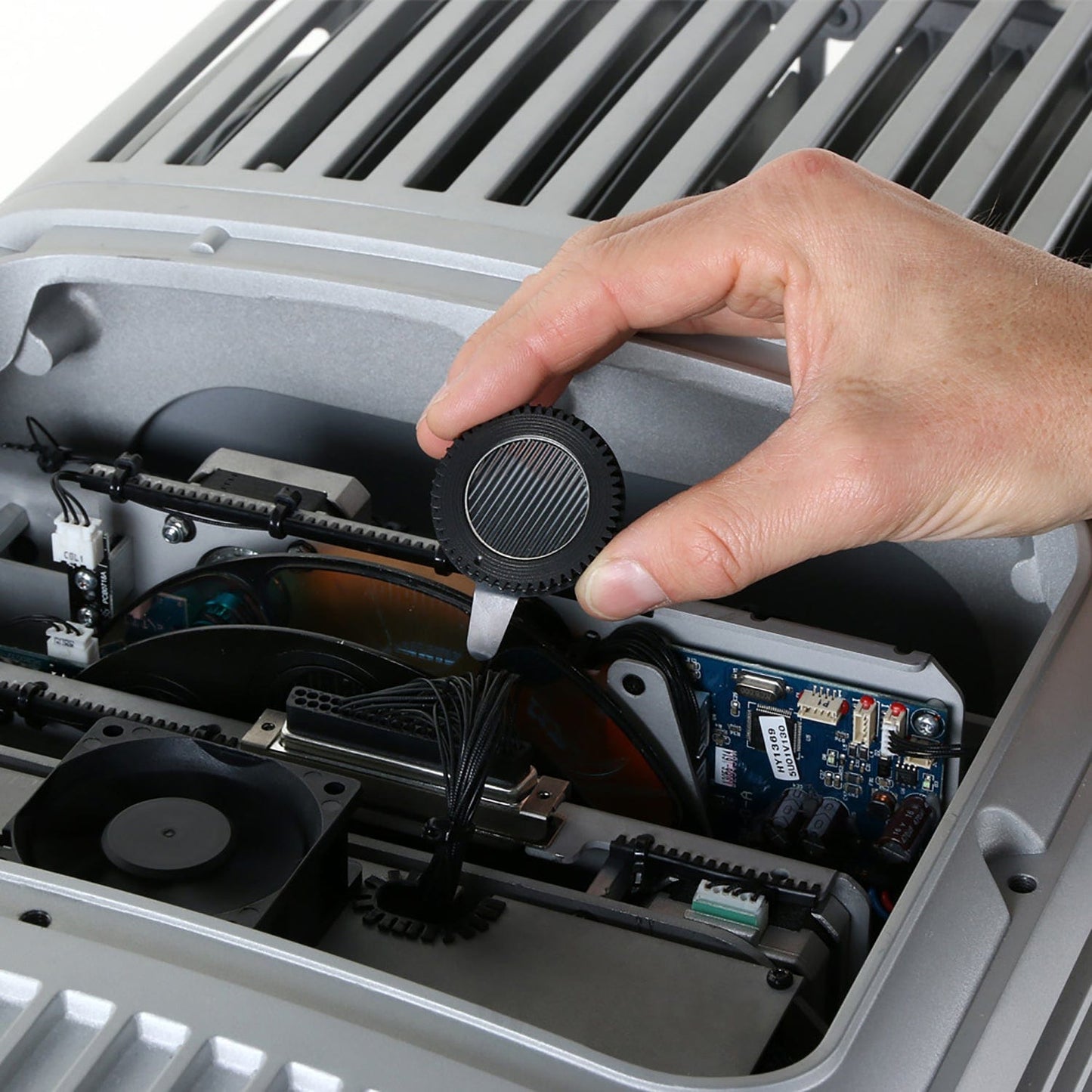

- 7 gobo slots for projecting graphic images (gobos included)
- Animation system for creating animated lighting effects (horizontal and vertical)
- Zoom range from 10° - 44° for exact projection on desired surface
- Variable frost for creating morphing effects and hybrid function as wash light
- 2 rotating prisms for creating abstract multi patterns
- Intuitive setup, configuration and stand-alone programming via graphical OLED display
- RDM and DMX control
- Fully weatherized IP66 fixture for permanent outdoor installation
- Fully convection cooling using heat pipes technology
Specifications:
- Physical:
- Length: 702 mm (27.7 in.)
- Width: 417 mm (16.5 in.)
- Height: 618 mm (24.4 in.)
- Weight: 50 kg (110 lbs.)
- Dynamic Effects:
- Color mixing: CMY, independently variable 0 - 100%
- Color wheel: 7 interchangeable colors + open
- Gobo wheel: 7 rotating gobos plus open, indexing, variable rotation
- Gobo animation wheel: Indexing, continuous rotation with variable angle, speed and direction
- Zoom: 10° - 44° (cut-off angles)
- Prism: Prism wheel with 2 interchangeable prisms, prism rotation and indexing
- Frost filter: Motorized, variable
- Dimming: Electronic, constantly variable 0-100%, 16-bit control
- Shutter: Electronic, strobe and pulse effects, instant open and blackout
- Focus: Motorized, variable 3 m (9.8 ft.) to infinity
- Control and Programming:
- Stand-alone control: Up to 20 scenes with global fade/hold times
- Control options: DMX, RDM, standalone
- Configuration, addressing and status: Onboard control panel with OLED display or via RDM
- 8-bit control: CMY, color selection, gobo selection, prism, frost, animation
- 16-bit control: Gobo indexing and rotation, zoom, focus and intensity
- DMX channels: 20
- DMX compliance: USITT DMX512-A
- RDM compliance: ANSI/ESTA E1.20
- Optics:
- Light source: 440 W white light LED engine
- CRI (Color Rendering Index): 72
- Color temperature: 6500 K (±250 K)
- LED lifetime: 20,000 hours (to >70% luminous output)
- LED manufacturer: Appotronics
- Binning: Tight color and flux binning
- Photometric Data:
- Cut-off angle: 10° - 44°
- Luminous intensity:
- At 10° zoom: 11,500 lumens
- At 16° zoom: 15,000 lumens
- At 40° zoom: 16,800 lumens
- Center Peak:
- At 10° zoom: 731,000 cd
- At 16° zoom: 311,000 cd
- At 40° zoom: 42,000 cd
- Construction:
- Housing: Cast aluminum
- Finish: Hard anodized, metallic grey lacquered
- Front glass: 5 mm (0.2 in.) anti-reflection coated tempered glass
- Ingress protection: IP66
- Impact resistance: IK08 (with control panel display cover plate installed)
- Corrosion resistance: C5-M (very high corrosivity / marine, ISO 12944)
- Vibration resistance: 1.0g, Sinusoidal (IEC 60068-2-6)
- 0,7g RMS Random (IEC 60068-2-64)
- EPA (Effective Projected Area): 0.28m²
- Gobos:
- Suitable material: Metal or borosilicate glass, coatings heat-resistant to 450°C (842° F)
- Gobo diameter: 30.0 mm +0/-0.3 mm (1.2 in. +0/-0.02 in.)
- Maximum image diameter: 26 mm (1.02 in.)
- Gobo thickness, minimum: 1.1 mm ±0.1 mm (0.045 ±0.004 in.)
- Gobo thickness, maximum: 3.0 mm ±0.3 mm (0.118 in. ± 0.012 in.)
- Installation:
- Mounting: Adjustable yoke
- Location: Suitable for wet locations. Do not immerse in water.
- Orientation: Any (sides must be kept vertical)
- Minimum distance to illuminated surfaces: 0.5 m (20 in.)
- Connections:
- Power cable entry: IP66 cable gland
- Power connection: 1.8 m (5.9 ft.) cable tail with bare ends
- Power cable type: EU models: H07RN-F 450/700V, Ø10 mm
- US models: SJTW 14AWG, 300V, Ø9.3 mm
- Data cable entry: IP66 cable gland
- Data connection: 1.8 m (5.9 ft.) combined input + output cable tail with bare ends
- Electrical:
- AC power: 100-120/200-277 V nominal, 50/60 Hz
- Power Supply: Auto-ranging electronic switch-mode
- Typical half-cycle RMS inrush current: 15.5 A
- Idle power (zero intensity, no effects applied): 75 W
- Surge protection: 4 KV
- Typical Power and Current
- Cooling: Convection, internal forced air
- Total heat dissipation (calculated): 2350 BTU/hr.
- Maximum surface temperature: 85° C (185 ° F)
- Maximum ambient temperature (Ta max.): 45° C (113° F)
- Minimum ambient temperature (Ta min.): -30° C (-22° F)
- Physical:
- Length: 702 mm (27.7 in.)
- Width: 417 mm (16.5 in.)
- Height: 618 mm (24.4 in.)
- Weight: 50 kg (110 lbs.)
- Dynamic Effects:
- Color mixing: CMY, independently variable 0 - 100%
- Color wheel: 7 interchangeable colors + open
- Gobo wheel: 7 rotating gobos plus open, indexing, variable rotation
- Gobo animation wheel: Indexing, continuous rotation with variable angle, speed and direction
- Zoom: 10° - 44° (cut-off angles)
- Prism: Prism wheel with 2 interchangeable prisms, prism rotation and indexing
- Frost filter: Motorized, variable
- Dimming: Electronic, constantly variable 0-100%, 16-bit control
- Shutter: Electronic, strobe and pulse effects, instant open and blackout
- Focus: Motorized, variable 3 m (9.8 ft.) to infinity
- Control and Programming:
- Stand-alone control: Up to 20 scenes with global fade/hold times
- Control options: DMX, RDM, standalone
- Configuration, addressing and status: Onboard control panel with OLED display or via RDM
- 8-bit control: CMY, color selection, gobo selection, prism, frost, animation
- 16-bit control: Gobo indexing and rotation, zoom, focus and intensity
- DMX channels: 20
- DMX compliance: USITT DMX512-A
- RDM compliance: ANSI/ESTA E1.20
- Optics:
- Light source: 440 W white light LED engine
- CRI (Color Rendering Index): 72
- Color temperature: 6500 K (±250 K)
- LED lifetime: 20,000 hours (to >70% luminous output)
- LED manufacturer: Appotronics
- Binning: Tight color and flux binning
- Photometric Data:
- Cut-off angle: 10° - 44°
- Luminous intensity:
- At 10° zoom: 11,500 lumens
- At 16° zoom: 15,000 lumens
- At 40° zoom: 16,800 lumens
- Center Peak:
- At 10° zoom: 731,000 cd
- At 16° zoom: 311,000 cd
- At 40° zoom: 42,000 cd
- Construction:
- Housing: Cast aluminum
- Finish: Hard anodized, metallic grey lacquered
- Front glass: 5 mm (0.2 in.) anti-reflection coated tempered glass
- Ingress protection: IP66
- Impact resistance: IK08 (with control panel display cover plate installed)
- Corrosion resistance: C5-M (very high corrosivity / marine, ISO 12944)
- Vibration resistance: 1.0g, Sinusoidal (IEC 60068-2-6)
- 0,7g RMS Random (IEC 60068-2-64)
- EPA (Effective Projected Area): 0.28m²
- Gobos:
- Suitable material: Metal or borosilicate glass, coatings heat-resistant to 450°C (842° F)
- Gobo diameter: 30.0 mm +0/-0.3 mm (1.2 in. +0/-0.02 in.)
- Maximum image diameter: 26 mm (1.02 in.)
- Gobo thickness, minimum: 1.1 mm ±0.1 mm (0.045 ±0.004 in.)
- Gobo thickness, maximum: 3.0 mm ±0.3 mm (0.118 in. ± 0.012 in.)
- Installation:
- Mounting: Adjustable yoke
- Location: Suitable for wet locations. Do not immerse in water.
- Orientation: Any (sides must be kept vertical)
- Minimum distance to illuminated surfaces: 0.5 m (20 in.)
- Connections:
- Power cable entry: IP66 cable gland
- Power connection: 1.8 m (5.9 ft.) cable tail with bare ends
- Power cable type: EU models: H07RN-F 450/700V, Ø10 mm
- US models: SJTW 14AWG, 300V, Ø9.3 mm
- Data cable entry: IP66 cable gland
- Data connection: 1.8 m (5.9 ft.) combined input + output cable tail with bare ends
- Electrical:
- AC power: 100-120/200-277 V nominal, 50/60 Hz
- Power Supply: Auto-ranging electronic switch-mode
- Typical half-cycle RMS inrush current: 15.5 A
- Idle power (zero intensity, no effects applied): 75 W
- Surge protection: 4 KV
- Typical Power and Current
- Cooling: Convection, internal forced air
- Total heat dissipation (calculated): 2350 BTU/hr.
- Maximum surface temperature: 85° C (185 ° F)
- Maximum ambient temperature (Ta max.): 45° C (113° F)
- Minimum ambient temperature (Ta min.): -30° C (-22° F)
