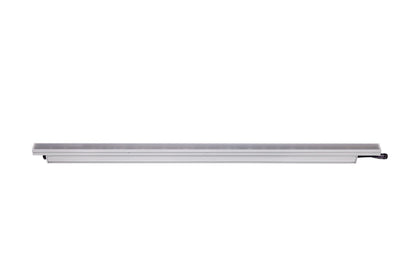

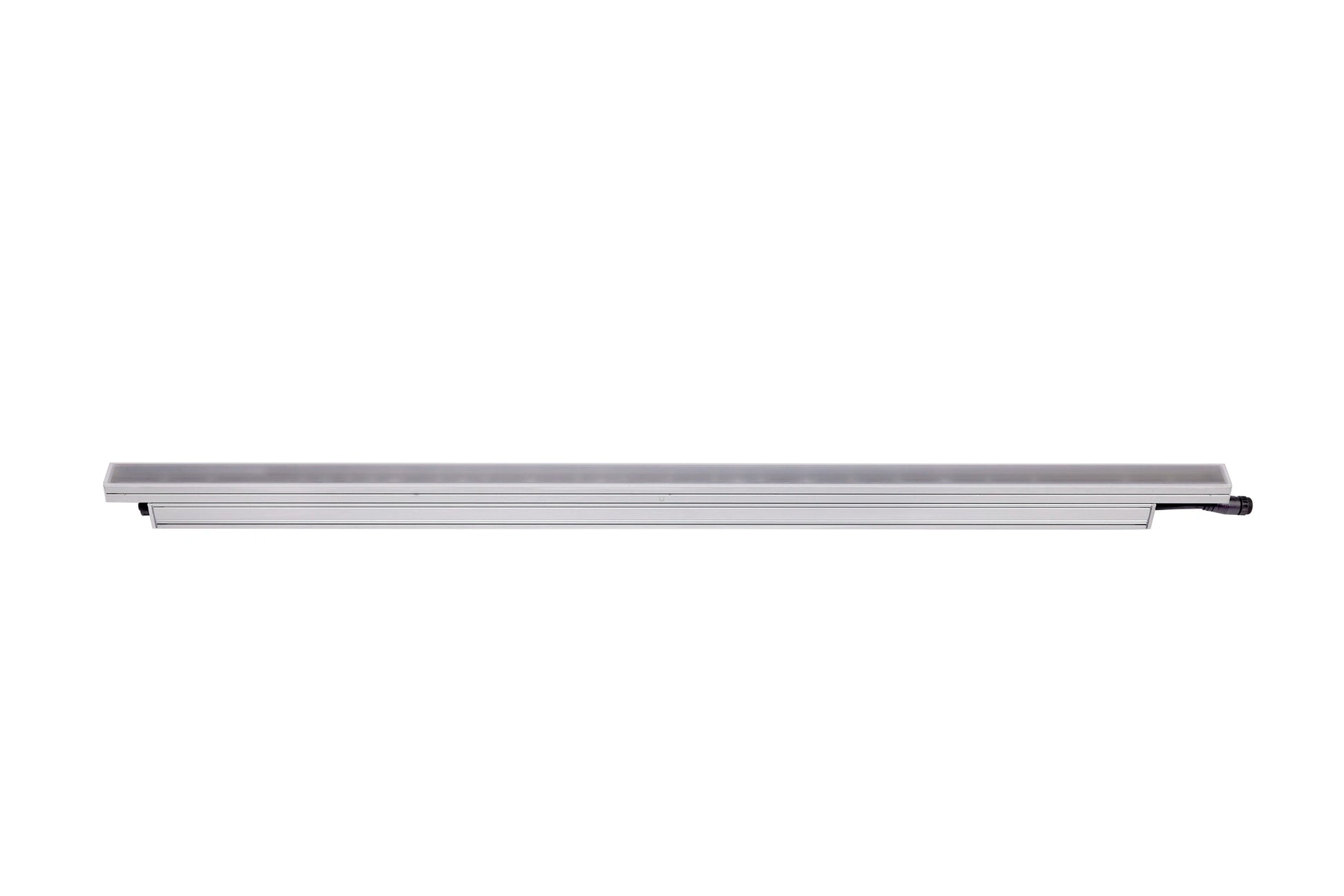

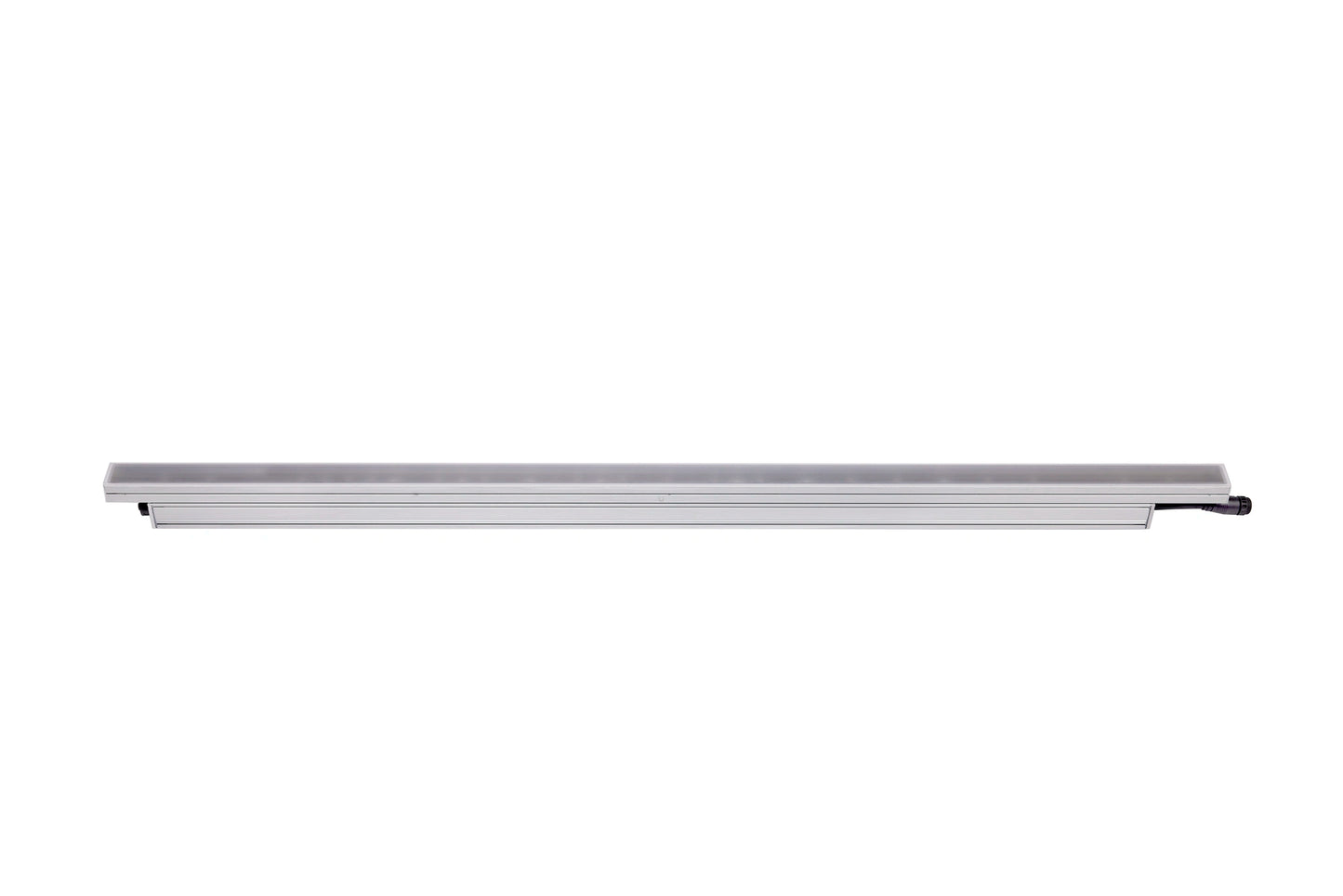

Martin Exterior Linear Pro Cove CTC Fixture
The Exterior Linear Pro Cove CTC Fixture delivers precision architectural lighting with a 9° beam angle and 800 lm/ft output.
This fixture allows you to select from three colour temperatures (2700K, 4000K, 6500K) with high CRI for accurate colour rendering. Also, the 12 LEDs/ft configuration ensures smooth, flicker-free illumination across exterior surfaces.

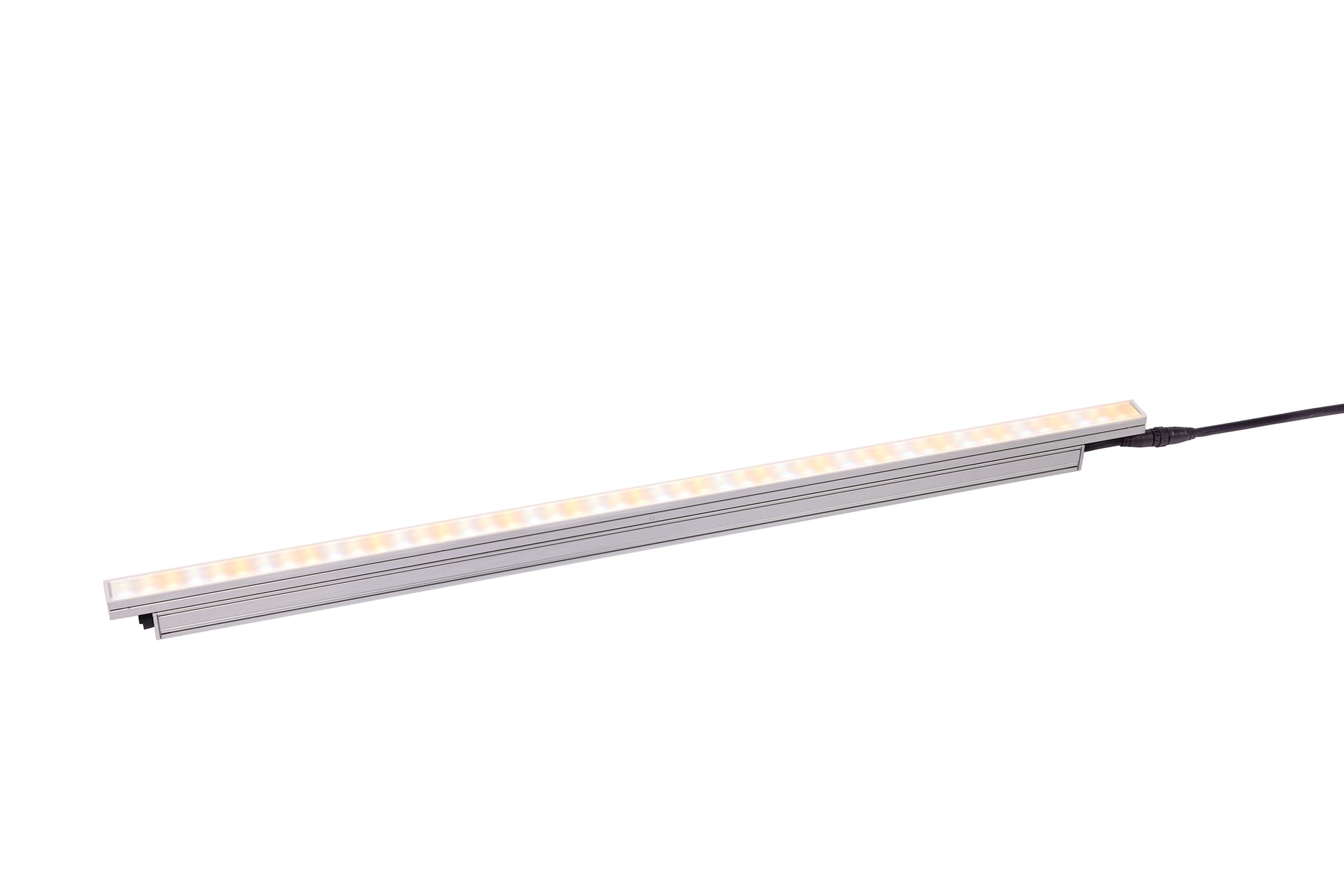

The Exterior Linear Pro Cove CTC can be daisy-chained to multiple fixtures using a combined power and data connector.
Features:

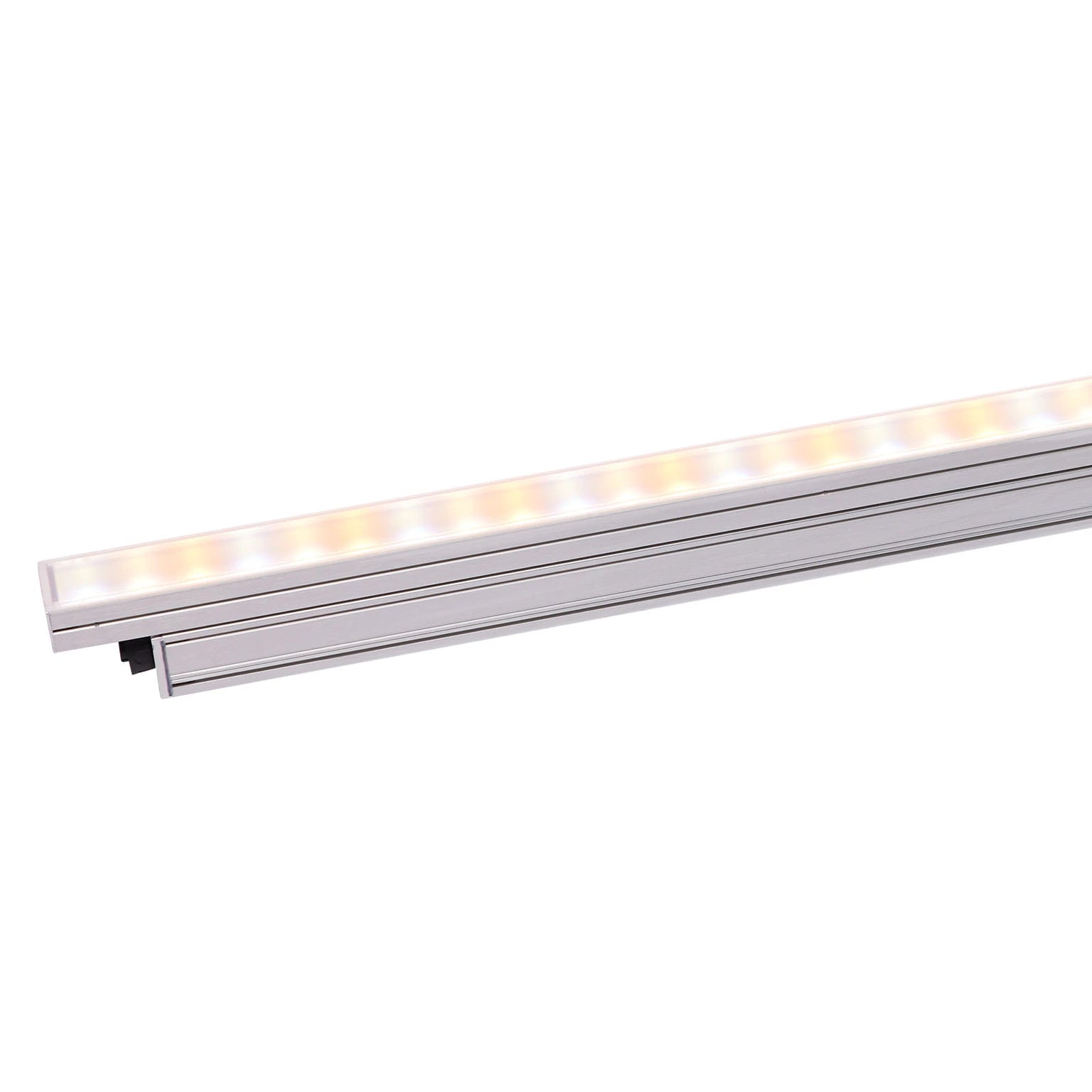

- Warm, neutral and cold white LEDs (2700K, 4000K, 6500K) (12 LEDs/ft)
- Narrow 9° beam angle
- Interchangeable micro lens film for alternative beam angles
- Selectable segment modes (1, 4 or 8 segments)
- Selectable power consumption (12W/10W/5W) per foot
- 5W/ft power mode meets ASHRAE standards for linear façade lighting
- Integrated multi-range power supply unit (PSU) 100-277V for long fixture runs
- Hybrid power and data connector for easy daisy-chained configurations
- DMX and RDM control
- Integrated magnetic switch for local diagnostics
- Rugged IP66 housing designed for permanent outdoor installations
- Low weight 0.8 kg/ft (1.9 lbs/ft)
- Compact design - 40mm (1.57 inch) width
Specifications:
- Physical:
- Width: 40 mm (1.57 inch.)
- Height: 68 mm (2.67 inch)

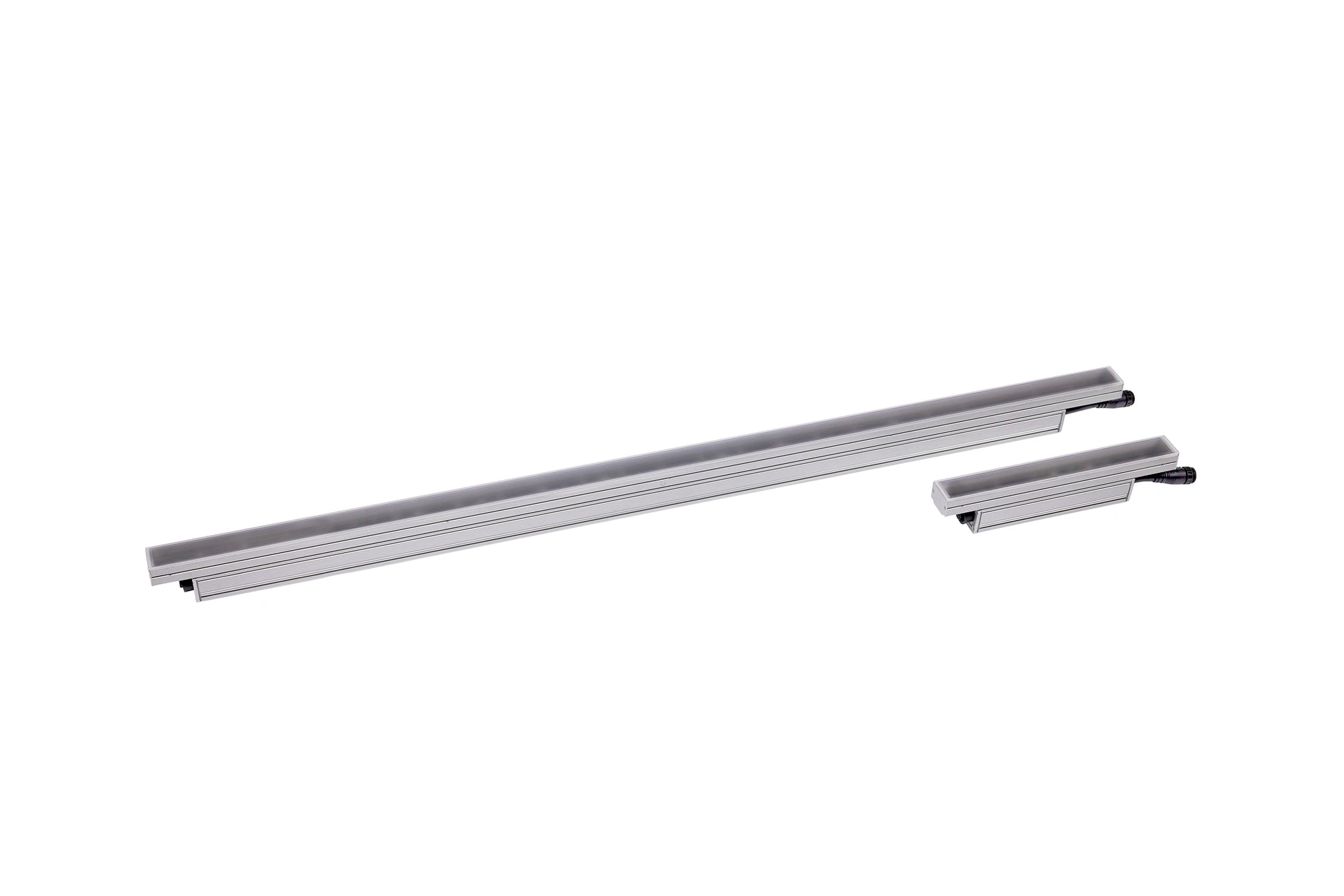

- Length - 1 ft Version: 312mm (1.02 ft)
- Length - 4 ft Version: 1227mm (4.02 ft)
- Weight - 1 ft Version: 0.85 kg (1.9 lbs)
- Weight - 4 ft Version: 2.8 kg (6.2 lbs)
- Dynamic Effects:
- Intensity: 0 - 100%
- Colour temperature control: 2700 K – 6500 K
- Segment Control: 0.5ft, 1 ft or full 4 ft fixture control
- Control and Programming:
- Control systems: DMX, RDM
- User interface: Magnetic button to call up fixture status and test fixture
- Stand-alone control: Up to 20 scenes with individual fade/hold times
- Control resolution: 8-bit DMX individual colour control
- Dimmer Resolution: 16-bit DMX control of intensity
- DMX compliance: USITT DMX512/1990
- RDM compliance: ANSI/ESTA E1.20
- DMX channels 4ft: 3/3/12/24 (standard/1 seg/4 seg/8 seg)
- DMX channels 1ft: 3/6/3 (standard/1 seg/2 seg)
- Optics:
- Minimum LED lifetime: 50 000 hours (to >70% luminous output)
- Binning: Tight colour and flux binning
- Calibration: Full Gamut Colour Calibration (1 step MacAdam ellipse)
- \
- Beam angle: 9°, 9°x 30° , 9°x 60°
- Photometric Data:
- CRI (Colour Rendering Index) : >70 (higher CRI available on request)
- CCT: 2700K - 6500K
- Luminous output: 4 ft at 48W
- 2700K: 2100 lumens
- 4000K: 2360 lumens
- 6500K: 2250 lumens
- Construction:
- Housing: Aluminium
- Finish: Clear anodized or optional colours on request
- Front: Clear polycarbonate
- Protection rating: IP66
- IK rating: IK08
- Effective Projected Area (EPA): 0.04 m2 per ft
- Corrosion resistance: C5 - very high corrosivity / Durability Range: High (ISO 12944-6)
- Vibration resistance: 1.0g, Sinusoidal (IEC 60068-2-6), 0.7g RMS Random (IEC 60068-2-64), 3.0g (ANSI C136-31)
- Installation:
- Orientation: Any
- Minimum distance to illuminated surfaces: 0.1 m / 0.3 ft.
- Connections:
- Power/data in/thru: 8-pin custom connectors
- Surge Protection: 4 KV
- Maximum connected 4 ft fixtures: 42 pcs (52 m /169 ft) @ 230-277 V
- Maximum total string length (cable + fixtures): 150 m / 328 ft
- Electrical:
- AC power: 100-277 V AC nominal, 50/60 Hz
- Power supply unit: Auto-ranging electronic switch mode
- Typical half-cycle RMS inrush current at 230 V, 50 Hz: 0.35 A
- Typical earth-leakage current 1 ft: 0.15 mA
- Typical earth-leakage current 4 ft: 0.21 mA
- Power Factor 12 W / 10 W mode: 0.95 @ 100 V / 120 V / 208 V / 230 V / 240 V , 0.90 @ 277 V
- Power Factor 5 W mode: 0.90 @ 100 V / 120 V / 208 V / 230 V / 240 V , 0.70 @ 277 V
- Power Consumption 4 ft:
- Maximum: 48 W / 40 W / 20 W
- Idle: 2.30 W
- Thermal:
- Cooling: Convection
- Maximum ambient temperature: 45° C (113° F)
- Minimum ambient temperature: -30° C (-22° F)
- Maximum total heat dissipation, calculated, +/- 10%: 41 BTU/hr. per foot
