Description

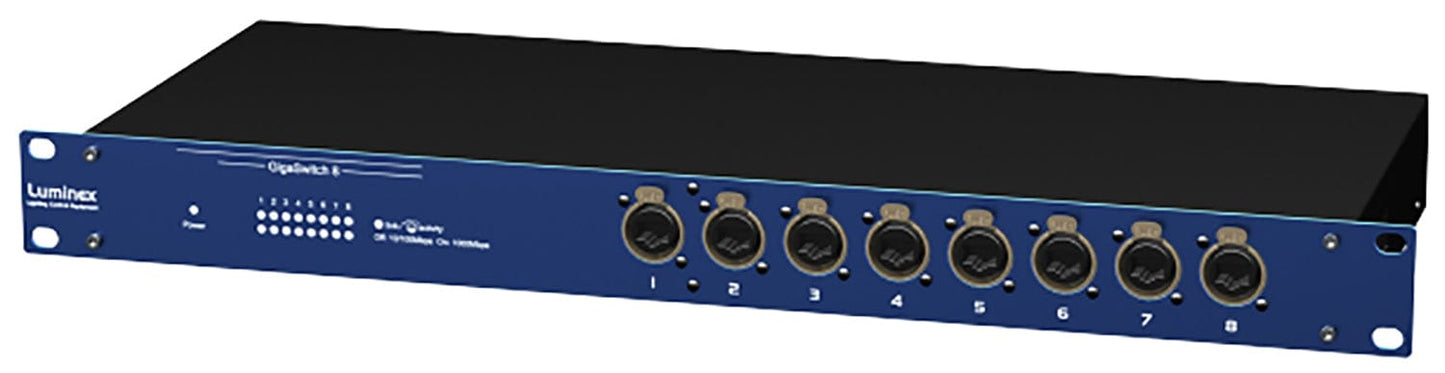

Luminex Gigaswitch 8 - 8 Port Network Switch with Ethercon

The Luminex GigaSwitch 8 Ethernet Switch is equipped with eight neutrik Ethercon ports providing 10/ 100/ 1000 Mbps Bandwidth. These ports can be used for connecting PCs, Media servers, ArtNET or sACN node. Each port can support up to 2000 Mbps of throughput in fullduplex mode. This stand-alone GigaSwitch 8 enables the network to use most multimedia and imaging applications concurrently with other user applications without creating bottlenecks.

This all comes in a 19'' unit high metal housing for the Gigaswitch 8. The Gigaswitch 8 Truss comes in a rugged truss mountable metal housing with two M10 inserts. This enclosure allows to use the node in a truss, on the floor or as a table top device.

Specifications:

  • Dimensions:
    • 482 x 172 x 44 (mm)
    • 19” x 6,8” x 1,75”
    • Package: 520 x 235 x 50 (mm)
  • Weight: 2.5 kg
  • Electrical:
    • Voltages: 90 – 260 VAC
    • Frequency: 47 – 63 Hz
    • Rated power: 20 W
    • Fuses: 125V-250V, 1A, Slow blow only (5mm x 20mm)
  • Connectors:
    • 8 x shielded Neutrik RJ45 Ethercon connector
    • 1 x IEC inlet (rack version only)
    • 1 x Neutrik Powercon in (Truss version only)
    • 2 x M10 inserts (Truss version only)
  • Environmental:
    • Operating temperature : 0 ~ 40°C (32 ~ 95°F)
    • Storage temperature : -10 ~ 70°C (14 ~ 158°F)
    • Humidity : 15% ~95% RH, non-condensing
