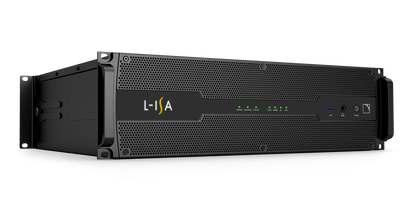

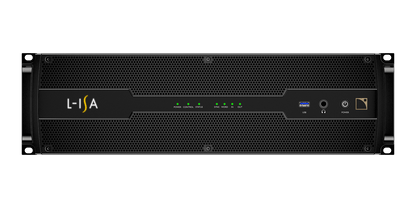

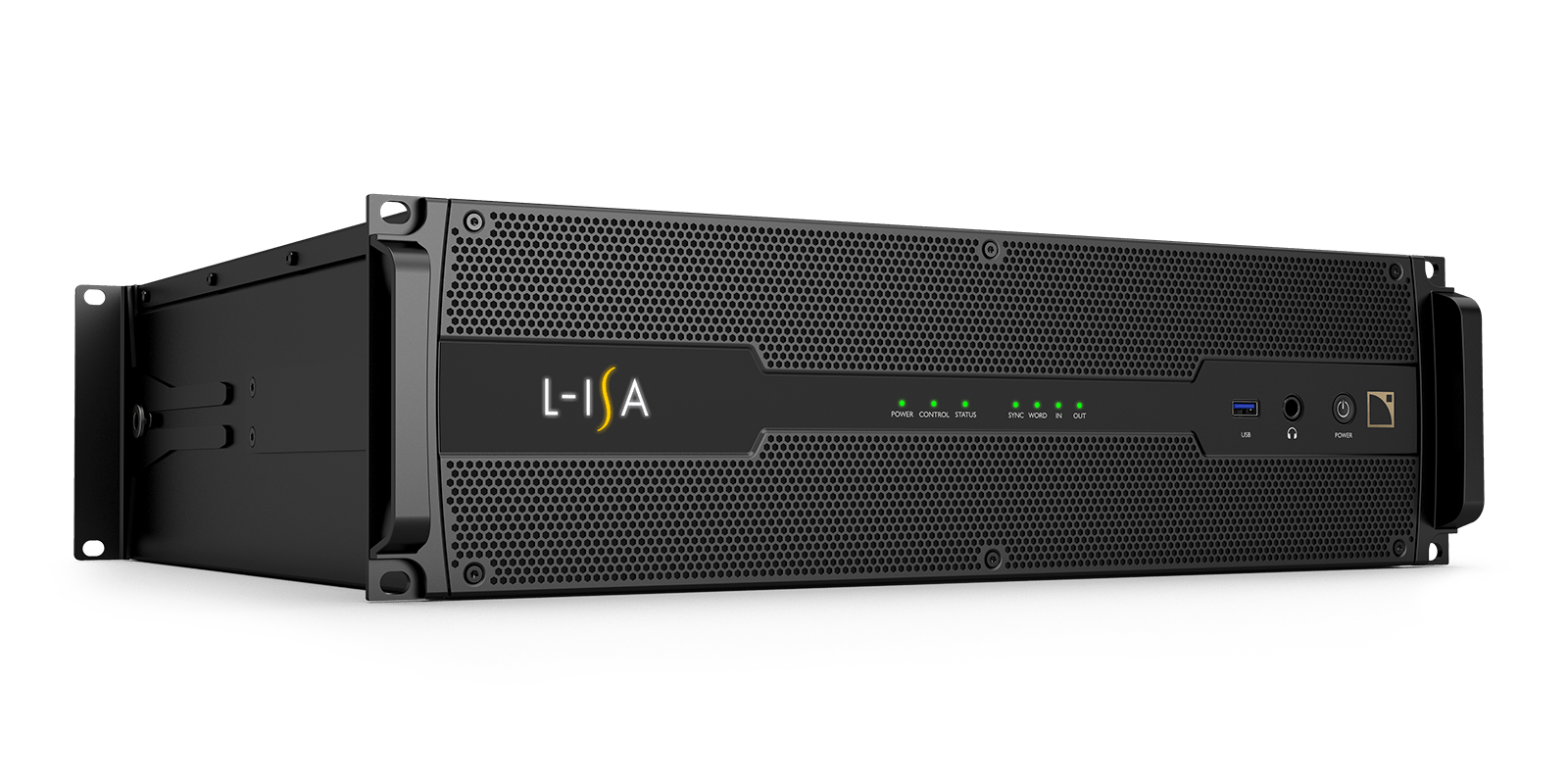

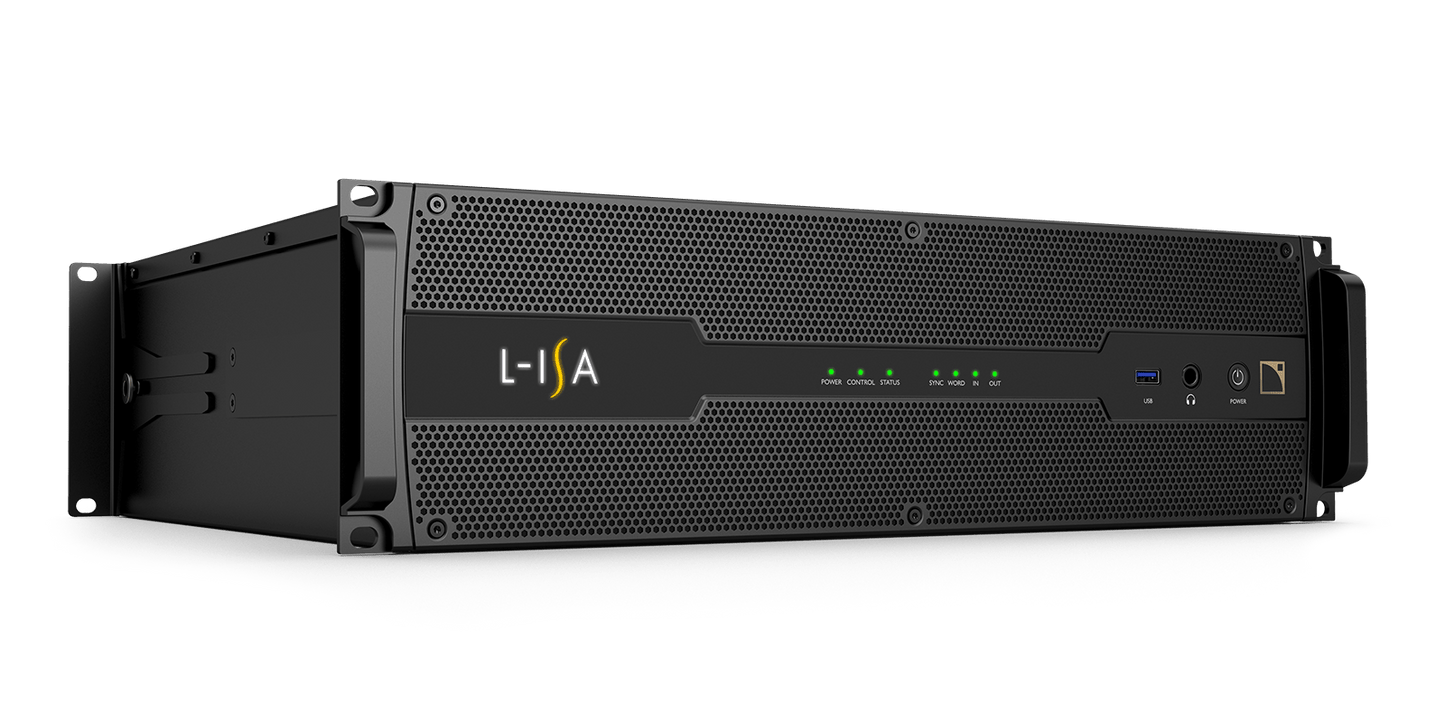

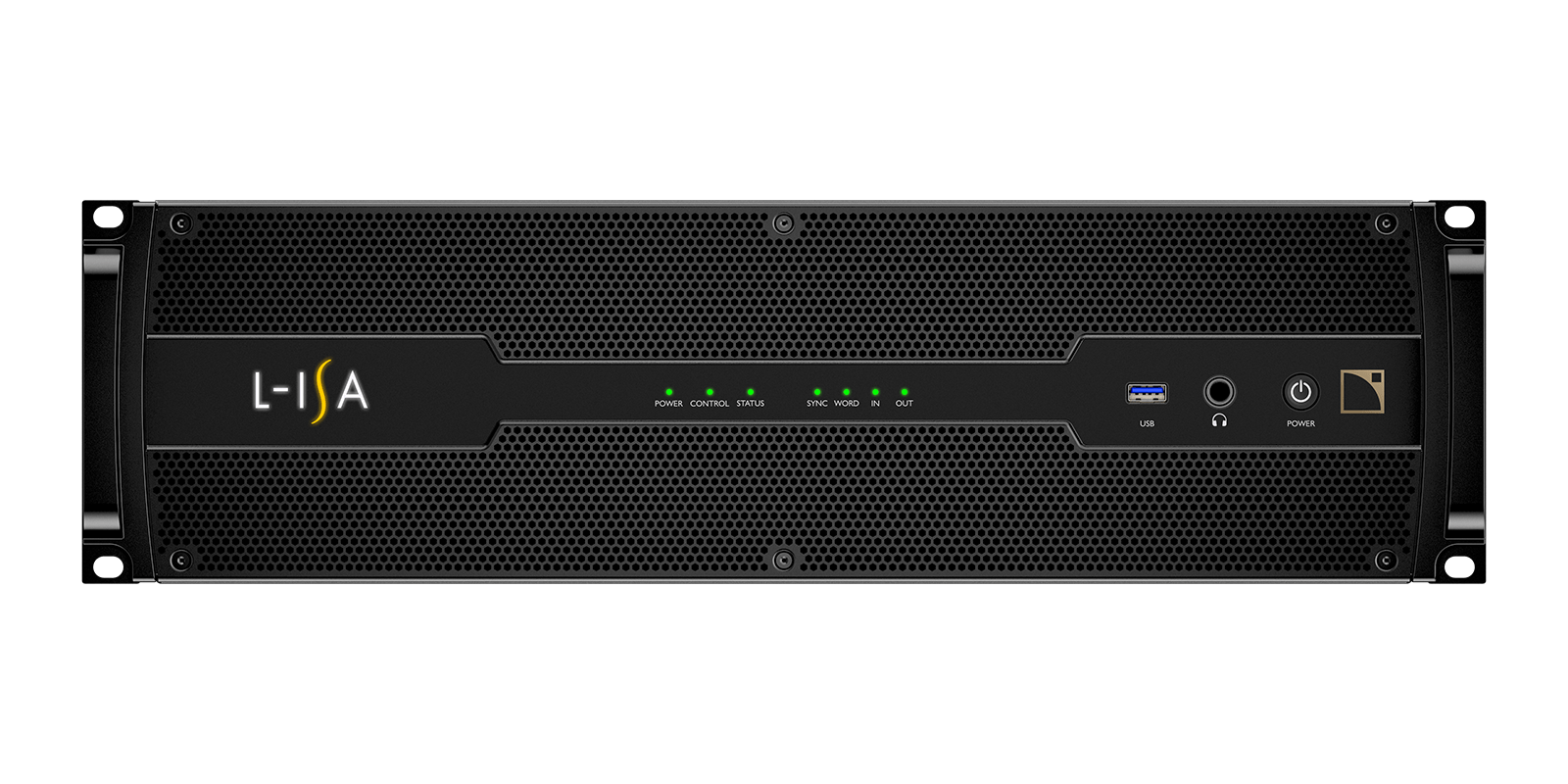

L-Acoustics L-ISA Processor II Processor
The L-ISA Processor II is a multichannel audio processor, it supports up to 128x128 channels at 96 kHz and offers flexible output configurations with license-based options for 16, 32, 64, or 128 outputs.
The processor uses advanced spatialisation controls that include Pan, Width, Distance, Elevation, and Aux send capabilities, enhanced by a built-in room engine.

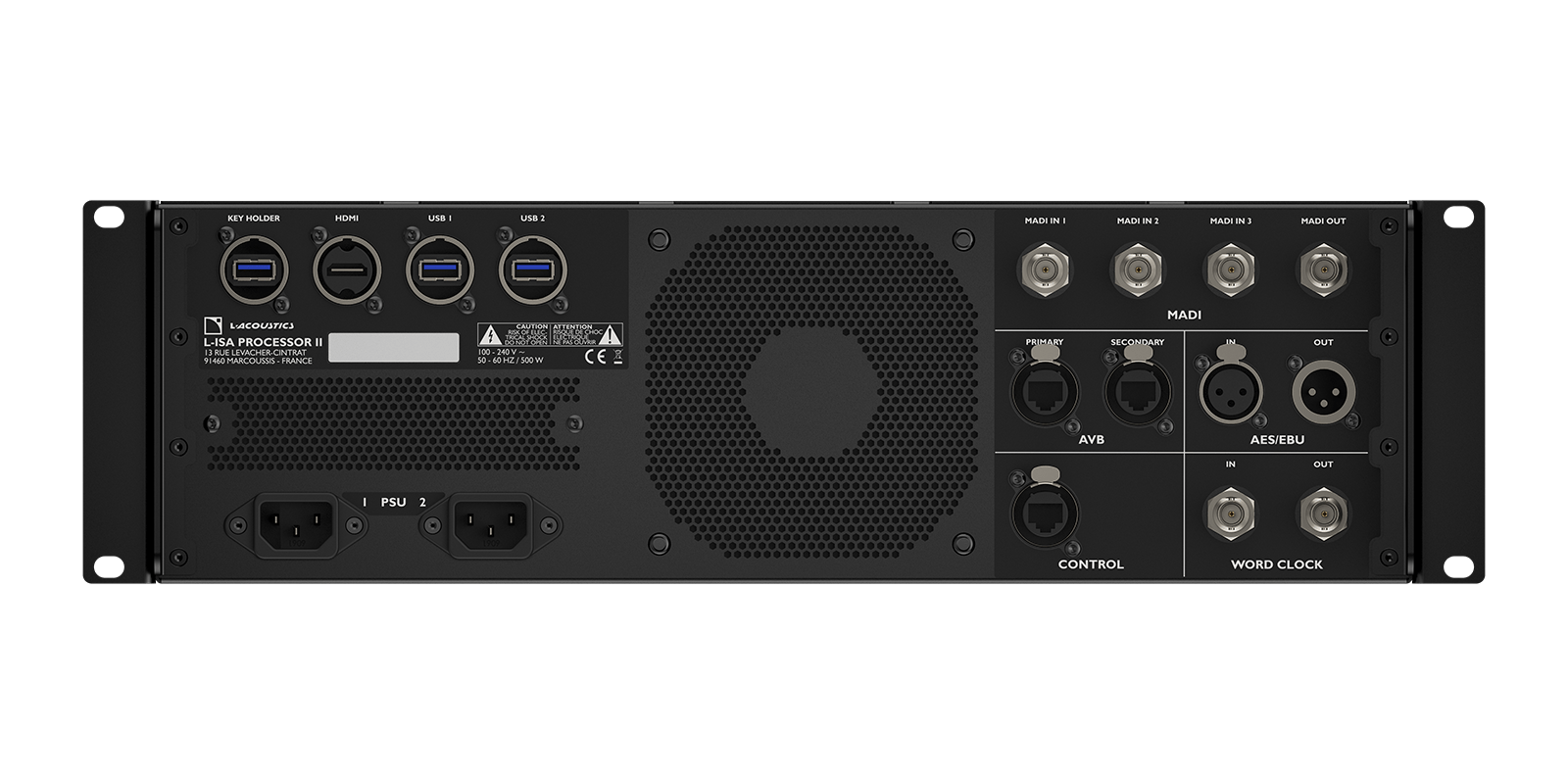

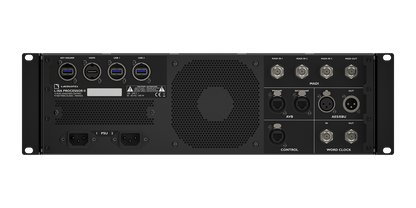

The L-ISA Processor II supports inputs of 64 AVB channels, 96 MADI channels, and two AES/EBU channels, and offers outputs of 128 AVB channels, 32 MADI channels, and two AES/EBU channels.
Specifications:
- Universal SMPS with PFC
-
Redundant power supplies: 2 x 100 V - 240 V AC 350 W
Features:
- Multi-channel 3D processing
- Static or dynamic delay
- Multi-channel algorithm
- Trajectories for mono, stereo or group of objects
- Listening from any virtual position within the audience area to assess the mix
- Immersive audio on headphones
- Mix from standard stereo buses to an L-ISA deployment
- Recall session configurations from 3rd party devices
- Multi-channel 3D processing
- Static or dynamic delay
- Multi-channel algorithm
- Trajectories for mono, stereo or group of objects
- Listening from any virtual position within the audience area to assess the mix
- Immersive audio on headphones
- Mix from standard stereo buses to an L-ISA deployment
- Recall session configurations from 3rd party devices
