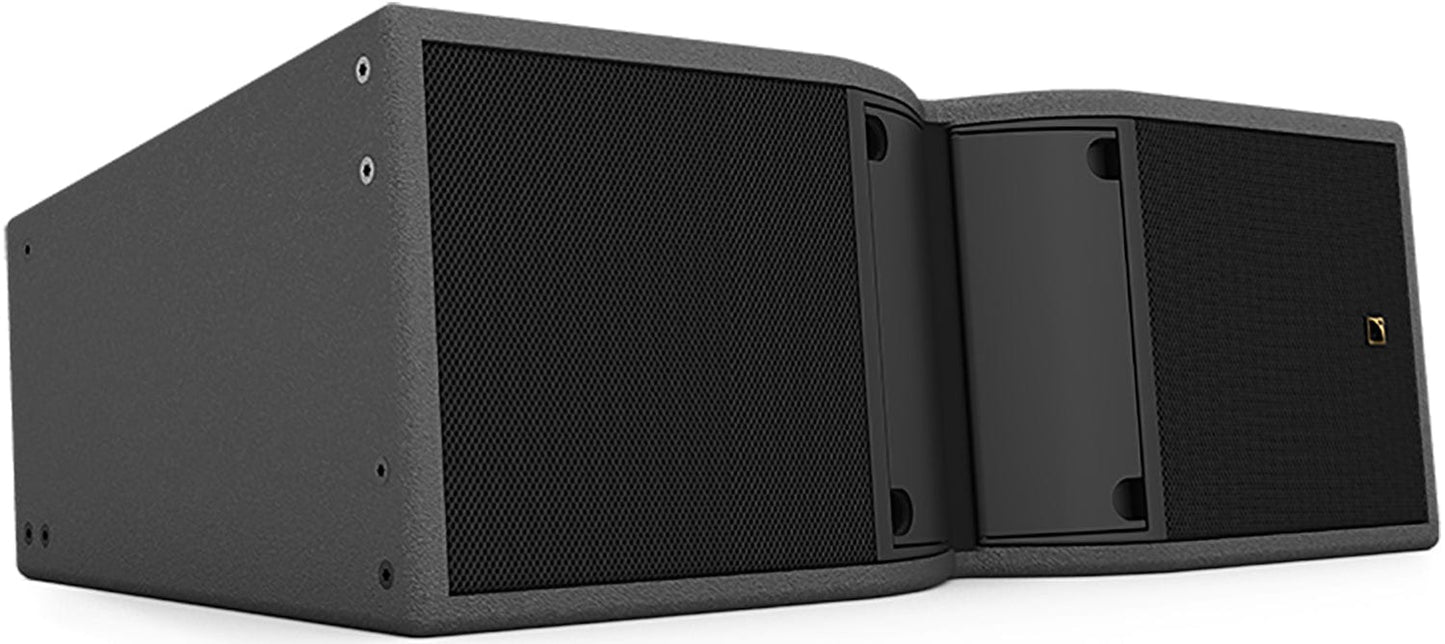

L-Acoustics KARA-IIi 2-Way Active Variable Curvature WST Enclosure - 8 Inch LF / 3 Inch HF - Install
Install-specific 2-way active enclosure with two weather-resistant premium 8 in transducers and high-output 3 in diaphragm compression driver coupled to a cylindrical waveguide with user-adjustable horizontal directivity and 10° of vertical coverage. The enclosure cabinet is constructed of premium grade Baltic beech and birch plywood. The enclosure front is protected by a coated steel grill and an acoustically transparent fabric. The enclosure integrates inserts for flush-fitting connecting plates and an optional acoustically transparent front screen. The four-point hardware allows for rigging and combining with other loudspeakers of the same family to achieve a coherent wavefront line source. The line source directivity depends upon the number of elements and inter-element angles and can be matched to the audience geometry. Exclusively driven and protected by a proprietary amplified controller through a dedicated preset.
Features:
- Best-in-class SPL per weight and footprint
- 4 horizontal directivities with PANFLEX™
- Clear low-frequency power with L-VENTS™
- Designed to melt into any venue decor
Specifications:
- Coverage (-6 dB):
- Enclosure directivity: dependent upon the number of elements and the line source curvature
- Waveguide directivity: 70° / 110° symmetric or 90° asymmetric (35°/90°)
- Transducers:
- LF transducer: 2 x 8" cone drivers
- HF transducer: 3" diaphragm compression driver
- Acoustics:
- Nominal impedance: 8 Ω LF, 8 Ω HF
- Usable bandwidth: 55 Hz - 20 kHz (-10 dB), 63 Hz - 20 kHz (-6 dB), 80 Hz - 19 kHz (-3 dB)
- RMS power handling (Calculated using the mean impedance measured on the usable bandwidth):
- LF: 280 W
- HF: 75 W
- Maximum SPL: 142 dB (Peak level measured at 1 m under free field conditions using pink noise with crest factor 4)
- Physical data:
- Acoustical load: bass-reflex
- Cabinet: premium grade Baltic birch plywood
- Finish: Dark grey brown Pantone 426 C
- Dimensions (W, H, D): 701 mm, 252 mm, 409 mm / 27.6 in, 9.9 in, 16.1 in
- Weight (net): 21 kg / 46 lb
- Connectors: 2 × 4-point terminal block with push-in connection
- IP: IP55
