L-Acoustics A10 Focus 2-Way Passive Speaker - Install Version

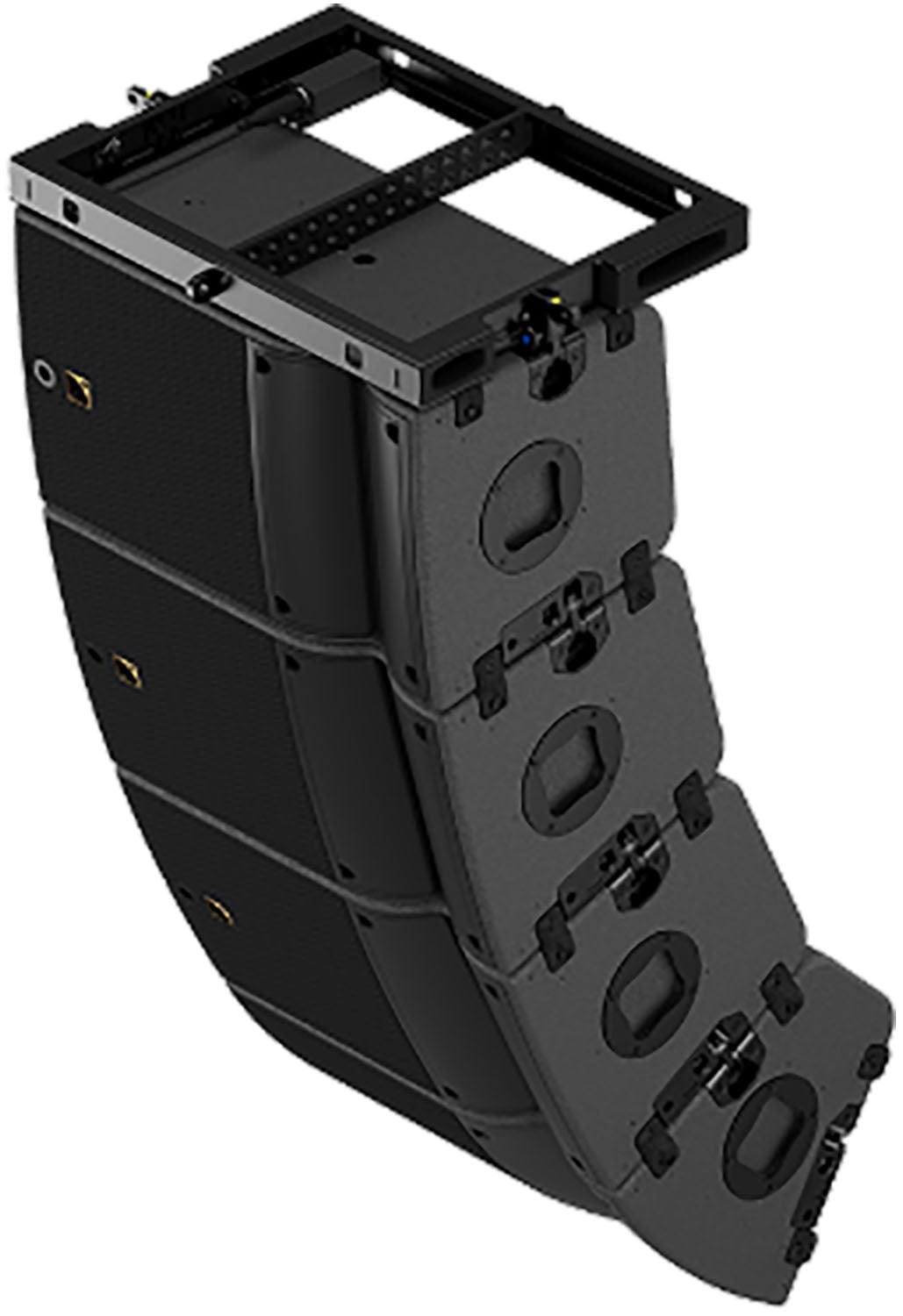

2-way passive enclosure with a weather resistant premium 10 in transducer and high output 2.5 in diaphragm compression driver coupled to a cylindrical waveguide with user-adjustable directivity. The enclosure cabinet is constructed of premium grade Baltic beech and birch plywood. The enclosure front is protected by a coated steel grill and an acoustically transparent fabric. The enclosure integrates two ergonomic handles, and panel corner stops for enclosure protection. The Flush-fitting hardware allows for rigging and combining with other loudspeakers of the same family to achieve a coherent wavefront line source. The line source directivity is equal to N x 10 degree (where N is the number of enclosures in the array). Exclusively driven and protected by a proprietary amplified controller through a dedicated preset.

Features:

  • Flown even under the most stringent rigging conditions
  • 4 horizontal directivities with PANFLEX™
  • Clear low-frequency power with L-VENTS™
  • Scales to your needs, from high-output point source to versatile line source

Specifications:

  • Coverage (-6 dB):
    • Enclosure directivity: 10°
    • Waveguide directivity: 70° / 110° symmetric or 90° asymmetric
  • Transducers:
    • LF transducer: 10" cone driver
    • HF transducer: 2.5" diaphragm compression driver
  • Acoustics:
    • Nominal impedance: 8 Ω
    • Usable bandwidth: 66 Hz - 20 kHz (-10 dB), 70 Hz - 20 kHz (-6 dB), 75 Hz - 20 kHz (-3 dB)
    • RMS power handling (Calculated using the mean impedance measured on the usable bandwidth): 296 W
    • Maximum SPL: 140 dB (Peak level measured at 1 m under free field conditions using pink noise with crest factor 4)
  • Physical data:
    • Acoustical load: bass-reflex
    • Cabinet: premium grade Baltic beech and birch plywood
    • Finish: Dark grey brown Pantone 426 C
    • Dimensions (W, H, D): 581 mm, 354 mm, 339 mm / 22.9 in, 13.9 in, 13.3 in
    • Weight (net): 22 kg / 49 lb
    • Connectors: 2 × 4-point speakON
    • IP: IP55
