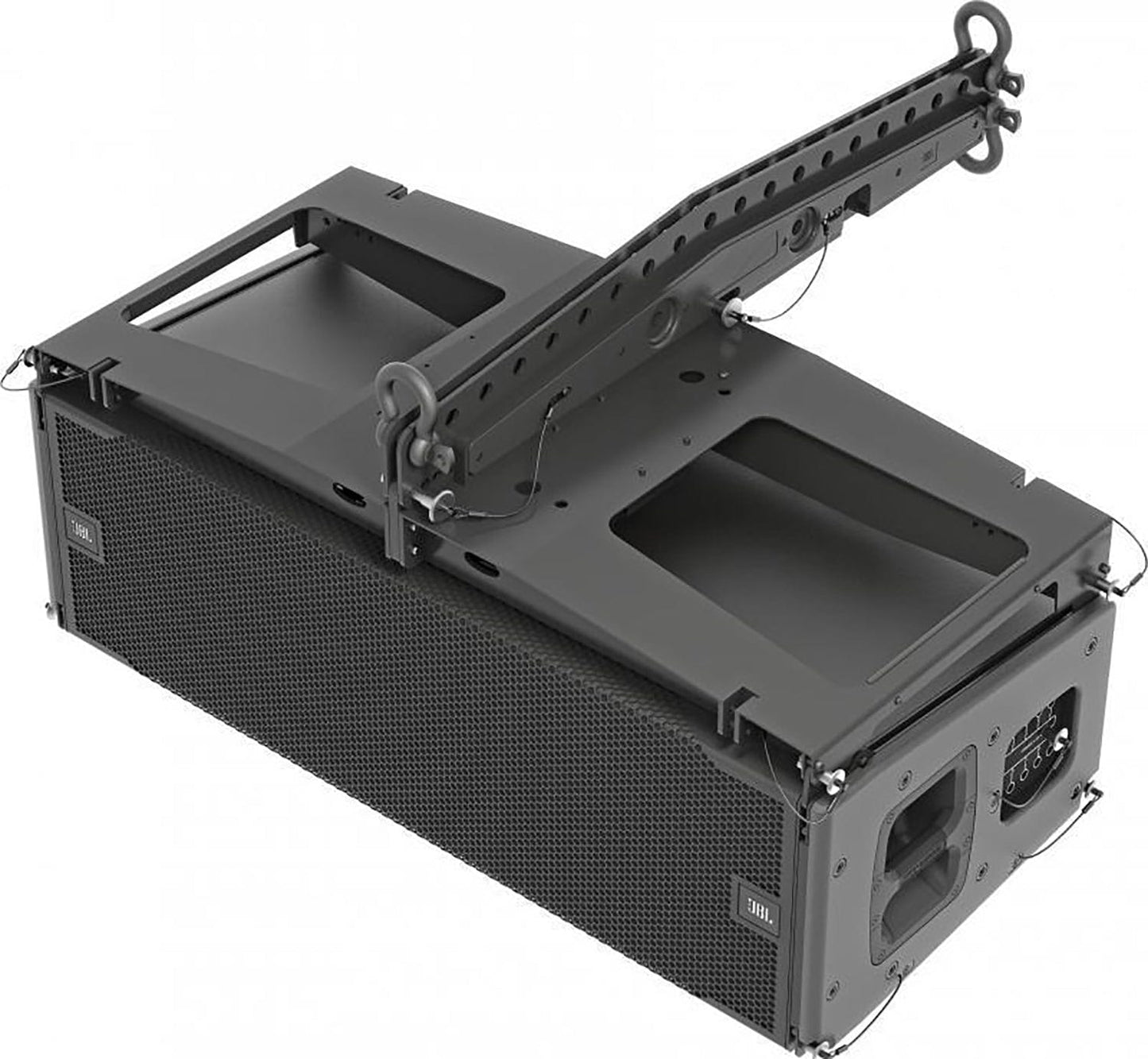

JBL VTX-A12-AF-EB Extension Bar for A12 Array Frame

The VTX A12 AF EB Extension Bar was designed to operate in conjunction with the VTX A12 AF Array Frame to facilitate either single-point, front-to-back or side-by-side suspension modes. The extension bar is compatible with 5/8-inch shackles and can be stored above the main frame during transportation. The extension bar can extend to the front or the rear of the frame to accommodate both up-tilt and down-tilt aiming options. Three connection points are available for attaching the Extension Bar to the main frame, allowing for precise control of shackle positioning for single-point applications. One VTX A12 AF EB Extension Bar is included with the Array Frame and additional Extension Bars can be purchased to facilitate side-by-side suspension.

Features:

• Extension Bar for use with VTX A12 AF
• Single, front-to-back, or side-by-side pick point options
• 0.5-degree pick point resolution
• Lightweight design
• Compatible shackle size: 5/8 in

Specifications:

• Construction:
  • High-grade steel with anti-corrosion coating
  • Plastic side covers
• Finish: Black powder coat
• Compatible Shackle Size: 5/8-inch
• Mechanical Limits:
  • Maximum: (24) VTX A12
  • Safe Limit: (12) VTX A12
• Dimensions (H x W x D): 138 mm x 1013 mm x 78 mm (5.4 in x 39.8 in x 3.0 in)
• Net Weight: 13.6 kg (30 lbs)
