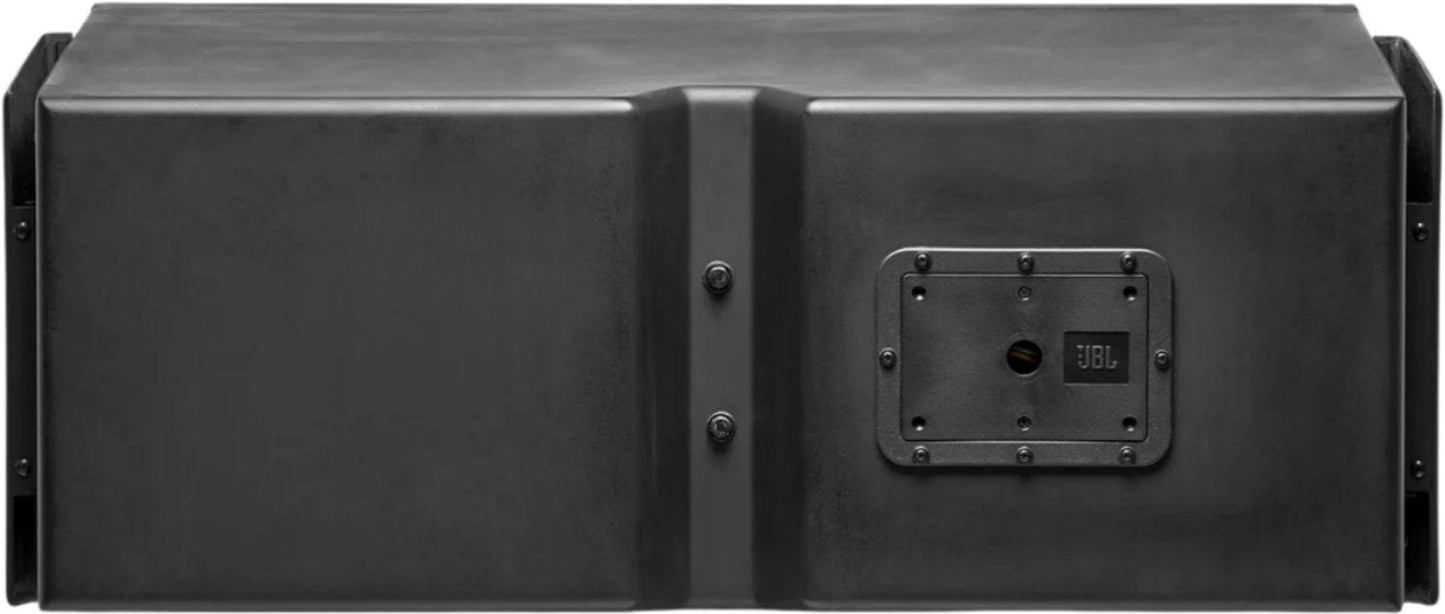

JBL VLA-C265-BK 2x 10-Inch Two-Way Horn-Loaded Line Array 65-Degree Loudspeaker System - Black

More JBL Pro products

Write a review Q&A SKU: VLA-C265-BK Solotech ID#: 135289
1 of 3
Get a quote

Need help? Contact our product specialists.

View full details

Need help? Contact our product specialists.

Description

JBL VLA-C265-BK 2x 10-Inch Two-Way Horn-Loaded Line Array 65-Degree Loudspeaker System - Black

Features:

  • Compact line array module optimized for permanent install applications
  • Advanced technology component transducers for low weight and high output
  • Outdoor IP55 rated enclosure for protection from dust and water
  • Comprehensive rigging points for creating a line array configuration
  • Fiberglass box construction and weatherized components
  • Can be bi-amplified for maximum SPL, or fed passively for reduced amplification costs
  • 65° horizontal coverage pattern

Specifications:

  • Frequency Range (-10dB): 85 Hz - 19 kHz
  • Frequency Response (±3 dB): 108 Hz – 16.5 kHz
  • Full Range: 800 W Continuous Pink Noise (3200 W peak), 2 hrs; 400 W Continuous Pink Noise (1600W peak), 100 hrs
  • Bi-amp LF: 800 W Continuous Pink Noise (3200 W peak), 2 hrs; 400 W Continuous Pink Noise (1600W peak), 100 hrs
  • Bi-amp HF: 150 W Continuous Pink Noise (600 W peak), 2 hrs; 50 W Continuous Pink Noise (200 W peak), 100 hrs
  • Full-Range: 80 V Rms (2 hrs), 160 V peak
  • Maximum SPL (1m): 131 dB Cont. Ave (2 hrs), 137 dB Peak
  • Coverage Pattern (-6 dB): Horizontal: 65° (+15°/-10°, 1.5 kHz to 15 kHz); Vertical: Varies with array size and configuration
  • Amplifiers: Crown DCi Family with DSP on-board
  • Recommended: Crown DCi 2 | 1250N, Crown DCi 4 | 1250N/ND/DA, Crown DCi 2 | 2400N, Crown DCi 4 | 2400N
  • LF Driver: 2 x 2261FF, 254 mm (10 in) diameter, each with two 76 mm (3 in) diameter voice coils, Neodymium Differential Drive®, Direct Cooled™
  • HF Driver: 3 x 2415K, D2 Dual Diaphragm Dual Voice Coil Compression Drivers, each with two 38 mm (1.5 in) dia. Voice Coils; 21 mm (0.8 in) exit
  • Enclosure Material: Fiberglass shell, gelcoat finish, with 18 mm Birch plywood internal bracing
  • Grille: Powder coated 14 gauge hex-perforated steel with zinc under-coating, backed with acoustically transparent cloth and hydrophobic screen
  • Inter-Enclosure Angles:
    • VLA-C265 to VLA-C265: 1.5°, 2.4°, 3.8°, 6.0°, 9.5° using VLA-C265 Bracket Plate (included with VLA-C265)
    • VLA-C265 to VLA-C2100 (either model on top/bottom): 1.9°, 3.0° using VLA-C2100 Bracket Plate (included with VLA-C2100) and 4.7°, 7.5°, 11.9° using VLA-C265 Bracket Plate (included with VLA-C265)
    • VLA-C265 below VLA-C125S Subwoofer (VLA-C265 cannot be connected above C125S): 0°, 5° using VLA-C125S Bracket Plate (included with VLA-C125S)
  • Environmental: IP-55 rating per IEC529 (dust protected and protected against jets of water)
  • Terminals: CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9mm (0.375 in) spade lugs. Touch-proof covers
  • Colors: Black
  • Dimensions (H x W x D): 381 x 848 x 460 mm (15.0 x 33.4 x 18.1 in)
  • Net Weight (each): 37.7 kg (83 lbs)
  • Shipping Weight (ea): 44.0 kg (97 lbs)
  • Included Accessories:
    • 2 pcs. VLA-C265 Bracket Plates
    • 8 pcs. M10 x 35 mm stainless steel bolts (1.5mm pitch, 6 mm hex-drive) for attaching Bracket Plates
    • 2 pcs. Plastic Trim Cover Panels for Bracket Plates, each attaches via 4 pcs (8 total) 3-32 x ½” trusshead, phillips-drive, stainless steel bolts
  • Optional Accessories: VLA-C-SB2 (JBL-VLACSB2BK) Suspension Bracket Kit
