JBL CONTROL 322CT C 322C W/100W X-Former

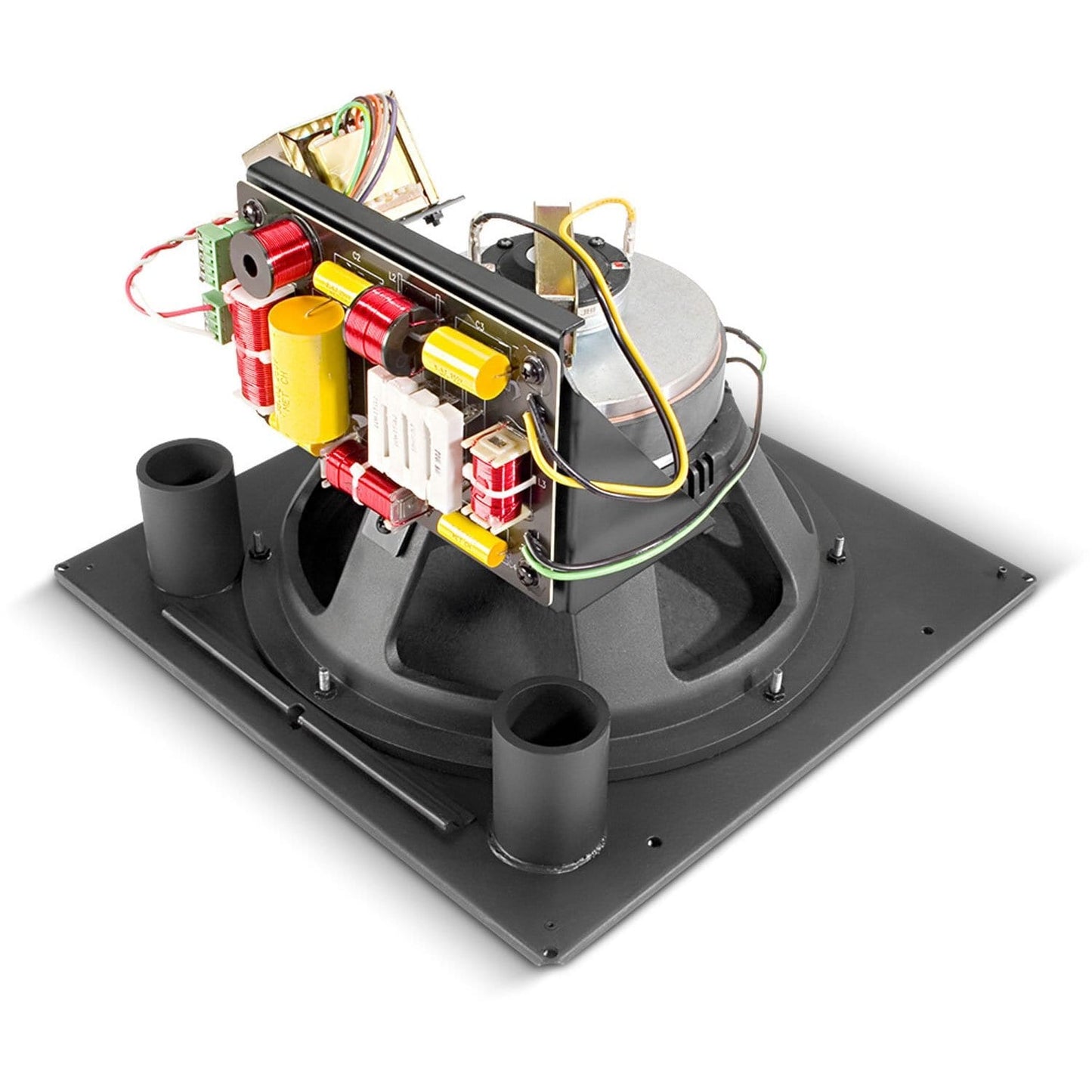

High-output 12 in. Coaxial Ceiling Loudspeaker

The 322CT delivers exceptional next-generation performance in a coaxial point source design ceiling loudspeaker.

Features:

  • Consistent 90° broadband pattern control.
  • Components • Kevlar-reinforced 300 mm (12 in) woofer with 75 mm (3 inch) voice-coil cone. • Medium-format compression driver.
  • Extraordinary clarity for speech and vocals with extended frequency response for music.
  • Power handling of 400 Watts with high sensitivity provides high SPL capability.
  • Advanced high-slope crossover network for constant coverage and smooth, natural midrange.
  • Clean, contemporary grille and optional backbox available.

Specifications:

  • Frequency Range (-10 dB): 32 Hz – 20 kHz
  • Long-Term System Power Rating: 400 W (1600 W peak), 2 hrs 250 W (1000 W peak), 100 hrs
  • Taps: 70V: 100W, 50W, 25W, & 12.5W 100V: 100W, 50W & 25W
  • Frequency Response (±3 dB): 48 Hz – 19 kHz
  • Coverage Pattern: 90° conical, broadband (Avg. 1k - 16kHz)
  • Directivity Factor (Q): 9 (1k - 16kHz)
  • Directivity Index (DI): 9.5dB (1k - 16kHz)
  • Sensitivity (2.83V@ 1m): 95 dB measured half-space
  • Maximum SPL: 121 dB cont ave (124 dB peak)
  • Dimensions (H x W x D): 366 x 366 mm (14.4 x 14.4 in) square baffle x depth from back of baffle of 240 mm (9.5 in)
